SAXSdb — 2ix1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

EXORIBONUCLEASE 2

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Monomer	Protein 1 RNA 1	;5'-D(APAPAPAPAPAPAPAPAPAP APAP*A)-3' ; × 1 MAGNESIUM ION × 1 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RNB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 26–664； UniProt 6–644

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ix1
Deposition date deposition_date	2006-07-05
Structure title title	RNase II D209N mutant
Keywords keywords	S1, RNA, CSD, RNB, NUCLEASE, RNASE II, HYDROLASE, RNA- BINDING, EXONUCLEASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ix1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ix1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

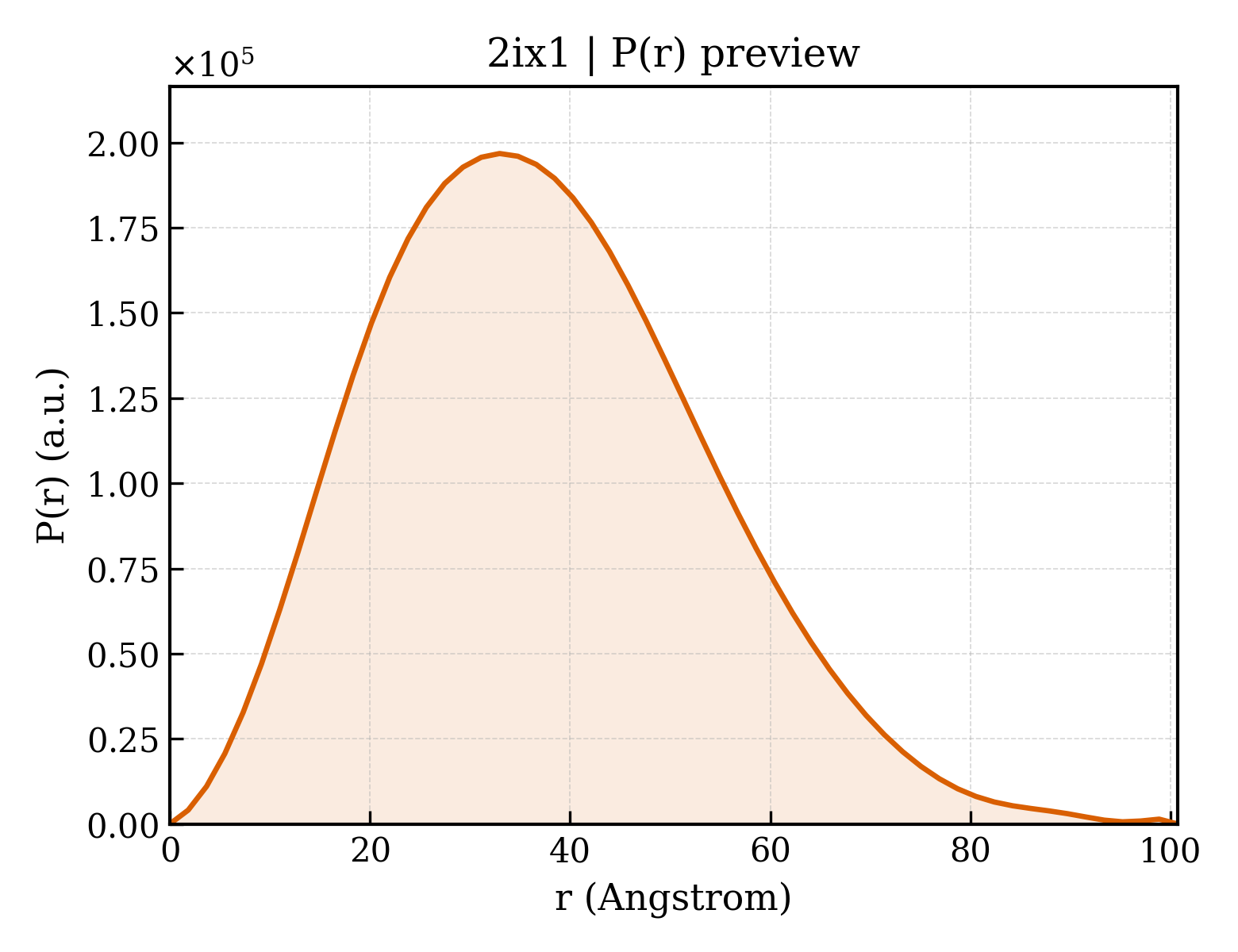

2ix1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.65 Å
Rg (electron density)	28.38 Å
Total Rg	29.09 Å
Atom count	5380
Residues	656
Excluded volume	94445 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ix1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	EXORIBONUCLEASE 2
Molecular weight formula_weight	74683.1 kDa
EC 编号 ec_number	3.1.13.1
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5439

MGSSHHHHHHSSGLVPRGSHMLEADPLLAQLKQQLHSQTPRAEGVVKATEKGFGFLEVDAQKSYFIPPPQMKKVMHGDRIIAVIHSEKERESAEPEELVEPFLTRFVGKVQGKNDRLAIVPDHPLLKDAIPCRAARGLNHEFKEGDWAVAEMRRHPLKGDRSFYAELTQYITFGDDHFVPWWVTLARHNLEKEAPDGVATEMLDEGLVREDLTALDFVTIDSASTEDMNDALFAKALPDDKLQLIVAIADPTAWIAEGSKLDKAAKIRAFTNYLPGFNIPMLPRELSDDLCSLRANEVRPVLACRMTLSADGTIEDNIEFFAATIESKAKLVYDQVSDWLENTGDWQPESEAIAEQVRLLAQICQRRGEWRHNHALVFKDRPDYRFILGEKGEVLDIVAEPRRIANRIVEEAMIAANICAARVLRDKLGFGIYNVHMGFDPANADALAALLKTHGLHVDAEEVLTLDGFCKLRRELDAQPTGFLDSRIRRFQSFAEISTEPGPHFGLGLEAYATWTSPIRKYGDMINHRLLKAVIKGETATRPQDEITVQMAERRRLNRMAERDVGDWLYARFLKDKAGTDTRFAAEIVDISRGGMRVRLVDNGAIAFIPAPFLHAVRDELVCSQENGTVQIKGETVYKVTDVIDVTIAEVRMETRSIIARPVA

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	;5'-D(APAPAPAPAPAPAPAPAPAP APAP*A)-3' ;
Molecular weight formula_weight	4234.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	B

AAAAAAAAAAAAA

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	48

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d2ix1a1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

Domain ID domain_id	d2ix1a2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

Domain ID domain_id	d2ix1a3
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.5 — Cold shock DNA-binding domain-like

Domain ID domain_id	d2ix1a4
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.16 — RNB domain-like

Domain ID domain_id	d2ix1a5
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	2ix1A01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	2ix1A02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	640 —

Domain ID domain_id	2ix1A04
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

▶

Unit-cell length a length_a	86.316 Å
Unit-cell length b length_b	86.316 Å
Unit-cell length c length_c	279.245 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.740 Å
Low-resolution limit resolution_low	29.300 Å
R factor r_factor	0.1870
R_work r_work	0.1850
R_free r_free	0.2250
