SAXSdb — 2j22

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FUCOLECTIN-RELATED PROTEIN

STREPTOCOCCUS PNEUMONIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CALCIUM ION × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q97N96_STRPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–148； UniProt 897–1038

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j22
Deposition date deposition_date	2006-08-15
Structure title title	Structure of a Streptococcus pneumoniae fucose binding module, SpX-3
Keywords keywords	CARBOHYDRATE-BINDING PROTEIN, CARBOHYDRATE BINDING PROTEIN; CARBOHYDRATE-BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j22__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

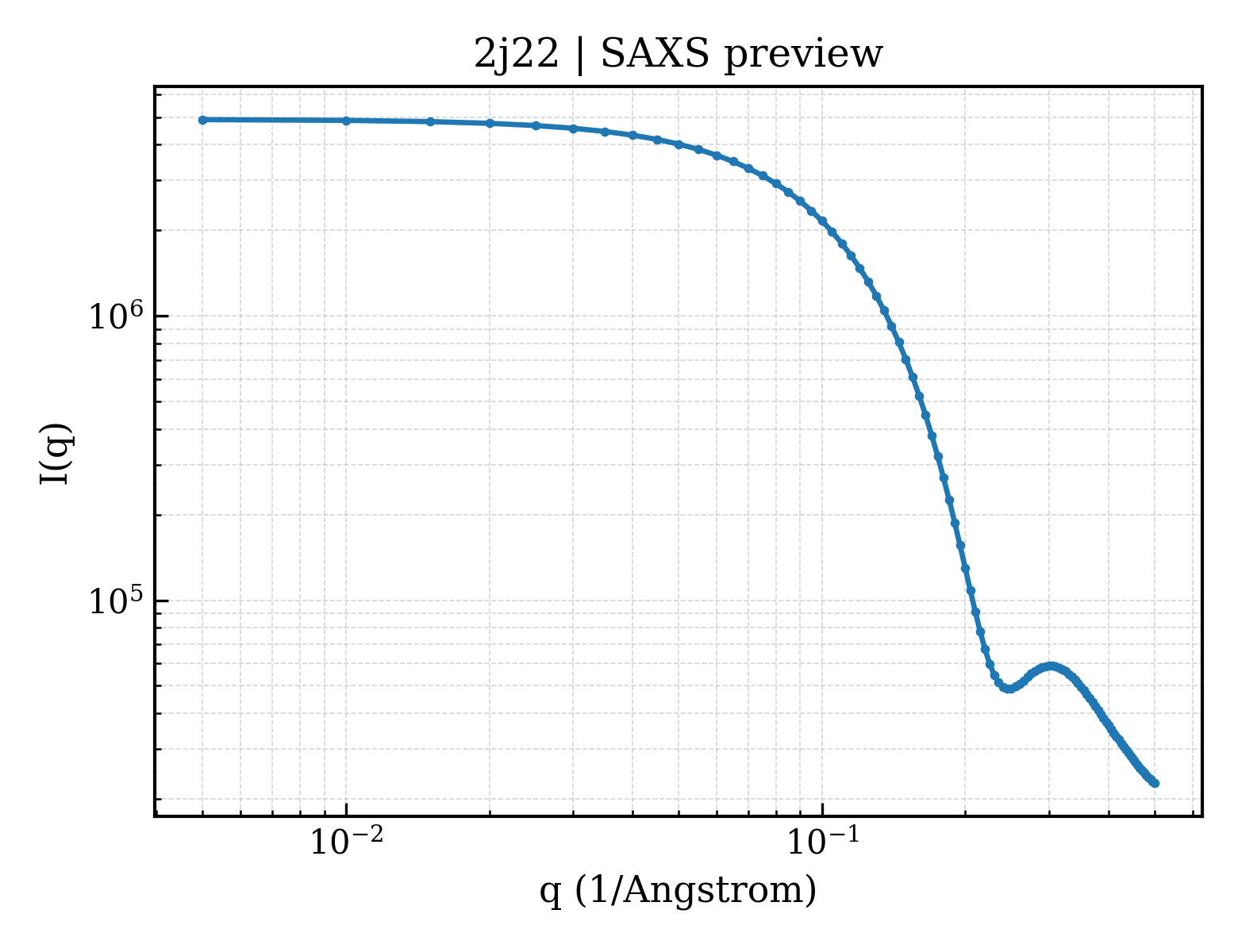

2j22__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

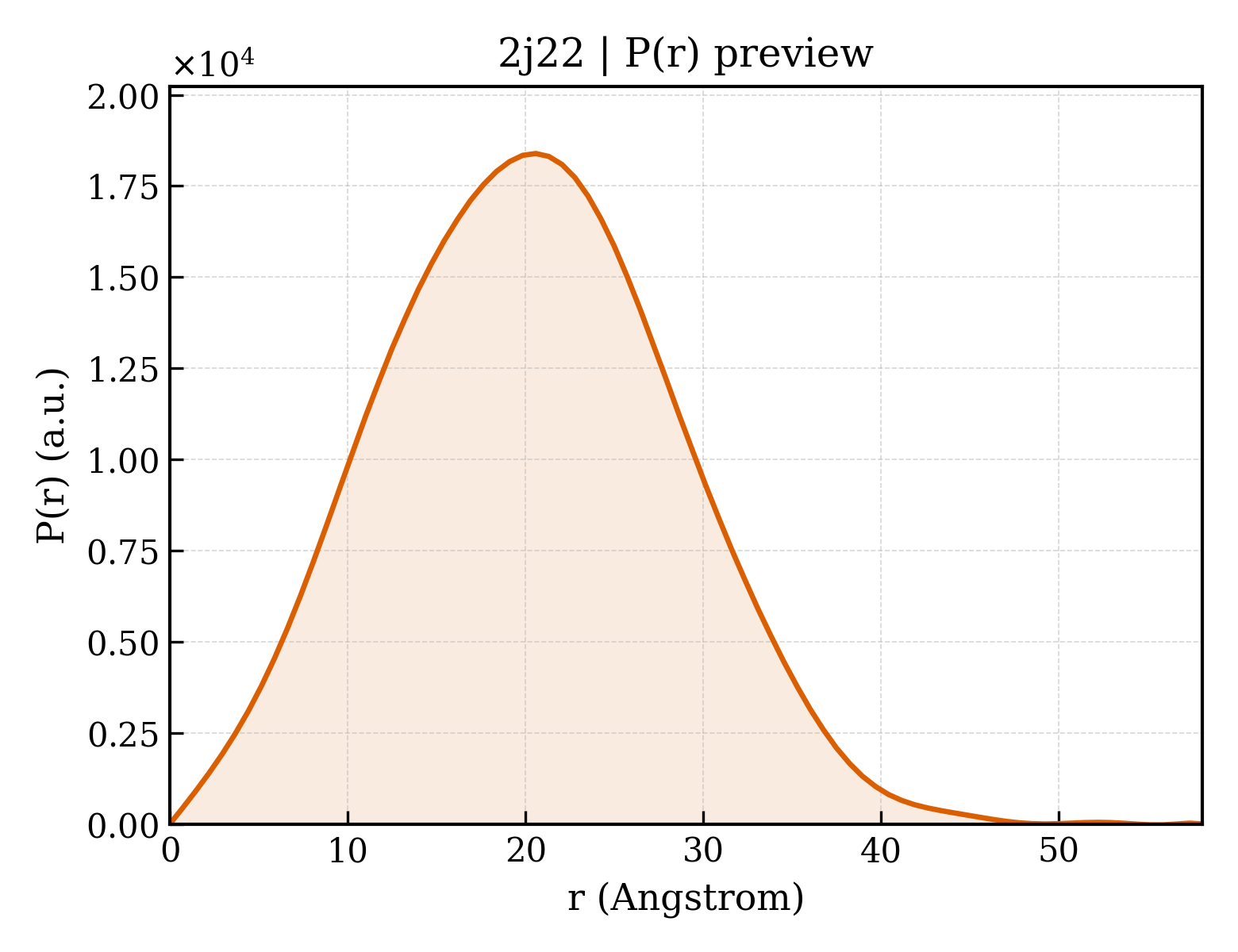

2j22__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.53 Å
Rg (electron density)	14.06 Å
Total Rg	15.25 Å
Atom count	1096
Residues	137
Excluded volume	19289 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j22__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	FUCOLECTIN-RELATED PROTEIN
Molecular weight formula_weight	16816.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1233

GSHMASRTPKKLSNIALTKETRQSSTDYNGFSRLAVDGNKNGDYGHHSVTHTKEDSPSWWEIDLAQTEELEKLIIYNRTDAEIQRLSNFDIIIYDSNDYEVFTQHIDSLESNNLSIDLKGLKGKKVRISLRSAGIPLSLAEVEVYTYK

Source Source

Source organism organism	STREPTOCOCCUS PNEUMONIAE
NCBI taxonomy ID ncbi_taxonomy_id	170187
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	129

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2j22a_
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	2j22A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

Unit-cell length a length_a	30.713 Å
Unit-cell length b length_b	41.159 Å
Unit-cell length c length_c	108.139 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2130
R_work r_work	0.2100
R_free r_free	0.2760

Structure of a Streptococcus pneumoniae fucose binding module, SpX-3
