SAXSdb — 2j3p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEPARIN-BINDING GROWTH FACTOR 1

RATTUS NORVEGICUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 4 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FGF1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–134； UniProt 22–155 Author chain B； PDBConstruct 1–134； UniProt 22–155

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j3p
Deposition date deposition_date	2006-08-22
Structure title title	crystal structure of rat FGF1 at 1.4 A
Keywords keywords	;GROWTH FACTOR, DEVELOPMENTAL PROTEIN, ACIDIC FIBROBLAST GROWTH FACTOR, DIFFERENTIATION, HEPARIN-BINDING, MITOGEN, CYTOKINE, ANGIOGENESIS, BETA-TREFOIL ;; GROWTH FACTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j3p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2j3p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

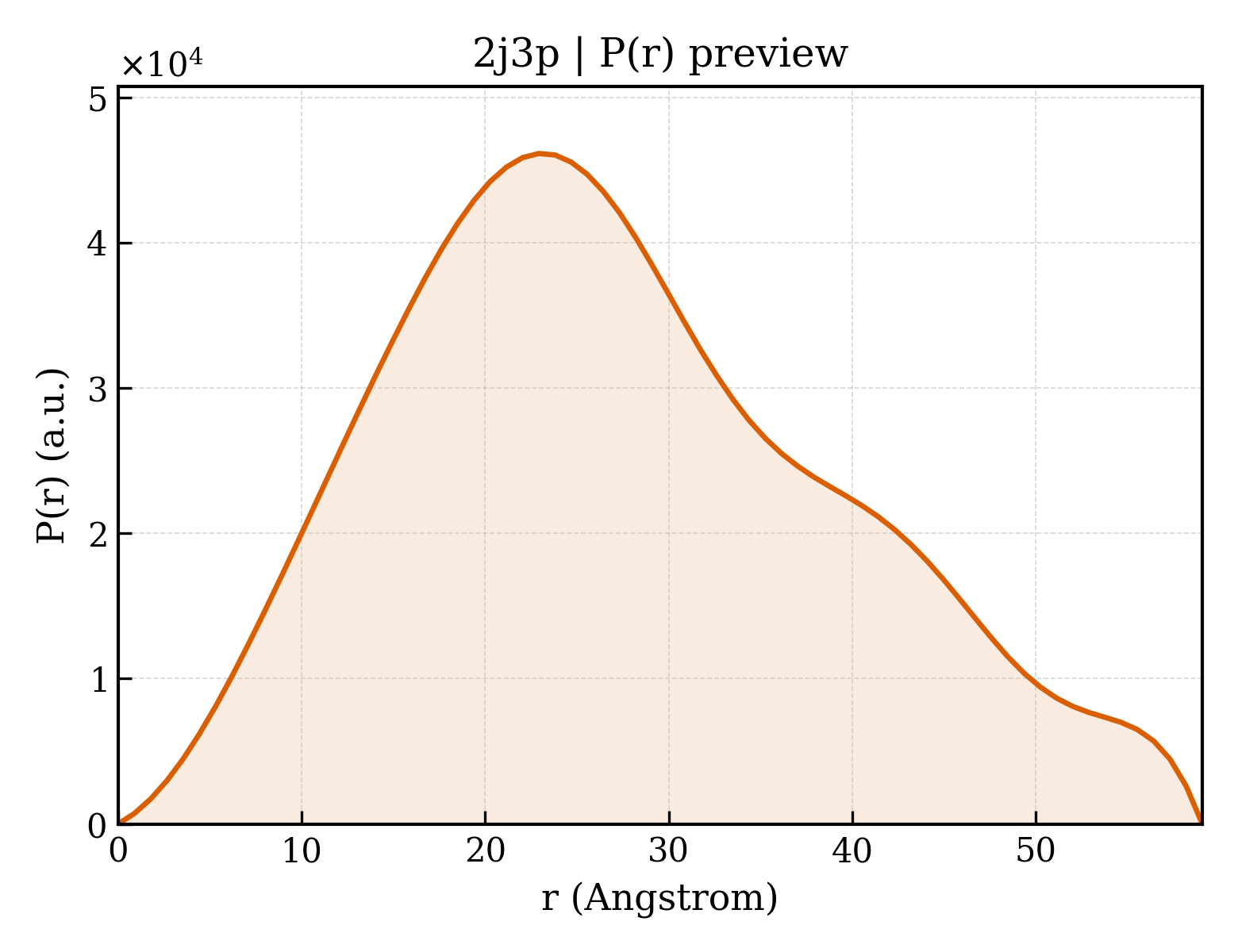

2j3p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.58 Å
Rg (electron density)	14.00 Å
Total Rg	15.30 Å
Atom count	1088
Residues	134
Excluded volume	19067 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j3p__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2j3p__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HEPARIN-BINDING GROWTH FACTOR 1
Molecular weight formula_weight	15176.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2477

NYKKPKLLYCSNGGHFLRILPDGTVDGTRDRSDQHIQLQLSAESAGEVYIKGTETGQYLAMDTEGLLYGSQTPNEECLFLERLEENHYNTYTSKKHAEKNWFVGLKKNGSCKRGPRTHYGQKAILFLPLPVSSD

Source Source

Source organism organism	RATTUS NORVEGICUS
Common name common_name	RAT
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	255

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2j3pa_
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.1 — Cytokine
Family Family family	b.42.1.1 — Fibroblast growth factors (FGF)

Domain ID domain_id	d2j3pb_
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.1 — Cytokine
Family Family family	b.42.1.1 — Fibroblast growth factors (FGF)

CATH v4.4 (2 domains)

Domain ID domain_id	2j3pA00
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2j3pB00
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	42.882 Å
Unit-cell length b length_b	61.655 Å
Unit-cell length c length_c	88.856 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.400 Å
Low-resolution limit resolution_low	50.640 Å
R factor r_factor	0.2040
R_work r_work	0.2020
R_free r_free	0.2290
