SAXSdb — 2j4g

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2j4g
沉积日期 deposition_date	2006-08-31
结构标题 title	Bacteroides thetaiotaomicron GH84 O-GlcNAcase in complex with n-butyl- thiazoline inhibitor
关键词 keywords	GH84, ENZYME, THIAZOLINE, INHIBITION, O-GLCNACASE, INHIBITOR; INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.42 Å
回转半径 Rg (电子) rg_electron	51.35 Å
零角强度 I(0) i0	253672000.00
分子量 molecular_weight	134620.0 kDa
排除体积 excluded_volume	168850 Å³
包络体积 envelope_volume	252260 Å³
水化壳体积 shell_volume	40045 Å³
包络直径 envelope_diameter	158.2 Å
壳层 Rg shell_rg	58.82 Å
包络 Rg envelope_rg	48.62 Å
形状 Rg shape_rg	51.34 Å
总 Rg total_rg	51.62 Å
总原子数 total_atoms	9509
残基数 n_residues	1166
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	146.4 Å
Rg (实空间) rg_real	51.59 Å
Rg 误差 (实空间) rg_real_error	1.54 Å
I(0) (实空间) i0_real	2.5370e+08
I(0) 误差 (实空间) i0_real_error	4.7280e+06
Rg (倒空间) rg_reciprocal	51.24 Å
I(0) (倒空间) i0_reciprocal	253500000.0000
解质量估计 total_estimate	0.6751
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	28.3 Å
偏度 Skewness skewness	0.114
峰度 Kurtosis kurtosis	-1.171
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9770000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.418; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.518; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	HYALURONOGLUCOSAMINIDASE
分子量 formula_weight	82188.0 kDa
EC 编号 ec_number	3.2.1.52
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	10075

NVSLQPPPQQLIVQNKTIDLPAVYQLNGGEEANPHAVKVLKELLSGKQSSKKGMLISIGEKGDKSVRKYSRQIPDHKEGYYLSVNEKEIVLAGNDERGTYYALQTFAQLLKDGKLPEVEIKDYPSVRYRGVVEGFYGTPWSHQARLSQLKFYGKNKMNTYIYGPKDDPYHSAPNWRLPYPDKEAAQLQELVAVANENEVDFVWAIHPGQDIKWNKEDRDLLLAKFEKMYQLGVRSFAVFFDDISGEGTNPQKQAELLNYIDEKFAQVKPDINQLVMCPTEYNKSWSNPNGNYLTTLGDKLNPSIQIMWTGDRVISDITRDGISWINERIKRPAYIWWNFPVSDYVRDHLLLGPVYGNDTTIAKEMSGFVTNPMEHAESSKIAIYSVASYAWNPAKYDTWQTWKDAIRTILPSAAEELECFAMHNSDLGPNGHGYRREESMDIQPAAERFLKAFKEGKNYDKADFETLQYTFERMKESADILLMNTENKPLIVEITPWVHQFKLTAEMGEEVLKMVEGRNESYFLRKYNHVKALQQQMFYIDQTSNQNPYQPGVKTATRVIKPLIDRTFATVVKFFNQKFNAHLDATTDYMPHKMISNVEQIKNLPLQVKANRVLISPANEVVKWAAGNSVEIELDAIYPGENIQINFGKDAPCTWGRLEISTDGKEWKTVDLKQKESRLSAGLQKAPVKFVRFTNVSDEEQQVYLRQFVLTIEKK

来源 Source

来源生物 organism	BACTEROIDES THETAIOTAOMICRON
NCBI 分类编号 ncbi_taxonomy_id	226186
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	(3AR,5R,6S,7R,7AR)-5-(HYDROXYMETHYL)-2-PROPYL-5,6,7,7A-TETRAHYDRO-3AH-PYRANO[3,2-D][1,3]THIAZOLE-6,7-DIOL
分子量 formula_weight	247.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	ACETATE ION
分子量 formula_weight	59.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	558

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2j4ga1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.246 — Hyaluronidase domain-like
超家族 Superfamily superfamily	a.246.1 — Hyaluronidase post-catalytic domain-like
家族 Family family	a.246.1.1 — Hyaluronidase post-catalytic domain-like

结构域编号 domain_id	d2j4ga2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.10 — alpha-D-glucuronidase/Hyaluronidase catalytic domain

结构域编号 domain_id	d2j4ga3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.92 — Zincin-like
超家族 Superfamily superfamily	d.92.2 — beta-N-acetylhexosaminidase-like domain
家族 Family family	d.92.2.3 — Hyaluronidase N-terminal domain-like

结构域编号 domain_id	d2j4gb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.246 — Hyaluronidase domain-like
超家族 Superfamily superfamily	a.246.1 — Hyaluronidase post-catalytic domain-like
家族 Family family	a.246.1.1 — Hyaluronidase post-catalytic domain-like

结构域编号 domain_id	d2j4gb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.10 — alpha-D-glucuronidase/Hyaluronidase catalytic domain

结构域编号 domain_id	d2j4gb3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.92 — Zincin-like
超家族 Superfamily superfamily	d.92.2 — beta-N-acetylhexosaminidase-like domain
家族 Family family	d.92.2.3 — Hyaluronidase N-terminal domain-like

CATH v4.4 (6 domains)

结构域编号 domain_id	2j4gA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	379 — Chitobiase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Chitobiase/beta-hexosaminidase domain 2-like

结构域编号 domain_id	2j4gA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	2j4gA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	460 — Hyaluronidase post-catalytic domain-like

结构域编号 domain_id	2j4gB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	379 — Chitobiase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Chitobiase/beta-hexosaminidase domain 2-like

结构域编号 domain_id	2j4gB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	2j4gB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	460 — Hyaluronidase post-catalytic domain-like

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	185.106 Å
晶胞边长 b length_b	51.711 Å
晶胞边长 c length_c	172.782 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	100.11 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.250 Å
最低分辨率 resolution_low	169.030 Å
R 因子 r_factor	0.2230
R_work r_work	0.2200
R_free r_free	0.2840

fit	/app/data/saxs_computation/j4/2j4g/2j4g.fit
pddf	/app/data/pr_computation/j4/2j4g/2j4g.pr.out
profile	/app/data/saxs_computation/j4/2j4g/2j4g.dat

Bacteroides thetaiotaomicron GH84 O-GlcNAcase in complex with n-butyl- thiazoline inhibitor

SAXS 散射曲线 SAXS Profile

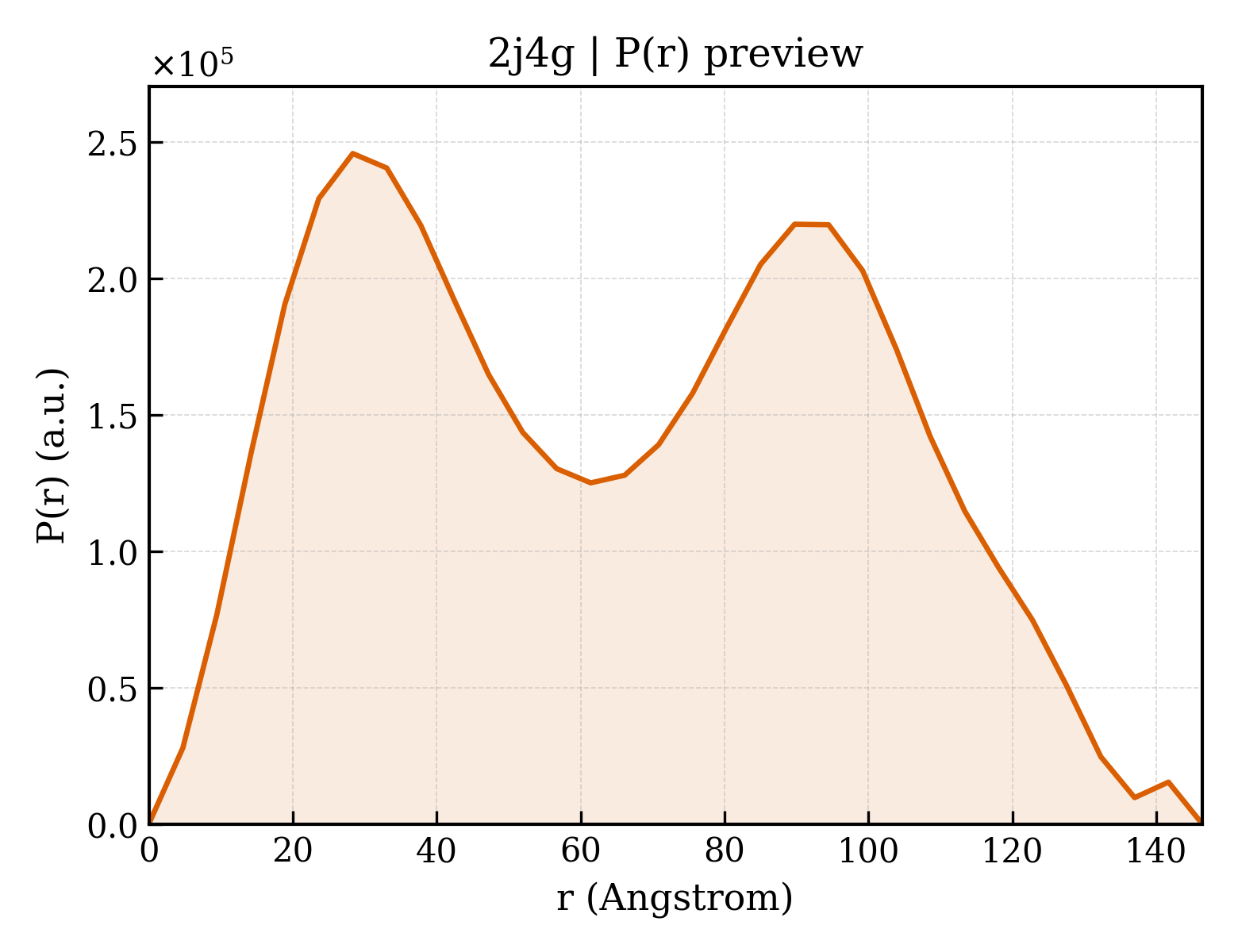

P(r) 距离分布 P(r) Distribution
