2j5d
NMR structure of BNIP3 transmembrane domain in lipid bicelles

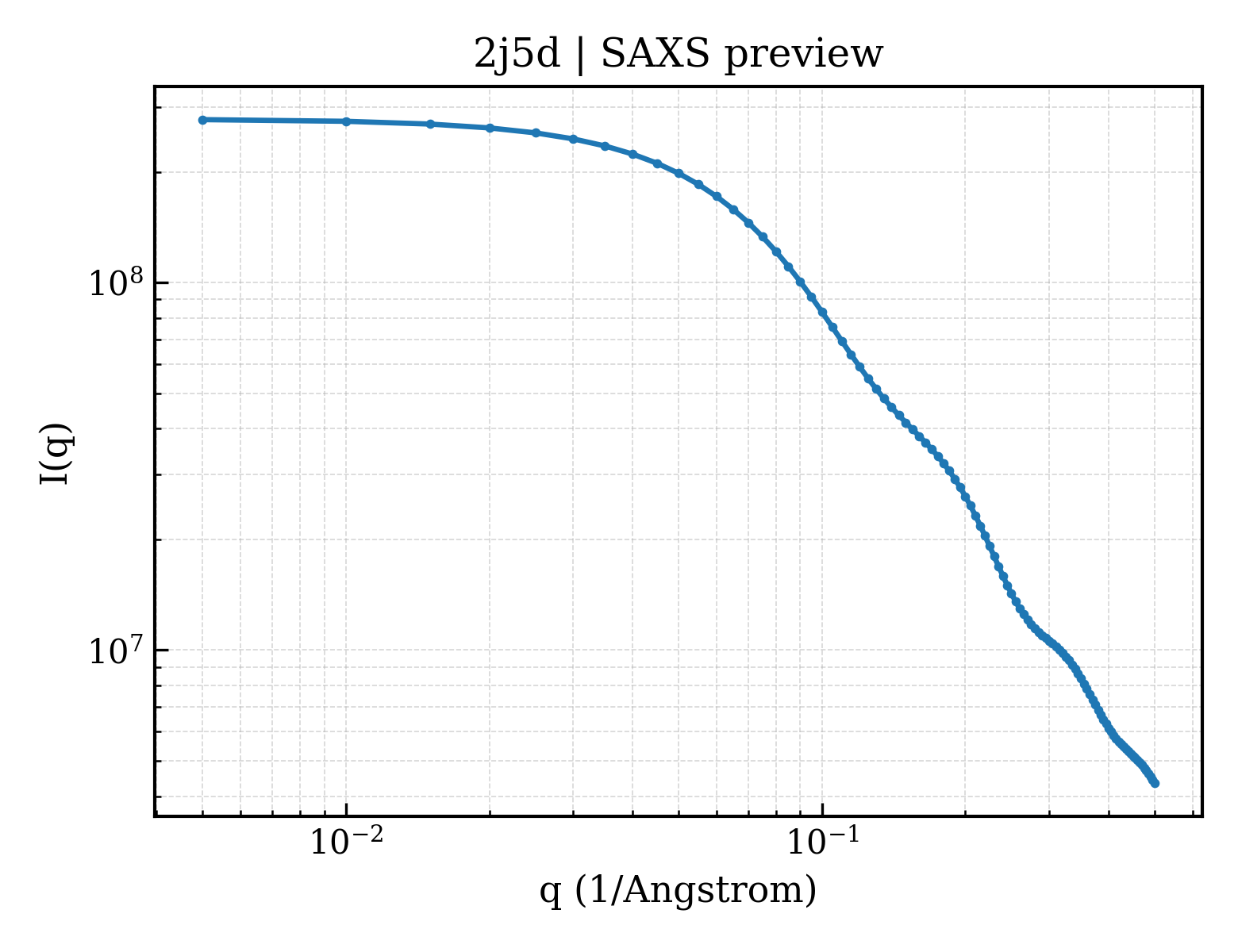

SAXS 散射曲线 SAXS Profile

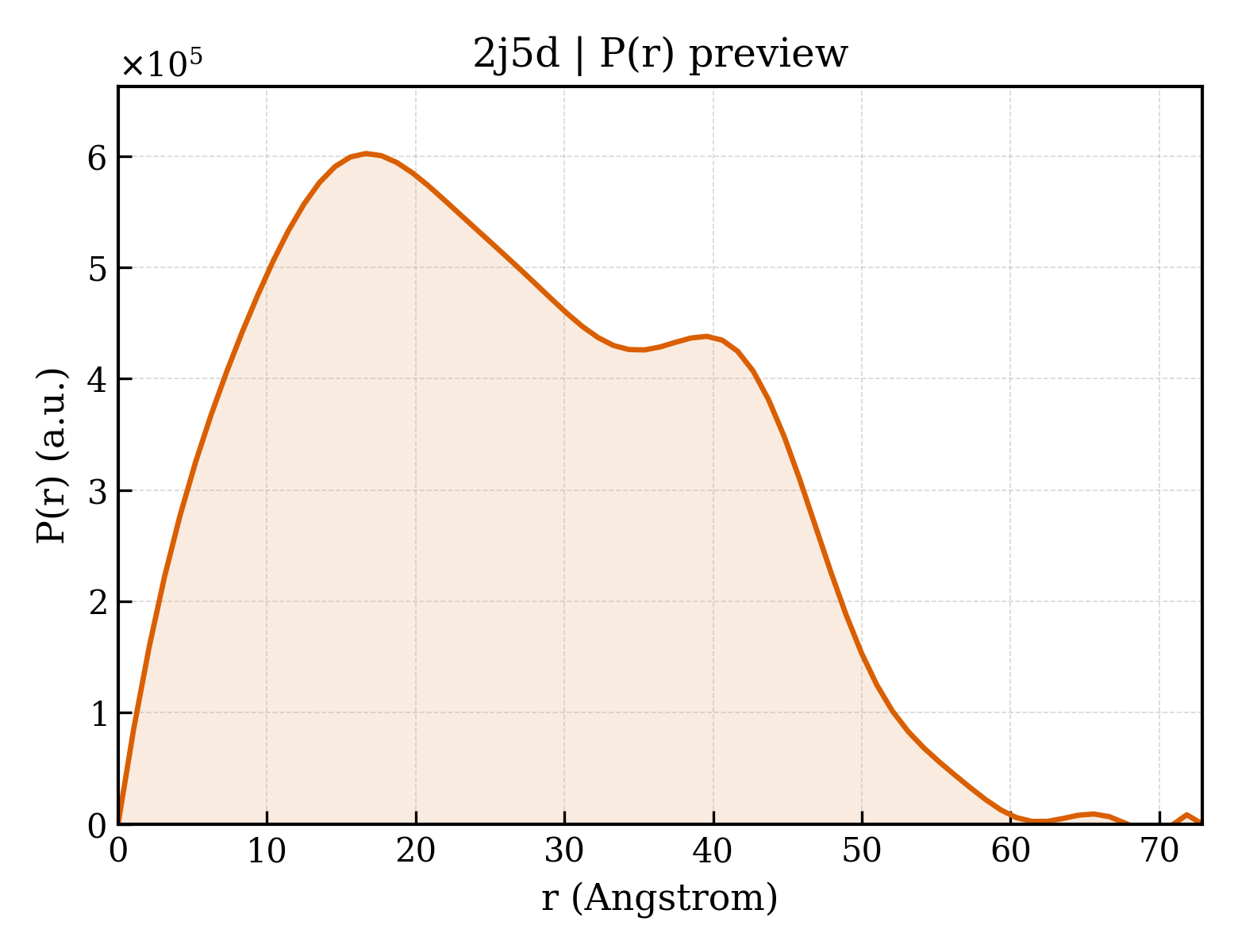

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2j5d |
| 沉积日期 deposition_date | 2006-09-14 |
| 结构标题 title | NMR structure of BNIP3 transmembrane domain in lipid bicelles |
| 关键词 keywords | MEMBRANE PROTEIN, MITOCHONDRION, TRANSMEMBRANE, TRANSMEMBRANE DOMAIN, BCL-2, BNIP3, MEMBRANE, HOMODIMER, APOPTOSIS; MEMBRANE PROTEIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 20.24 Å |
| 回转半径 Rg (电子) rg_electron | 18.81 Å |
| 零角强度 I(0) i0 | 278511000.00 |
| 分子量 molecular_weight | 157600.0 kDa |
| 排除体积 excluded_volume | 205580 ų |
| 包络体积 envelope_volume | 61208 ų |
| 水化壳体积 shell_volume | 21492 ų |
| 包络直径 envelope_diameter | 84.8 Å |
| 壳层 Rg shell_rg | 30.80 Å |
| 包络 Rg envelope_rg | 24.48 Å |
| 形状 Rg shape_rg | 18.71 Å |
| 总 Rg total_rg | 19.69 Å |
| 总原子数 total_atoms | 17824 |
| 残基数 n_residues | 1440 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 72.9 Å |
| Rg (实空间) rg_real | 20.39 Å |
| Rg 误差 (实空间) rg_real_error | 0.79 Å |
| I(0) (实空间) i0_real | 2.7850e+08 |
| I(0) 误差 (实空间) i0_real_error | 4.2860e+06 |
| Rg (倒空间) rg_reciprocal | 20.36 Å |
| I(0) (倒空间) i0_reciprocal | 278500000.0000 |
| 解质量估计 total_estimate | 0.5770 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 4 |
| 主峰位置 r_peak_primary | 16.7 Å |
| 偏度 Skewness skewness | 0.247 |
| 峰度 Kurtosis kurtosis | -0.842 |
| 角度范围 angular_range | — – 0.3950 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 74490.0000 |
| 实空间数据点数 n_real_points | 71 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.618; Stabil: 0.999; Sysdev: 0.406; Positv: 1.000; Valcen: 0.428; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 2 domains
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2j5dA01 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 1020 — |
| 结构域编号 domain_id | 2j5dB01 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 1020 — |
