2j5i

Crystal Structure of Hydroxycinnamoyl-CoA Hydratase-Lyase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE

PSEUDOMONAS FLUORESCENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O69762_PSEFL
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 1–276 Author chain B； PDBConstruct 1–276； UniProt 1–276 Author chain C； PDBConstruct 1–276； UniProt 1–276 Author chain D； PDBConstruct 1–276； UniProt 1–276 Author chain E； PDBConstruct 1–276； UniProt 1–276 Author chain F； PDBConstruct 1–276； UniProt 1–276 Author chain G； PDBConstruct 1–276； UniProt 1–276 Author chain H； PDBConstruct 1–276； UniProt 1–276 Author chain J； PDBConstruct 1–276； UniProt 1–276 Author chain K； PDBConstruct 1–276； UniProt 1–276 Author chain L； PDBConstruct 1–276； UniProt 1–276 Author chain I； PDBConstruct 1–276； UniProt 1–276

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j5i
Deposition date deposition_date	2006-09-18
Structure title title	Crystal Structure of Hydroxycinnamoyl-CoA Hydratase-Lyase
Keywords keywords	LYASE, VANILLIN, ALDOLASE, CROTONASE, HYDRATASE, COENZYME-A; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j5i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

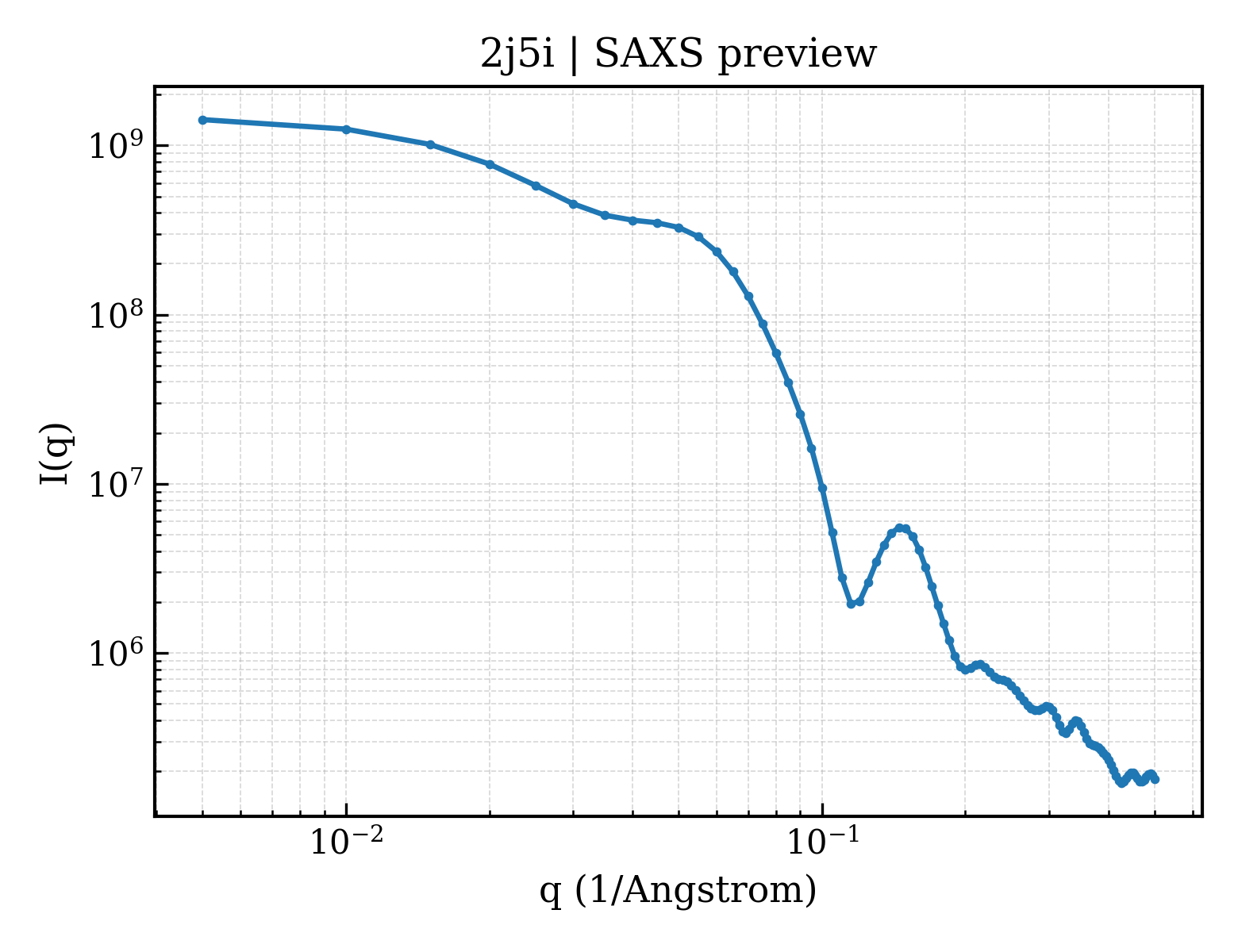

2j5i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

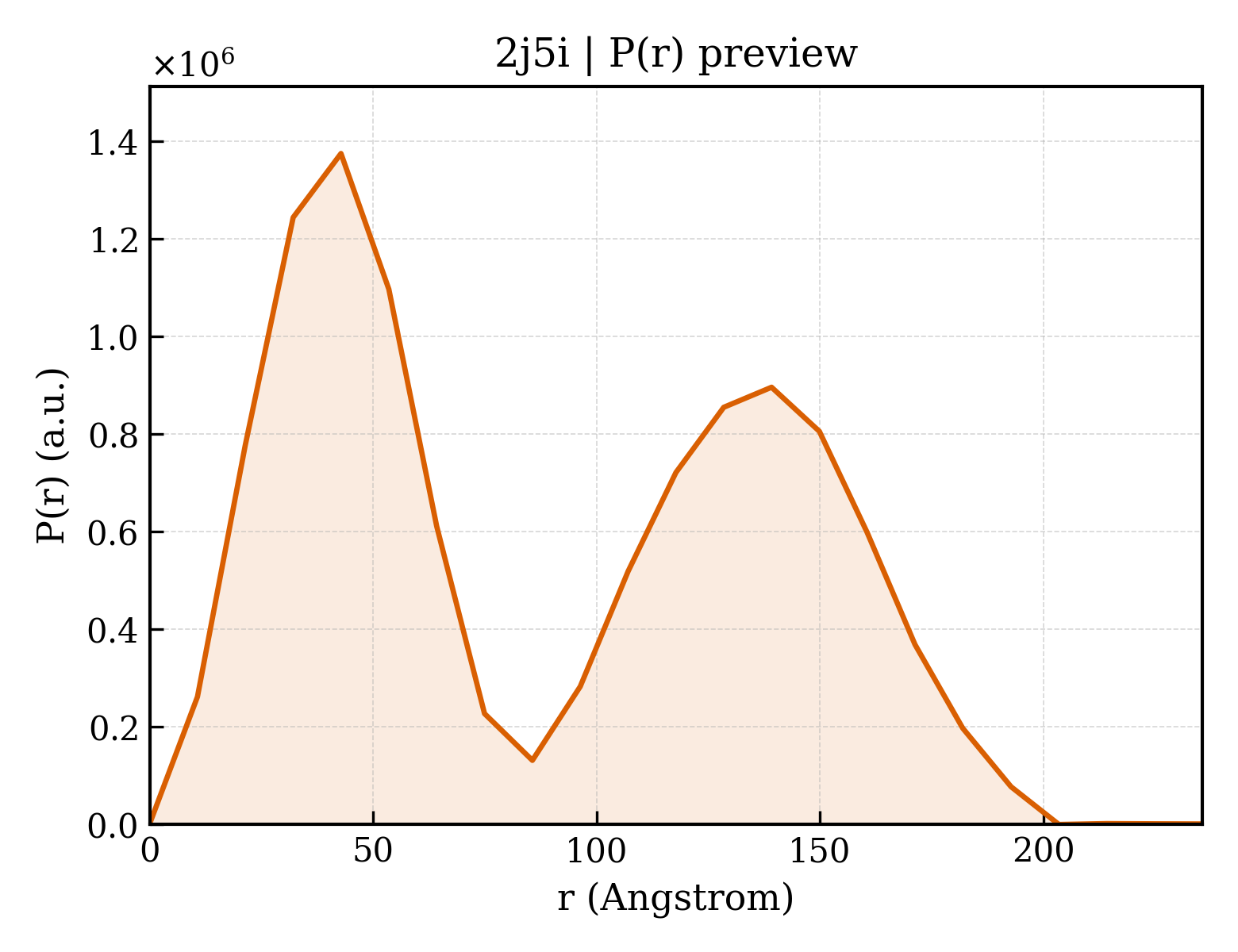

2j5i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.11 Å
Rg (electron density)	31.07 Å
Total Rg	31.82 Å
Atom count	11633
Residues	1481
Excluded volume	207790 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j5i__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2j5i__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE
Molecular weight formula_weight	31012.6 kDa
EC 编号 ec_number	4.2.1.101
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	25264

MSTYEGRWKTVKVEIEDGIAFVILNRPEKRNAMSPTLNREMIDVLETLEQDPAAGVLVLTGAGEAWTAGMDLKEYFREVDAGPEILQEKIRREASQWQWKLLRMYAKPTIAMVNGWCFGGGFSPLVACDLAICADEATFGLSEINWGIPPGNLVSKAMADTVGHRQSLMYIMTGKTFGGQKAAEMGLVNESVPLAQLREVTIELARNLLEKNPVVLRAAKHGFKRCRELTWEQNEDYLYAKLDQSRLLDTEGGREQGMKQFLDDKSIKPGLQAYKR

Source Source

Source organism organism	PSEUDOMONAS FLUORESCENS
NCBI taxonomy ID ncbi_taxonomy_id	294
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE
Molecular weight formula_weight	31044.6 kDa
EC 编号 ec_number	4.2.1.101
Source method src_method	man
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,D,E,F,G,H,J,K,L

MSTYEGRWKTVKVEIEDGIAFVILNRPEKRNAMSPTLNREMIDVLETLEQDPAAGVLVLTGAGEAWTAGMDLKEYFREVDAGPEILQEKIRREASQWQWKLLRMYAKPTIAMVNGWCFGGGFSPLVACDLAICADEATFGLSEINWGIPPGNLVSKAMADTVGHRQSLYYIMTGKTFGGQKAAEMGLVNESVPLAQLREVTIELARNLLEKNPVVLRAAKHGFKRCRELTWEQNEDYLYAKLDQSRLLDTEGGREQGMKQFLDDKSIKPGLQAYKR

Source Source

Source organism organism	PSEUDOMONAS FLUORESCENS
NCBI taxonomy ID ncbi_taxonomy_id	294
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 polymer

Description description	P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE
Molecular weight formula_weight	31043.6 kDa
EC 编号 ec_number	4.2.1.101
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MSTYEGRWKTVKVEIEDGIAFVILNRPEKRNAMSPTLNREMIDVLETLEQDPAAGVLVLTGAGEAWTAGMDLKEYFREVDAGPEILQEKIRREASQWQWKLLRMYAKPTIAMVNGWCFGGGFSPLVACDLAICADEATFGLSEINWGIPPGNLVSKAMADTVGHRQSLYYIMTGKTFGGQKAAEMGLVNESVPLAQLREVTIELARNLLEKNPVVLRAAKHGFKRCRELTWQQNEDYLYAKLDQSRLLDTEGGREQGMKQFLDDKSIKPGLQAYKR

Source Source

Source organism organism	PSEUDOMONAS FLUORESCENS
NCBI taxonomy ID ncbi_taxonomy_id	294
Host organism host_organism	ESCHERICHIA COLI

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1861

▼

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2j5ia_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5ib_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5ic_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5id_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5ie_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5if_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5ig_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5ih_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5ii_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5ij_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5ik_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5il_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

CATH v4.4 (24 domains)

Domain ID domain_id	2j5iA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iA02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iB02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iC02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iD02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iE02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iF02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iG01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iG02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iH01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iH02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iI01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iI02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iJ01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iJ02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iK01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iK02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

Domain ID domain_id	2j5iL01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5iL02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2850 —

▶

Unit-cell length a length_a	154.238 Å
Unit-cell length b length_b	167.487 Å
Unit-cell length c length_c	130.818 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	40

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	111.800 Å
R factor r_factor	0.1810
R_work r_work	0.1790
R_free r_free	0.2150

Crystal Structure of Hydroxycinnamoyl-CoA Hydratase-Lyase

1. Protein Identity and Related Structures Protein Identity & Related Structures

P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2j5i__assembly_1__model_1

2j5i__assembly_1__model_1 | I(q)

2j5i__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (12 domains)

CATH v4.4 (24 domains)

7. Citations (1)

Crystal Structure of Hydroxycinnamoyl-CoA Hydratase-Lyase

1. Protein Identity and Related Structures Protein Identity & Related Structures

P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2j5i__assembly_1__model_1

2j5i__assembly_1__model_1 | I(q)

2j5i__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (12 domains)

CATH v4.4 (24 domains)

7. Citations (1)
