2j5q

2.15 A resolution structure of the wild type malate dehydrogenase from Haloarcula marismortui after first radiation burn (radiation damage series)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MALATE DEHYDROGENASE

HALOARCULA MARISMORTUI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	CHLORIDE ION × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MDH_HALMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–304； UniProt 1–304 Author chain B； PDBConstruct 1–304； UniProt 1–304 Author chain C； PDBConstruct 1–304； UniProt 1–304 Author chain D； PDBConstruct 1–304； UniProt 1–304

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j5q
Deposition date deposition_date	2006-09-19
Structure title title	2.15 A resolution structure of the wild type malate dehydrogenase from Haloarcula marismortui after first radiation burn (radiation damage series)
Keywords keywords	NAD, HALOPHILE, OXIDOREDUCTASE, RADIATION DAMAGE, MALATE DEHYDROGENASE, TRICARBOXYLIC ACID CYCLE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j5q__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2j5q__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

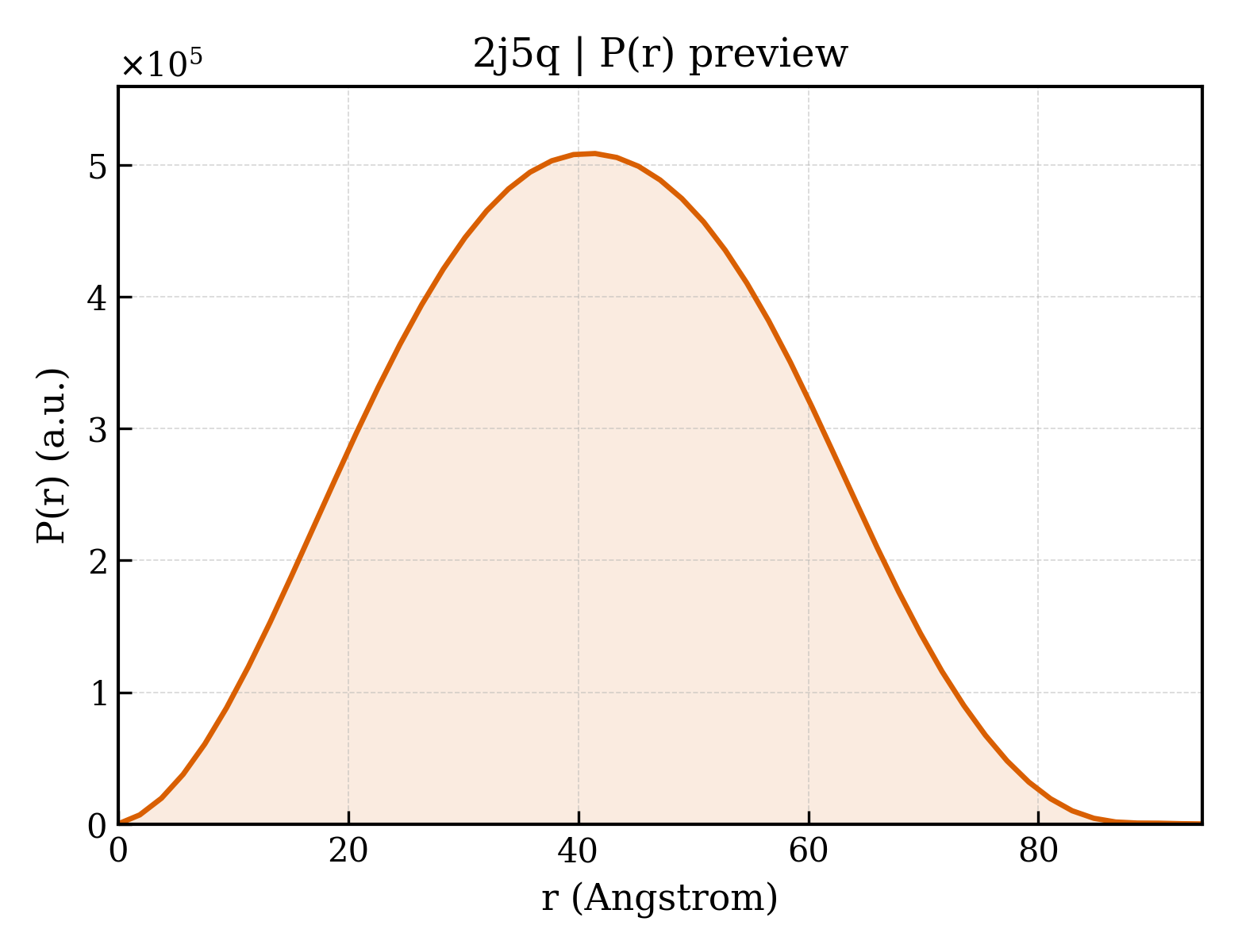

2j5q__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.67 Å
Rg (electron density)	30.53 Å
Total Rg	31.19 Å
Atom count	9059
Residues	1202
Excluded volume	157840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j5q__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MALATE DEHYDROGENASE
Molecular weight formula_weight	32837.7 kDa
EC 编号 ec_number	1.1.1.37
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10082

MTKVSVVGAAGTVGAAAGYNIALRDIADEVVFVDIPDKEDDTVGQAADTNHGIAYDSNTRVRQGGYEDTAGSDVVVITAGIPRQPGQTRIDLAGDNAPIMEDIQSSLDEHNDDYISLTTSNPVDLLNRHLYEAGDRSREQVIGFGGRLDSARFRYVLSEEFDAPVQNVEGTILGEHGDAQVPVFSKVRVDGTDPEFSGDEKEQLLGDLQESAMDVIERKGATEWGPARGVAHMVEAILHDTGEVLPASVKLEGEFGHEDTAFGVPVRLGSNGVEEIVEWDLDDYEQDLMADAAEKLSDQYDKIS

Source Source

Source organism organism	HALOARCULA MARISMORTUI
NCBI taxonomy ID ncbi_taxonomy_id	2238
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1023

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2j5qa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d2j5qa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

Domain ID domain_id	d2j5qb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d2j5qb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

Domain ID domain_id	d2j5qc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d2j5qc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

Domain ID domain_id	d2j5qd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d2j5qd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id	2j5qA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j5qA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2j5qB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j5qB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2j5qC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j5qC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

Domain ID domain_id	2j5qD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j5qD02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

▶

Unit-cell length a length_a	126.976 Å
Unit-cell length b length_b	114.320 Å
Unit-cell length c length_c	124.117 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.47 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2196
R_work r_work	0.2196
R_free r_free	0.2670
