SAXSdb — 2j5s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-DIKETONE HYDROLASE

ANABAENA SP.

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	(S)-CYCLOHEXANONE-2-ACETATE × 6 NICKEL (II) ION × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8YNV6_ANASP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–263； UniProt 1–253 Author chain B； PDBConstruct 11–263； UniProt 1–253

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j5s
Deposition date deposition_date	2006-09-19
Structure title title	Structural of ABDH, a beta-diketone hydrolase from the Cyanobacterium Anabaena sp. PCC 7120 bound to (S)-3-oxocyclohexyl acetic acid
Keywords keywords	ENZYME EVOLUTION, C-C BOND HYDROLASE, HYDROLASE, LYASE, CROTONASE, BIOCATALYSIS, BETA-DIKETONE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j5s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

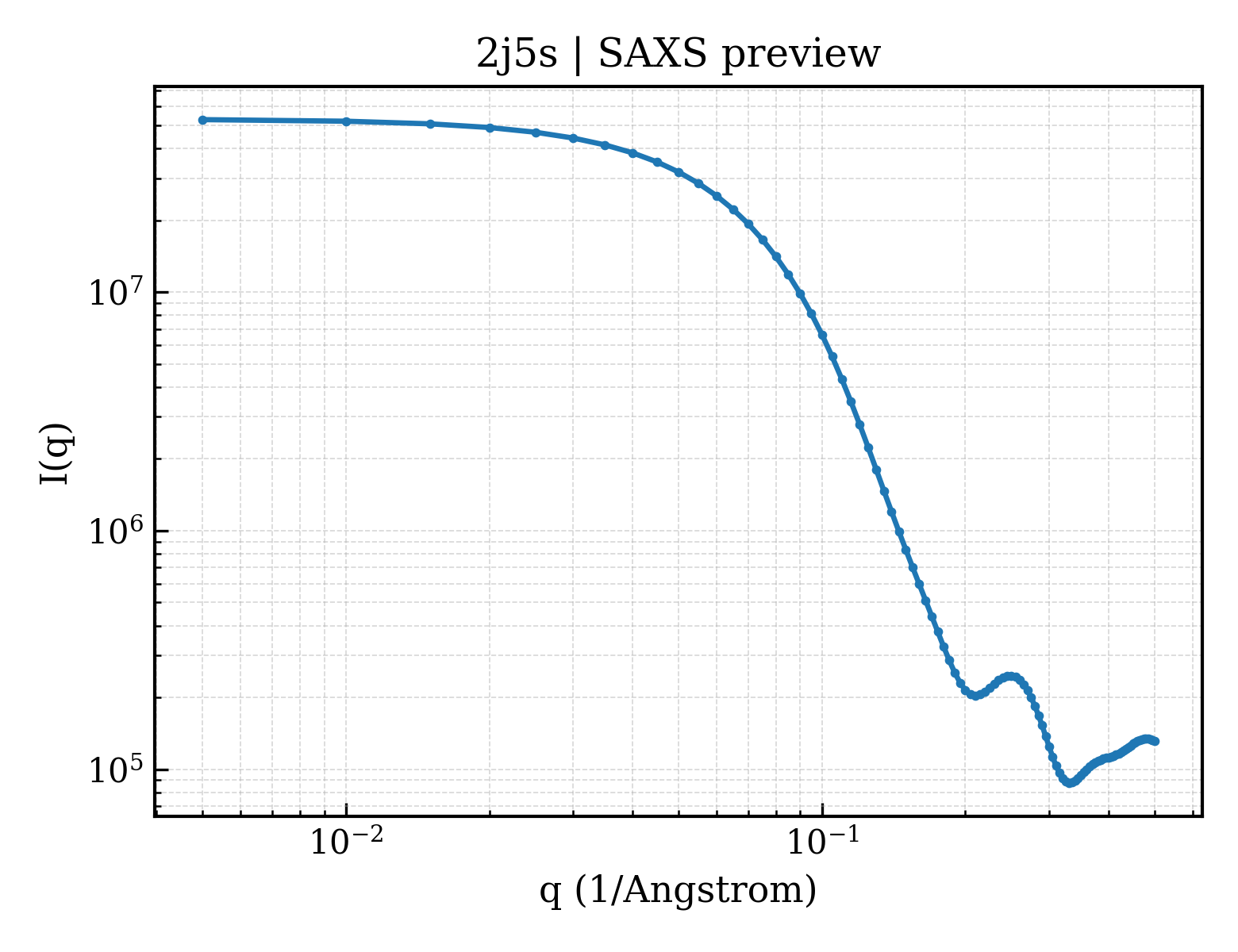

2j5s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2j5s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.45 Å
Rg (electron density)	30.85 Å
Total Rg	31.68 Å
Atom count	12116
Residues	1500
Excluded volume	215490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j5s__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	BETA-DIKETONE HYDROLASE
Molecular weight formula_weight	30067.0 kDa
EC 编号 ec_number	3.7.1.7
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4687

MGSSHHHHHHMTLNQPEYFTKYENLHFHRDENGILEVRMHTNGSSLVFTGKTHREFPDAFYDISRDRDNRVVILTGSGDAWMAEIDFPSLGDVTNPREWDKTYWEGKKVLQNLLDIEVPVISAVNGAALLHSEYILTTDIILASENTVFQDMPHLNAGIVPGDGVHILWPLALGLYRGRYFLFTQEKLTAQQAYELNVVHEVLPQSKLMERAWEIARTLAKQPTLNLRYTRVALTQRLKRLVNEGIGYGLALEGITATDLRNT

Source Source

Source organism organism	ANABAENA SP.
NCBI taxonomy ID ncbi_taxonomy_id	103690
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	(S)-CYCLOHEXANONE-2-ACETATE
Molecular weight formula_weight	156.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	490

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2j5sa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

Domain ID domain_id	d2j5sb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	2j5sA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2j5sB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

▶

Unit-cell length a length_a	80.387 Å
Unit-cell length b length_b	80.387 Å
Unit-cell length c length_c	125.882 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63
Space-group number int_tables_number	173
Crystal system crystal_system	—

Resolution resolution	1.570 Å
Low-resolution limit resolution_low	40.190 Å
R factor r_factor	0.1400
R_work r_work	0.1380
R_free r_free	0.1700
