SAXSdb — 2j6i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FORMATE DEHYDROGENASE

CANDIDA BOIDINII

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	TETRAETHYLENE GLYCOL × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	TETRAETHYLENE GLYCOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O93968_CANBO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–364； UniProt 2–364 Author chain B； PDBConstruct 2–364； UniProt 2–364 Author chain C； PDBConstruct 2–364； UniProt 2–364 Author chain D； PDBConstruct 2–364； UniProt 2–364

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j6i
Deposition date deposition_date	2006-09-29
Structure title title	Candida boidinii formate dehydrogenase (FDH) C-terminal mutant
Keywords keywords	;OXIDOREDUCTASE, D-SPECIFIC-2- HYDROXY ACID DEHYDROGENASE, NAD+ DEPENDENT FORMATE DEHYDROGENASE, COFACTOR REGENERATOR, YEAST, CBFDH, CANDIDA BOIDINII ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j6i__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2j6i__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

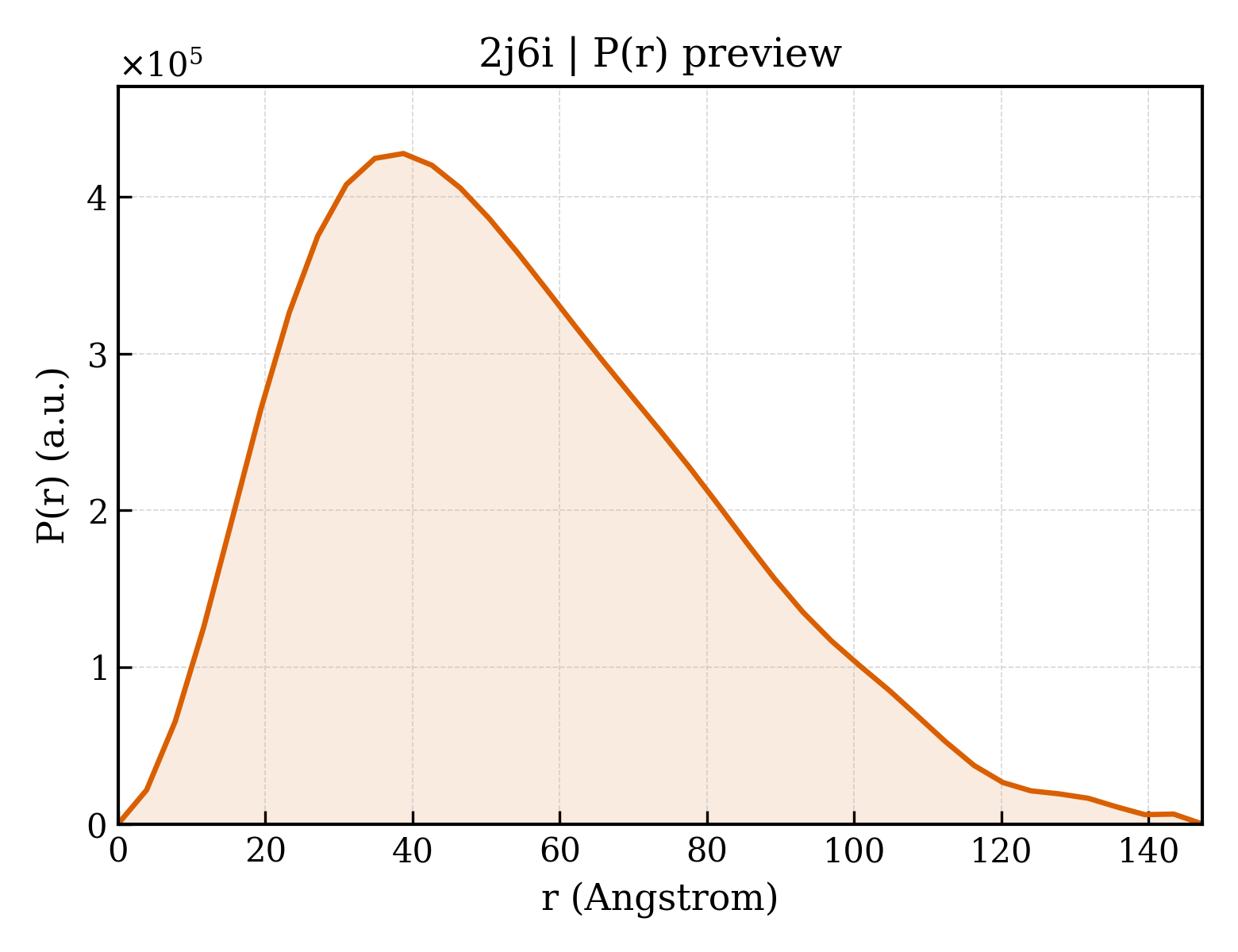

2j6i__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.54 Å
Rg (electron density)	28.23 Å
Total Rg	28.84 Å
Atom count	5516
Residues	705
Excluded volume	98465 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j6i__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2j6i__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	FORMATE DEHYDROGENASE
Molecular weight formula_weight	40189.7 kDa
EC 编号 ec_number	1.2.1.2
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13261

AKIVLVLYDAGKHAADEEKLYGCTENKLGIANWLKDQGHELITTSDKEGGNSVLDQHIPDADIIITTPFHPAYITKERIDKAKKLKLVVVAGVGSDHIDLDYINQTGKKISVLEVTGSNVVSVAEHVVMTMLVLVRNFVPAHEQIINHDWEVAAIAKDAYDIEGKTIATIGAGRIGYRVLERLVPFNPKELLYYDYQALPKDAEEKVGARRVENIEELVAQADIVTVNAPLHAGTKGLINKELLSKFKKGAWLVNTARGAICVAEDVAAALESGQLRGYGGDVWFPQPAPKDHPWRDMRNKYGAGNAMTPHYSGTTLDAQTRYAQGTVNILESFFTGKFDYRPQDIILLNGEYGTKAYGKHDKK

Source Source

Source organism organism	CANDIDA BOIDINII
NCBI taxonomy ID ncbi_taxonomy_id	5477
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2175

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	2j6iA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j6iA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j6iB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j6iB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j6iC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j6iC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j6iD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	2j6iD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

Unit-cell length a length_a	53.360 Å
Unit-cell length b length_b	68.140 Å
Unit-cell length c length_c	109.150 Å
Unit-cell angle α angle_alpha	78.07 °
Unit-cell angle β angle_beta	89.41 °
Unit-cell angle γ angle_gamma	81.27 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	19.260 Å
R factor r_factor	0.2100
R_work r_work	0.2080
R_free r_free	0.2540
