Crystal structure of cytochrome c nitrite reductase NrfHA complex from Desulfovibrio vulgaris

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME C NITRITE REDUCTASE NRFA

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	CYTOCHROME C QUINOL DEHYDROGENASE NRFH × 2 （Q72EF4） HEME C × 28 CALCIUM ION × 8 DODECYL-BETA-D-MALTOSIDE × 2 ACETATE ION × 1 water × 6	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	CYTOCHROME C QUINOL DEHYDROGENASE NRFH × 2 （Q72EF4） HEME C × 28 CALCIUM ION × 8 DODECYL-BETA-D-MALTOSIDE × 2 ACETATE ION × 1 water × 6	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 6	CYTOCHROME C QUINOL DEHYDROGENASE NRFH × 2 （Q72EF4） HEME C × 28 CALCIUM ION × 8 DODECYL-BETA-D-MALTOSIDE × 2 ACETATE ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q72EF3_DESVH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–500； UniProt 25–524 Author chain B； PDBConstruct 1–500； UniProt 25–524 Author chain D； PDBConstruct 1–500； UniProt 25–524 Author chain E； PDBConstruct 1–500； UniProt 25–524 Author chain G； PDBConstruct 1–500； UniProt 25–524 Author chain H； PDBConstruct 1–500； UniProt 25–524 Author chain J； PDBConstruct 1–500； UniProt 25–524 Author chain K； PDBConstruct 1–500； UniProt 25–524 Author chain M； PDBConstruct 1–500； UniProt 25–524 Author chain N； PDBConstruct 1–500； UniProt 25–524 Author chain P； PDBConstruct 1–500； UniProt 25–524 Author chain Q； PDBConstruct 1–500； UniProt 25–524

CYTOCHROME C QUINOL DEHYDROGENASE NRFH

OrganismNot specified

UniProt Q72EF4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	CYTOCHROME C NITRITE REDUCTASE NRFA × 4 （Q72EF3） HEME C × 28 CALCIUM ION × 8 DODECYL-BETA-D-MALTOSIDE × 2 ACETATE ION × 1 water × 6	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	CYTOCHROME C NITRITE REDUCTASE NRFA × 4 （Q72EF3） HEME C × 28 CALCIUM ION × 8 DODECYL-BETA-D-MALTOSIDE × 2 ACETATE ION × 1 water × 6	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 6	CYTOCHROME C NITRITE REDUCTASE NRFA × 4 （Q72EF3） HEME C × 28 CALCIUM ION × 8 DODECYL-BETA-D-MALTOSIDE × 2 ACETATE ION × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q72EF4_DESVH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–159； UniProt 1–159 Author chain F； PDBConstruct 1–159； UniProt 1–159 Author chain I； PDBConstruct 1–159； UniProt 1–159 Author chain L； PDBConstruct 1–159； UniProt 1–159 Author chain O； PDBConstruct 1–159； UniProt 1–159 Author chain R； PDBConstruct 1–159； UniProt 1–159

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j7a
Deposition date deposition_date	2006-10-06
Structure title title	Crystal structure of cytochrome c nitrite reductase NrfHA complex from Desulfovibrio vulgaris
Keywords keywords	QUINOL DEHYDROGENASE, CYTOCHROME C NITRITE REDUCTASE, NRFA, NRFH, NAPC/NIRT FAMILY, MEMBRANE COMPLEX, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j7a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2j7a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

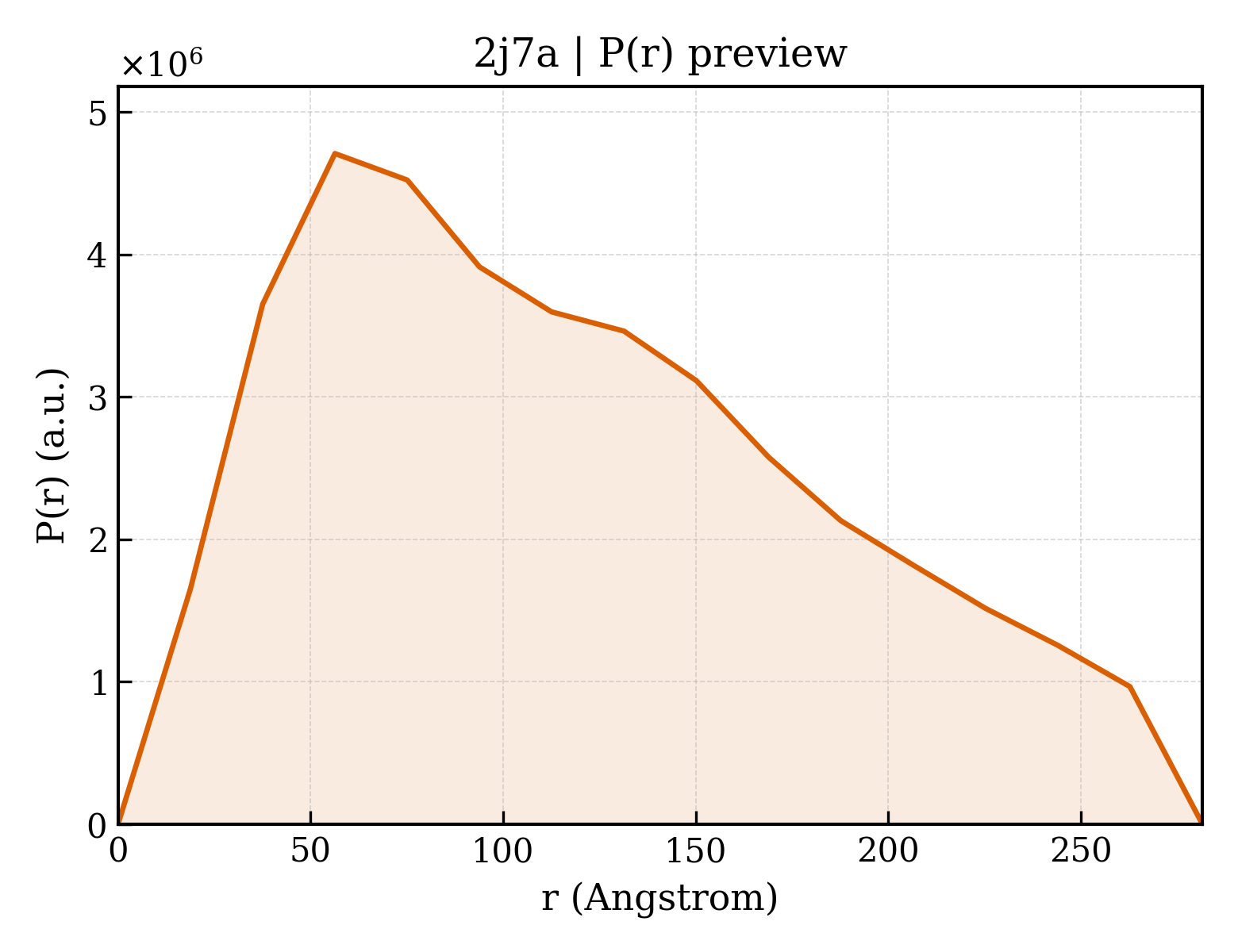

2j7a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.12 Å
Rg (electron density)	42.99 Å
Total Rg	43.26 Å
Atom count	19498
Residues	2271
Excluded volume	347380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j7a__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2j7a__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2j7a__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶
