2j88
Hyaluronidase in complex with a monoclonal IgG Fab fragment
SAXS 散射曲线 SAXS Profile

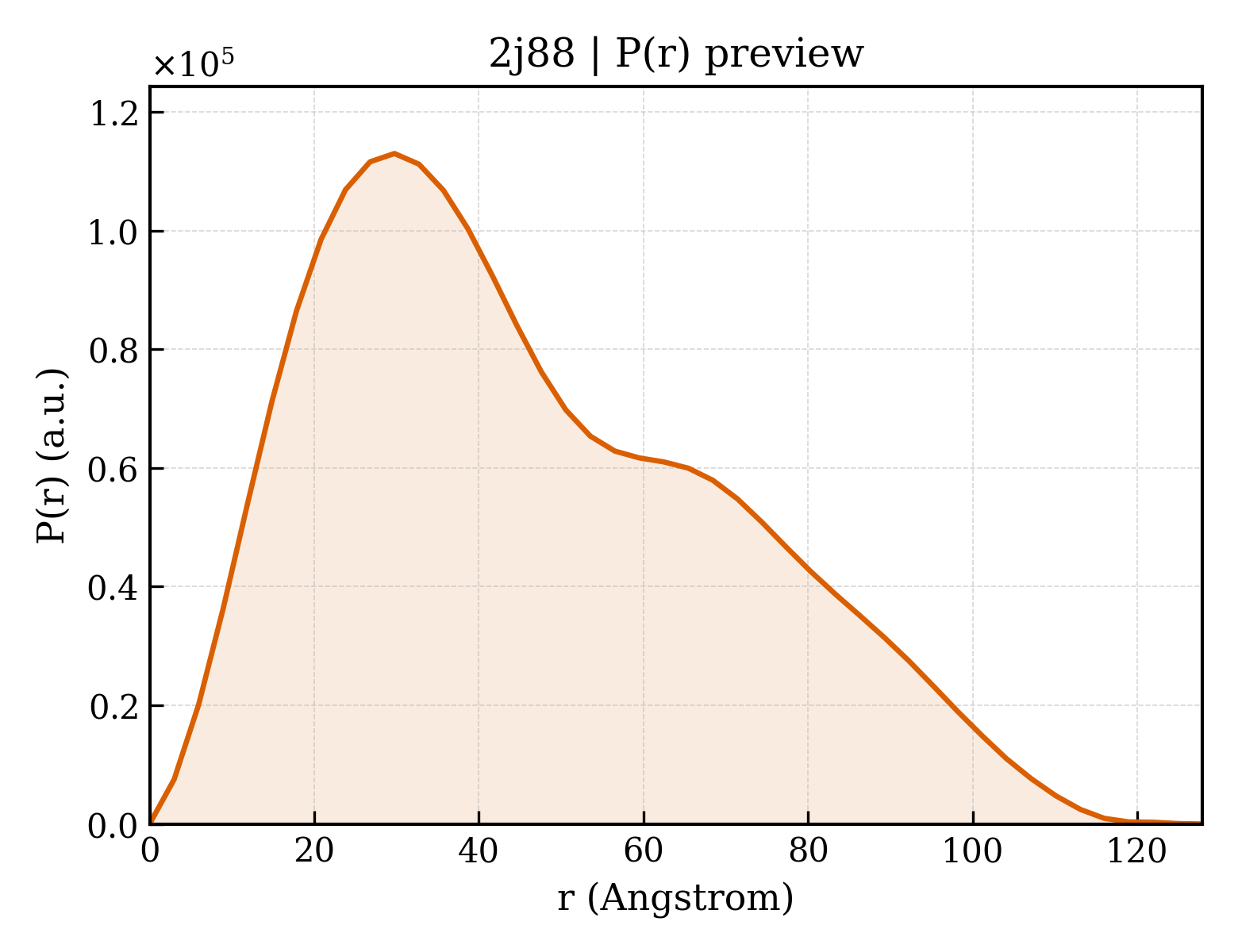

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2j88 |
| 沉积日期 deposition_date | 2006-10-23 |
| 结构标题 title | Hyaluronidase in complex with a monoclonal IgG Fab fragment |
| 关键词 keywords | ;GLYCOPROTEIN, GLYCOSIDASE FAMILY 56, ZYMOGEN, ALLERGEN, 7- STRANDED (BETA/ALPHA) TIM BARREL, HYDROLASE, GLYCOSIDASE, IMMUNOGLOBULIN DOMAIN ;; HYDROLASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 36.40 Å |
| 回转半径 Rg (电子) rg_electron | 36.55 Å |
| 零角强度 I(0) i0 | 79538700.00 |
| 分子量 molecular_weight | 71106.0 kDa |
| 排除体积 excluded_volume | 88633 ų |
| 包络体积 envelope_volume | 119750 ų |
| 水化壳体积 shell_volume | 29212 ų |
| 包络直径 envelope_diameter | 127.3 Å |
| 壳层 Rg shell_rg | 39.10 Å |
| 包络 Rg envelope_rg | 36.94 Å |
| 形状 Rg shape_rg | 36.52 Å |
| 总 Rg total_rg | 36.81 Å |
| 总原子数 total_atoms | 5024 |
| 残基数 n_residues | 650 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 127.9 Å |
| Rg (实空间) rg_real | 36.89 Å |
| Rg 误差 (实空间) rg_real_error | 1.49 Å |
| I(0) (实空间) i0_real | 7.9540e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.3680e+06 |
| Rg (倒空间) rg_reciprocal | 36.59 Å |
| I(0) (倒空间) i0_reciprocal | 79520000.0000 |
| 解质量估计 total_estimate | 0.7609 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 29.8 Å |
| 偏度 Skewness skewness | 0.521 |
| 峰度 Kurtosis kurtosis | -0.575 |
| 角度范围 angular_range | — – 0.2150 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 6490000.0000 |
| 实空间数据点数 n_real_points | 44 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.553; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.339; Smooth: 0.889 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 9 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d2j88a_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.9 — Bee venom hyaluronidase |
| 结构域编号 domain_id | d2j88h1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.1 — Immunoglobulin-like beta-sandwich |
| 超家族 Superfamily superfamily | b.1.1 — Immunoglobulin |
| 家族 Family family | b.1.1.2 — C1 set domains (antibody constant domain-like) |
| 结构域编号 domain_id | d2j88l1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.1 — Immunoglobulin-like beta-sandwich |
| 超家族 Superfamily superfamily | b.1.1 — Immunoglobulin |
| 家族 Family family | b.1.1.1 — V set domains (antibody variable domain-like) |
| 结构域编号 domain_id | d2j88l2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.1 — Immunoglobulin-like beta-sandwich |
| 超家族 Superfamily superfamily | b.1.1 — Immunoglobulin |
| 家族 Family family | b.1.1.2 — C1 set domains (antibody constant domain-like) |
CATH v4.4 (5 domains)
| 结构域编号 domain_id | 2j88A00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
| 结构域编号 domain_id | 2j88H01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Immunoglobulins |
| 结构域编号 domain_id | 2j88H02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Immunoglobulins |
| 结构域编号 domain_id | 2j88L01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Immunoglobulins |
| 结构域编号 domain_id | 2j88L02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Immunoglobulins |
