SAXSdb — 2j8a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HISTONE-LYSINE N-METHYLTRANSFERASE, H3 LYSINE-4 SPECIFIC

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SET1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–130； UniProt 247–375

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j8a
Deposition date deposition_date	2006-10-24
Structure title title	X-ray structure of the N-terminus RRM domain of Set1
Keywords keywords	HISTONE METHYLTRANSFERASE, RRM FOLD, TELOMERE, TRANSFERASE, NUCLEAR PROTEIN, METHYLTRANSFERASE, CHROMOSOMAL PROTEIN; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j8a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2j8a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

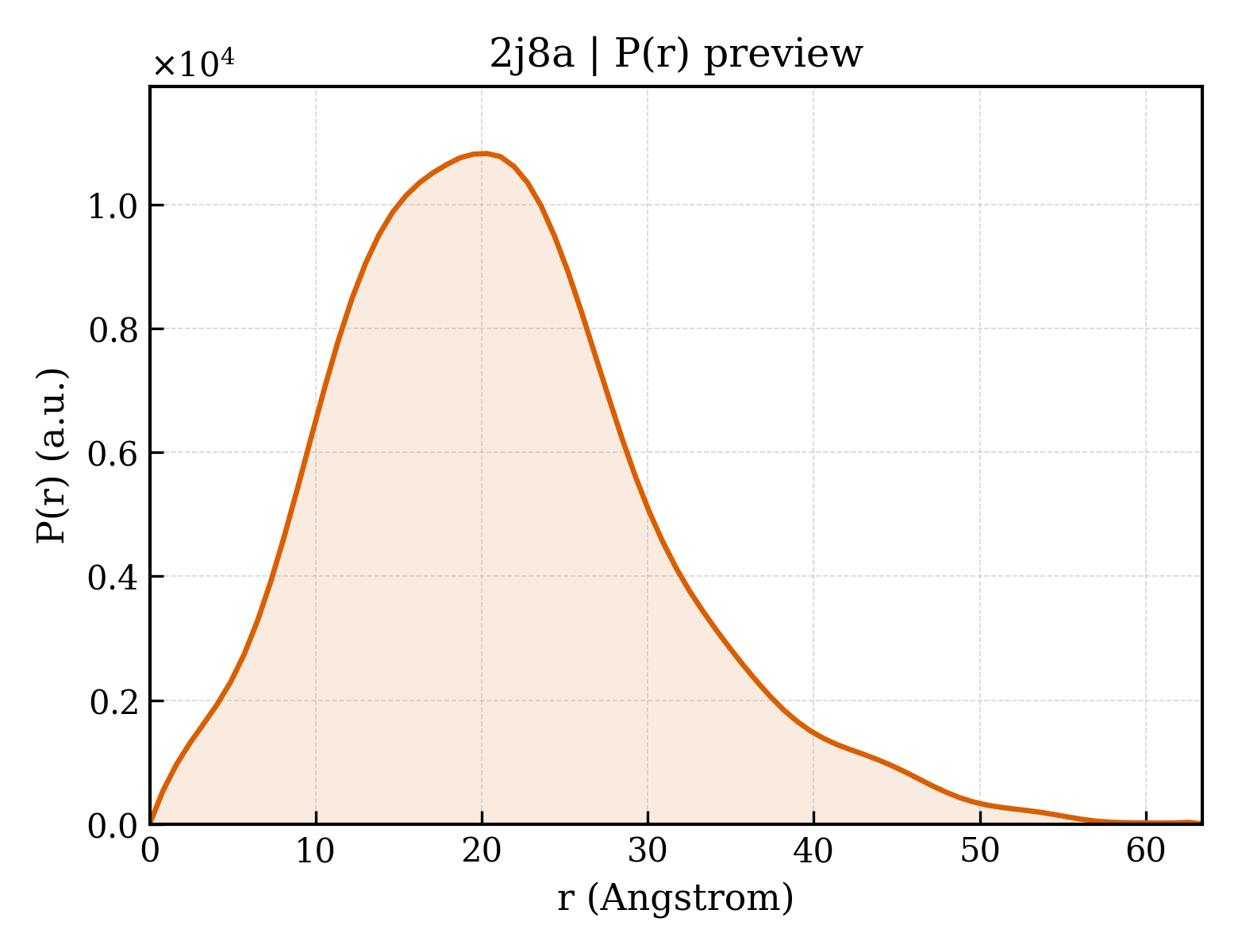

2j8a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.20 Å
Rg (electron density)	15.08 Å
Total Rg	16.34 Å
Atom count	915
Residues	114
Excluded volume	16485 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j8a__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2j8aA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

Unit-cell length a length_a	123.790 Å
Unit-cell length b length_b	123.790 Å
Unit-cell length c length_c	123.790 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 43 3 2
Space-group number int_tables_number	212
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2470
R_work r_work	0.2460
R_free r_free	0.2770

Description description	HISTONE-LYSINE N-METHYLTRANSFERASE, H3 LYSINE-4 SPECIFIC
Molecular weight formula_weight	15568.8 kDa
EC 编号 ec_number	2.1.1.43
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	915

X-ray structure of the N-terminus RRM domain of Set1

1. Protein Identity and Related Structures Protein Identity & Related Structures

HISTONE-LYSINE N-METHYLTRANSFERASE, H3 LYSINE-4 SPECIFIC

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2j8a__assembly_1__model_1

2j8a__assembly_1__model_1 | I(q)

2j8a__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

7. Citations (2)

Source organism organism	SACCHAROMYCES CEREVISIAE
Common name common_name	;BAKER'S YEAST ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	ESCHERICHIA COLI
