2j91

Crystal structure of Human Adenylosuccinate Lyase in complex with AMP

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADENYLOSUCCINATE LYASE

HOMO SAPIENS

UniProt P30566

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 4 ADENOSINE MONOPHOSPHATE × 4 CHLORIDE ION × 4 GLYCEROL × 4 water × 4 Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer

None

Homotetramer
2j91 2vd6 4ffx 4flc

4 assemblies

Other homooligomers

None

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name PUR8_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 23–503； UniProt 1–481 Author chain B； PDBConstruct 23–503； UniProt 1–481 Author chain C； PDBConstruct 23–503； UniProt 1–481 Author chain D； PDBConstruct 23–503； UniProt 1–481

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2j91
Deposition date deposition_date2006-11-01
Structure title titleCrystal structure of Human Adenylosuccinate Lyase in complex with AMP
Keywords keywords;DISEASE MUTATION, ADENYLOSUCCINASE, SUCCINO AMP-LYASE, PURINE BIOSYNTHESIS, ADENYLOSUCCINATE LYASE, ADENYLOSUCCINASE DEFICIENCY, AMP, ADSL, LYASE, SAICAR, PURINE, S-AMP, EPILEPSY ;; LYASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j91__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

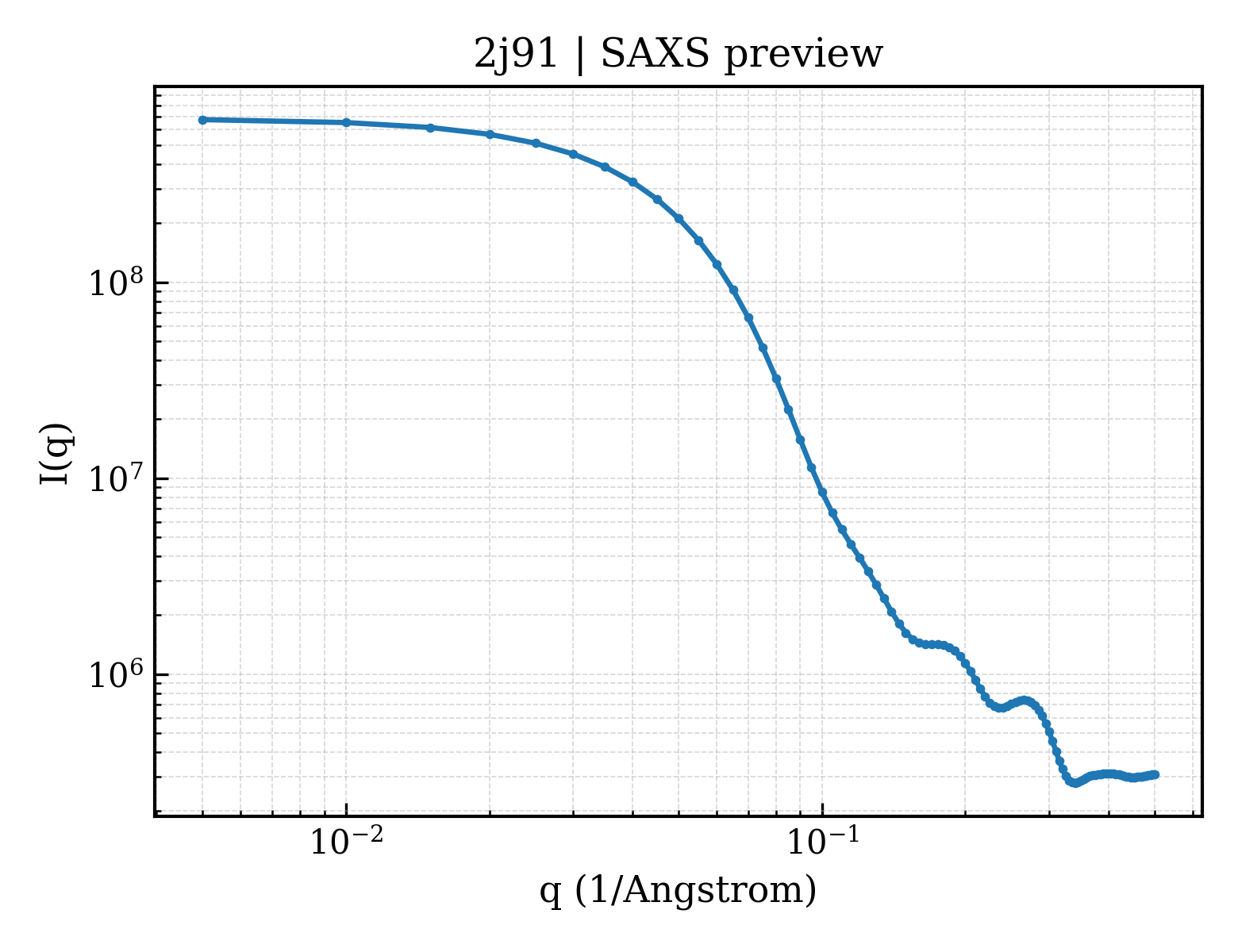

2j91__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2j91__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）37.13 Å
Rg (electron density)36.40 Å
Total Rg36.81 Å
Atom count14761
Residues1832
Excluded volume262610 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2j91__assembly_1__model_1 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (4 domains)

Domain ID domain_idd2j91a_
Class classa — All alpha proteins
Fold Fold folda.127 — L-aspartase-like
Superfamily Superfamily superfamilya.127.1 — L-aspartase-like
Family Family familya.127.1.0 — automated matches
Domain ID domain_idd2j91b_
Class classa — All alpha proteins
Fold Fold folda.127 — L-aspartase-like
Superfamily Superfamily superfamilya.127.1 — L-aspartase-like
Family Family familya.127.1.0 — automated matches
Domain ID domain_idd2j91c_
Class classa — All alpha proteins
Fold Fold folda.127 — L-aspartase-like
Superfamily Superfamily superfamilya.127.1 — L-aspartase-like
Family Family familya.127.1.0 — automated matches
Domain ID domain_idd2j91d_
Class classa — All alpha proteins
Fold Fold folda.127 — L-aspartase-like
Superfamily Superfamily superfamilya.127.1 — L-aspartase-like
Family Family familya.127.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id2j91A01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily10 — Fumarase/aspartase (N-terminal domain)
Domain ID domain_id2j91A02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily10 — Fumarase/aspartase (Central domain)
Domain ID domain_id2j91A03
Class class6 — Special
Architecture architecture10 — Helix non-globular
Topology topology250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily1570 —
Domain ID domain_id2j91B01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily10 — Fumarase/aspartase (N-terminal domain)
Domain ID domain_id2j91B02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily10 — Fumarase/aspartase (Central domain)
Domain ID domain_id2j91B03
Class class6 — Special
Architecture architecture10 — Helix non-globular
Topology topology250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily1570 —
Domain ID domain_id2j91C01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily10 — Fumarase/aspartase (N-terminal domain)
Domain ID domain_id2j91C02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily10 — Fumarase/aspartase (Central domain)
Domain ID domain_id2j91C03
Class class6 — Special
Architecture architecture10 — Helix non-globular
Topology topology250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily1570 —
Domain ID domain_id2j91D01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily10 — Fumarase/aspartase (N-terminal domain)
Domain ID domain_id2j91D02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily10 — Fumarase/aspartase (Central domain)
Domain ID domain_id2j91D03
Class class6 — Special
Architecture architecture10 — Helix non-globular
Topology topology250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily1570 —
▶

7. Citations (1)
