Cytoplasmic Domain of the Human Chloride Transporter ClC-5 in complex with ATP

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHLORIDE CHANNEL PROTEIN 5

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	ADENOSINE-5'-TRIPHOSPHATE × 6 CHLORIDE ION × 10 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLCN5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–177； UniProt 571–746 Author chain B； PDBConstruct 2–177； UniProt 571–746 Author chain C； PDBConstruct 2–177； UniProt 571–746 Author chain D； PDBConstruct 2–177； UniProt 571–746 Author chain E； PDBConstruct 2–177； UniProt 571–746 Author chain F； PDBConstruct 2–177； UniProt 571–746

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j9l
Deposition date deposition_date	2006-11-13
Structure title title	Cytoplasmic Domain of the Human Chloride Transporter ClC-5 in complex with ATP
Keywords keywords	CHLORIDE CHANNEL, ION CHANNEL, ION TRANSPORT, VOLTAGE-GATED CHANNEL; ION CHANNEL
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j9l__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

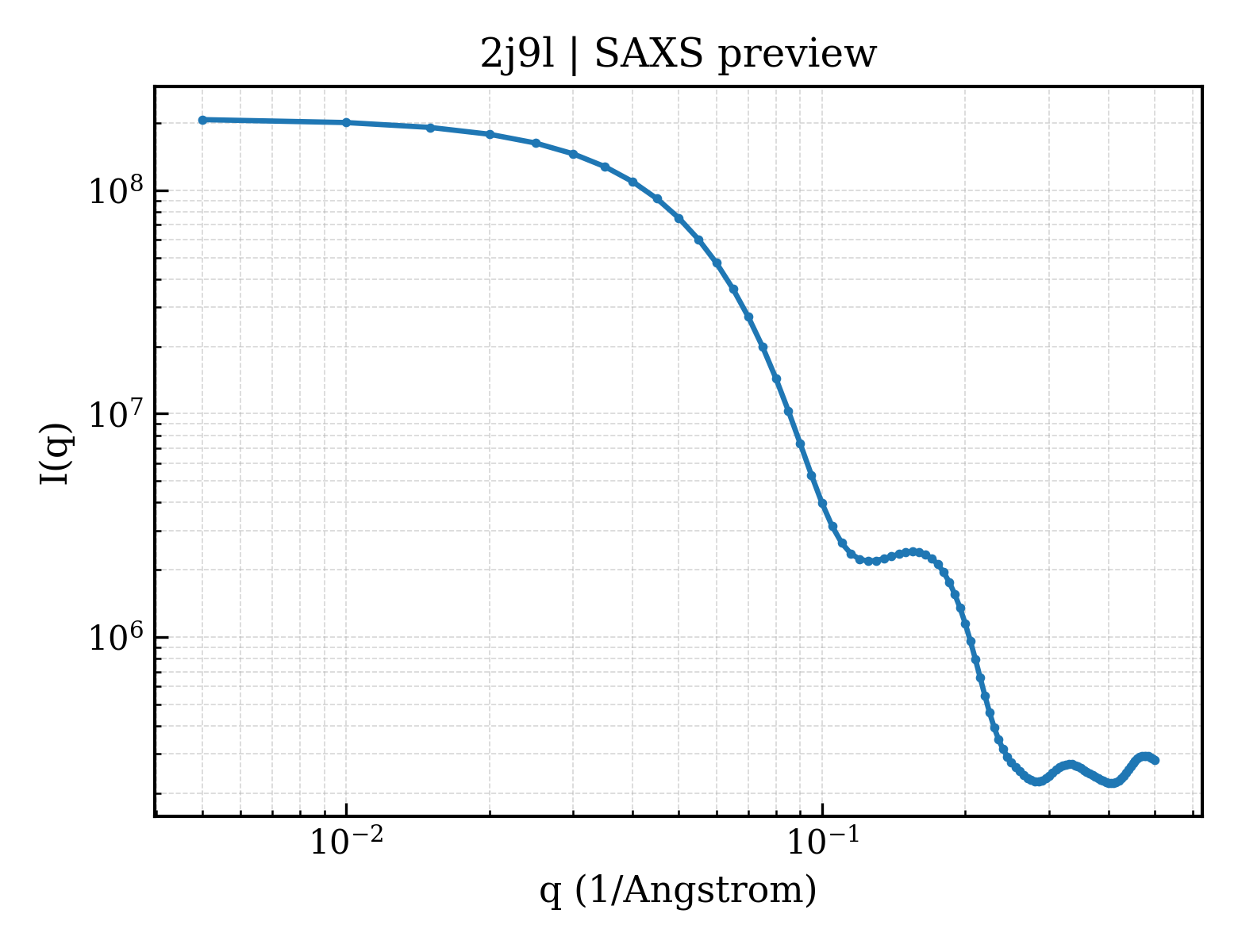

2j9l__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

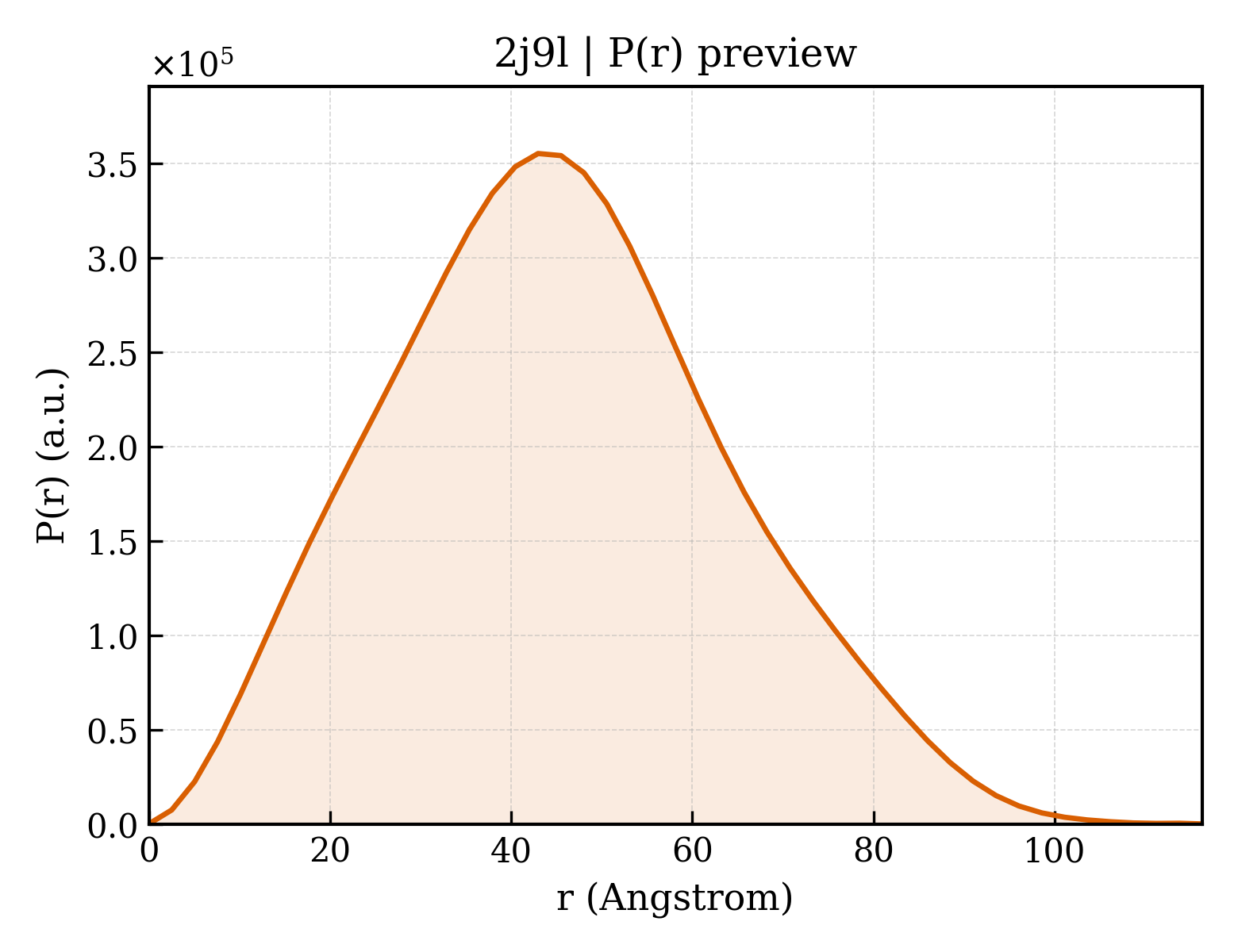

2j9l__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.70 Å
Rg (electron density)	34.00 Å
Total Rg	34.36 Å
Atom count	8199
Residues	1010
Excluded volume	147800 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j9l__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CHLORIDE CHANNEL PROTEIN 5
Molecular weight formula_weight	21076.5 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	8466

MEAKEEFAHKTLAMDVMKPRRNDPLLTVLTQDSMTVEDVETIISETTYSGFPVVVSRESQRLVGFVLRRDLIISIENARKKQDGVVSTSIIYFTEHSPPLPPYTPPTLKLRNILDLSPFTVTDLTPMEIVVDIFRKLGLRQCLVTHNGRLLGIITKKDVLKHIAQMANQDPDSILFNEFLEVLFQ

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	267

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2j9la1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.37 — CBS-domain pair
Superfamily Superfamily superfamily	d.37.1 — CBS-domain pair
Family Family family	d.37.1.1 — CBS-domain pair

Domain ID domain_id	d2j9la2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2j9lb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.37 — CBS-domain pair
Superfamily Superfamily superfamily	d.37.1 — CBS-domain pair
Family Family family	d.37.1.1 — CBS-domain pair

Domain ID domain_id	d2j9lb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2j9lc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.37 — CBS-domain pair
Superfamily Superfamily superfamily	d.37.1 — CBS-domain pair
Family Family family	d.37.1.1 — CBS-domain pair

Domain ID domain_id	d2j9lc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2j9ld1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.37 — CBS-domain pair
Superfamily Superfamily superfamily	d.37.1 — CBS-domain pair
Family Family family	d.37.1.1 — CBS-domain pair

Domain ID domain_id	d2j9ld2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2j9le1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.37 — CBS-domain pair
Superfamily Superfamily superfamily	d.37.1 — CBS-domain pair
Family Family family	d.37.1.1 — CBS-domain pair

Domain ID domain_id	d2j9le2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2j9lf1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.37 — CBS-domain pair
Superfamily Superfamily superfamily	d.37.1 — CBS-domain pair
Family Family family	d.37.1.1 — CBS-domain pair

Domain ID domain_id	d2j9lf2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (12 domains)

Domain ID domain_id	2j9lA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1280 — CBS domain Like
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	580 — CBS-domain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1280 — CBS domain Like
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	580 — CBS-domain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1280 — CBS domain Like
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lC02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	580 — CBS-domain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1280 — CBS domain Like
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lD02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	580 — CBS-domain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1280 — CBS domain Like
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lE02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	580 — CBS-domain
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1280 — CBS domain Like
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	2j9lF02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	580 — CBS-domain
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	122.328 Å
Unit-cell length b length_b	148.101 Å
Unit-cell length c length_c	79.883 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2640
R_work r_work	0.2630
R_free r_free	0.2950
