SAXSdb — 2j9p

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2j9p
沉积日期 deposition_date	2006-11-15
结构标题 title	Crystal structure of the Bacillus subtilis PBP4a, and its complex with a peptidoglycan mimetic peptide.
关键词 keywords	;D-ALA-D-ALA- CARBOXYPEPTIDASE, PEPTIDOGLYCAN SYNTHESIS, PENICILLIN-BINDING PROTEIN, PEPTIDOGLYCAN, CELL DIVISION, BACILLUS SUBTILIS, CELL WALL, HYDROLASE, CELL SHAPE, CELL CYCLE ;; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	65.71 Å
回转半径 Rg (电子) rg_electron	66.45 Å
零角强度 I(0) i0	138505000.00
分子量 molecular_weight	99072.0 kDa
排除体积 excluded_volume	123970 Å³
包络体积 envelope_volume	226070 Å³
水化壳体积 shell_volume	28601 Å³
包络直径 envelope_diameter	188.3 Å
壳层 Rg shell_rg	73.23 Å
包络 Rg envelope_rg	59.49 Å
形状 Rg shape_rg	66.44 Å
总 Rg total_rg	66.60 Å
总原子数 total_atoms	6966
残基数 n_residues	916
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	203.8 Å
Rg (实空间) rg_real	66.70 Å
Rg 误差 (实空间) rg_real_error	2.32 Å
I(0) (实空间) i0_real	1.3850e+08
I(0) 误差 (实空间) i0_real_error	3.1330e+06
Rg (倒空间) rg_reciprocal	64.56 Å
I(0) (倒空间) i0_reciprocal	137900000.0000
解质量估计 total_estimate	0.5417
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	25.5 Å
偏度 Skewness skewness	0.064
峰度 Kurtosis kurtosis	-1.663
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2404000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.000; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.039; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	D-alanyl-D-alanine carboxypeptidase DacC
分子量 formula_weight	49762.9 kDa
EC 编号 ec_number	3.4.16.4
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6966

AEKQDALSGQIDKILADHPALEGAMAGITVRSAETGAVLYEHSGDTRMRPASSLKLLTAAAALSVLGENYSFTTEVRTDGTLKGKKLNGNLYLKGKGDPTLLPSDFDKMAEILKHSGVKVIKGNLIGDDTWHDDMRLSPDMPWSDEYTYYGAPISALTASPNEDYDAGTVIVEVTPNQKEGEEPAVSVSPKTDYITIKNDAKTTAAGSEKDLTIEREHGTNTITIEGSVPVDANKTKEWISVWEPAGYALDLFKQSLKKQGITVKGDIKTGEAPSSSDVLLSHRSMPLSKLFVPFMKLSNNGHAEVLVKEMGKVKKGEGSWEKGLEVLNSTLPEFGVDSKSLVLRDGSGISHIDAVSSDQLSQLLYDIQDQSWFSAYLNSLPVAGNPDRMVGGTLRNRMKGTPAQGKVRAKTGSLSTVSSLSGYAETKSGKKLVFSILLNGLIDEEDGKDIEDQIAVILANQ

来源 Source

来源生物 organism	Bacillus subtilis
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	(2R)-2-AMINO-7-{[(1R)-1-CARBOXYETHYL]AMINO}-7-OXOHEPTANOIC ACID
分子量 formula_weight	246.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	D-ALANINE
分子量 formula_weight	89.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d2j9pa1
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.3 — beta-lactamase/transpeptidase-like
超家族 Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
家族 Family family	e.3.1.3 — Dac-like

结构域编号 domain_id	d2j9pb1
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.3 — beta-lactamase/transpeptidase-like
超家族 Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
家族 Family family	e.3.1.3 — Dac-like

CATH v4.4 (4 domains)

结构域编号 domain_id	2j9pA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	710 — Beta-lactamase
同源超家族 H-superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

结构域编号 domain_id	2j9pA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	80 — D-tyrosyl-trna(Tyr) Deacylase; Chain: A;
同源超家族 H-superfamily homologous superfamily	20 — D-Ala-D-Ala carboxypeptidase C, peptidase S13

结构域编号 domain_id	2j9pB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	710 — Beta-lactamase
同源超家族 H-superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

结构域编号 domain_id	2j9pB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	80 — D-tyrosyl-trna(Tyr) Deacylase; Chain: A;
同源超家族 H-superfamily homologous superfamily	20 — D-Ala-D-Ala carboxypeptidase C, peptidase S13

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	73.859 Å
晶胞边长 b length_b	77.586 Å
晶胞边长 c length_c	164.739 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	19.900 Å
R 因子 r_factor	0.2080
R_work r_work	0.2080
R_free r_free	0.2900

fit	/app/data/saxs_computation/j9/2j9p/2j9p.fit
pddf	/app/data/pr_computation/j9/2j9p/2j9p.pr.out
profile	/app/data/saxs_computation/j9/2j9p/2j9p.dat

Crystal structure of the Bacillus subtilis PBP4a, and its complex with a peptidoglycan mimetic peptide.

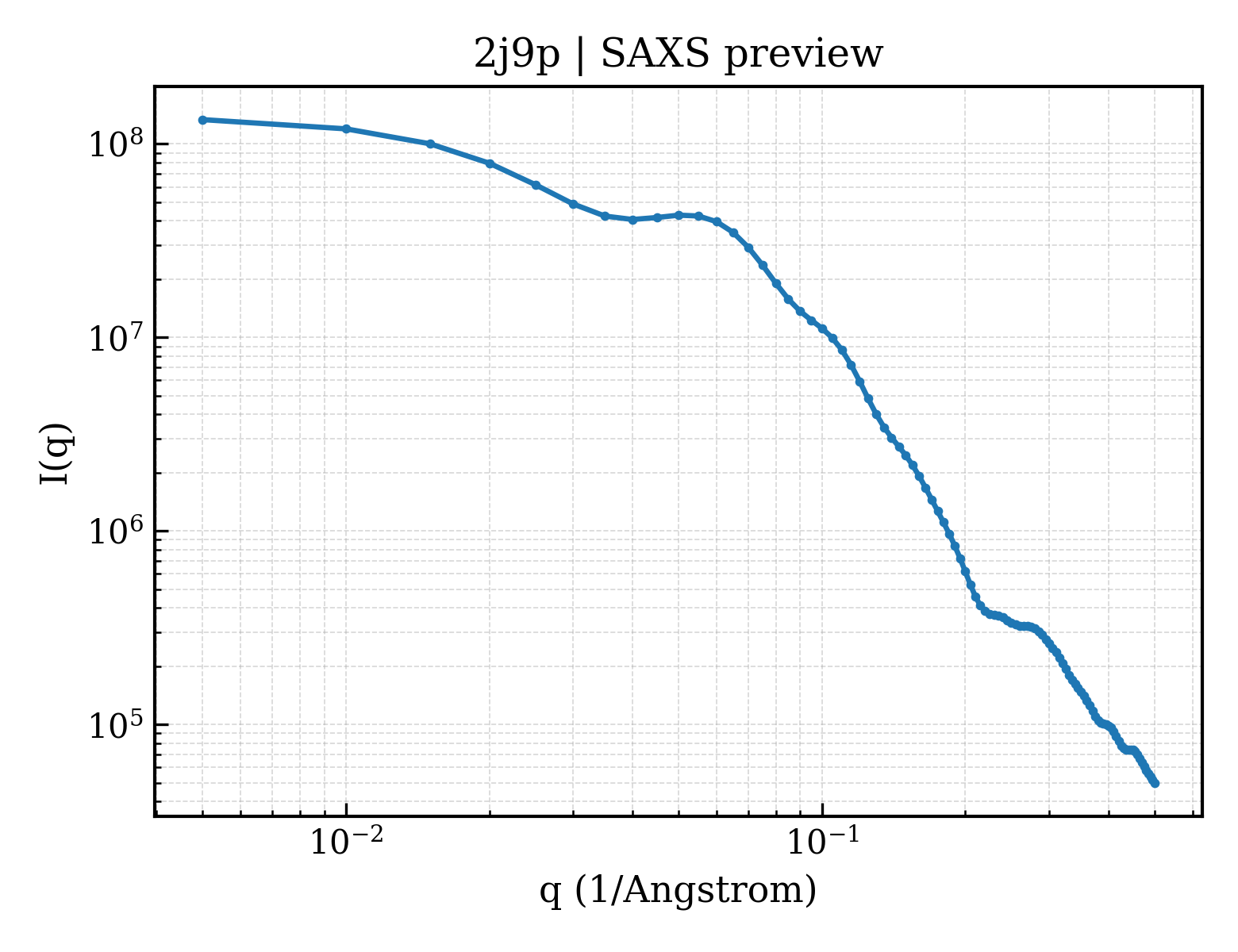

SAXS 散射曲线 SAXS Profile

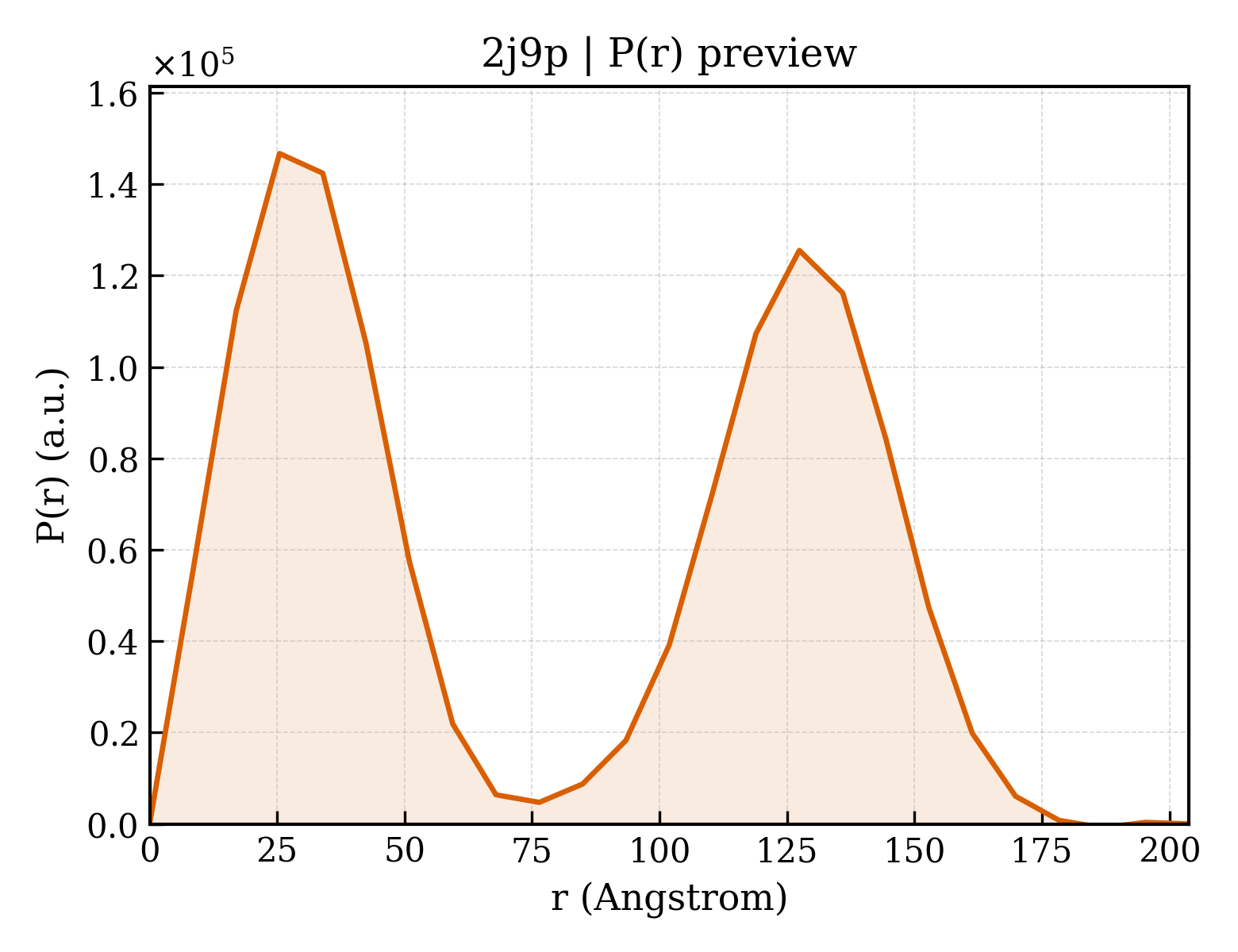

P(r) 距离分布 P(r) Distribution
