SAXSdb — 2j9r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THYMIDINE KINASE

BACILLUS ANTHRACIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ZINC ION × 4 THYMIDINE × 4 PHOSPHATE ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KITH_BACAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–214； UniProt 1–194

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j9r
Deposition date deposition_date	2006-11-15
Structure title title	Thymidine kinase from B. anthracis in complex with dT.
Keywords keywords	;TK1, DNK, LASSO, KINASE, TRANSFERASE, ATP-BINDING, DEOXYRIBONUCLEOSIDE KINASE, DNA SYNTHESIS, PHOSPHATE ACCEPTOR, NUCLEOTIDE-BINDING ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j9r__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2j9r__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

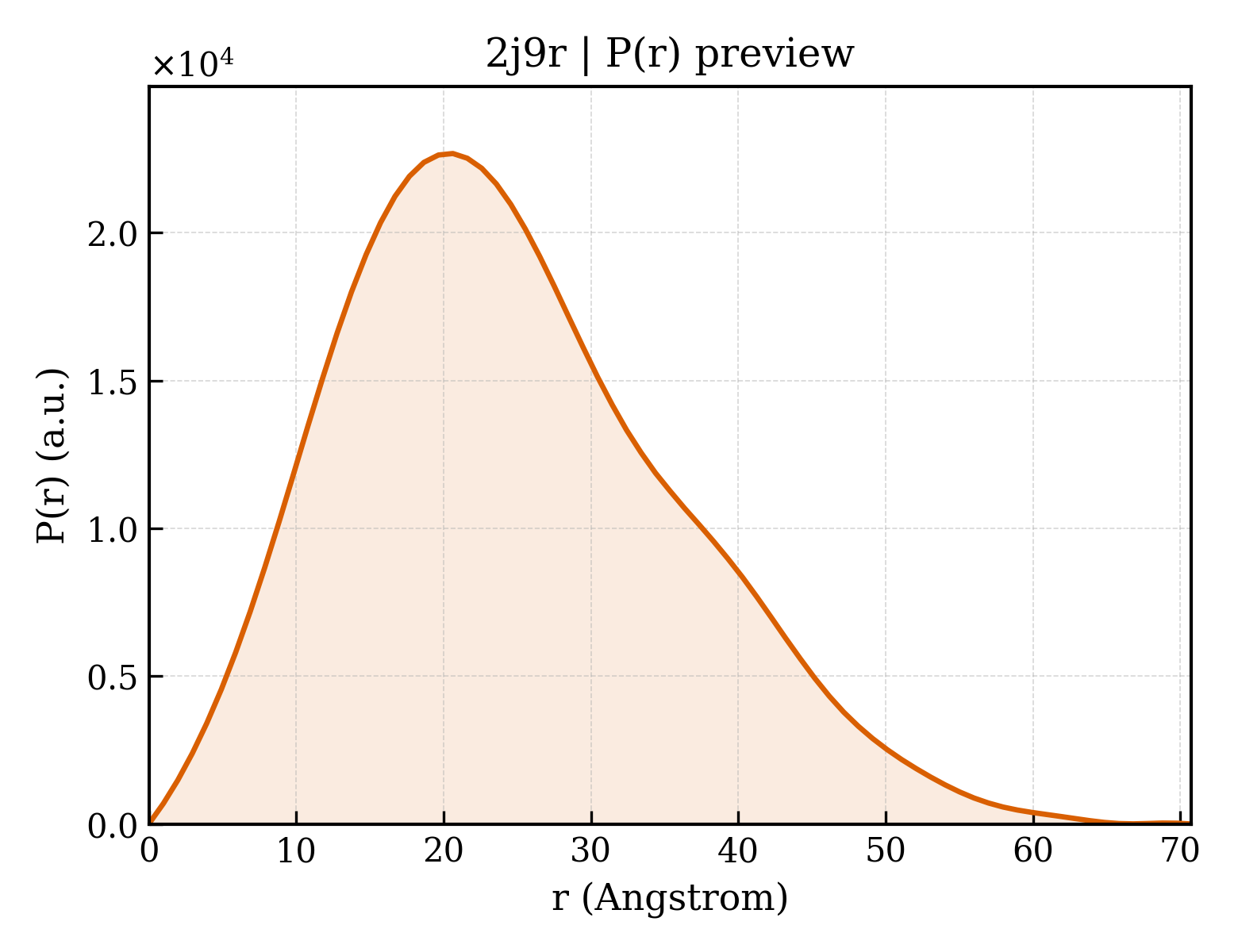

2j9r__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.55 Å
Rg (electron density)	25.71 Å
Total Rg	26.54 Å
Atom count	5632
Residues	712
Excluded volume	100190 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j9r__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	THYMIDINE KINASE
Molecular weight formula_weight	23841.2 kDa
EC 编号 ec_number	2.7.1.21
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1427

MGSSHHHHHHSSGLVPRGSHMYLINQNGWIEVICGSMFSGKSEELIRRVRRTQFAKQHAIVFKPCIDNRYSEEDVVSHNGLKVKAVPVSASKDIFKHITEEMDVIAIDEVQFFDGDIVEVVQVLANRGYRVIVAGLDQDFRGLPFGQVPQLMAIAEHVTKLQAVCSACGSPASRTQRLIDGEPAAFDDPIILVGASESYEPRCRHCHAVPTKQR

Source Source

Source organism organism	BACILLUS ANTHRACIS
NCBI taxonomy ID ncbi_taxonomy_id	260799
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	THYMIDINE
Molecular weight formula_weight	242.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	19

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2j9ra1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.0 — automated matches

Domain ID domain_id	d2j9ra2
Class class	g — Small proteins
Fold Fold fold	g.39 — Glucocorticoid receptor-like (DNA-binding domain)
Superfamily Superfamily superfamily	g.39.1 — Glucocorticoid receptor-like (DNA-binding domain)
Family Family family	g.39.1.0 — automated matches

Domain ID domain_id	d2j9ra3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2j9rA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2j9rA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	73.171 Å
Unit-cell length b length_b	73.171 Å
Unit-cell length c length_c	223.734 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	25.870 Å
R factor r_factor	0.2050
R_work r_work	0.2030
R_free r_free	0.2440

Thymidine kinase from B. anthracis in complex with dT.
