SAXSdb — 2j9w

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

VPS28-PROV PROTEIN

XENOPUS LAEVIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7T0W4_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–102； UniProt 123–221 Author chain B； PDBConstruct 4–102； UniProt 123–221

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2j9w
Deposition date deposition_date	2006-11-16
Structure title title	Structural insight into the ESCRT-I-II link and its role in MVB trafficking
Keywords keywords	NZF FINGER, HIV BUDDING, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2j9w__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2j9w__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

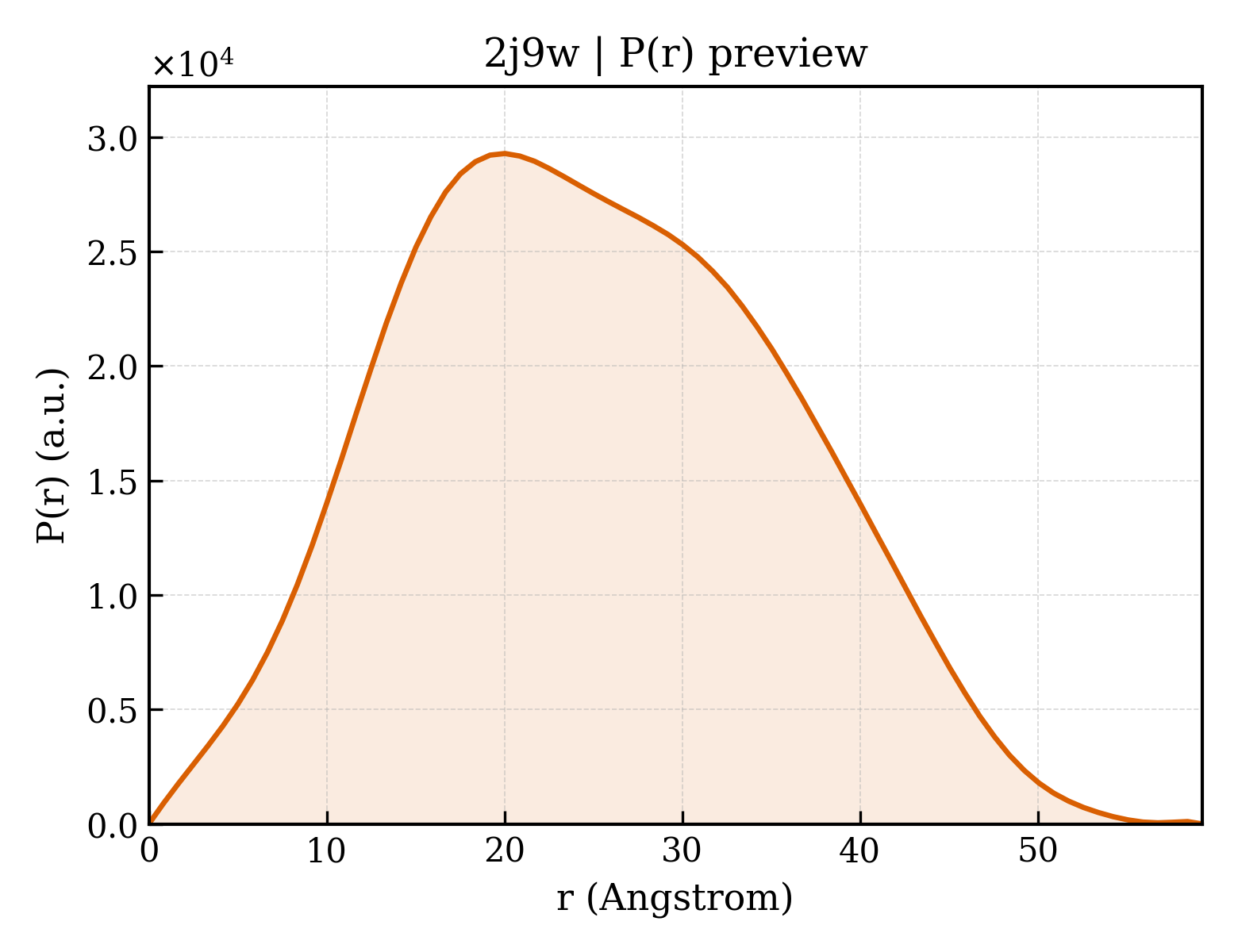

2j9w__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.25 Å
Rg (electron density)	13.85 Å
Total Rg	14.90 Å
Atom count	829
Residues	101
Excluded volume	14652 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2j9w__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2j9w__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2j9wa1
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.28 — VPS28 C-terminal domain-like
Family Family family	a.24.28.0 — automated matches

Domain ID domain_id	d2j9wa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2j9wb1
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.28 — VPS28 C-terminal domain-like
Family Family family	a.24.28.0 — automated matches

Domain ID domain_id	d2j9wb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2j9wA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1130 — Vps28 C-terminal domain

Domain ID domain_id	2j9wB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1130 — Vps28 C-terminal domain

▶

Unit-cell length a length_a	25.997 Å
Unit-cell length b length_b	89.713 Å
Unit-cell length c length_c	40.384 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.13 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	44.860 Å
R factor r_factor	0.2020
R_work r_work	0.2000
R_free r_free	0.2280

Description description	VPS28-PROV PROTEIN
Molecular weight formula_weight	12000.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1784

Structural insight into the ESCRT-I-II link and its role in MVB trafficking

1. Protein Identity and Related Structures Protein Identity & Related Structures

VPS28-PROV PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2j9w__assembly_1__model_1

2j9w__assembly_1__model_1 | I(q)

2j9w__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	XENOPUS LAEVIS
Common name common_name	AFRICAN CLAWED FROG
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	ESCHERICHIA COLI BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	134
