SAXSdb — 2ja1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THYMIDINE KINASE

BACILLUS CEREUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ZINC ION × 4 THYMIDINE-5'-TRIPHOSPHATE × 4 (4S)-2-METHYL-2,4-PENTANEDIOL × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q0H0H6_BACCE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–197； UniProt 1–195

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ja1
Deposition date deposition_date	2006-11-17
Structure title title	Thymidine kinase from B. cereus with TTP bound as phosphate donor.
Keywords keywords	TK1, DNK, LASSO, KINASE, TRANSFERASE, PHOSPHATE DONOR, DEOXYRIBONUCLEOSIDE KINASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ja1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ja1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

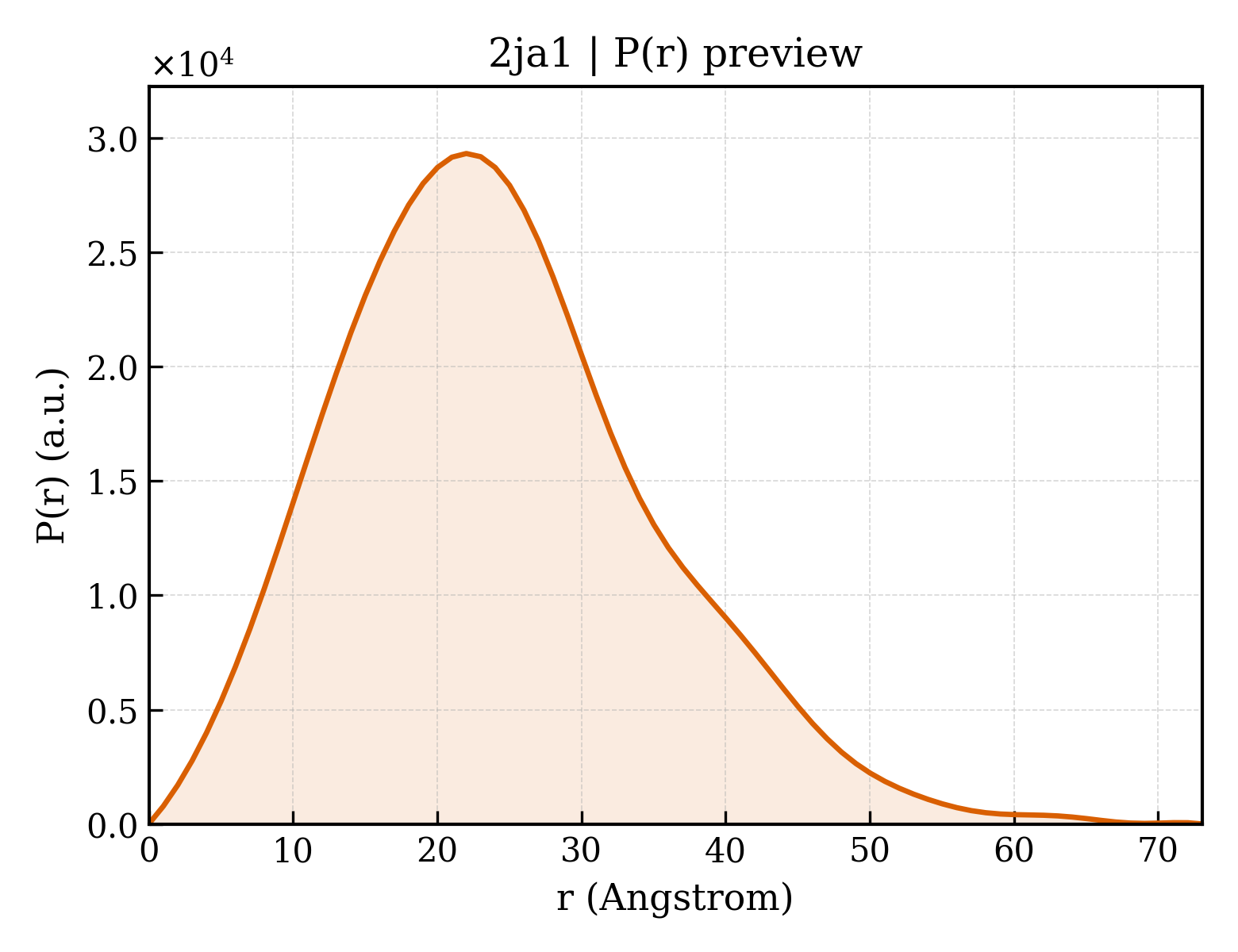

2ja1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.23 Å
Rg (electron density)	26.36 Å
Total Rg	27.14 Å
Atom count	6148
Residues	772
Excluded volume	108950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ja1__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	THYMIDINE KINASE
Molecular weight formula_weight	21866.9 kDa
EC 编号 ec_number	2.7.1.21
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1557

GSMYLINQNGWIEVICGSMFSGKSEELIRRVRRTQFAKQHAIVFKPCIDNRYSEEDVVSHNGLKVKAVPVSASKDIFEHITEELDVIAIDEVQFFDGDIVEVVQVLANRGYRVIVAGLDQDFRGLPFGQVPQLMAIAEHVTKLQAVCSVCGSPASRTQRLIDGEPAAFDDPIILVGASESYEPRCRHCHAVPANKDK

Source Source

Source organism organism	BACILLUS CEREUS
NCBI taxonomy ID ncbi_taxonomy_id	1396
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	THYMIDINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	482.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	20

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2ja1a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.0 — automated matches

Domain ID domain_id	d2ja1a2
Class class	g — Small proteins
Fold Fold fold	g.39 — Glucocorticoid receptor-like (DNA-binding domain)
Superfamily Superfamily superfamily	g.39.1 — Glucocorticoid receptor-like (DNA-binding domain)
Family Family family	g.39.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	2ja1A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2ja1A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	95.390 Å
Unit-cell length b length_b	95.390 Å
Unit-cell length c length_c	204.862 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	37.630 Å
R factor r_factor	0.1980
R_work r_work	0.1960
R_free r_free	0.2390
