SAXSdb — 2jaj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NG, NG-DIMETHYLARGININE DIMETHYLAMINOHYDROLASE 1

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	N~5~-{IMINO[(2-METHOXYETHYL)AMINO]METHYL}-L-ORNITHINE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	N~5~-{IMINO[(2-METHOXYETHYL)AMINO]METHYL}-L-ORNITHINE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDAH1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–289； UniProt 1–284 Author chain B； PDBConstruct 6–289； UniProt 1–284

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jaj
Deposition date deposition_date	2006-11-29
Structure title title	DDAH1 complexed with L-257
Keywords keywords	DDAH, HYDROLASE, NITRIC OXIDE SYNTHASE INHIBITOR; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jaj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2jaj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

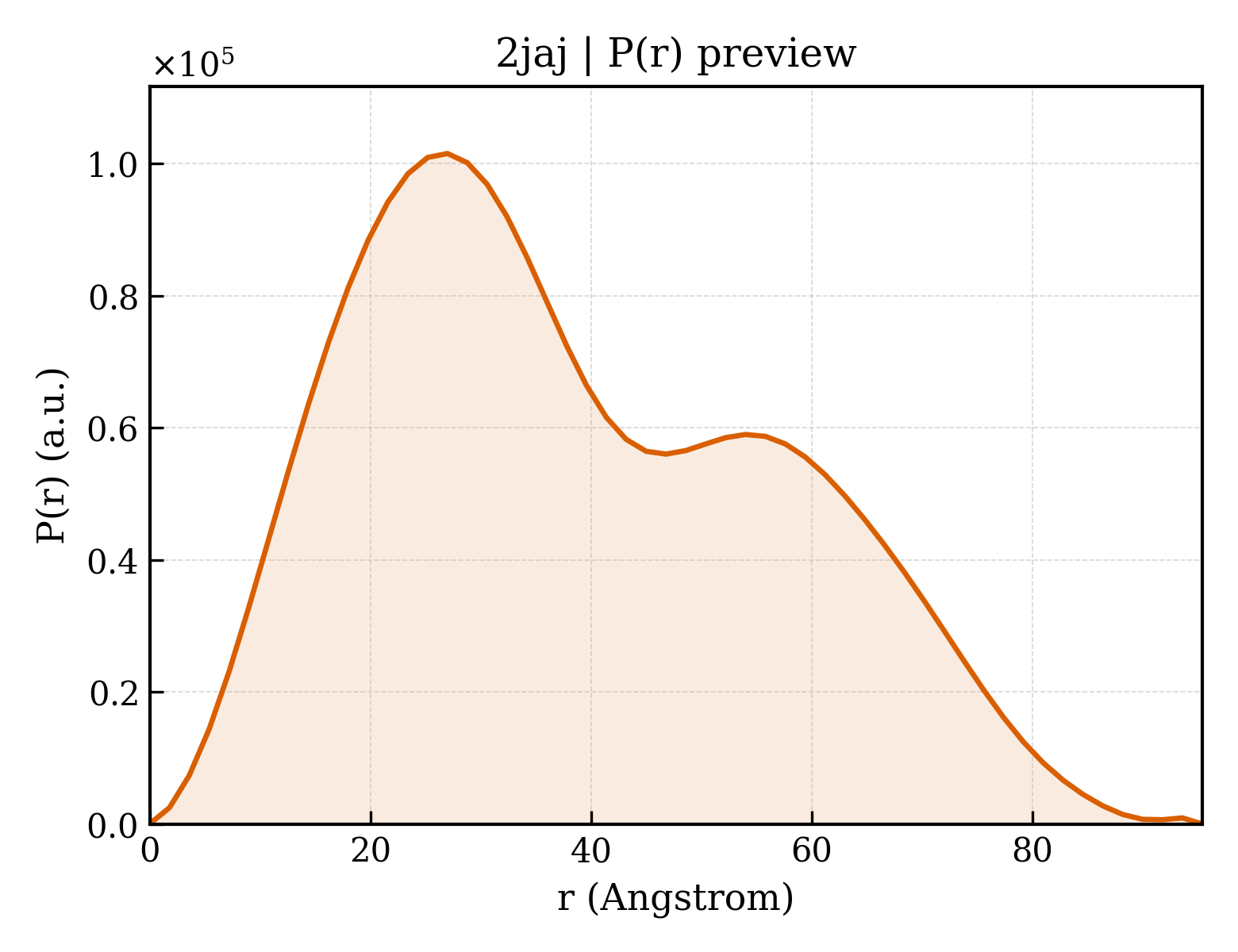

2jaj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.49 Å
Rg (electron density)	17.20 Å
Total Rg	18.16 Å
Atom count	2060
Residues	272
Excluded volume	36752 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jaj__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2jaj__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	NG, NG-DIMETHYLARGININE DIMETHYLAMINOHYDROLASE 1
Molecular weight formula_weight	31487.2 kDa
EC 编号 ec_number	3.5.3.18
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4381

GPLGMAGLGHPAAFGRATHAVVRALPESLGQHALRSAKGEEVDVARAERQHQLYVGVLGSKLGLQVVELPADESLPDCVFVEDVAVVCEETALITRPGAPSRRKEVDMMKEALEKLQLNIVEMKDENATLDGGDVLFTGREFFVGLSKRTNQRGAEILADTFKDYAVSTVPVADGLHLKSFCSMAGPNLIAIGSSESAQKALKIMQQMSDHRYDKLTVPDDIAANCIYLNIPNKGHVLLHRTPEEYPESAKVYEKLKDHMLIPVSMSELEKVDGLLTCCSVLINKKVDS

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	N~5~-{IMINO[(2-METHOXYETHYL)AMINO]METHYL}-L-ORNITHINE
Molecular weight formula_weight	232.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	281

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2jaja_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.126 — Pentein, beta/alpha-propeller
Superfamily Superfamily superfamily	d.126.1 — Pentein
Family Family family	d.126.1.0 — automated matches

Domain ID domain_id	d2jajb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.126 — Pentein, beta/alpha-propeller
Superfamily Superfamily superfamily	d.126.1 — Pentein
Family Family family	d.126.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	2jajA00
Class class	3 — Alpha Beta
Architecture architecture	75 — 5-stranded Propeller
Topology topology	10 — L-arginine/glycine Amidinotransferase; Chain A
Homologous superfamily homologous superfamily	10 — L-arginine/glycine Amidinotransferase; Chain A

Domain ID domain_id	2jajB00
Class class	3 — Alpha Beta
Architecture architecture	75 — 5-stranded Propeller
Topology topology	10 — L-arginine/glycine Amidinotransferase; Chain A
Homologous superfamily homologous superfamily	10 — L-arginine/glycine Amidinotransferase; Chain A

▶

Unit-cell length a length_a	44.849 Å
Unit-cell length b length_b	46.914 Å
Unit-cell length c length_c	147.612 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.56 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2140
R_work r_work	0.2110
R_free r_free	0.2630

DDAH1 complexed with L-257
