SAXSdb — 2jd4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LAMININ SUBUNIT ALPHA-1

MUS MUSCULUS

UniProt P19137

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 2 CHLORIDE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 2 CHLORIDE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LAMA1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–383； UniProt 2706–3084 Author chain B； PDBConstruct 5–383； UniProt 2706–3084

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jd4
Deposition date deposition_date	2007-01-04
Structure title title	Mouse laminin alpha1 chain, domains LG4-5
Keywords keywords	LAMININ-111, BASEMENT MEMBRANE PROTEIN, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jd4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2jd4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

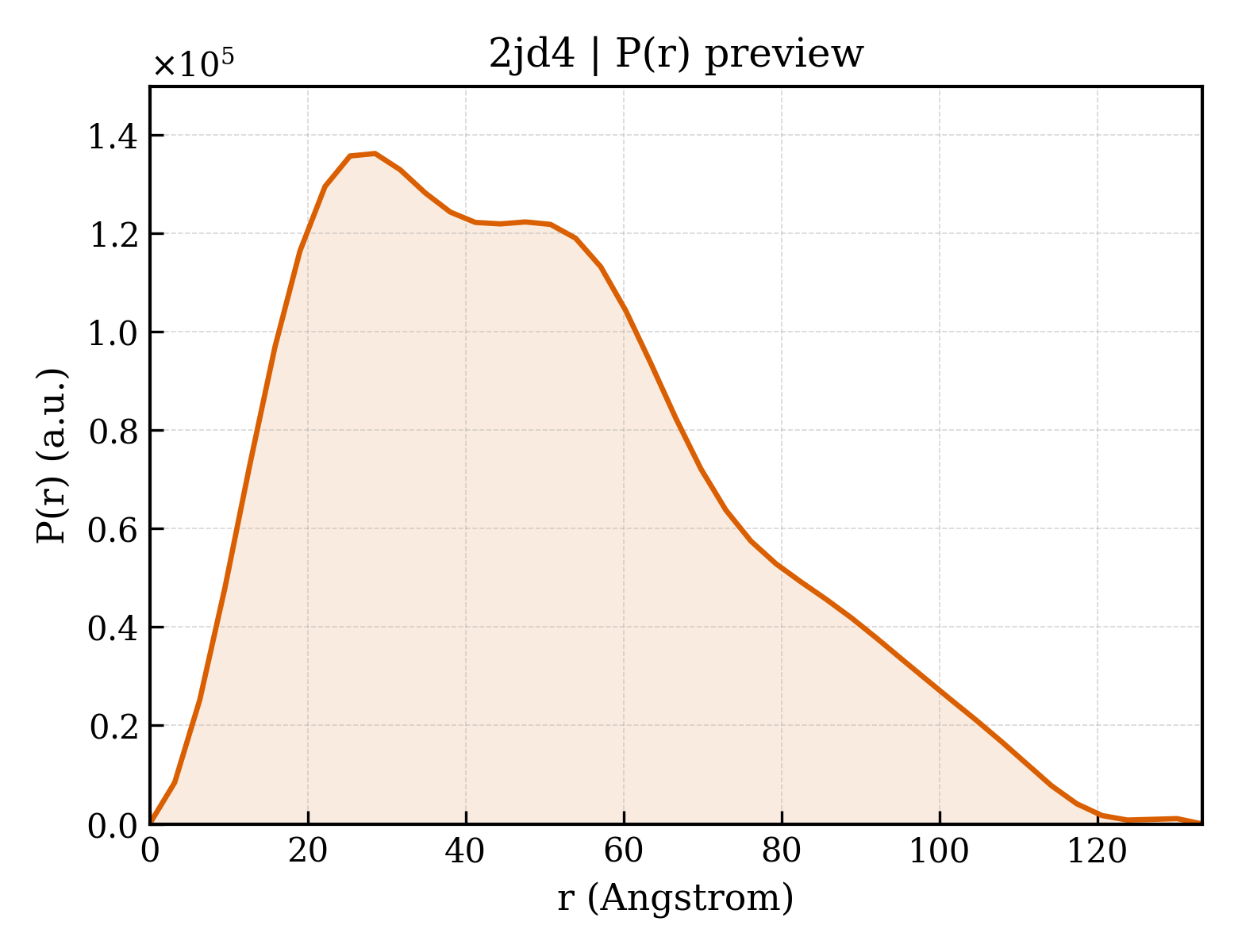

2jd4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.78 Å
Rg (electron density)	24.08 Å
Total Rg	25.00 Å
Atom count	2893
Residues	376
Excluded volume	51264 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jd4__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2jd4__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	LAMININ SUBUNIT ALPHA-1
Molecular weight formula_weight	41901.5 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6115

APLAQPELCAVDTAPGYVAGAHQFGLSQNSHLVLPLQQSDVRKRLQVQLSIRTFASSGLIYYVAHQNQMDYATLQLQEGRLHFMFDLGKGRTKVSHPALLSDGKWHTVKTEYIKRKAFMTVDGQESPSVTVVGKATTLDVERKLYLGGLPSHYRARNIGTITHSIPACIGEIMVNGQQLDKDRPLSASAVDRCYVVAQEGTFFEGSGYAALVKEGYKVRLDLQITLEFRTTSKNGVLLGISSAKVDAIGLEIVDGKVLFHVNNGAGRITATYQPRAARALCDGKWHTLQAHKSKHRIVLTVDGNSVRAESPHTHSTSADTNDPIYVGGYPAHIKQNSLSSRASFRGCVRNLRLSRGSQVQSLDLSRAFDLQGVFPHSCPGPEP

Source Source

Source organism organism	MUS MUSCULUS
Common name common_name	MOUSE
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	HOMO SAPIENS

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	327

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2jd4a1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.0 — automated matches

Domain ID domain_id	d2jd4b1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.0 — automated matches

Domain ID domain_id	d2jd4b2
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2jd4A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2jd4A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2jd4B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2jd4B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

Unit-cell length a length_a	70.530 Å
Unit-cell length b length_b	55.812 Å
Unit-cell length c length_c	100.986 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.48 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2295
R_work r_work	0.2295
R_free r_free	0.2624
