SAXSdb — 2jd5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SERINE/THREONINE-PROTEIN KINASE SKY1

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	NUCLEOLAR PROTEIN 3 × 1 （Q01560） MAGNESIUM ION × 2 SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SKY1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–169； UniProt 138–306 Author chain A； PDBConstruct 170–373； UniProt 539–742 Author chain B； PDBConstruct 1–169； UniProt 138–306 Author chain B； PDBConstruct 170–373； UniProt 539–742

NUCLEOLAR PROTEIN 3

OrganismNot specified

UniProt Q01560

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	SERINE/THREONINE-PROTEIN KINASE SKY1 × 2 （Q03656） MAGNESIUM ION × 2 SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NOP3_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–7； UniProt 408–414

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jd5
Deposition date deposition_date	2007-01-04
Structure title title	Sky1p bound to Npl3p-derived substrate peptide
Keywords keywords	MRNA EXPORT PROTEIN, SERINE/THREONINE-PROTEIN KINASE, KINASE, TRANSFERASE, ATP-BINDING, NUCLEOTIDE-BINDING; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jd5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2jd5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

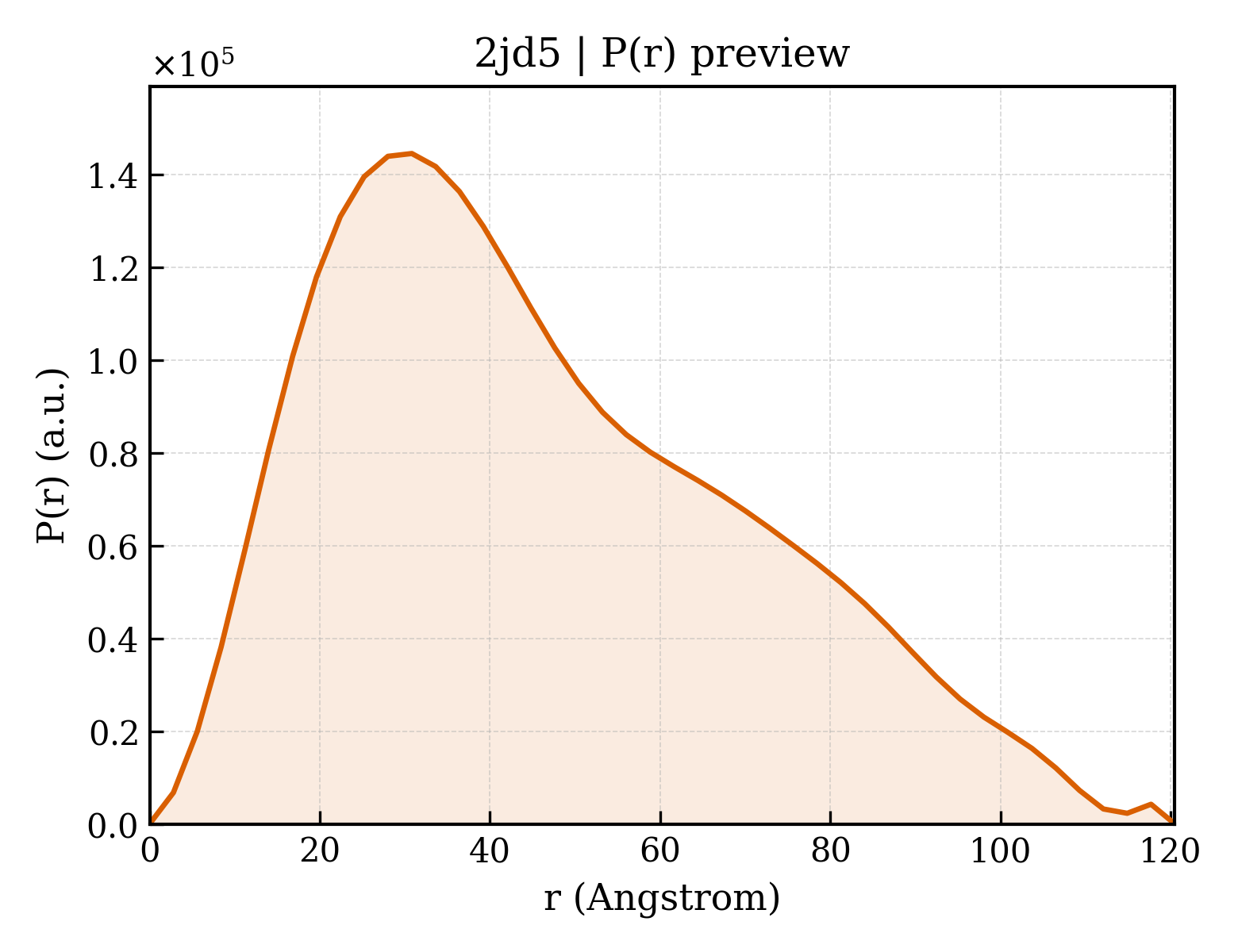

2jd5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.37 Å
Rg (electron density)	36.34 Å
Total Rg	36.69 Å
Atom count	5787
Residues	718
Excluded volume	103290 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jd5__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	SERINE/THREONINE-PROTEIN KINASE SKY1
Molecular weight formula_weight	43009.1 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5920

DYRPGGFHPAFKGEPYKDARYILVRKLGWGHFSTVWLAKDMVNNTHVAMKIVRGDKVYTEAAEDEIKLLQRVNDADNTKEDSMGANHILKLLDHFNHKGPNGVHVVMVFEVLGENLLALIKKYEHRGIPLIYVKQISKQLLLGLDYMHRRCGIIHTDIKPENVLMEIVDSPENLIQIKIADLGNACWYDEHYTNSIQTREYRSPEVLLGAPWGCGADIWSTACLIFELITGDFLFEPDEGHSYTKDDDHIAQIIELLGELPSYLLRNGKYTRTFFNSRGLLRNISKLKFWPLEDVLTEKYKFSKDEAKEISDFLSPMLQLDPRKRADAGGLVNHPWLKDTLGMEEIRVPDRELYGSGSDIPGWFEEVRDHKRH

Source Source

Source organism organism	SACCHAROMYCES CEREVISIAE
Common name common_name	;BAKER'S YEAST ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	NUCLEOLAR PROTEIN 3
Molecular weight formula_weight	904.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

RERSPTR

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	133

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2jd5a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d2jd5b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (4 domains)

Domain ID domain_id	2jd5A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	2jd5A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	2jd5B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	2jd5B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

Unit-cell length a length_a	72.328 Å
Unit-cell length b length_b	88.558 Å
Unit-cell length c length_c	134.408 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	19.990 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2550

Sky1p bound to Npl3p-derived substrate peptide
