SAXSdb — 2jet

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHYMOTRYPSINOGEN B CHAIN A

RATTUS NORVEGICUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CTRB1_RAT
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 6–15； UniProt 19–28 Author chain B； PDBConstruct 1–128； UniProt 37–164 Author chain C； PDBConstruct 1–99； UniProt 165–263

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jet
Deposition date deposition_date	2007-01-22
Structure title title	Crystal structure of a trypsin-like mutant (S189D , A226G) chymotrypsin.
Keywords keywords	SUBSTRATE SPECIFICITY, ZYMOGEN, PROTEASE, HYDROLASE, DIGESTION, SERINE PROTEASE, PROTEIN ENGINEERING; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jet__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2jet__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

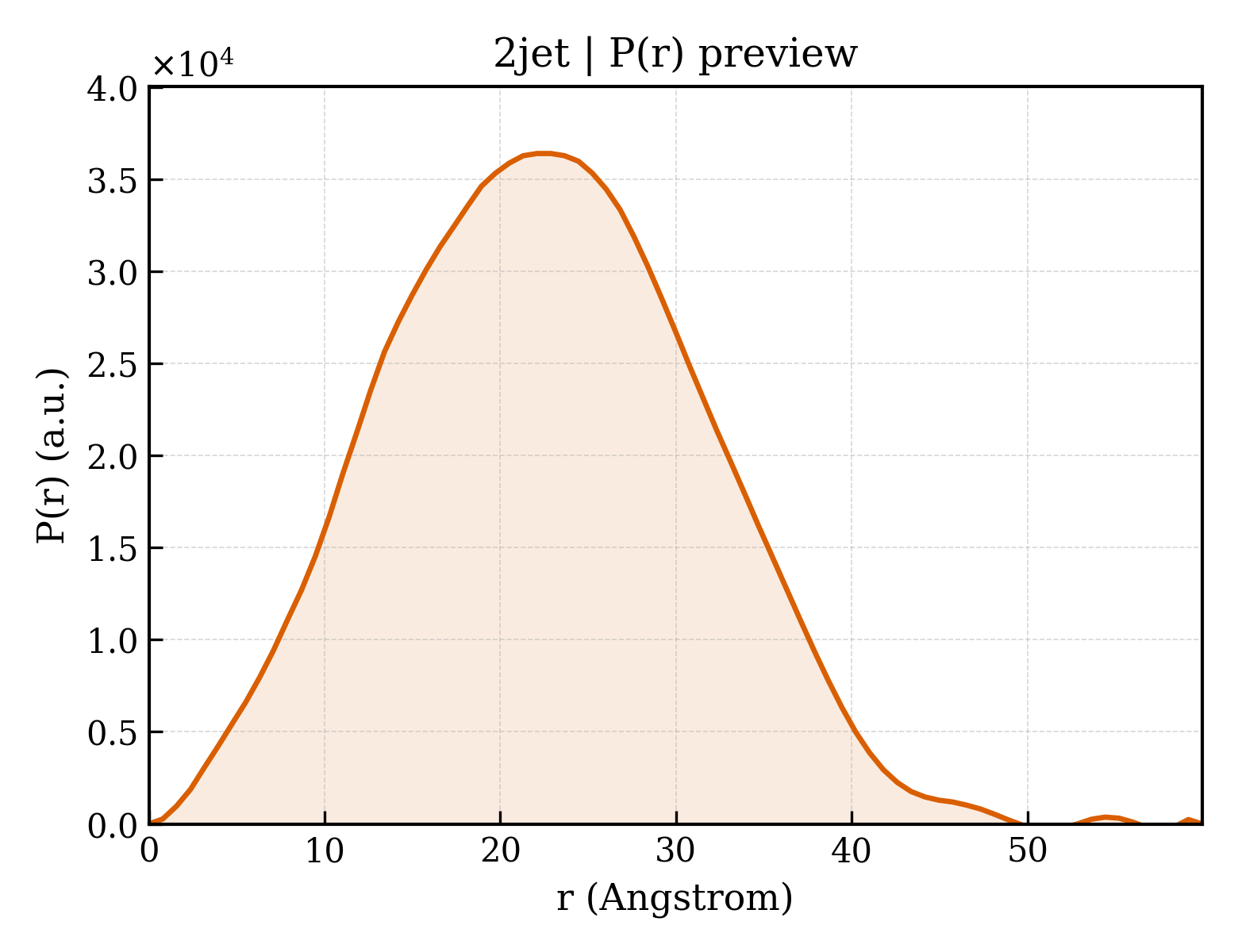

2jet__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.17 Å
Rg (electron density)	16.06 Å
Total Rg	17.17 Å
Atom count	1700
Residues	230
Excluded volume	30337 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jet__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CHYMOTRYPSINOGEN B CHAIN A
Molecular weight formula_weight	1544.8 kDa
EC 编号 ec_number	3.4.21.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1767

MSTQACGVPTIQPVL

Source Source

Source organism organism	RATTUS NORVEGICUS
Common name common_name	RAT
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	CHYMOTRYPSINOGEN B CHAIN B
Molecular weight formula_weight	13880.5 kDa
EC 编号 ec_number	3.4.21.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GEDAIPGSWPWQVSLQDKTGFHFCGGSLISEDWVVTAAHCGVKTSDVVVAGEFDQGSDEENIQVLKIAQVFKNPKFNMFTVRNDITLLKLATPAQFSETVSAVCLPNVDDDFPPGTVCATTGWGKTKY

Source Source

Source organism organism	RATTUS NORVEGICUS
Common name common_name	RAT
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 polymer

Description description	CHYMOTRYPSINOGEN B CHAIN C
Molecular weight formula_weight	10253.7 kDa
EC 编号 ec_number	3.4.21.1
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

NALKTPEKLQQAALPIVSEADCKKSWGSKITDVMTCAGASGVDSCMGDSGGPLVCQKDGVWTLAGIVSWGSGVCSTSTPGVYSRVTALMPWVQQILEAN

Source Source

Source organism organism	RATTUS NORVEGICUS
Common name common_name	RAT
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	ESCHERICHIA COLI

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	67

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2jetB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2jetC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	34.690 Å
Unit-cell length b length_b	64.351 Å
Unit-cell length c length_c	44.224 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	102.09 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	43.230 Å
R factor r_factor	0.2790
R_work r_work	0.2760
R_free r_free	0.3340

Crystal structure of a trypsin-like mutant (S189D , A226G) chymotrypsin.
