SAXSdb — 2jie

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-GLUCOSIDASE B

PAENIBACILLUS POLYMYXA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-deoxy-2-fluoro-alpha-D-glucopyranose × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BGLB_PAEPO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–454； UniProt 2–448

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jie
Deposition date deposition_date	2007-02-28
Structure title title	BETA-GLUCOSIDASE B FROM BACILLUS POLYMYXA COMPLEXED WITH 2-F-GLUCOSE
Keywords keywords	;GLYCOSYL HYDROLASE FAMILY 1, CARBOHYDRATE METABOLISM, POLYSACCHARIDE DEGRADATION, 2-F-GLUCOSE COMPLEX, CELLULOSE DEGRADATION, HYDROLASE, GLYCOSIDASE, BETA-GLUCOSIDASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jie__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2jie__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

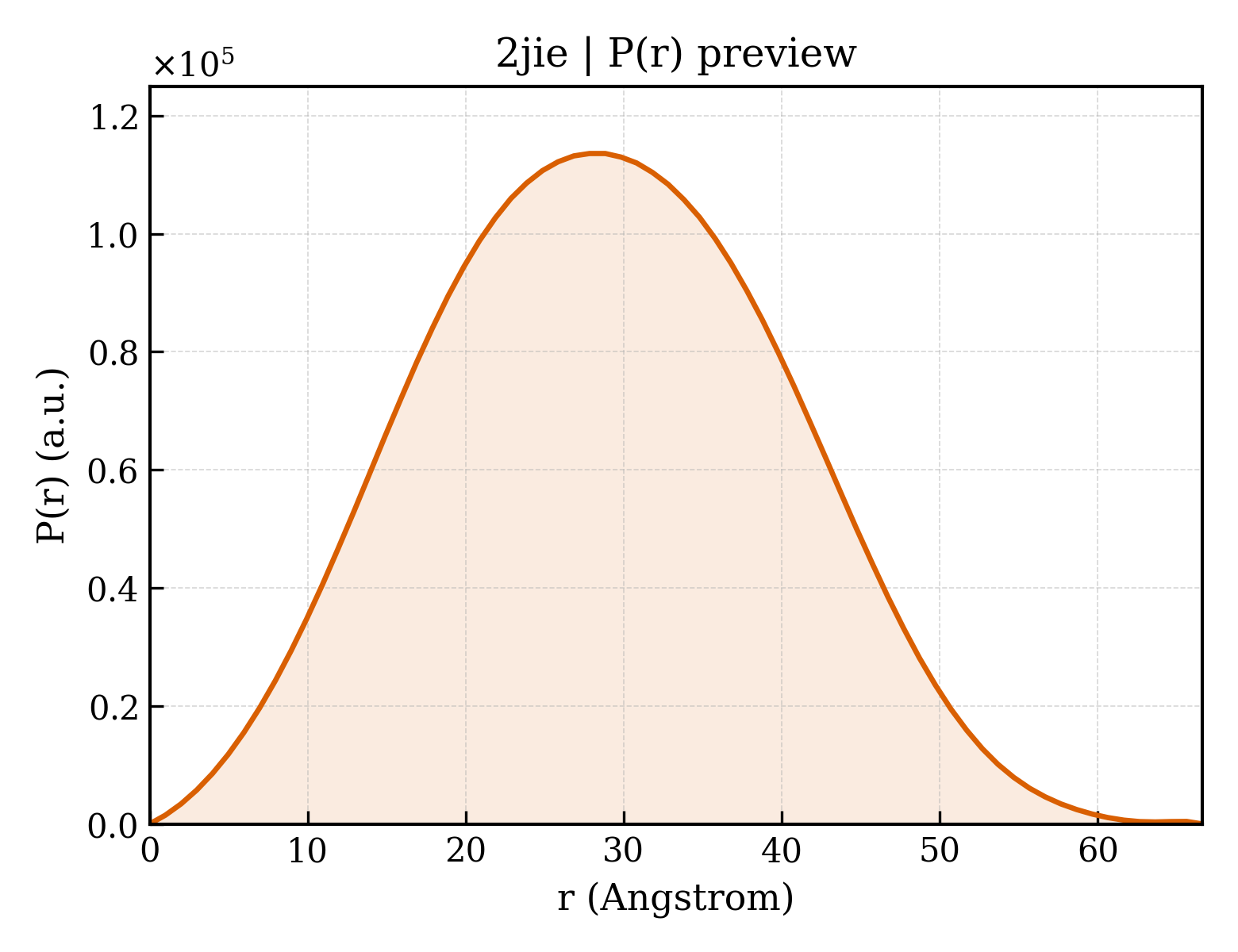

2jie__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.03 Å
Rg (electron density)	20.72 Å
Total Rg	21.70 Å
Atom count	3630
Residues	445
Excluded volume	64044 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jie__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	BETA-GLUCOSIDASE B
Molecular weight formula_weight	52457.8 kDa
EC 编号 ec_number	3.2.1.21
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3759

MHHHHHHSENTFIFPATFMWGTSTSSYQIEGGTDEGGRTPSIWDTFCQIPGKVIGGDCGDVACDHFHHFKEDVQLMKQLGFLHYRFSVAWPRIMPAAGIINEEGLLFYEHLLDEIELAGLIPMLTLYHWDLPQWIEDEGGWTQRETIQHFKTYASVIMDRFGERINWWNTINEPYCASILGYGTGEHAPGHENWREAFTAAHHILMCHGIASNLHKEKGLTGKIGITLNMEHVDAASERPEDVAAAIRRDGFINRWFAEPLFNGKYPEDMVEWYGTYLNGLDFVQPGDMELIQQPGDFLGINYYTRSIIRSTNDASLLQVEQVHMEEPVTDMGWEIHPESFYKLLTRIEKDFSKGLPILITENGAAMRDELVNGQIEDTGRHGYIEEHLKACHRFIEEGGQLKGYFVWSFLDNFEWAWGYSKRFGIVHINYETQERTPKQSALWFKQMMAKNGF

Source Source

Source organism organism	PAENIBACILLUS POLYMYXA
NCBI taxonomy ID ncbi_taxonomy_id	1406
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	2-deoxy-2-fluoro-alpha-D-glucopyranose
Molecular weight formula_weight	182.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	129

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2jiea_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	2jieA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

▶

Unit-cell length a length_a	71.236 Å
Unit-cell length b length_b	74.647 Å
Unit-cell length c length_c	88.754 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2498
R_work r_work	0.2498
R_free r_free	0.3061
