SAXSdb — 2jj7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMOLYSIN II REGULATORY PROTEIN

BACILLUS CEREUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7X506_BACCE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–169； UniProt 4–169 Author chain A； PDBConstruct 171–186； UniProt 186–201 Author chain B； PDBConstruct 4–169； UniProt 4–169 Author chain B； PDBConstruct 171–186； UniProt 186–201

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jj7
Deposition date deposition_date	2008-03-18
Structure title title	Crystal structure of the HlyIIR mutant protein with residues 170-185 substituted by alanine
Keywords keywords	DNA-BINDING PROTEIN, TRANSCRIPTION REGULATION, DNA-BINDING, TETR FAMILY, TRANSCRIPTION, TRANSCRIPTIONAL REGULATOR; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jj7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

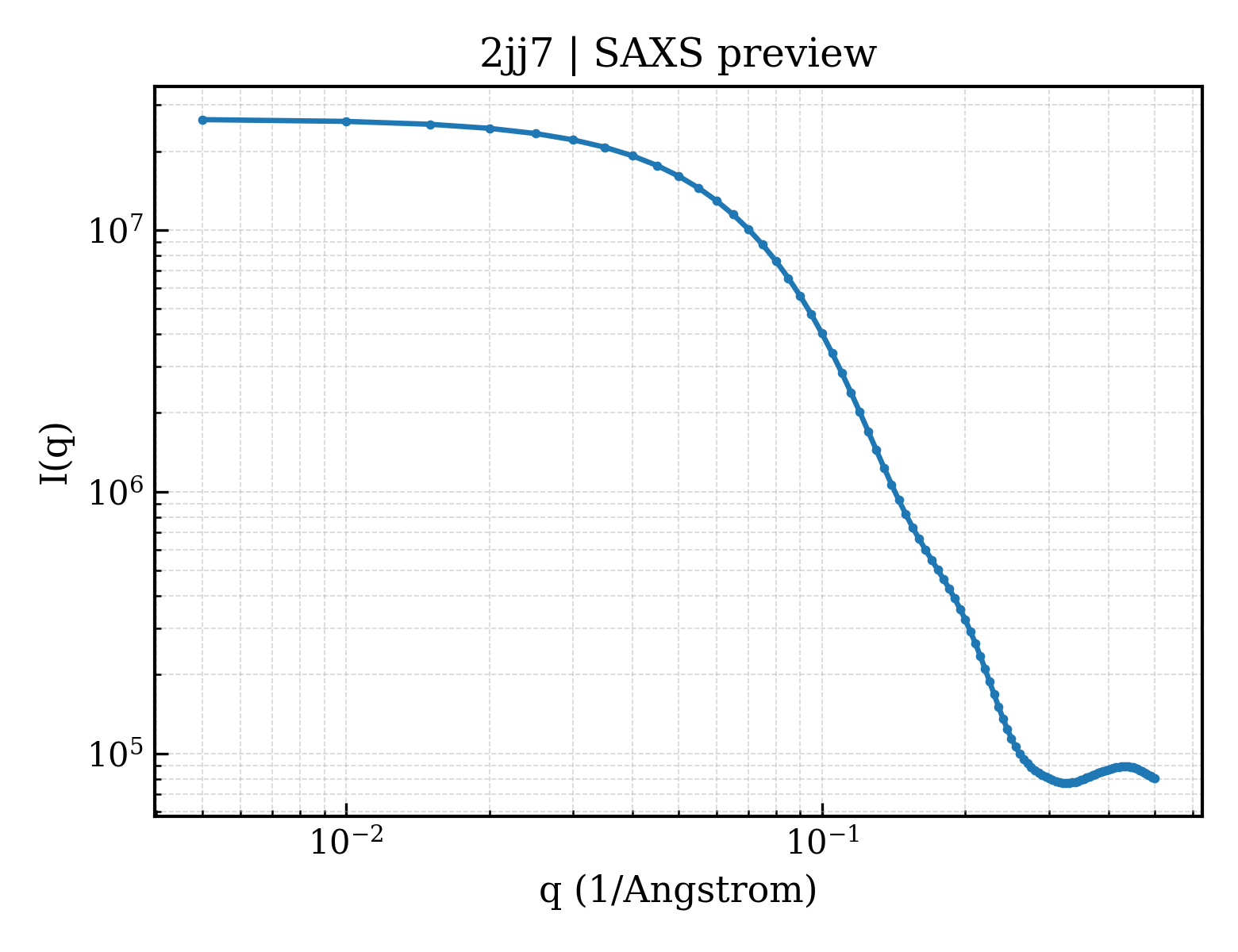

2jj7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

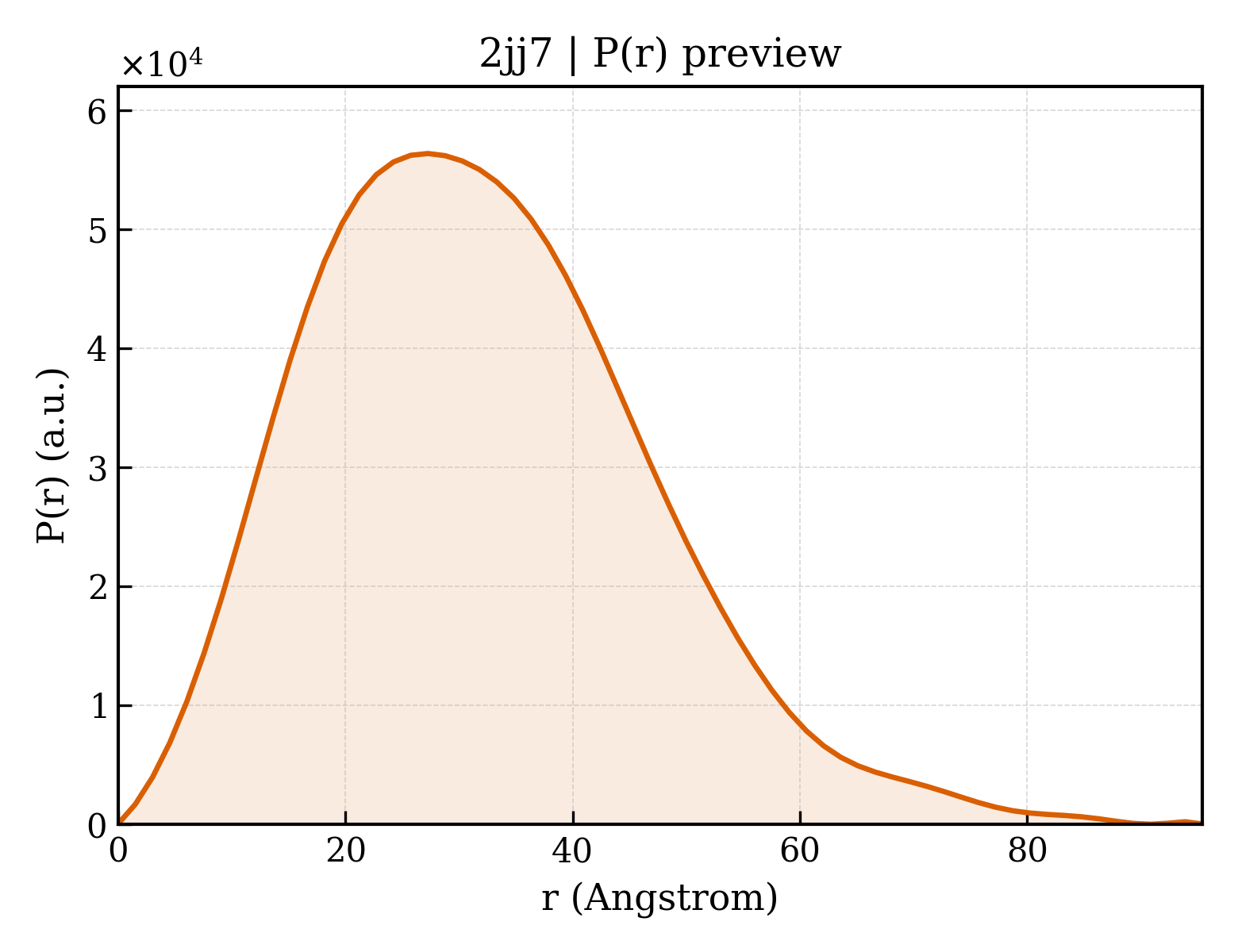

2jj7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.62 Å
Rg (electron density)	23.53 Å
Total Rg	24.58 Å
Atom count	2953
Residues	360
Excluded volume	53137 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jj7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2jj7a1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

Domain ID domain_id	d2jj7a2
Class class	a — All alpha proteins
Fold Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
Superfamily Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
Family Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

Domain ID domain_id	d2jj7b1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

Domain ID domain_id	d2jj7b2
Class class	a — All alpha proteins
Fold Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
Superfamily Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
Family Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

CATH v4.4 (4 domains)

Domain ID domain_id	2jj7A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	2jj7A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	357 — Tetracycline Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

Domain ID domain_id	2jj7B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	2jj7B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	357 — Tetracycline Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

▶

Unit-cell length a length_a	66.831 Å
Unit-cell length b length_b	120.414 Å
Unit-cell length c length_c	55.178 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.1810
R_work r_work	0.1790
R_free r_free	0.2370

Description description	HEMOLYSIN II REGULATORY PROTEIN
Molecular weight formula_weight	21610.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3176

Crystal structure of the HlyIIR mutant protein with residues 170-185 substituted by alanine

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMOLYSIN II REGULATORY PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2jj7__assembly_1__model_1

2jj7__assembly_1__model_1 | I(q)

2jj7__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	BACILLUS CEREUS
NCBI taxonomy ID ncbi_taxonomy_id	1396
Host organism host_organism	ESCHERICHIA COLI

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	195

Crystal structure of the HlyIIR mutant protein with residues 170-185 substituted by alanine
