SAXSdb — 2jkb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SIALIDASE B

STREPTOCOCCUS PNEUMONIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	2-ACETYLAMINO-7-(1,2-DIHYDROXY-ETHYL)-3-HYDROXY-6,8-DIOXA-BICYCLO[3.2.1]OCTANE-5-CARBOXYLIC ACID × 1 1,2-ETHANEDIOL × 6 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NANB_STRPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 19–686； UniProt 30–697

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jkb
Deposition date deposition_date	2008-08-26
Structure title title	Crystal structure of Streptococcus pneumoniae NanB in complex with 2, 7-anhydro-Neu5Ac
Keywords keywords	INTRAMOLECULAR TRANS-SIALIDASE, LYASE, GLYCOSIDASE, NEURAMINIDASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jkb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

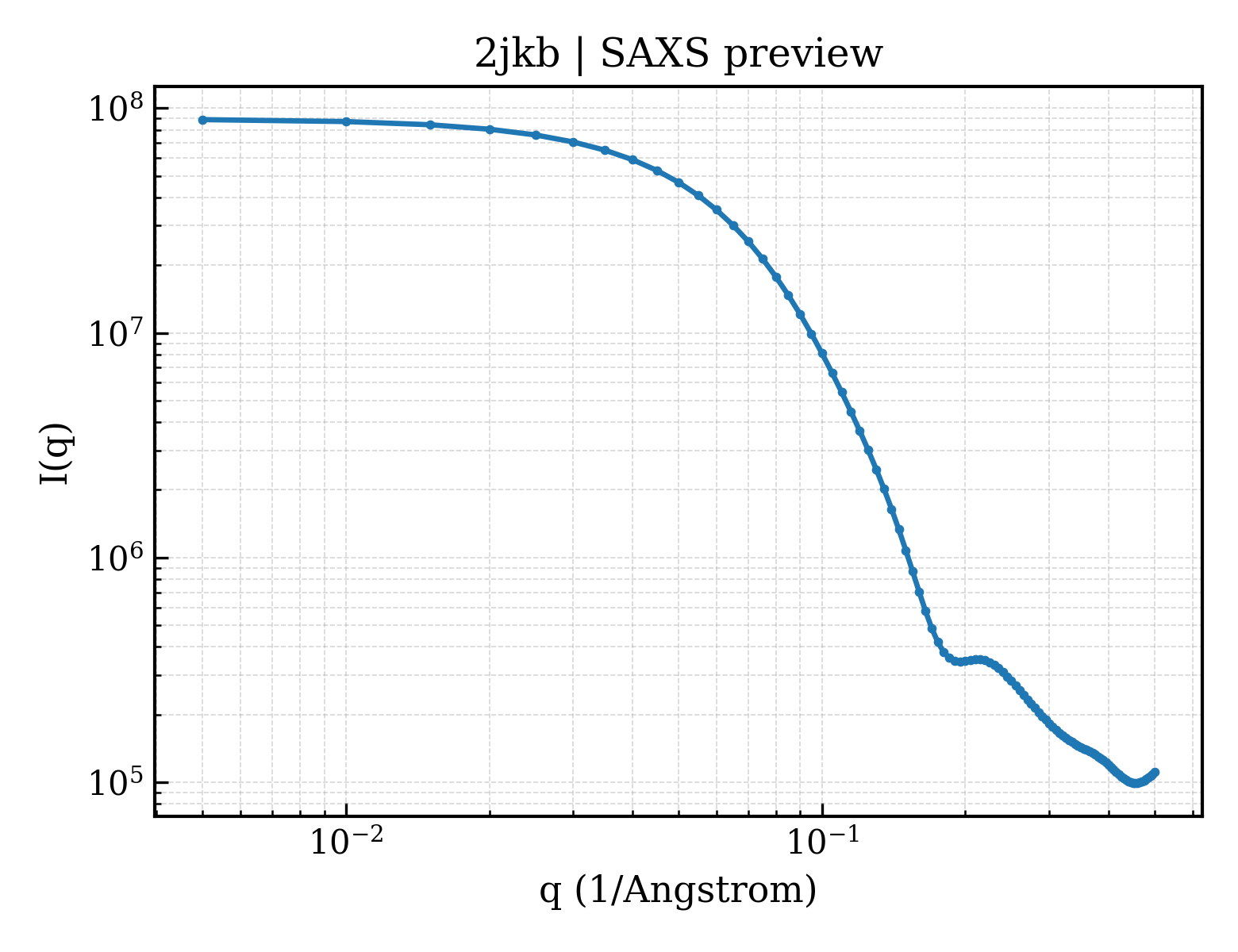

2jkb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2jkb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.98 Å
Rg (electron density)	27.24 Å
Total Rg	28.04 Å
Atom count	5257
Residues	661
Excluded volume	93134 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jkb__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	SIALIDASE B
Molecular weight formula_weight	76741.3 kDa
EC 编号 ec_number	4.2.2.15
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6507

AHHHHHHSSGLEVLFQGPNELNYGQLSISPIFQGGSYQLNNKSIDISSLLLDKLSGESQTVVMKFKADKPNSLQALFGLSNSKAGFKNNYFSIFMRDSGEIGVEIRDAQKGINYLFSRPASLWGKHKGQAVENTLVFVSDSKDKTYTMYVNGIEVFSETVDTFLPISNINGIDKATLGAVNREGKEHYLAKGSIDEISLFNKAISDQEVSTIPLSNPFQLIFQSGDSTQANYFRIPTLYTLSSGRVLSSIDARYGGTHDSKSKINIATSYSDDNGKTWSEPIFAMKFNDYEEQLVYWPRDNKLKNSQISGSASFIDSSIVEDKKSGKTILLADVMPAGIGNNNANKADSGFKEINGHYYLKLKKNGDNDFRYTVRENGVVYNETTNKPTNYTINDKYEVLEGGKSLTVEQYSVDFDSGSLRERHNGKQVPMNVFYKDSLFKVTPTNYIAMTTSQNRGESWEQFKLLPPFLGEKHNGTYLCPGQGLALKSSNRLIFATYTSGELTYLISDDSGQTWKKSSASIPFKNATAEAQMVELRDGVIRTFFRTTTGKIAYMTSRDSGETWSKVSYIDGIQQTSYGTQVSAIKYSQLIDGKEAVILSTPNSRSGRKGGQLVVGLVNKEDDSIDWKYHYDIDLPSYGYAYSAITELPNHHIGVLFEKYDSWSRNELHLSNVVQYIDLEINDLTK

Source Source

Source organism organism	STREPTOCOCCUS PNEUMONIAE
NCBI taxonomy ID ncbi_taxonomy_id	170187
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	2-ACETYLAMINO-7-(1,2-DIHYDROXY-ETHYL)-3-HYDROXY-6,8-DIOXA-BICYCLO[3.2.1]OCTANE-5-CARBOXYLIC ACID
Molecular weight formula_weight	291.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1024

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	2jkbA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2jkbA02
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2jkbA03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	220 — Intramolecular trans-sialidase; domain 3
Homologous superfamily homologous superfamily	10 — Intramolecular Trans-sialidase; Domain 3

▶

Unit-cell length a length_a	76.719 Å
Unit-cell length b length_b	82.746 Å
Unit-cell length c length_c	118.079 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.540 Å
Low-resolution limit resolution_low	23.930 Å
R factor r_factor	0.1630
R_work r_work	0.1620
R_free r_free	0.1880
