SAXSdb — 2jl4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MALEYLPYRUVATE ISOMERASE

RALSTONIA SP. U2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	GLUTATHIONE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O86043_9RALS
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–213； UniProt 1–212 Author chain B； PDBConstruct 2–213； UniProt 1–212

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jl4
Deposition date deposition_date	2008-09-04
Structure title title	Holo structure of Maleyl Pyruvate Isomerase, a bacterial glutathione- s-transferase in Zeta class
Keywords keywords	GLUTATHIONE-S-TRANSFERASE, GST, PLASMID, PYRUVATE, BACTERIAL, ISOMERASE, BIODEGRADATION, MALEYL PYRUVATE, FUMARYL PYRUVATE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jl4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

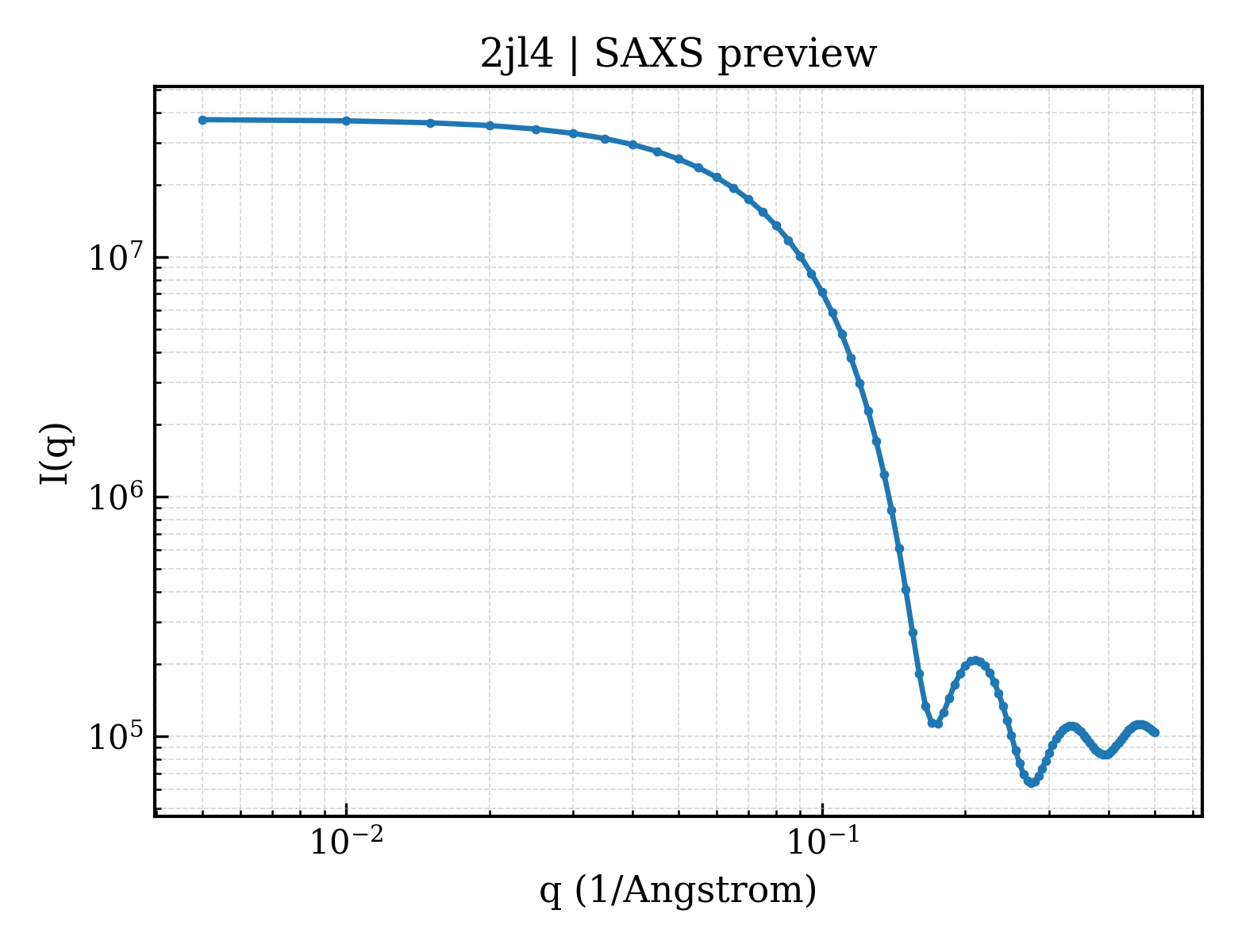

2jl4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2jl4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.38 Å
Rg (electron density)	20.17 Å
Total Rg	21.08 Å
Atom count	3362
Residues	424
Excluded volume	59725 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jl4__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MALEYLPYRUVATE ISOMERASE
Molecular weight formula_weight	23661.0 kDa
EC 编号 ec_number	5.2.1.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3831

KMKLYNFWRSGTSHRLRIALNLKGVPYEYLAVHLGKEEHLKDAFKALNPQQLVPALDTGAQVLIQSPAIIEWLEEQYPTPALLPADADGRQRVRALAAIVGCDIHPINNRRILEYLRKTFGADEAAINAWCGTWISAGFDAYEALLAVDPKRGRYSFGDTPTLADCYLVPQVESARRFQVDLTPYPLIRAVDAACGELDAFRRAAPAAQPDSA

Source Source

Source organism organism	RALSTONIA SP. U2
NCBI taxonomy ID ncbi_taxonomy_id	70356
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GLUTATHIONE
Molecular weight formula_weight	307.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	438

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2jl4a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2jl4a2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.0 — automated matches

Domain ID domain_id	d2jl4b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2jl4b2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2jl4A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2jl4A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2jl4B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2jl4B02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	60.332 Å
Unit-cell length b length_b	81.733 Å
Unit-cell length c length_c	88.187 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	27.630 Å
R factor r_factor	0.2140
R_work r_work	0.2110
R_free r_free	0.2670

Holo structure of Maleyl Pyruvate Isomerase, a bacterial glutathione- s-transferase in Zeta class
