SAXSdb — 2jlf

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2jlf
沉积日期 deposition_date	2008-09-08
结构标题 title	STRUCTURAL EXPLANATION FOR THE ROLE OF MN IN THE ACTIVITY OF PHI6 RNA- DEPENDENT RNA POLYMERASE
关键词 keywords	;NUCLEOTIDYLTRANSFERASE, RNA-DIRECTED RNA POLYMERASE, METAL-BINDING, RNA POLYMERASE, RNA REPLICATION, VIRION, MANGANESE, MAGNESIUM, TRANSFERASE, VIRAL POLYMERASE, NUCLEOTIDE-BINDING ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.33 Å
回转半径 Rg (电子) rg_electron	56.11 Å
零角强度 I(0) i0	714452000.00
分子量 molecular_weight	221820.0 kDa
排除体积 excluded_volume	277180 Å³
包络体积 envelope_volume	387810 Å³
水化壳体积 shell_volume	63704 Å³
包络直径 envelope_diameter	190.7 Å
壳层 Rg shell_rg	50.84 Å
包络 Rg envelope_rg	54.42 Å
形状 Rg shape_rg	56.09 Å
总 Rg total_rg	56.02 Å
总原子数 total_atoms	15610
残基数 n_residues	1969
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	179.6 Å
Rg (实空间) rg_real	55.89 Å
Rg 误差 (实空间) rg_real_error	1.97 Å
I(0) (实空间) i0_real	7.1440e+08
I(0) 误差 (实空间) i0_real_error	1.4760e+07
Rg (倒空间) rg_reciprocal	54.83 Å
I(0) (倒空间) i0_reciprocal	713300000.0000
解质量估计 total_estimate	0.7499
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.5 Å
偏度 Skewness skewness	0.486
峰度 Kurtosis kurtosis	-0.561
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	118300000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.679; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.692; Smooth: 0.017

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	RNA-DIRECTED RNA POLYMERASE
分子量 formula_weight	74902.2 kDa
EC 编号 ec_number	2.7.7.48
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	15610

PRRAPAFPLSDIKAQMLFANNIKAQQASKRSFKEGAIETYEGLLSVDPRFLSFKNELSRYLTDHFPANVDEYGRVYGNGVRTNFFGMRHMNGFPMIPATWPLASNLKKRADADLADGPVSERDNLLFRAAVRLMFSDLEPVPLKIRKGSSTCIPYFSNDMGTKIEIAERALEKAEEAGNLMLQGKFDDAYQLHQMGGAYYVVYRAQSTDAITLDPKTGKFVSKDRMVADFEYAVTGGEQGSLFAASKDASRLKEQYGIDVPDGFFCERRRTAMGGPFALNAPIMAVAQPVRNKIYSKYAYTFHHTTRLNKEEKVKEWSLCVATDVSDHDTFWPGWLRDLICDELLNMGYAPWWVKLFETSLKLPVYVGAPAPEQGHTLLGDPSNPDLEVGLSSGQGATDLMGTLLMSITYLVMQLDHTAPHLNSRIKDMPSACRFLDSYWQGHEEIRQISKSDDAMLGWTKGRALVGGHRLFEMLKEGKVNPSPYMKISYQHGGAFLGDILLYDSRREPGSAIFVGNINSMLNNQFSPEYGVQSGVRDRSKRKRPFPGLAWASMKDTYGACPIYSDVLEAIERCWWNAFGESYRAYREDMLKRDTLELSRYVASMARQAGLAELTPIDLEVLADPNKLQYKWTEADVSANIHEVLMHGVSVEKTERFLRSVMPR

来源 Source

来源生物 organism	PSEUDOMONAS PHAGE PHI6
NCBI 分类编号 ncbi_taxonomy_id	10879
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	MANGANESE (II) ION
分子量 formula_weight	54.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 9 domains

CATH v4.4 (9 domains)

结构域编号 domain_id	2jlfA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	490 — Globin-like
同源超家族 H-superfamily homologous superfamily	60 — Phage p2 RNA dependent RNA polymerase domain

结构域编号 domain_id	2jlfA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1600 —

结构域编号 domain_id	2jlfA04
类 Class class	6 — Special
架构 Architecture architecture	20 — Other non-globular
拓扑 Topology topology	410 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2jlfB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	490 — Globin-like
同源超家族 H-superfamily homologous superfamily	60 — Phage p2 RNA dependent RNA polymerase domain

结构域编号 domain_id	2jlfB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1600 —

结构域编号 domain_id	2jlfB04
类 Class class	6 — Special
架构 Architecture architecture	20 — Other non-globular
拓扑 Topology topology	410 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2jlfC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	490 — Globin-like
同源超家族 H-superfamily homologous superfamily	60 — Phage p2 RNA dependent RNA polymerase domain

结构域编号 domain_id	2jlfC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1600 —

结构域编号 domain_id	2jlfC04
类 Class class	6 — Special
架构 Architecture architecture	20 — Other non-globular
拓扑 Topology topology	410 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	110.040 Å
晶胞边长 b length_b	110.040 Å
晶胞边长 c length_c	159.132 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	9

空间群 space_group	P 32
空间群编号 int_tables_number	145
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	18.021 Å
R 因子 r_factor	0.2304
R_work r_work	0.2275
R_free r_free	0.2860

fit	/app/data/saxs_computation/jl/2jlf/2jlf.fit
pddf	/app/data/pr_computation/jl/2jlf/2jlf.pr.out
profile	/app/data/saxs_computation/jl/2jlf/2jlf.dat

STRUCTURAL EXPLANATION FOR THE ROLE OF MN IN THE ACTIVITY OF PHI6 RNA- DEPENDENT RNA POLYMERASE

SAXS 散射曲线 SAXS Profile

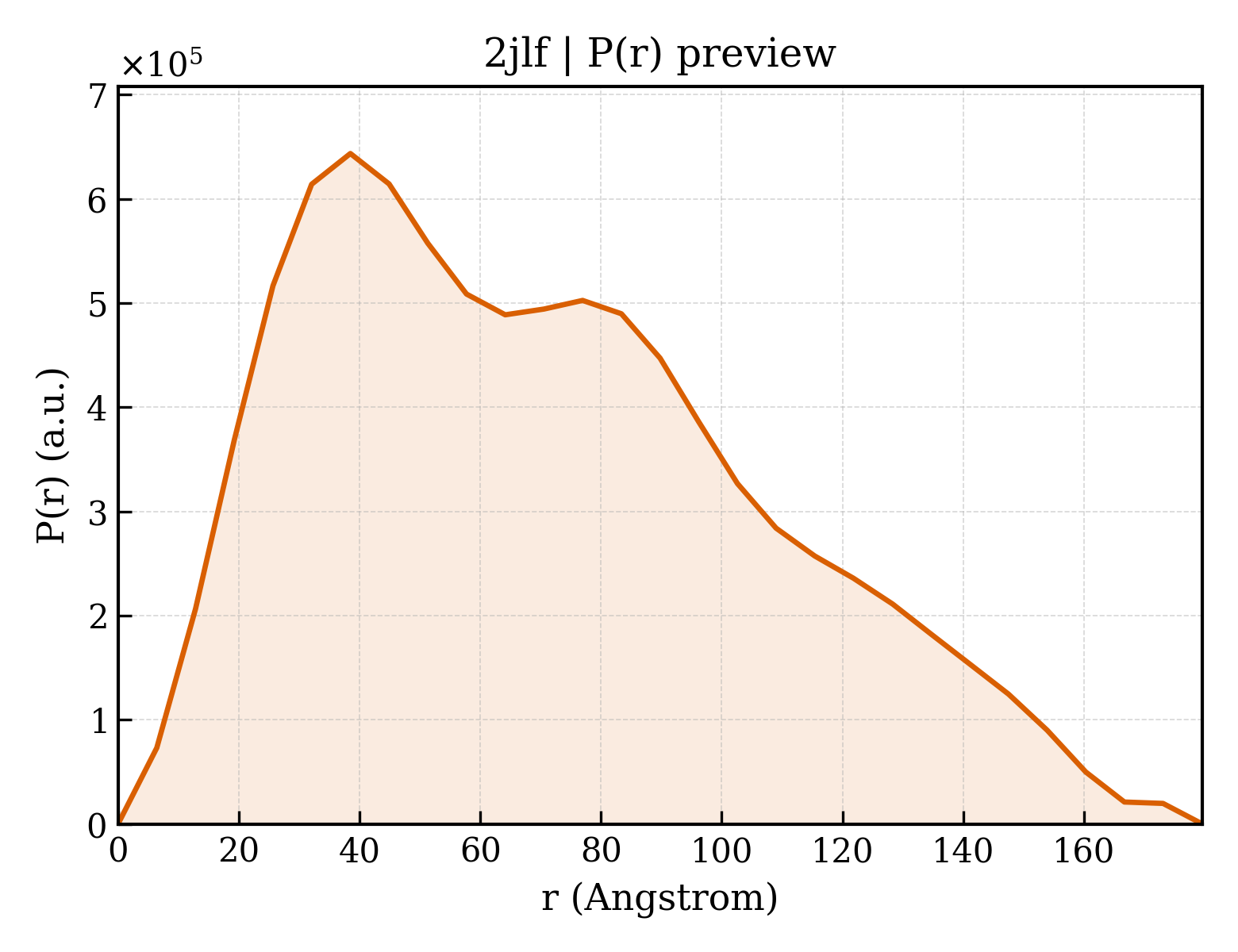

P(r) 距离分布 P(r) Distribution
