SAXSdb — 2jlz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SERINE PROTEASE SUBUNIT NS3

DENGUE VIRUS 4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Monomer	Protein 1 RNA 1	5'-R(APGPAPCPUPAPAPCPAPAPCPU)-3' × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MANGANESE (II) ION × 1 CHLORIDE ION × 1 GLYCEROL × 1 water × 2	Consistent with all polymers
2	Protein–RNA	Monomer	Protein 1 RNA 1	5'-R(APGPAPCPUPAPAPCPAPAPCPU)-3' × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MANGANESE (II) ION × 1 CHLORIDE ION × 1 GLYCEROL × 1 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLG_DEN4T
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–451； UniProt 1646–2092 Author chain B； PDBConstruct 5–451； UniProt 1646–2092

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jlz
Deposition date deposition_date	2008-09-15
Structure title title	Dengue virus 4 NS3 helicase in complex with ssRNA and ADP
Keywords keywords	;HYDROLASE-RNA COMPLEX, RIBONUCLEOPROTEIN, NUCLEOTIDE-BINDING, SECRETED, HELICASE, PROTEASE, HYDROLASE, TRANSFERASE, VIRAL NUCLEOPROTEIN, ENDOPLASMIC RETICULUM, CLEAVAGE ON PAIR OF BASIC RESIDUES, MULTIFUNCTIONAL ENZYME, TRANSCRIPTION REGULATION, ADP, SSRNA, VIRION, ATPASE, NUCLEUS, MEMBRANE, NUCLEOTIDYLTRANSFERASE, NS3 HELICASE STRUCTURE, ATP-BINDING, RNA-BINDING, FLAVIVIRUSES, GLYCOPROTEIN, RNA-DIRECTED RNA POLYMERASE, RNA REPLICATION, SERINE PROTEASE, ENVELOPE PROTEIN, DENGUE VIRUS, METAL-BINDING, TRANSMEMBRANE, TRANSCRIPTION, PHOSPHOPROTEIN, CAPSID PROTEIN ;; HYDROLASE/RNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jlz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

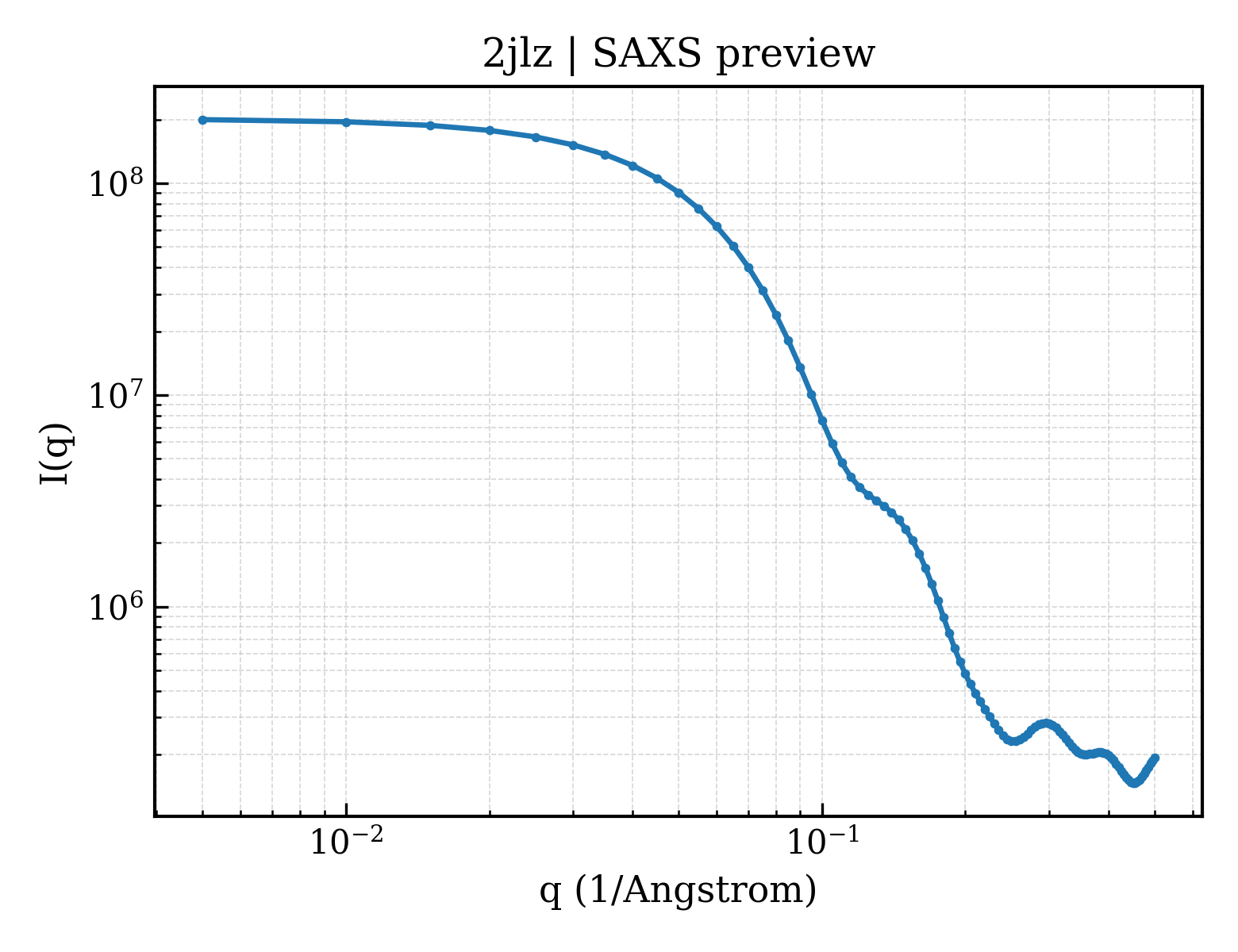

2jlz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

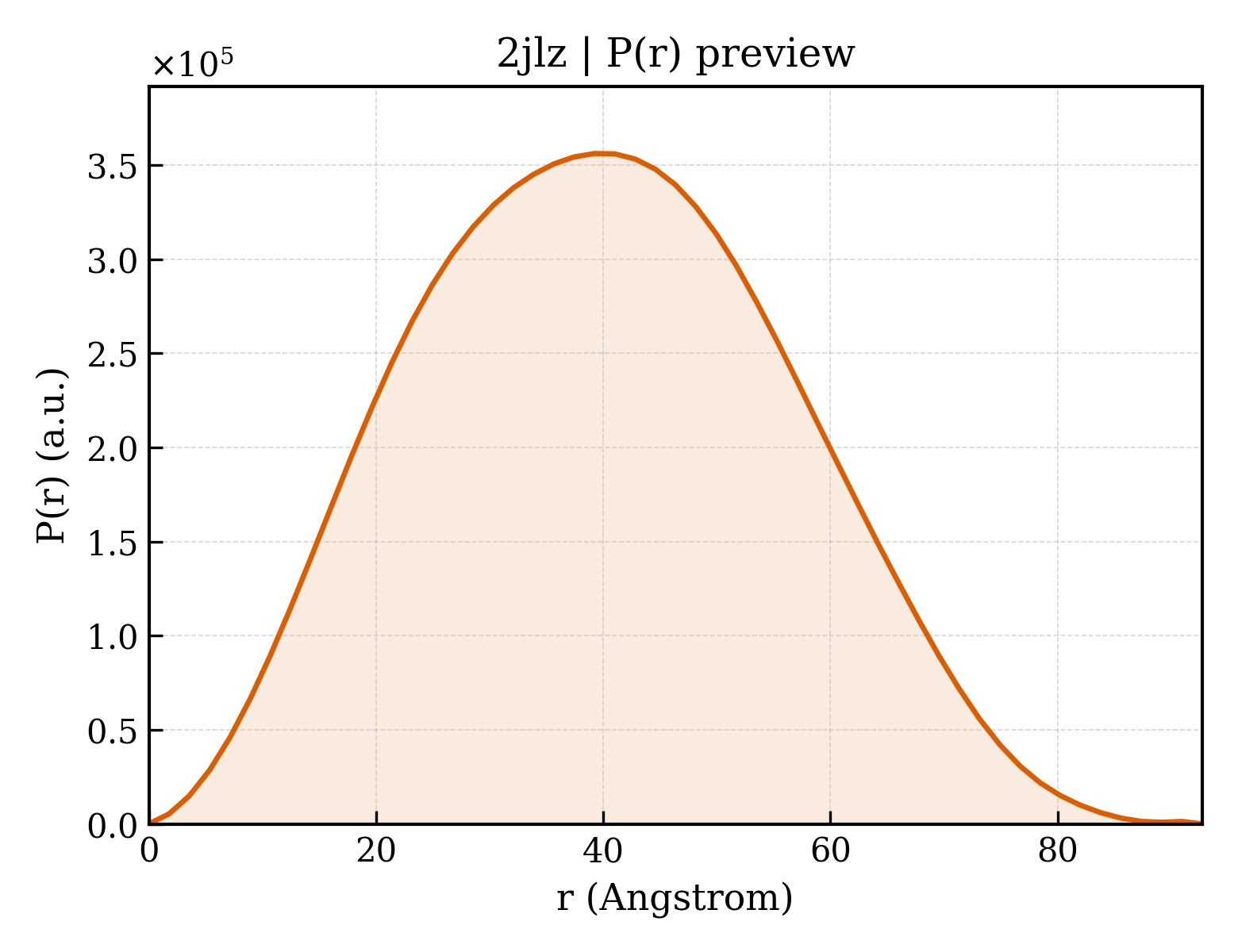

2jlz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.72 Å
Rg (electron density)	22.76 Å
Total Rg	23.57 Å
Atom count	3782
Residues	458
Excluded volume	66572 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jlz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2jlz__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	SERINE PROTEASE SUBUNIT NS3
Molecular weight formula_weight	51365.5 kDa
EC 编号 ec_number	3.4.21.91
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7914

GSAMGEPDYEVDEDIFRKKRLTIMDLHPGAGKTKRILPSIVREALKRRLRTLILAPTRVVAAEMEEALRGLPIRYQTPAVKSDHTGREIVDLMCHATFTTRLLSSTRVPNYNLIVMDEAHFTDPCSVAARGYISTRVEMGEAAAIFMTATPPGSIDPFPQSNSPIEDIEREIPERSWNTGFDWITDYQGKTVWFVPSIKAGNDIANCLRKSGKRVIQLSRKTFDTEYPKTKLTDWDFVVTTDISEMGANFRAGRVIDPRRCLKPVILTDGPERVILAGPIPVTPASAAQRRGRIGRNPAQEDDQYVFSGDPLKNDEDHAHWTEAKMLLDNIYTPEGIIPTLFGPEREKTQAIDGEFRLRGEQRKTFVELMRRGDLPVWLSYKVASAGISYKDREWCFTGERNNQILEENMEVEIWTREGEKKKLRPKWLDARVYADPMALKDFKEFASGRK

Source Source

Source organism organism	DENGUE VIRUS 4
NCBI taxonomy ID ncbi_taxonomy_id	408688
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	5'-R(APGPAPCPUPAPAPCPAPAPCPU)-3'
Molecular weight formula_weight	3803.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	C,D

AGACUAACAACU

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	357

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2jlza1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.14 — RNA helicase

Domain ID domain_id	d2jlza2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2jlzb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.14 — RNA helicase

Domain ID domain_id	d2jlzb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	2jlzA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2jlzA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2jlzB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2jlzB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	133.023 Å
Unit-cell length b length_b	104.794 Å
Unit-cell length c length_c	72.974 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	115.91 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1944
R_work r_work	0.1920
R_free r_free	0.2384
