2jqx
Solution structure of Malate Synthase G from joint refinement against NMR and SAXS data

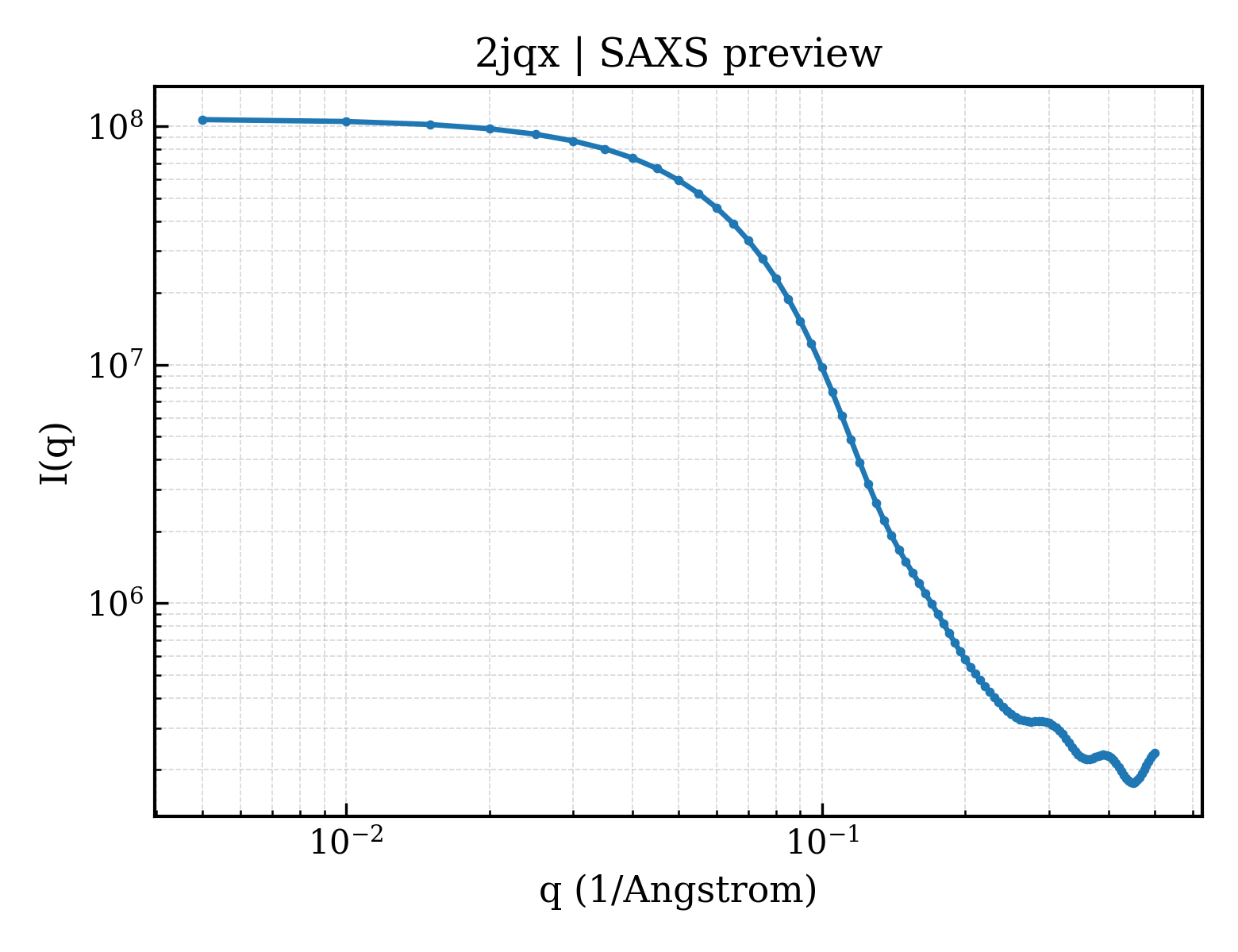

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2jqx |
| 沉积日期 deposition_date | 2007-06-13 |
| 结构标题 title | Solution structure of Malate Synthase G from joint refinement against NMR and SAXS data |
| 关键词 keywords | ;APO-MALATE SYNTHASE G, 82 KDA ENZYME, SAXS, SMALL-ANGLE X-RAY SCATTERING, RDC, RESIDUAL DIPOLAR COUPLING, residual chemical shift anisotropy, ALIGNMENT, deuteration, TRANSFERASE ;; TRANSFERASE |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 26.53 Å |
| 回转半径 Rg (电子) rg_electron | 25.82 Å |
| 零角强度 I(0) i0 | 107377000.00 |
| 分子量 molecular_weight | 80443.0 kDa |
| 排除体积 excluded_volume | 100070 ų |
| 包络体积 envelope_volume | 106640 ų |
| 水化壳体积 shell_volume | 34004 ų |
| 包络直径 envelope_diameter | 87.0 Å |
| 壳层 Rg shell_rg | 33.74 Å |
| 包络 Rg envelope_rg | 26.01 Å |
| 形状 Rg shape_rg | 25.83 Å |
| 总 Rg total_rg | 26.50 Å |
| 总原子数 total_atoms | 11282 |
| 残基数 n_residues | 723 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 82.7 Å |
| Rg (实空间) rg_real | 26.44 Å |
| Rg 误差 (实空间) rg_real_error | 0.43 Å |
| I(0) (实空间) i0_real | 1.0740e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.4310e+06 |
| Rg (倒空间) rg_reciprocal | 26.47 Å |
| I(0) (倒空间) i0_reciprocal | 107400000.0000 |
| 解质量估计 total_estimate | 0.9052 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 31.7 Å |
| 偏度 Skewness skewness | 0.232 |
| 峰度 Kurtosis kurtosis | -0.443 |
| 角度范围 angular_range | — – 0.3000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 12370000.0000 |
| 实空间数据点数 n_real_points | 61 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.963 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d2jqxa_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.13 — Malate synthase G |
| 家族 Family family | c.1.13.1 — Malate synthase G |
CATH v4.4 (3 domains)
| 结构域编号 domain_id | 2jqxA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 360 — Malate synthase, domain 3 |
| 结构域编号 domain_id | 2jqxA02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 170 — Beta Complex |
| 拓扑 Topology topology | 170 — Malate synthase G - maily-beta sub-domain |
| 同源超家族 H-superfamily homologous superfamily | 11 — Malate synthase G - maily-beta sub-domain |
| 结构域编号 domain_id | 2jqxA03 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1220 — Malate Synthase G; Chain: A; Domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 12 — Malate synthase, domain III |
