SAXSdb — 2js5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uncharacterized protein

Methylococcus capsulatus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q60C73_METCA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–63； UniProt 1–63 Author chain B； PDBConstruct 1–63； UniProt 1–63

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2js5
Deposition date deposition_date	2007-06-29
Structure title title	NMR Structure of protein Q60C73_METCA. Northeast Structural Genomics Consortium target McR1
Keywords keywords	;homodimer, protein structure, NMR spectroscopy, Structural Genomics, PSI-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2js5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

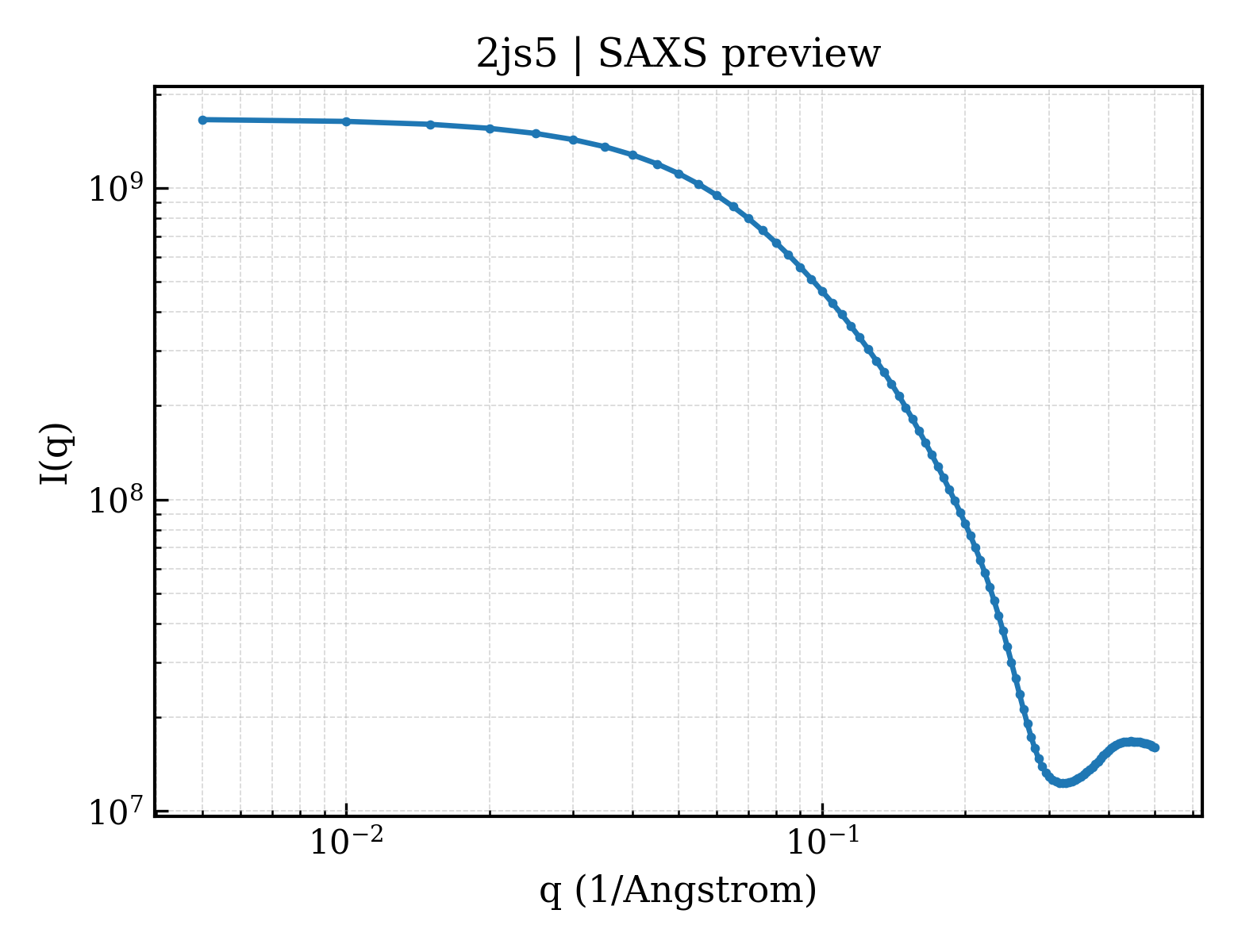

2js5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

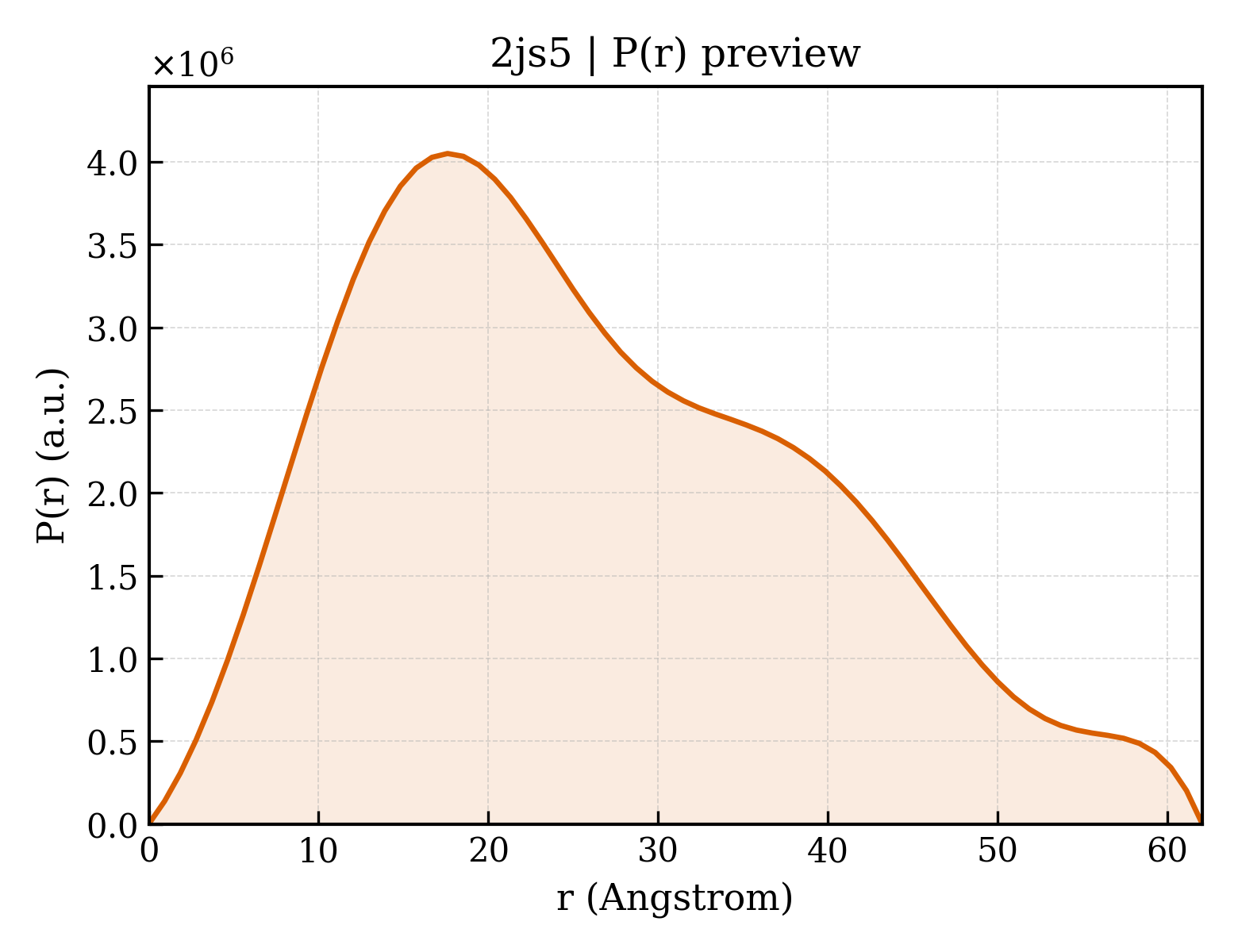

2js5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.07 Å
Rg (electron density)	22.42 Å
Total Rg	22.85 Å
Atom count	2300
Residues	142
Excluded volume	20320 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2js5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`2js5__assembly_1__model_2`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`2js5__assembly_1__model_3`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`2js5__assembly_1__model_4`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`2js5__assembly_1__model_5`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`2js5__assembly_1__model_6`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`2js5__assembly_1__model_7`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	8	`2js5__assembly_1__model_8`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	9	`2js5__assembly_1__model_9`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	10	`2js5__assembly_1__model_10`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	11	`2js5__assembly_1__model_11`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	12	`2js5__assembly_1__model_12`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	13	`2js5__assembly_1__model_13`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	14	`2js5__assembly_1__model_14`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	15	`2js5__assembly_1__model_15`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	16	`2js5__assembly_1__model_16`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	17	`2js5__assembly_1__model_17`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	18	`2js5__assembly_1__model_18`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	19	`2js5__assembly_1__model_19`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	20	`2js5__assembly_1__model_20`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2js5A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	660 — Helix hairpin bin

Domain ID domain_id	2js5B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	660 — Helix hairpin bin

▶

Description description	Uncharacterized protein
Molecular weight formula_weight	8268.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	46000

Source organism organism	Methylococcus capsulatus
NCBI taxonomy ID ncbi_taxonomy_id	414
Host organism host_organism	Escherichia coli
