2jvv

Solution Structure of E. coli NusG carboxyterminal domain

Method: SOLUTION NMR Dmax: 27.6 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription antitermination protein nusG

Escherichia coli

UniProt P0AFG0

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–181 Not recorded No other associated polymer SOLUTION NMR NMR measurement conditions：pH 6.4；298 K；Pressure ambient NMR sample composition：0.45 mM [U-95% 13C; U-95% 15N] NusG, 10 mM potassium phosphate, 50 mM sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JVV Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2K06 Solution structure of the aminoterminal domain of E. coli NusG Deposited 2008-01-25 Different construct Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–123（123 aa） Fragment：N-terminal domain, residues 1-123
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.4；298 K；Pressure ambient
NMR sample composition 0.4 mM [U-98% 13C; U-98% 15N] NusG, 10 mM potassium phosphate, 50 mM sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2KVQ Solution structure of NusE:NusG-CTD complex Deposited 2010-03-25 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 123–181（59 aa） Fragment：UNP residues 123-181, KOW domain
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；310 K；Ionic strength (raw mmCIF value) 50
NMR sample composition 300 uM [U-100% 13C; U-100% 15N] 15N, 13C -NusG-CTD-1, 300 uM NusE-2, 300 uM NusB-3, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 300 uM [U-100% 13C; U-100% 15N; U-80% 2H] 15N, 13C, 2H-NusE-4, 300 uM NusB-5, 300 uM NusG-CTD-6, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.3 mM NusG-CTD-7, 0.3 mM [U-100% 13C; U-100% 15N] 15N, 13C NusE-8, 0.3 mM NusB-9, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
5MS0 pseudo-atomic model of the RNA polymerase lambda-based antitermination complex solved by cryo-EM Deposited 2016-12-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: tetradecameric
Chain F 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.80 Å
6XAV CryoEM Structure of E. coli Rho-dependent Transcription Pre-termination Complex bound with NusG Deposited 2020-06-04 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 13 PDB declaration: hexadecameric
Chain L 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.70 Å
6XE0 Cryo-EM structure of NusG-CTD bound to 70S ribosome (30S: NusG-CTD fragment) Deposited 2020-06-11 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 21 PDB declaration: 22-meric
Chain V 1–181（181 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.80 Å
7PY0 CryoEM structure of E.coli RNA polymerase elongation complex bound to NusG (NusG-EC in more-swiveled conformation) Deposited 2021-10-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain G 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
7PY1 CryoEM structure of E.coli RNA polymerase elongation complex bound to NusG (the consensus NusG-EC) Deposited 2021-10-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain G 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7PY5 CryoEM structure of E.coli RNA polymerase elongation complex bound to NusA and NusG (the consensus NusA-NusG-EC) Deposited 2021-10-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain G 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
7PY6 CryoEM structure of E.coli RNA polymerase elongation complex bound to NusA and NusG (NusA and NusG elongation complex in less-swiveled conformation) Deposited 2021-10-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain G 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7PY7 CryoEM structure of E.coli RNA polymerase elongation complex bound to NusA and NusG (NusA and NusG elongation complex in more-swiveled conformation) Deposited 2021-10-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: decameric
Chain G 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7PY8 CryoEM structure of E.coli RNA polymerase elongation complex bound to NusG (NusG-EC in less-swiveled conformation) Deposited 2021-10-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain G 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8Y5K E.coli transcription translation coupling complex in TTC-A state 2 containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
8Y5L E.coli transcription translation coupling complex in TTC-B state 1 (subclass1) containing mRNA with 30-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8Y5M E.coli transcription translation coupling complex in TTC-B state 2 containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8Y5N E.coli transcription translation coupling complex in TTC-A state 3 containing mRNA with 21-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 67-meric
Chain NG 1–181（181 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8Y5O E.coli transcription translation coupling complex in TTC-B state 3 (subclass1) containing mRNA with 30-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8Y5P E.coli transcription translation coupling complex in TTC-B state 4 (subclass 1) containing mRNA with 24-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 67-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.50 Å
8Y5Q E.coli transcription translation coupling complex in TTC-B state 4 (subclass 2) containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and GDPCP Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 59 PDB declaration: 66-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8Y5R E.coli Transcription translation coupling complex in TTC-B state 5 (subclass 1) containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and fusidic acid Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8Y5S E.coli Transcription translation coupling complex in TTC-B state 5 (subclass 2) containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and GDPCP Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
8Y5T E.coli Transcription translation coupling complex in TTC-B state 5 (subclass 3) containing mRNA with 27-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and fusidic acid Deposited 2024-01-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 66-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 FUA FUSIDIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8YDE E.coli transcription translation coupling complex in TTC-B state 1 (subclass 3) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.00 Å
8YDF E.coli transcription translation coupling complex in TTC-B state 1 (subclass 2) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8YDG E.coli transcription translation coupling complex in TTC-B state 3 (subclass2) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
8YDH E.coli transcription translation coupling complex in TTC-P state 1 (subclass1) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.55 Å
8YDI E.coli transcription translation coupling complex in TTC-P state 1 (subclass 2) containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 58 PDB declaration: 67-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8YDJ E.coli transcription translation coupling complex in TTC-P containing mRNA with 39-mer spacer, NusG, NusA, fMet-tRNA(iMet), Phe-tRNA(Phe), and viomycin Deposited 2024-02-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 60 PDB declaration: 68-meric
Chain NG 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
9GUR 30S mRNA delivery complex TEC resolved (TEC only) Deposited 2024-09-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric
Chain Z 6–118（113 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9GUW 30S-TEC (TEC in expressome position) Inactive state 2 Deposited 2024-09-20 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 26 PDB declaration: 30-meric
Chain Z 1–181（181 aa）
Not recorded MG MAGNESIUM ION × 118 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9GUX 30S-TEC (TEC in expressome position) Inactive state 1 Deposited 2024-09-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 27 PDB declaration: 31-meric
Chain Z 1–180（180 aa）
Not recorded MG MAGNESIUM ION × 132 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å

30 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NUSG_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–181； UniProt 1–181

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

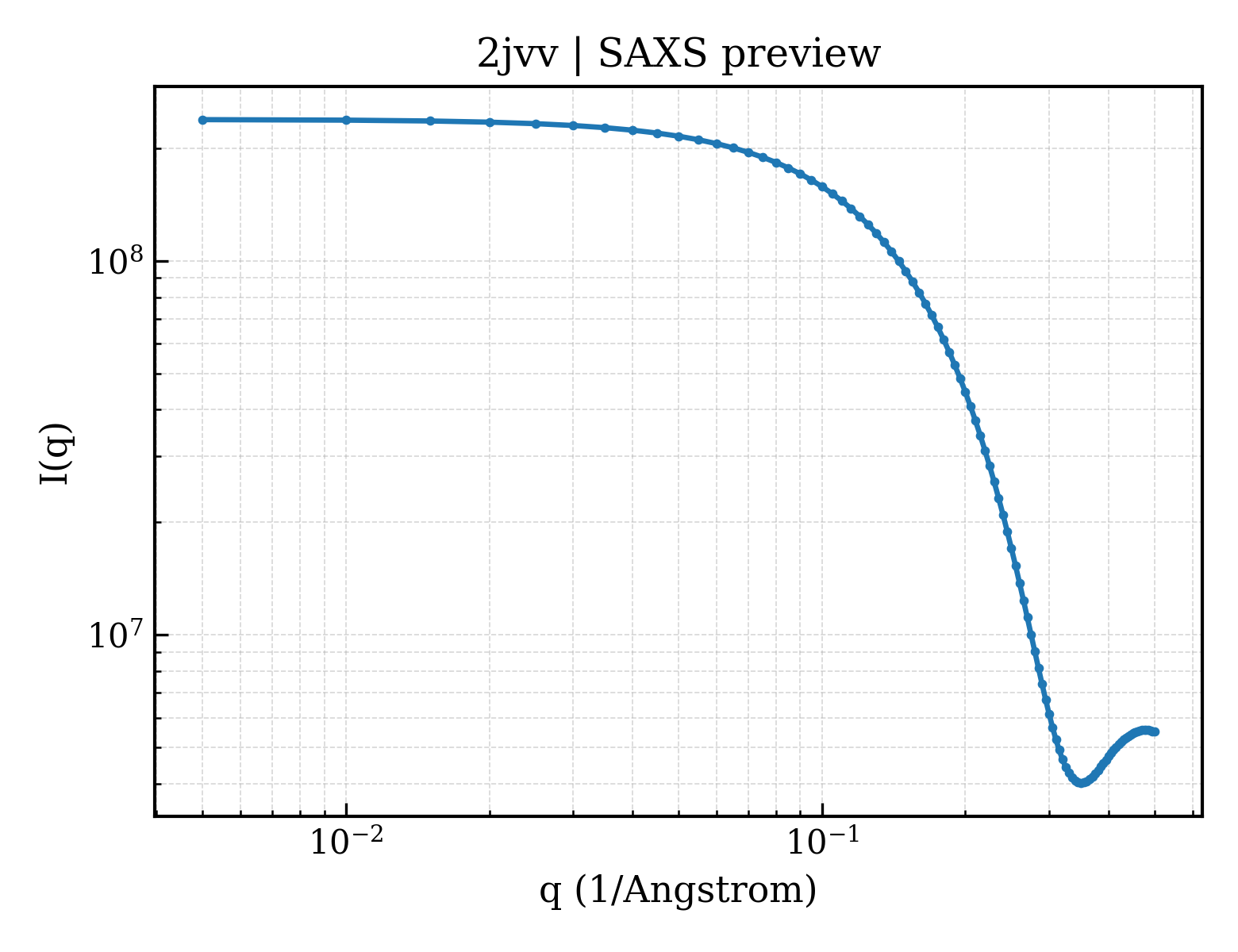

SAXS scattering curve SAXS Profile

SAXS profile for 2jvv

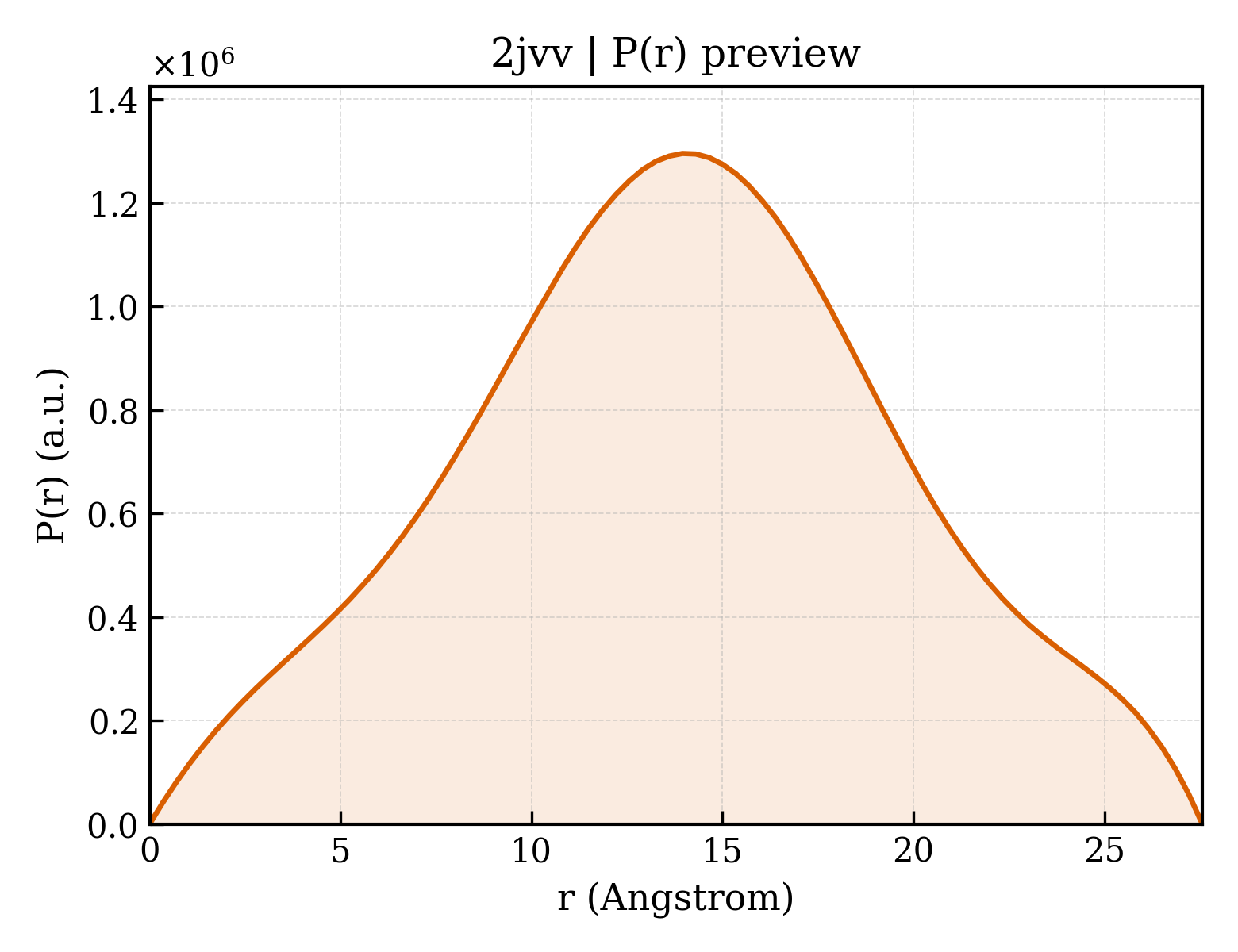

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2jvv
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2jvv
Deposition date deposition_date2007-09-26
Structure title titleSolution Structure of E. coli NusG carboxyterminal domain
Keywords keywordsNusG, transcription factor, Transcription antitermination, Transcription regulation, Transcription termination, TRANSCRIPTION; TRANSCRIPTION
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier11.13 Å
Radius of gyration Rg (electron density) rg_electron11.14 Å
Forward intensity I(0) i0238931000.00
Molecular weight molecular_weight132230.0 kDa
Excluded volume excluded_volume166040 ų
Envelope volume envelope_volume15464 ų
Hydration-shell volume shell_volume10184 ų
Envelope diameter envelope_diameter49.3 Å
Shell Rg shell_rg18.90 Å
Envelope Rg envelope_rg14.18 Å
Shape Rg shape_rg11.11 Å
Total Rg total_rg11.42 Å
Total atoms total_atoms18520
Residues n_residues1180
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax27.6 Å
Rg (real space) rg_real10.59 Å
Rg uncertainty (real space) rg_real_error0.03 Å
I(0) (real space) i0_real2.2850e+08
I(0) uncertainty (real space) i0_real_error1.4670e+06
Rg (reciprocal space) rg_reciprocal11.12 Å
I(0) (reciprocal space) i0_reciprocal238900000.0000
Solution quality estimate total_estimate0.6859
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary13.9 Å
Skewness Skewness skewness-0.008
Kurtosis Kurtosis kurtosis-0.458
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha3.6990
Highest regularization parameter α highest_alpha52600.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.001; Oscil: 0.996; Stabil: 0.976; Sysdev: 0.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd2jvva_
Class classb — All beta proteins
Fold Fold foldb.34 — SH3-like barrel
Superfamily Superfamily superfamilyb.34.5 — Translation proteins SH3-like domain
Family Family familyb.34.5.4 — N-utilization substance G protein NusG, C-terminal domain

CATH v4.4 (1 domains)

Domain ID domain_id2jvvA00
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology30 — SH3 type barrels.
Homologous superfamily homologous superfamily30 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
