2jzb

Solution structure of the complex between E.coli NusA-AR2 and RNAP-aCTD

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

Yersinia pseudotuberculosis

UniProt P0A7Z4

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 2 Transcription elongation protein nusA × 1 （P0AFF6） Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1coo 3k4g 3k4g 3k4g 3k4g 3k4g 3k4g 3k4g 3k4g

9 assemblies

Homodimer

None

Homotetramer
1bdf

1 assemblies

Other homooligomers

None

Heteromeric or nucleic-acid complex
10ma 10mb 10mc 10md 1lb2 1xs9 2jzb 3iyd 3lu0 3n4m 3n97 4jk1

296 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name RPOA_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 3–99； UniProt 233–329

Transcription elongation protein nusA

Escherichia coli

UniProt P0AFF6

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 2 DNA-directed RNA polymerase subunit alpha × 1 （P0A7Z4） Consistent with protein count

Other States of the Same Protein in the Database

Monomer
2kwp 5lm9

2 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
2jzb 5ms0 6flq 6xas 6xav 7py3 7py5 7py6 7py7 7pyj 7pyk 8pil

26 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name NUSA_ECOLI
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 3–74； UniProt 424–495

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2jzb
Deposition date deposition_date2008-01-02
Structure title titleSolution structure of the complex between E.coli NusA-AR2 and RNAP-aCTD
Keywords keywords;transcription, NusA, RNAP, helix-hairpin-helix, DNA-directed RNA polymerase, Nucleotidyltransferase, Transferase, RNA-binding, Stress response, Transcription antitermination, Transcription regulation, Transcription termination, TRANSFERASE-transcription COMPLEX ;; TRANSFERASE/transcription
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jzb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

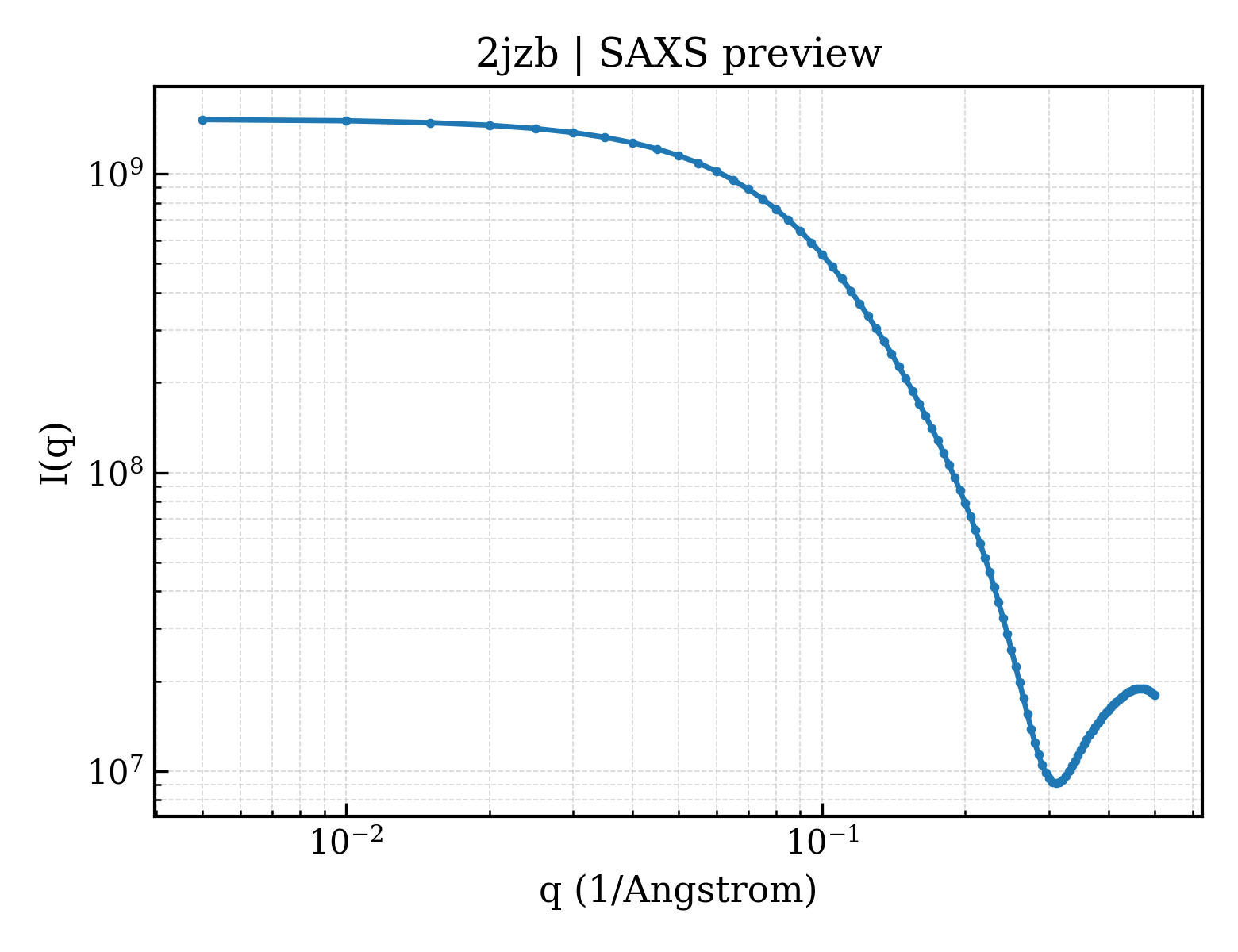

2jzb__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2jzb__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）18.92 Å
Rg (electron density)18.15 Å
Total Rg18.86 Å
Atom count2309
Residues151
Excluded volume20552 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2jzb__assembly_1__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 2jzb__assembly_1__model_2 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 2jzb__assembly_1__model_3 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 2jzb__assembly_1__model_4 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 2jzb__assembly_1__model_5 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 6 2jzb__assembly_1__model_6 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 7 2jzb__assembly_1__model_7 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 8 2jzb__assembly_1__model_8 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 9 2jzb__assembly_1__model_9 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 10 2jzb__assembly_1__model_10 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 11 2jzb__assembly_1__model_11 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 12 2jzb__assembly_1__model_12 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 13 2jzb__assembly_1__model_13 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 14 2jzb__assembly_1__model_14 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 15 2jzb__assembly_1__model_15 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 16 2jzb__assembly_1__model_16 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 17 2jzb__assembly_1__model_17 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 18 2jzb__assembly_1__model_18 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 19 2jzb__assembly_1__model_19 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 20 2jzb__assembly_1__model_20 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd2jzba_
Class classa — All alpha proteins
Fold Fold folda.60 — SAM domain-like
Superfamily Superfamily superfamilya.60.3 — C-terminal domain of RNA polymerase alpha subunit
Family Family familya.60.3.1 — C-terminal domain of RNA polymerase alpha subunit

CATH v4.4 (2 domains)

Domain ID domain_id2jzbA00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily20 — 5' to 3' exonuclease, C-terminal subdomain
Domain ID domain_id2jzbB01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily20 — 5' to 3' exonuclease, C-terminal subdomain
▶

7. Citations (1)
