2k0s

Solution NMR structure of protein BC066483

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADP-ribosylation factor-like protein 2-binding protein

Danio rerio

UniProt Q7SYL1

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

Monomer
2k0s

1 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name AR2BP_DANRE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 10–130； UniProt 19–139

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2k0s
Deposition date deposition_date2008-02-14
Structure title titleSolution NMR structure of protein BC066483
Keywords keywords;protein, Cytoplasm, Mitochondrion, Structural Genomics, PSI-2, Protein Structure Initiative, Center for Eukaryotic Structural Genomics, CESG, STRUCTURAL PROTEIN ;; STRUCTURAL PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2k0s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

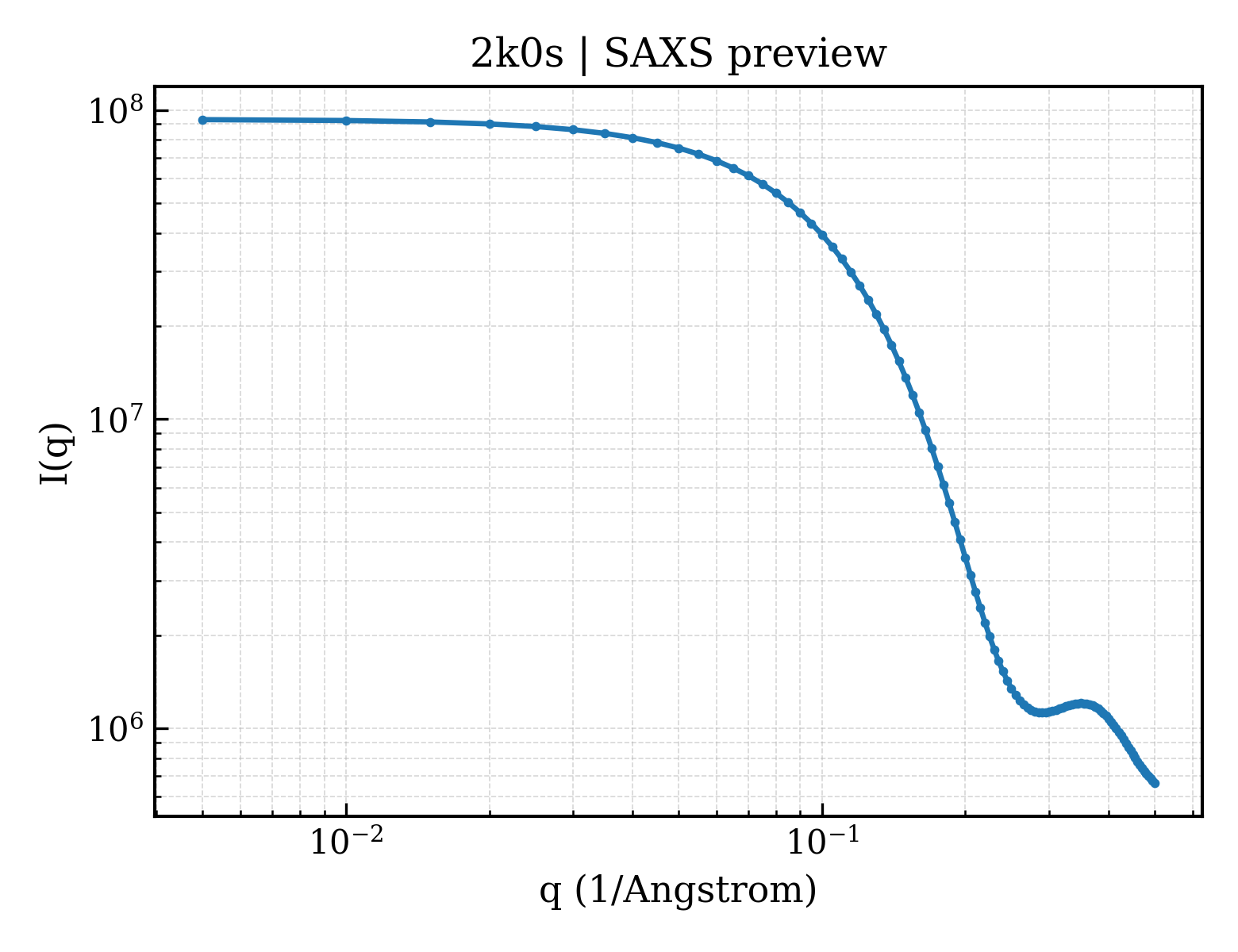

2k0s__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2k0s__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）16.41 Å
Rg (electron density)15.53 Å
Total Rg16.63 Å
Atom count1927
Residues130
Excluded volume19163 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2k0s__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 2k0s__assembly_1__model_2 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 2k0s__assembly_1__model_3 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 2k0s__assembly_1__model_4 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 2k0s__assembly_1__model_5 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id2k0sA00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1520 — Adp-ribosylation factor-like protein 2-binding protein fold
Homologous superfamily homologous superfamily10 — ADP-ribosylation factor-like 2-binding protein, domain
▶

7. Citations (1)
