Toxoplasma gondii
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Micronemal protein 6 × 1 （Q9XYH7） | Consistent with protein count |
| UniProt name | MIC1_TOXGO |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–136； UniProt 320–455 |
Toxoplasma gondii
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Micronemal protein 1 × 1 （O00834） | Consistent with protein count |
| UniProt name | MIC6_TOXGO |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–61； UniProt 87–147 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2k2s |
| Deposition date deposition_date | 2008-04-11 |
| Structure title title | structure of the MIC1-GLD/MIC6-EGF complex from Toxoplasma gondii |
| Keywords keywords | microneme protein complex, Cell adhesion, Cytoplasmic vesicle, Lectin, Virulence, EGF-like domain, Membrane, Transmembrane; CELL ADHESION |
| Experimental Method method | SOLUTION NMR |

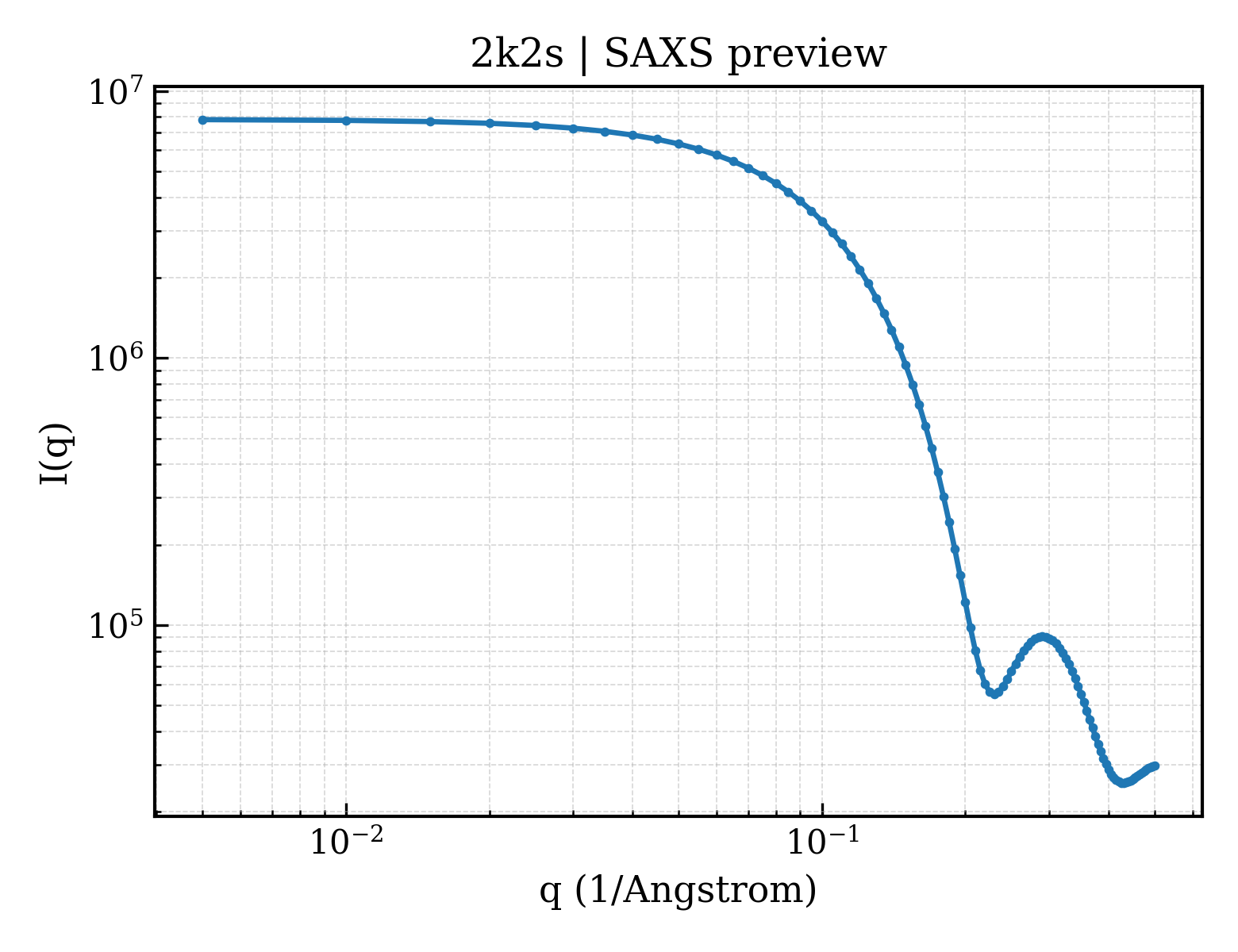

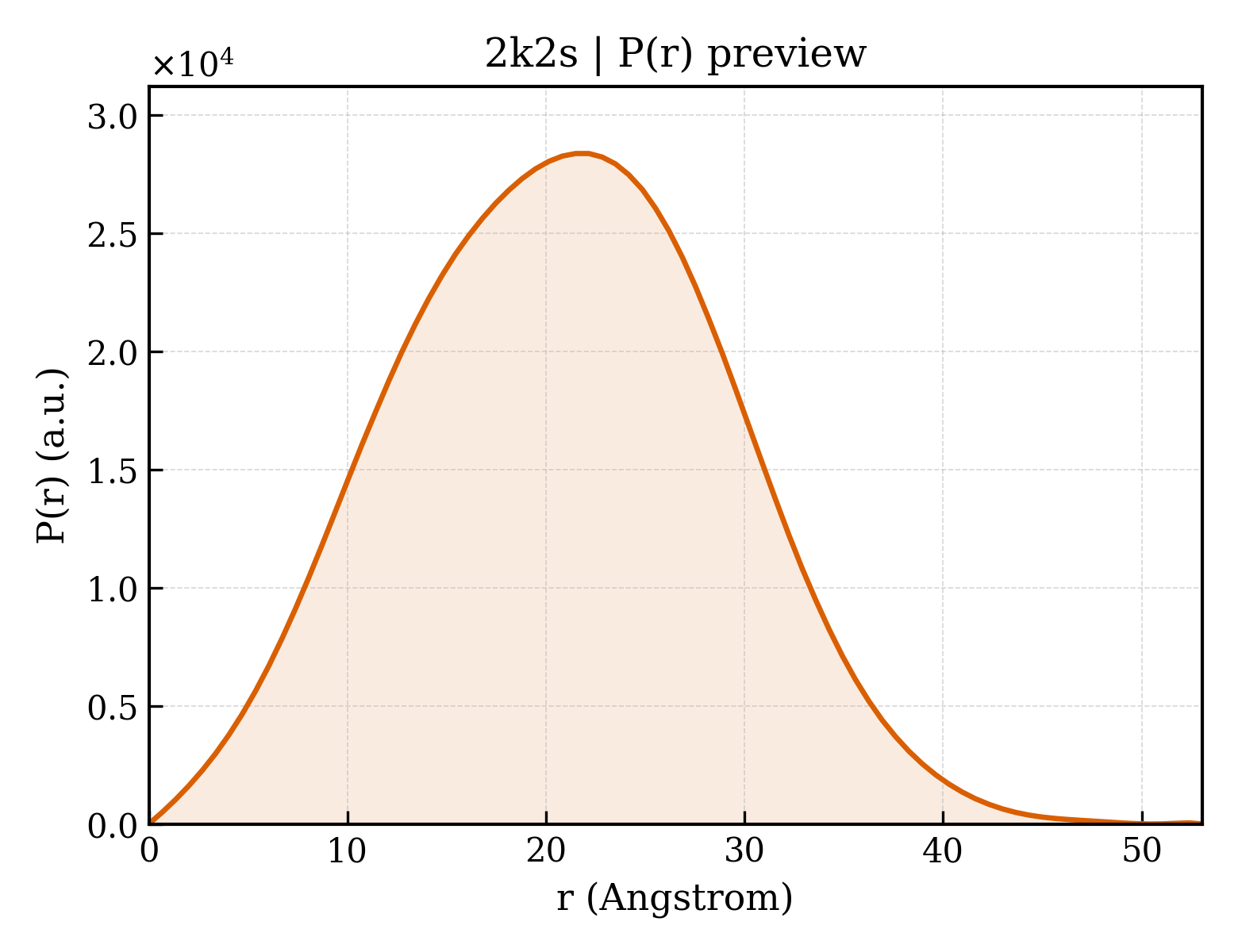

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.97 Å |
| Rg (electron density) | 14.62 Å |
| Total Rg | 15.70 Å |
| Atom count | 2704 |
| Residues | 191 |
| Excluded volume | 24152 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | 2k2sA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 120 — Jelly Rolls |
| Homologous superfamily homologous superfamily | 710 — Toxoplasma gondii micronemal protein 1 TgMIC1 |
| Domain ID domain_id | 2k2sB00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 10 — Ribbon |
| Topology topology | 25 — Laminin |
| Homologous superfamily homologous superfamily | 10 — Laminin |
