SAXSdb — 2kg5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Arf-GAP, Rho-GAP domain, ANK repeat and PH domain-containing protein 3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–80	Fragment：SAM Domain, residues 1-80	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7.7；298 K；Pressure ambient NMR sample composition：1 mM protein, 2.7 mM potassium chloride, 137 mM sodium chloride, 11.9 mM phosphates, 0.3% mM sodium azide, 100% D2O \| 100% D2O NMR sample composition：1 mM [U-100% 15N] protein, 2.7 mM potassium chloride, 137 mM sodium chloride, 11.9 mM phosphates, 0.3% mM sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition：1 mM [U-100% 13C; U-100% 15N] protein, 2.7 mM potassium chloride, 137 mM sodium chloride, 11.9 mM phosphates, 0.3% mM sodium azide, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2KG5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LNW Identification and structural basis for a novel interaction between Vav2 and Arap3 Deposited 2012-01-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1404–1412（9 aa） Fragment：UNP RESIDUES 1404-1412	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.2；298 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] entity_1-1, 3 mM entity_2-2, 5 mM potassium phosphate-3, 20 mM sodium phosphate-4, 5 mM DTT-5, 2 mM EDTA-6, 75 mM sodium chloride-7, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] entity_1-8, 3 mM entity_2-9, 5 mM potassium phosphate-10, 75 mM sodium chloride-11, 5 mM DTT-12, 2 mM EDTA-13, 20 mM sodium phosphate-14, 100% D2O \| 100% D2O	Resolution not provided
5JCP RhoGAP domain of ARAP3 in complex with RhoA in the transition state Deposited 2016-04-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 906–1107（202 aa） Fragment：UNP residues 906-1107,UNP residues 2-181	Mutation：F25N	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM MES, 15%(v/v) PEG 550 MME, 4%(v/v) Acetone	Resolution 2.10 Å R-free 0.227
5JCP RhoGAP domain of ARAP3 in complex with RhoA in the transition state Deposited 2016-04-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 906–1107（202 aa） Fragment：UNP residues 906-1107,UNP residues 2-181	Mutation：F25N	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM MES, 15%(v/v) PEG 550 MME, 4%(v/v) Acetone	Resolution 2.10 Å R-free 0.227
5JD0 crystal structure of ARAP3 RhoGAP domain Deposited 2016-04-15	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 906–1107（202 aa） Fragment：UNP residues 906-1107	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；100 mM HEPES, 10% PEG8000	Resolution 2.30 Å R-free 0.260
5JD0 crystal structure of ARAP3 RhoGAP domain Deposited 2016-04-15	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 906–1107（202 aa） Fragment：UNP residues 906-1107	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；100 mM HEPES, 10% PEG8000	Resolution 2.30 Å R-free 0.260
7A9B Crystal structure of Shank1 PDZ domain with ARAP3-derived peptide Deposited 2020-09-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1414–1429（16 aa） Chain B 1414–1429（16 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 nL of protein solution (15 mg/ml mutant protein in 10 mM HEPES buffer, pH 8.0, 150 mM NaCl, 5% (v/v) glycerol and 0.5 mM TCEP) were mixed with 100 nL reservoir buffer (16% (w/v) polyethylene glycol 3350 and 0.2 M ammonium citrate), above a reservoir volume of 20 microL	Resolution 2.00 Å R-free 0.249
7YIR Crystal structure of N-terminal PH domain of ARAP3 protein from human Deposited 2022-07-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 284–385（102 aa） Fragment：PH1 domain	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05 M Calcium chloride dihydrate, 0.1 M BIS-TRIS (pH 6.5), 30% v/v Polyethylene glycol monomethyl ether 550	Resolution 2.10 Å R-free 0.230
7YIS Crystal structure of N-terminal PH domain of ARAP3 protein in complex with inositol 1,3,4,5-tetrakisphosphate Deposited 2022-07-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 284–385（102 aa） Fragment：PH1 domain	Not recorded	4PT (2R)-3-{[(S)-{[(2S,3R,5S,6S)-2,6-DIHYDROXY-3,4,5-TRIS(PHOSPHONOOXY)CYCLOHEXYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-(1-HYDROXY BUTOXY)PROPYL BUTYRATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M Ammonium sulfate, 0.1 M Sodium acetate trihydrate (pH 4.6), 30% v/v Polyethylene glycol 400	Resolution 3.30 Å R-free 0.276

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARAP3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–100； UniProt 1–80

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2kg5
Deposition date deposition_date	2009-03-05
Structure title title	NMR Solution structure of ARAP3-SAM
Keywords keywords	;SAM DOMAIN, HELIX BUNDLE, Cell membrane, Cell projection, Cytoplasm, Cytoskeleton, GTPase activation, Membrane, Metal-binding, Phosphoprotein, Polymorphism, Zinc, Zinc-finger, SIGNALING PROTEIN ;; SIGNALING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.71 Å
Radius of gyration Rg (electron density) rg_electron	15.14 Å
Forward intensity I(0) i0	479858000.00
Molecular weight molecular_weight	175960.0 kDa
Excluded volume excluded_volume	217180 Å³
Envelope volume envelope_volume	41132 Å³
Hydration-shell volume shell_volume	17635 Å³
Envelope diameter envelope_diameter	76.5 Å
Shell Rg shell_rg	26.59 Å
Envelope Rg envelope_rg	23.03 Å
Shape Rg shape_rg	15.06 Å
Total Rg total_rg	15.71 Å
Total atoms total_atoms	24640
Residues n_residues	1620
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

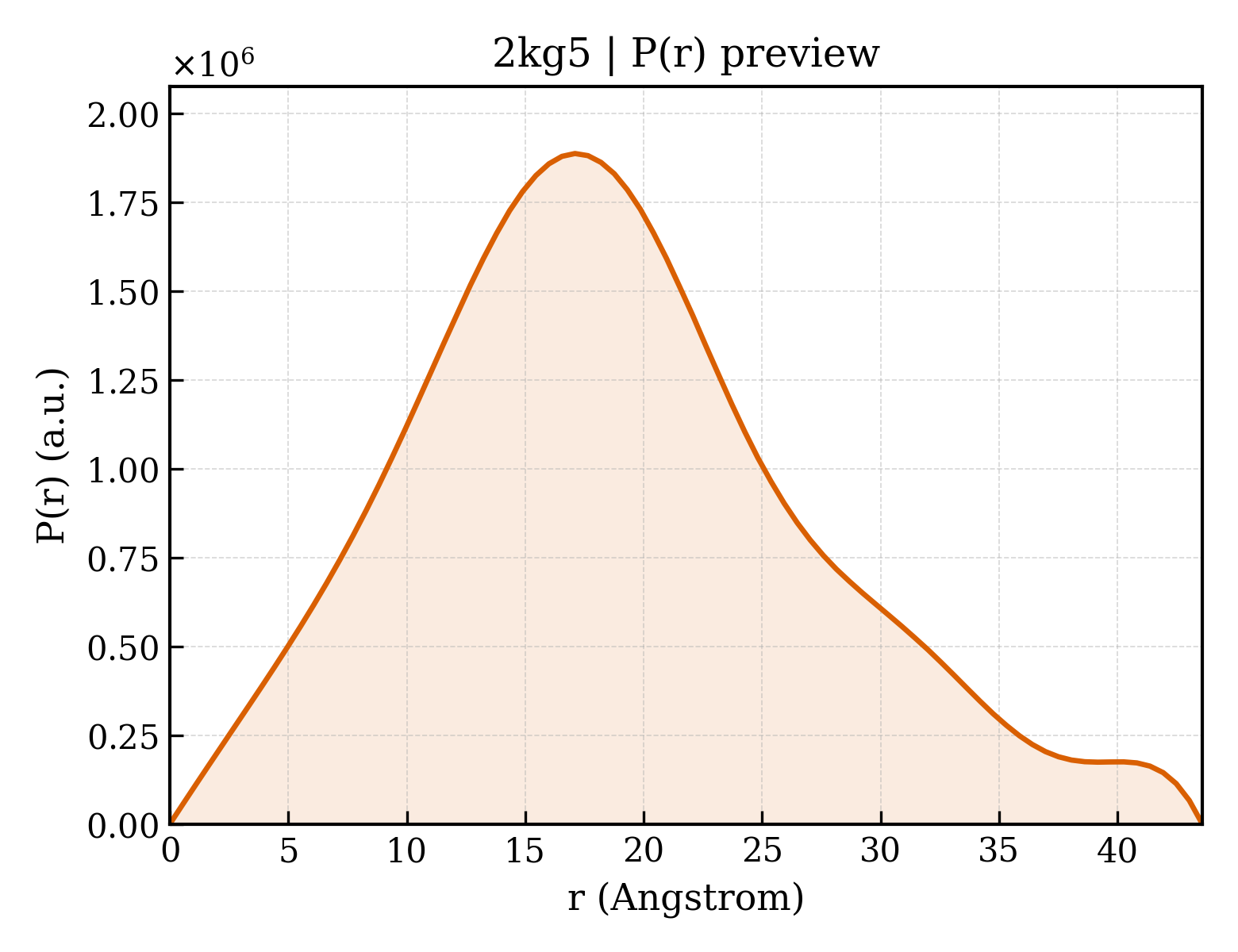

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	43.6 Å
Rg (real space) rg_real	14.47 Å
Rg uncertainty (real space) rg_real_error	0.09 Å
I(0) (real space) i0_real	4.5600e+08
I(0) uncertainty (real space) i0_real_error	4.0590e+06
Rg (reciprocal space) rg_reciprocal	16.01 Å
I(0) (reciprocal space) i0_reciprocal	479900000.0000
Solution quality estimate total_estimate	0.6592
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.1 Å
Skewness Skewness skewness	0.438
Kurtosis Kurtosis kurtosis	-0.066
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	3.5310
Highest regularization parameter α highest_alpha	215900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.012; Oscil: 0.878; Stabil: 0.980; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2kg5A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	50 — Transcription Factor, Ets-1

▶

8. Citations (1)

▶

Description description	Arf-GAP, Rho-GAP domain, ANK repeat and PH domain-containing protein 3
Molecular weight formula_weight	10864.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	24640

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/kg/2kg5/2kg5.fit
pddf	/app/data/pr_computation/kg/2kg5/2kg5.pr.out
profile	/app/data/saxs_computation/kg/2kg5/2kg5.dat
