2kgo
Solution NMR structure of Zn finger protein YBIL from Escherichia coli. NESG target ET107, OCSP target EC0402

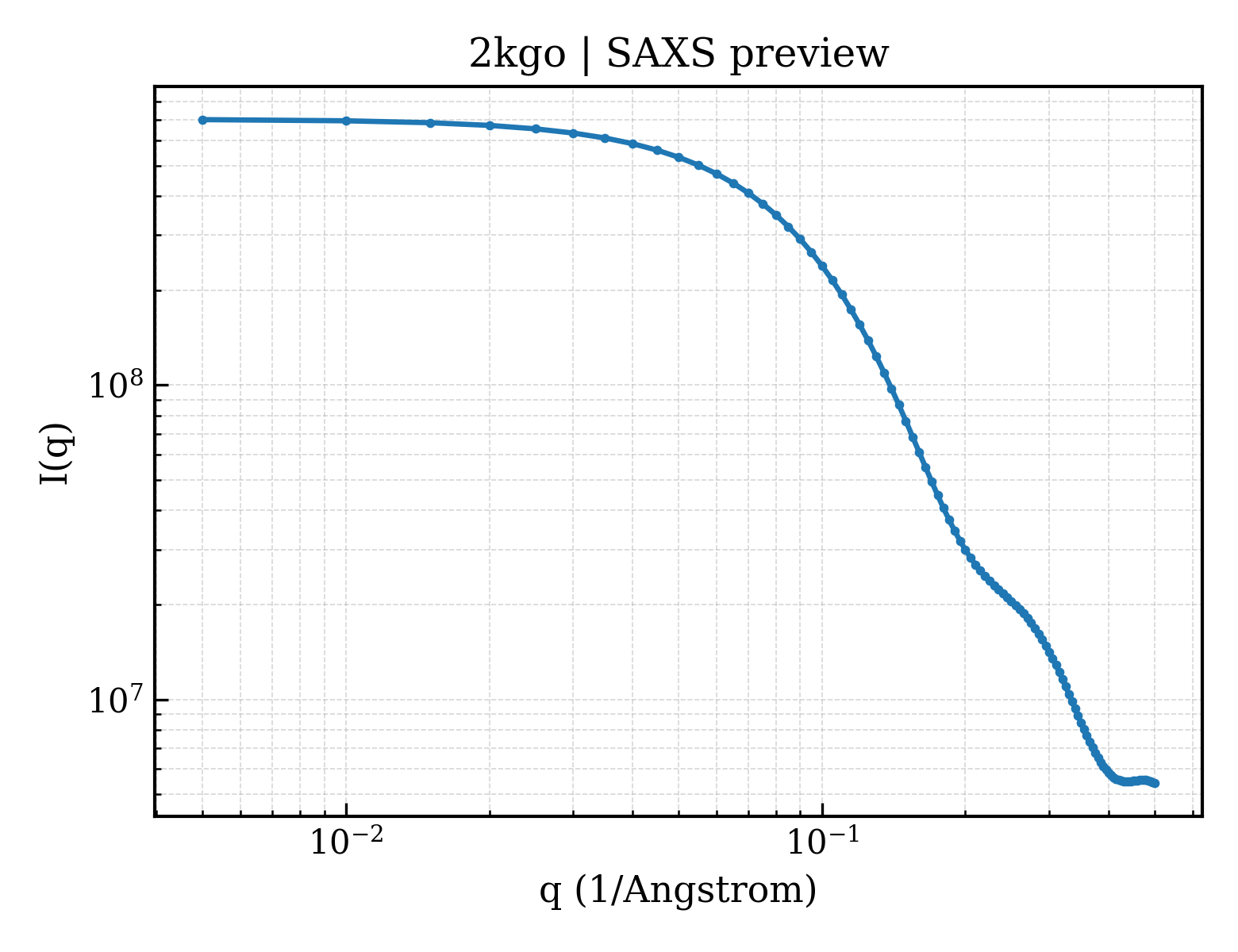

SAXS 散射曲线 SAXS Profile

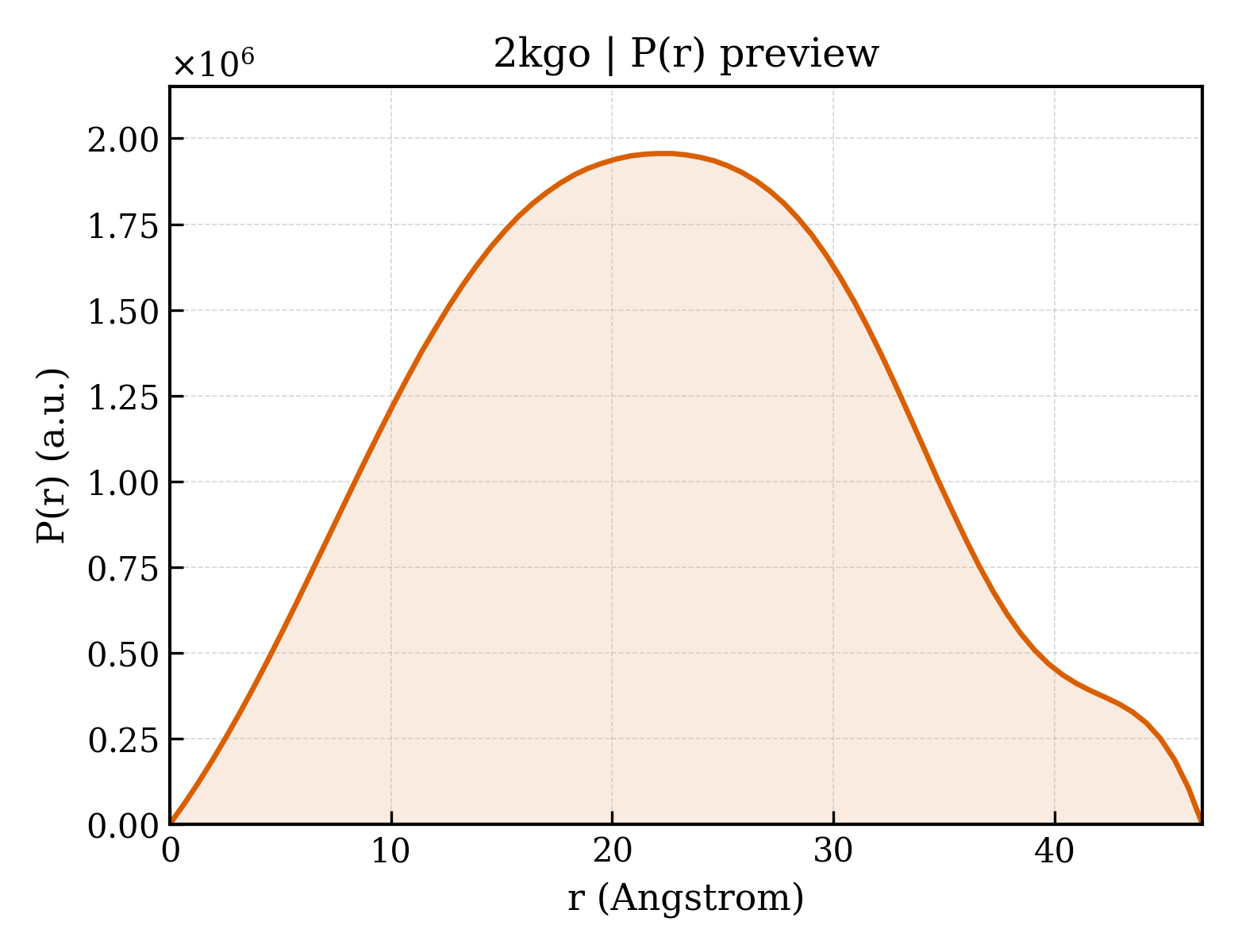

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2kgo |
| 沉积日期 deposition_date | 2009-03-13 |
| 结构标题 title | Solution NMR structure of Zn finger protein YBIL from Escherichia coli. NESG target ET107, OCSP target EC0402 |
| 关键词 keywords | ;Zn finger, partially disordered, structural proteomics, Metal-binding, Zinc-finger, STRUCTURAL GENOMICS, UNKNOWN FUNCTION, PSI-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, Ontario Centre for Structural Proteomics, OCSP ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 18.28 Å |
| 回转半径 Rg (电子) rg_electron | 17.94 Å |
| 零角强度 I(0) i0 | 701739000.00 |
| 分子量 molecular_weight | 196360.0 kDa |
| 排除体积 excluded_volume | 235820 ų |
| 包络体积 envelope_volume | 84690 ų |
| 水化壳体积 shell_volume | 28790 ų |
| 包络直径 envelope_diameter | 95.7 Å |
| 壳层 Rg shell_rg | 31.87 Å |
| 包络 Rg envelope_rg | 25.36 Å |
| 形状 Rg shape_rg | 17.92 Å |
| 总 Rg total_rg | 18.51 Å |
| 总原子数 total_atoms | 26660 |
| 残基数 n_residues | 1760 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 46.7 Å |
| Rg (实空间) rg_real | 17.16 Å |
| Rg 误差 (实空间) rg_real_error | 0.07 Å |
| I(0) (实空间) i0_real | 6.6710e+08 |
| I(0) 误差 (实空间) i0_real_error | 5.4800e+06 |
| Rg (倒空间) rg_reciprocal | 18.37 Å |
| I(0) (倒空间) i0_reciprocal | 701700000.0000 |
| 解质量估计 total_estimate | 0.6874 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 0 |
| 主峰位置 r_peak_primary | — Å |
| 偏度 Skewness skewness | 0.125 |
| 峰度 Kurtosis kurtosis | -0.603 |
| 角度范围 angular_range | — – 0.4350 Å−1 |
| 当前正则化参数 α current_alpha | 3.3560 |
| 最高正则化参数 α highest_alpha | 314000.0000 |
| 实空间数据点数 n_real_points | 75 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.008; Oscil: 0.999; Stabil: 0.983; Sysdev: 0.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.000 |
