SAXSdb — 2kr6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Presenilin-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 292–467	Fragment：Presenilin-1 CTF subunit, UNP residues 292-467	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.8；313 K；Ionic strength (raw mmCIF value) 20；Pressure AMBIENT NMR sample composition：0.5 mM [U-99% 13C; U-99% 15N] ps1ctf-1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2KR6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5A63 Cryo-EM structure of the human gamma-secretase complex at 3.4 angstrom resolution. Deposited 2015-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2	ELECTRON MICROSCOPY cryo-EM buffer 25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35；pH 7.4；25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35 cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 100, TEMPERATURE- 85, INSTRUMENT- FEI VITROBOT MARK IV, METHOD- BLOT FOR 4 SECONDS BEFORE PLUNGING,	Resolution 3.40 Å
5FN2 Cryo-EM structure of gamma secretase in complex with a drug DAPT Deposited 2015-11-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35；pH 7.4；25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35 cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 4.20 Å
5FN3 Cryo-EM structure of gamma secretase in class 1 of the apo- state ensemble Deposited 2015-11-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35；pH 7.4；25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35 cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 4.10 Å
5FN4 Cryo-EM structure of gamma secretase in class 2 of the apo- state ensemble Deposited 2015-11-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35；pH 7.4；25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35 cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 4.00 Å
5FN5 Cryo-EM structure of gamma secretase in class 3 of the apo- state ensemble Deposited 2015-11-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35；pH 7.4；25 MM HEPES, PH 7.4, 150 MM NACL AND AMPHIPOL A8-35 cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 4.30 Å
6IDF Cryo-EM structure of gamma secretase in complex with a Notch fragment Deposited 2018-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 4 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
6IYC Recognition of the Amyloid Precursor Protein by Human gamma-secretase Deposited 2018-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Mutation：Q112C	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
6LQG Human gamma-secretase in complex with small molecule Avagacestat Deposited 2020-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 EN9 (2R)-2-[(4-chlorophenyl)sulfonyl-[[2-fluoranyl-4-(1,2,4-oxadiazol-3-yl)phenyl]methyl]amino]-5,5,5-tris(fluoranyl)pentanamide × 1 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
6LR4 Molecular basis for inhibition of human gamma-secretase by small molecule Deposited 2020-01-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 ESF (2S)-2-hydroxy-3-methyl-N-[(2S)-1-[[(5S)-3-methyl-4-oxo-2,5-dihydro-1H-3-benzazepin-5-yl]amino]-1-oxopropan-2-yl]butanamide × 1 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7C9I Human gamma-secretase in complex with small molecule L-685,458 Deposited 2020-06-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 FTO ~{tert}-butyl ~{N}-[(2~{S},3~{R},5~{R})-6-[[(2~{S})-1-[[(2~{S})-1-azanyl-1-oxidanylidene-3-phenyl-propan-2-yl]amino]-4-methyl-1-oxidanylidene-pentan-2-yl]amino]-3-oxidanyl-6-oxidanylidene-1-phenyl-5-(phenylmethyl)hexan-2-yl]carbamate × 1 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7D8X CryoEM structure of human gamma-secretase in complex with E2012 and L685458 Deposited 2020-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 GZR 1-[(1S)-1-(4-fluorophenyl)ethyl]-3-[[3-methoxy-4-(4-methylimidazol-1-yl)phenyl]methylidene]piperidin-2-one × 1 PTY PHOSPHATIDYLETHANOLAMINE × 1 FTO ~{tert}-butyl ~{N}-[(2~{S},3~{R},5~{R})-6-[[(2~{S})-1-[[(2~{S})-1-azanyl-1-oxidanylidene-3-phenyl-propan-2-yl]amino]-4-methyl-1-oxidanylidene-pentan-2-yl]amino]-3-oxidanyl-6-oxidanylidene-1-phenyl-5-(phenylmethyl)hexan-2-yl]carbamate × 1 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
7Y5T CryoEM structure of PS1-containing gamma-secretase in complex with MRK-560 Deposited 2022-06-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 IGD ~{N}-[4-[2,5-bis(fluoranyl)phenyl]-4-(4-chlorophenyl)sulfonyl-cyclohexyl]-1,1,1-tris(fluoranyl)methanesulfonamide × 1 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8IM7 Human gamma-secretase treated with ganglioside GM1 Deposited 2023-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CLR CHOLESTEROL × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8K8E Human gamma-secretase in complex with a substrate mimetic Deposited 2023-07-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8KCO Cryo-EM structure of human gamma-secretase in complex with RO4929097 Deposited 2023-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 N60 2,2-dimethyl-N-[(7S)-6-oxo-5,7-dihydrobenzo[d][1]benzazepin-7-yl]-N'-(2,2,3,3,3-pentafluoropropyl)propanediamide × 1 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8KCP Cryo-EM structure of human gamma-secretase in complex with Crenigacestat Deposited 2023-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 N9C 4,4,4-tris(fluoranyl)-N-[(2S)-1-[[(7S)-5-(2-hydroxyethyl)-6-oxidanylidene-7H-pyrido[2,3-d][3]benzazepin-7-yl]amino]-1-oxidanylidene-propan-2-yl]butanamide × 1 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8KCS Cryo-EM structure of human gamma-secretase in complex with BMS906024 Deposited 2023-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 Q70 Osugacestat × 1 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
8KCT Cryo-EM structure of human gamma-secretase in complex with Nirogacestat Deposited 2023-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CLR CHOLESTEROL × 3 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 O6U Nirogacestat × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8KCU Cryo-EM structure of human gamma-secretase in complex with MK-0752 Deposited 2023-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 OL9 MK-0752 × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8OQY Structure of apo form of human gamma-secretase PSEN1 APH-1B isoform reconstituted into lipid nanodisc Deposited 2023-04-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8OQZ Structure of human gamma-secretase PSEN1 APH-1B isoform reconstituted into lipid nanodisc in complex with Ab46 Deposited 2023-04-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Mutation：D257A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8X52 Cryo-EM structure of human gamma-secretase in complex with Abeta49 Deposited 2023-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CLR CHOLESTEROL × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8X53 Cryo-EM structure of human gamma-secretase in complex with Abeta46 Deposited 2023-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 CLR CHOLESTEROL × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8X54 Cryo-EM structure of human gamma-secretase in complex with APP-C99 Deposited 2023-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9K95 Cryo-EM structure of human gamma-secretase in complex with compound E Deposited 2024-10-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–467（467 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 A1D6X (2~{S})-2-[2-[3,5-bis(fluoranyl)phenyl]ethanoylamino]-~{N}-[(3~{S})-1-methyl-2-oxidanylidene-5-phenyl-3~{H}-1,4-benzodiazepin-3-yl]propanamide × 1 CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

25 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PSN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–176； UniProt 292–467

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2kr6
Deposition date deposition_date	2009-12-04
Structure title title	Solution structure of presenilin-1 CTF subunit
Keywords keywords	;protease, Alternative splicing, Alzheimer disease, Amyloidosis, Apoptosis, Cell adhesion, Disease mutation, Endoplasmic reticulum, Golgi apparatus, Hydrolase, Membrane, Neurodegeneration, Notch signaling pathway, Phosphoprotein, Polymorphism, Transmembrane ;; HYDROLASE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.31 Å
Radius of gyration Rg (electron density) rg_electron	41.14 Å
Forward intensity I(0) i0	2046710000.00
Molecular weight molecular_weight	388040.0 kDa
Excluded volume excluded_volume	487260 Å³
Envelope volume envelope_volume	456890 Å³
Hydration-shell volume shell_volume	67953 Å³
Envelope diameter envelope_diameter	223.2 Å
Shell Rg shell_rg	51.10 Å
Envelope Rg envelope_rg	66.30 Å
Shape Rg shape_rg	40.97 Å
Total Rg total_rg	41.97 Å
Total atoms total_atoms	54020
Residues n_residues	3520
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

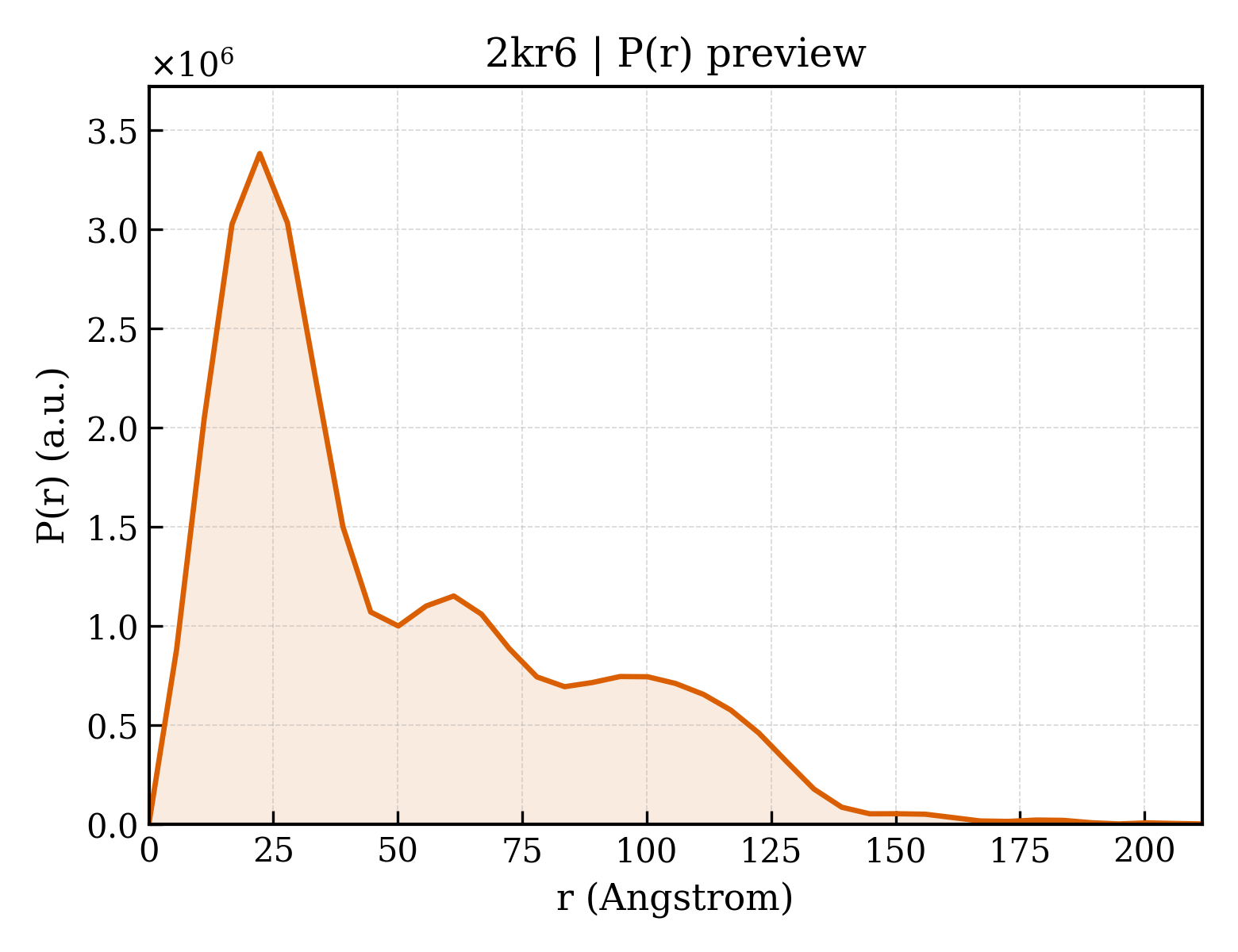

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	211.6 Å
Rg (real space) rg_real	43.03 Å
Rg uncertainty (real space) rg_real_error	6.44 Å
I(0) (real space) i0_real	2.0470e+09
I(0) uncertainty (real space) i0_real_error	4.9780e+07
Rg (reciprocal space) rg_reciprocal	41.32 Å
I(0) (reciprocal space) i0_reciprocal	2043000000.0000
Solution quality estimate total_estimate	0.6154
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	6
Primary peak position r_peak_primary	22.3 Å
Skewness Skewness skewness	0.925
Kurtosis Kurtosis kurtosis	0.013
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1482000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.000; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.000; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2kr6A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	100 — Presenilin

▶

8. Citations (1)

▶

Description description	Presenilin-1
Molecular weight formula_weight	19445.9 kDa
EC 编号 ec_number	3.4.23.-
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	54020

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/kr/2kr6/2kr6.fit
pddf	/app/data/pr_computation/kr/2kr6/2kr6.pr.out
profile	/app/data/saxs_computation/kr/2kr6/2kr6.dat

Solution structure of presenilin-1 CTF subunit
