2kyi

Solution NMR structure of Dsy0195(21-82) protein from Desulfitobacterium Hafniense. Northeast Structural Genomics Consortium Target DhR8C

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uncharacterized protein

Desulfitobacterium hafniense

UniProt Q251Q8

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

Monomer
3ipf 3ipf

2 assemblies

Homodimer
2ks0 2kyi 3ipf

3 assemblies

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name Q251Q8_DESHY
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–63； UniProt 21–82 Author chain B； PDBConstruct 2–63； UniProt 21–82

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2kyi
Deposition date deposition_date2010-05-27
Structure title titleSolution NMR structure of Dsy0195(21-82) protein from Desulfitobacterium Hafniense. Northeast Structural Genomics Consortium Target DhR8C
Keywords keywords;YabP family, Desulfitobacterium Hafniense, Structural Genomics, PSI-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, Unknown function ;; Structural Genomics, Unknown function
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2kyi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

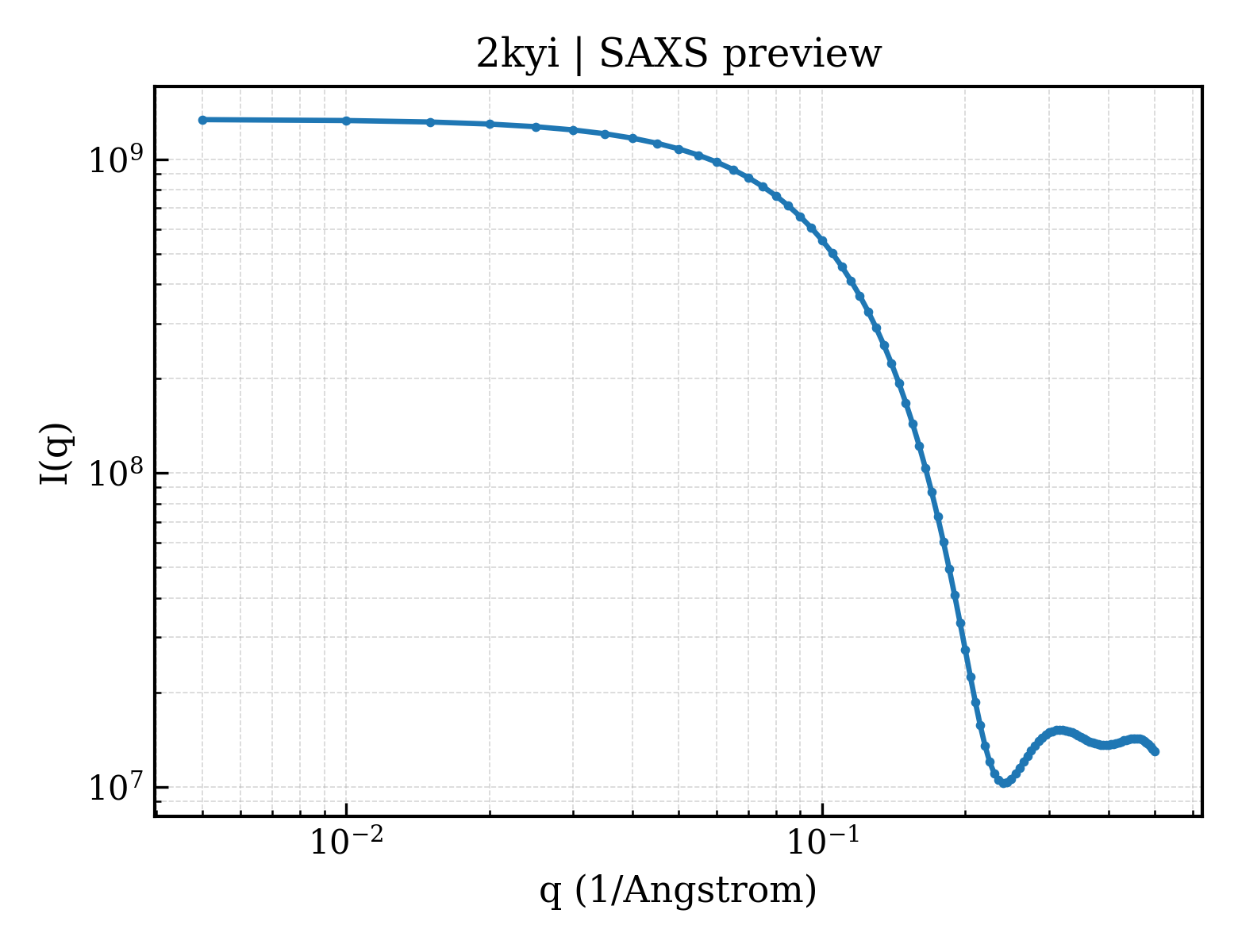

2kyi__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2kyi__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）16.62 Å
Rg (electron density)14.98 Å
Total Rg16.21 Å
Atom count2290
Residues142
Excluded volume20196 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2kyi__assembly_1__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 2kyi__assembly_1__model_2 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 2kyi__assembly_1__model_3 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 2kyi__assembly_1__model_4 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 2kyi__assembly_1__model_5 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 6 2kyi__assembly_1__model_6 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 7 2kyi__assembly_1__model_7 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 8 2kyi__assembly_1__model_8 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 9 2kyi__assembly_1__model_9 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 10 2kyi__assembly_1__model_10 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 11 2kyi__assembly_1__model_11 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 12 2kyi__assembly_1__model_12 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 13 2kyi__assembly_1__model_13 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 14 2kyi__assembly_1__model_14 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 15 2kyi__assembly_1__model_15 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 16 2kyi__assembly_1__model_16 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 17 2kyi__assembly_1__model_17 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 18 2kyi__assembly_1__model_18 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 19 2kyi__assembly_1__model_19 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 20 2kyi__assembly_1__model_20 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id2kyiA01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily2000 —
Domain ID domain_id2kyiB01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily2000 —
▶

7. Citations (1)
