SAXSdb — 2l3l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tubulin-specific chaperone C

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 26–135	Fragment：UNP RESIDUES 26-135	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition：0.5-1.0 mM [U-13C; U-15N] TBCC_Nterm-1, 20 mM potassium phosphate-2, 20 mM potassium chloride-3, 1.0 mM TCEP-4, 1.0 mM EDTA-5, 0.05 mM DSS-6, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2L3L	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2YUH Solution structure of the C-terminal region in human tubulin folding cofactor C Deposited 2007-04-06	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 181–346（166 aa） Fragment：C-terminal region	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1mM protein, 20mM d-Tris-HCl, 100mM NaCl, 1mM d-DTT, 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
9M1M Cryo-EM structure of the TBC-DEC-Arl2-alpha-beta-tubulin complex with GDP-AlFx Deposited 2025-02-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–346（346 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 MG MAGNESIUM ION × 3 GTP GUANOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.21 Å
9M1N Cryo-EM structure of the TBC-DC-Arl2-alpha-beta-tubulin complex with GDP-AlFx Deposited 2025-02-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–346（346 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 MG MAGNESIUM ION × 3 GTP GUANOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.24 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TBCC_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–111； UniProt 26–135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l3l
Deposition date deposition_date	2010-09-14
Structure title title	The solution structure of the N-terminal domain of human Tubulin Binding Cofactor C reveals a platform for the interaction with ab-tubulin
Keywords keywords	CHAPERONE, tubulin binding cofactor; CHAPERONE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.84 Å
Radius of gyration Rg (electron density) rg_electron	21.37 Å
Forward intensity I(0) i0	1092790000.00
Molecular weight molecular_weight	262980.0 kDa
Excluded volume excluded_volume	324530 Å³
Envelope volume envelope_volume	100920 Å³
Hydration-shell volume shell_volume	29830 Å³
Envelope diameter envelope_diameter	100.1 Å
Shell Rg shell_rg	35.38 Å
Envelope Rg envelope_rg	28.93 Å
Shape Rg shape_rg	21.27 Å
Total Rg total_rg	22.07 Å
Total atoms total_atoms	37340
Residues n_residues	2220
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	86.5 Å
Rg (real space) rg_real	22.12 Å
Rg uncertainty (real space) rg_real_error	1.05 Å
I(0) (real space) i0_real	1.0930e+09
I(0) uncertainty (real space) i0_real_error	1.5390e+07
Rg (reciprocal space) rg_reciprocal	22.07 Å
I(0) (reciprocal space) i0_reciprocal	1093000000.0000
Solution quality estimate total_estimate	0.5292
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.8 Å
Skewness Skewness skewness	0.510
Kurtosis Kurtosis kurtosis	-0.354
Angular range angular_range	— – 0.3650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1400000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.409; Stabil: 0.999; Sysdev: 0.207; Positv: 1.000; Valcen: 0.116; Smooth: 0.915

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2l3lA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	1250 — Tubulin Binding Cofactor C, N-terminal domain

▶

8. Citations (2)

▶

Description description	Tubulin-specific chaperone C
Molecular weight formula_weight	13169.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	37340

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/l3/2l3l/2l3l.fit
pddf	/app/data/pr_computation/l3/2l3l/2l3l.pr.out
profile	/app/data/saxs_computation/l3/2l3l/2l3l.dat

The solution structure of the N-terminal domain of human Tubulin Binding Cofactor C reveals a platform for the interaction with ab-tubulin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tubulin-specific chaperone C

State in the Current Structure

Other States of the Same Protein in the Database

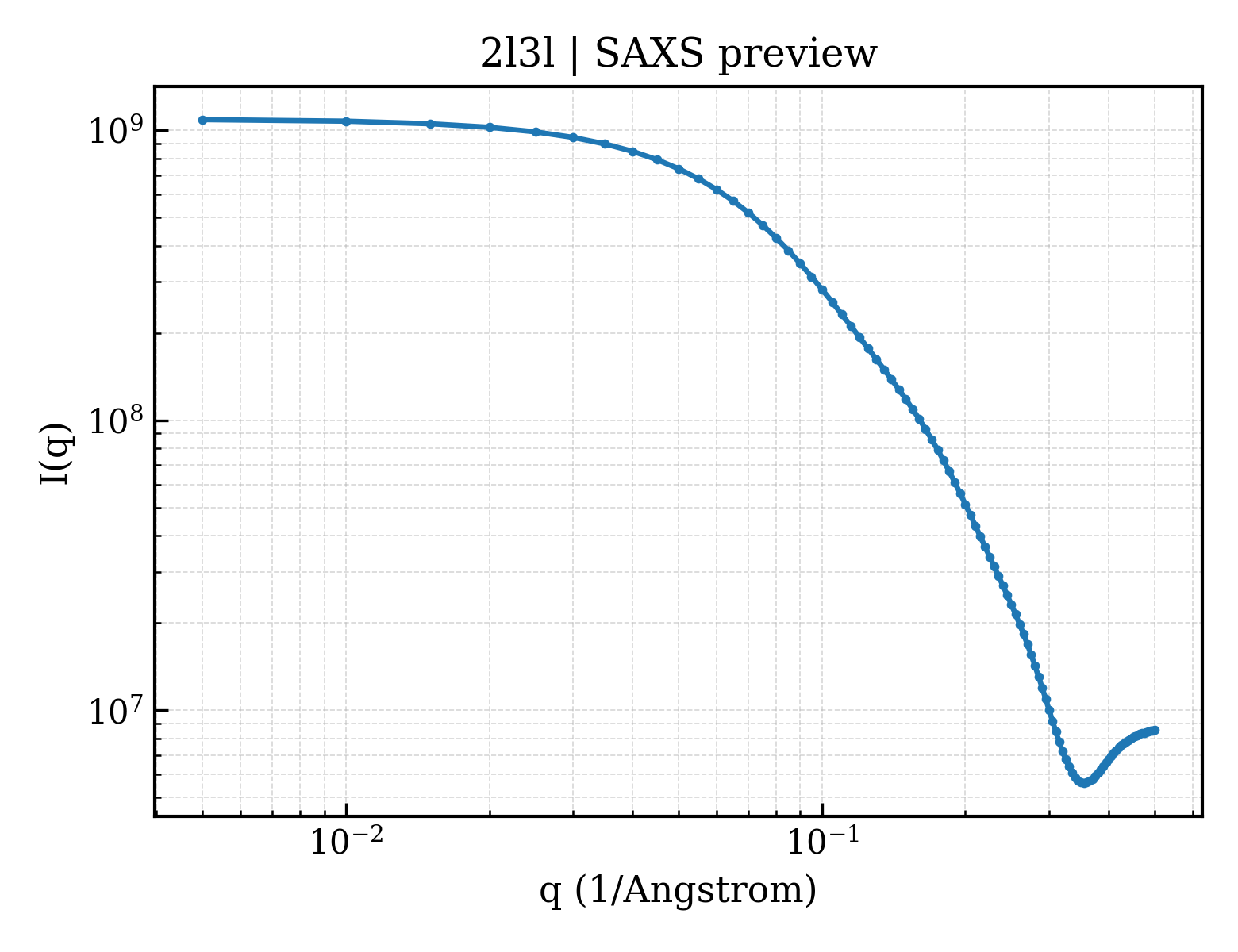

SAXS scattering curve SAXS Profile

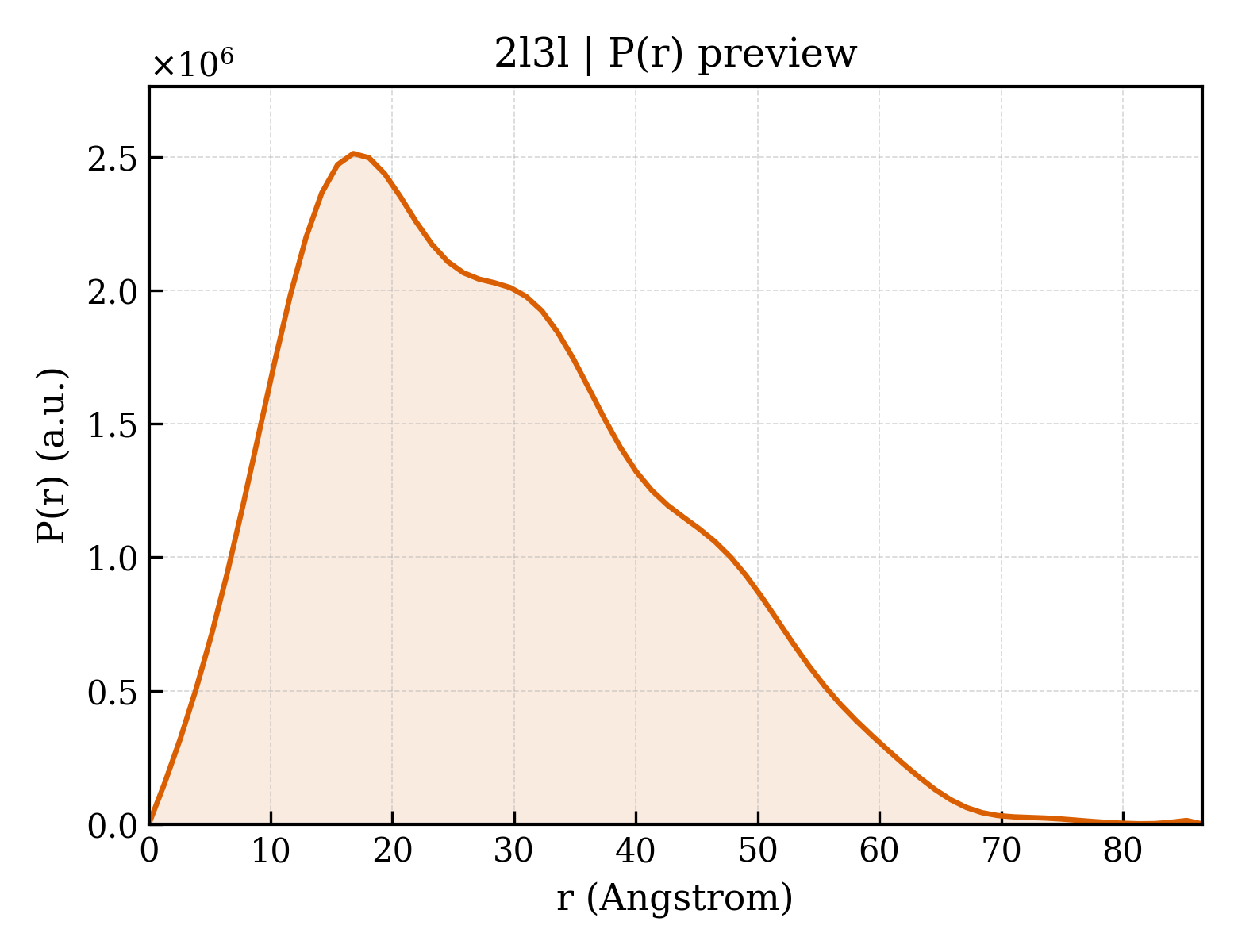

P(r) Distance Distribution P(r) Distribution
