2l3r
NMR structure of UHRF1 Tandem Tudor Domains in a complex with Histone H3 peptide
SAXS 散射曲线 SAXS Profile

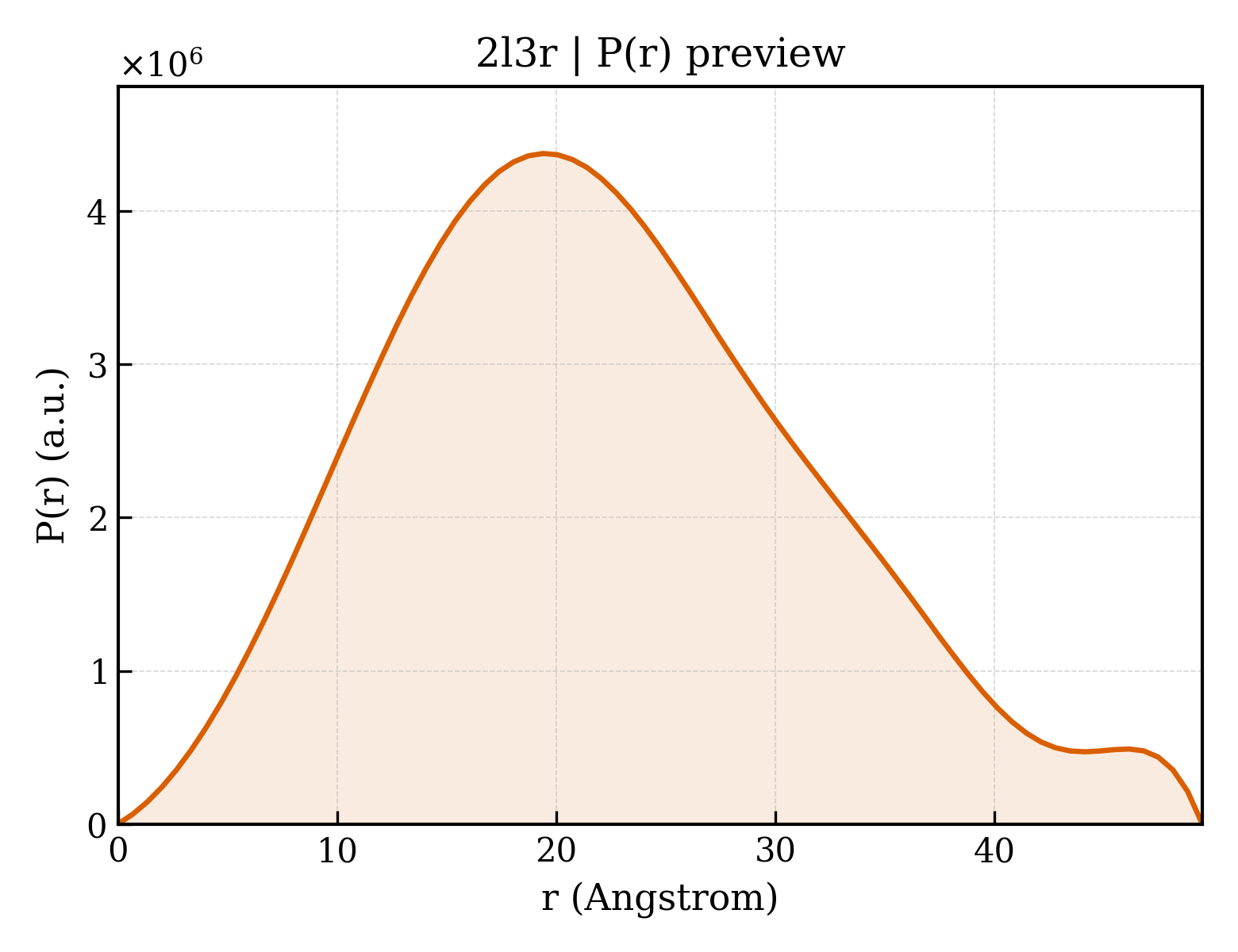

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2l3r |
| 沉积日期 deposition_date | 2010-09-21 |
| 结构标题 title | NMR structure of UHRF1 Tandem Tudor Domains in a complex with Histone H3 peptide |
| 关键词 keywords | ;tudor domain, heterochromatin, transcriptional repression, Structural Genomics, Structural Genomics Consortium, SGC, DNA BINDING PROTEIN, DNA BINDING PROTEIN-GENE REGULATION complex ;; DNA BINDING PROTEIN/GENE REGULATION |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 18.15 Å |
| 回转半径 Rg (电子) rg_electron | 17.90 Å |
| 零角强度 I(0) i0 | 1380260000.00 |
| 分子量 molecular_weight | 301300.0 kDa |
| 排除体积 excluded_volume | 371510 ų |
| 包络体积 envelope_volume | 44609 ų |
| 水化壳体积 shell_volume | 19245 ų |
| 包络直径 envelope_diameter | 82.8 Å |
| 壳层 Rg shell_rg | 26.52 Å |
| 包络 Rg envelope_rg | 21.28 Å |
| 形状 Rg shape_rg | 17.83 Å |
| 总 Rg total_rg | 18.27 Å |
| 总原子数 total_atoms | 41775 |
| 残基数 n_residues | 2565 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 49.5 Å |
| Rg (实空间) rg_real | 17.00 Å |
| Rg 误差 (实空间) rg_real_error | 0.08 Å |
| I(0) (实空间) i0_real | 1.3140e+09 |
| I(0) 误差 (实空间) i0_real_error | 1.2340e+07 |
| Rg (倒空间) rg_reciprocal | 18.34 Å |
| I(0) (倒空间) i0_reciprocal | 1380000000.0000 |
| 解质量估计 total_estimate | 0.6801 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 19.4 Å |
| 偏度 Skewness skewness | 0.380 |
| 峰度 Kurtosis kurtosis | -0.260 |
| 角度范围 angular_range | — – 0.4400 Å−1 |
| 当前正则化参数 α current_alpha | 2.6770 |
| 最高正则化参数 α highest_alpha | 1698000.0000 |
| 实空间数据点数 n_real_points | 75 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.005; Oscil: 0.957; Stabil: 0.990; Sysdev: 0.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 2 domains
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2l3rA01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 140 — |
| 结构域编号 domain_id | 2l3rA02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 30 — SH3 type barrels. |
| 同源超家族 H-superfamily homologous superfamily | 30 — |
