SAXSdb — 2l4h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calcium and integrin-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–191	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions：pH 7.5；310 K；Ionic strength (raw mmCIF value) 200；Pressure ambient NMR sample composition：0.5 mM [U-13C; U-15N; U-2H] CIB1, 50 mM HEPES, 100 mM potassium chloride, 4 mM calcium cloride, 10 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM I/L/V methyl 13C and 1H, [U,2H] CIB1, 50 mM HEPES, 100 mM potassium chloride, 4 mM calcium chloride, 10 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2L4H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DGU HOMOLOGY-BASED MODEL OF CALCIUM-SATURATED CIB (CALCIUM-AND INTEGRIN-BINDING PROTEIN) Deposited 1999-11-25	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–191（183 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1DGV HOMOLOGY-BASED MODEL OF APO CIB (CALCIUM-AND INTEGRIN-BINDING PROTEIN) Deposited 1999-11-25	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–191（183 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1XO5 Crystal structure of CIB1, an EF-hand, integrin and kinase-binding protein Deposited 2004-10-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–190（183 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；20 mM Bis-Tris-propane (BTP), 300 mM calcium acetate, 18% PEG 3350, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.99 Å R-free 0.257
1XO5 Crystal structure of CIB1, an EF-hand, integrin and kinase-binding protein Deposited 2004-10-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 8–190（183 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；20 mM Bis-Tris-propane (BTP), 300 mM calcium acetate, 18% PEG 3350, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.99 Å R-free 0.257
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–191（183 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 9–191（183 aa）	Not recorded	CA CALCIUM ION × 3 GSH Glutathione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 9–191（183 aa） Chain B 9–191（183 aa）	Not recorded	CA CALCIUM ION × 12 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 9–191（183 aa） Chain B 9–191（183 aa）	Not recorded	CA CALCIUM ION × 6 GSH Glutathione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 9–191（183 aa）	Not recorded	CA CALCIUM ION × 6 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
2L4I The Solution Structure of Magnesium bound CIB1 Deposited 2010-10-06	Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–191（191 aa）	Not recorded	MG MAGNESIUM ION × 1	SOLUTION NMR NMR measurement conditions pH 7.5；310 K；Ionic strength (raw mmCIF value) 200；Pressure ambient NMR sample composition 0.5 mM [U-13C; U-15N; U-2H] CIB1, 5 mM MAGNESIUM ION, 100 mM potassium chloride, 10 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM I/L/V methyl labeled [U, 2H] CIB1, 5 mM MAGNESIUM ION, 100 mM potassium chloride, 10 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LM5 Solution structure of Ca2+-CIB1 in complex with the cytoplasmic domain of the integrin aIIb subunit Deposited 2011-11-22	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 7.5；310 K；Ionic strength (raw mmCIF value) 0.2；Pressure ambient NMR sample composition 0.5 mM [U-13C; U-15N; U-2H] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-13C; U-2H], I/L/V methyl [1H,13C] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-10% 13C] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-2H], I/L/V methyl [1H,13C] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-13C; U-15N; U-2H] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 14 mg/mL pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-13C; U-15N; U-2H] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 5 % C12E5/glycerol (0.96/1), 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6OCX Structure of human CIB1 in complex with peptide inhibitor UNC10245109 Deposited 2019-03-25	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M HEPES: NaOH, pH 7.5 20 % (w/v) PEG 8000	Resolution 1.90 Å R-free 0.246
6OCX Structure of human CIB1 in complex with peptide inhibitor UNC10245109 Deposited 2019-03-25	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M HEPES: NaOH, pH 7.5 20 % (w/v) PEG 8000	Resolution 1.90 Å R-free 0.246
6OCX Structure of human CIB1 in complex with peptide inhibitor UNC10245109 Deposited 2019-03-25	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M HEPES: NaOH, pH 7.5 20 % (w/v) PEG 8000	Resolution 1.90 Å R-free 0.246
6OCX Structure of human CIB1 in complex with peptide inhibitor UNC10245109 Deposited 2019-03-25	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M HEPES: NaOH, pH 7.5 20 % (w/v) PEG 8000	Resolution 1.90 Å R-free 0.246
6OD0 Structure of human CIB1 in complex with peptide inhibitor UNC10245092 Deposited 2019-03-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–191（191 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；294 K；137.5 mM calcium acetate, 16 % PEG 3350, 20 mM Bis-Tris propane (pH 6.8)	Resolution 2.15 Å R-free 0.229
6OD0 Structure of human CIB1 in complex with peptide inhibitor UNC10245092 Deposited 2019-03-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–191（191 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；294 K；137.5 mM calcium acetate, 16 % PEG 3350, 20 mM Bis-Tris propane (pH 6.8)	Resolution 2.15 Å R-free 0.229

8 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CIB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–214； UniProt 1–191

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l4h
Deposition date deposition_date	2010-10-06
Structure title title	The Solution Structure of Calcium Bound CIB1
Keywords keywords	Calcium and Integrin Binding protein 1, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.12 Å
Radius of gyration Rg (electron density) rg_electron	18.71 Å
Forward intensity I(0) i0	756081000.00
Molecular weight molecular_weight	232500.0 kDa
Excluded volume excluded_volume	290650 Å³
Envelope volume envelope_volume	37464 Å³
Hydration-shell volume shell_volume	17130 Å³
Envelope diameter envelope_diameter	69.4 Å
Shell Rg shell_rg	24.77 Å
Envelope Rg envelope_rg	19.44 Å
Shape Rg shape_rg	18.67 Å
Total Rg total_rg	18.96 Å
Total atoms total_atoms	32373
Residues n_residues	2024
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

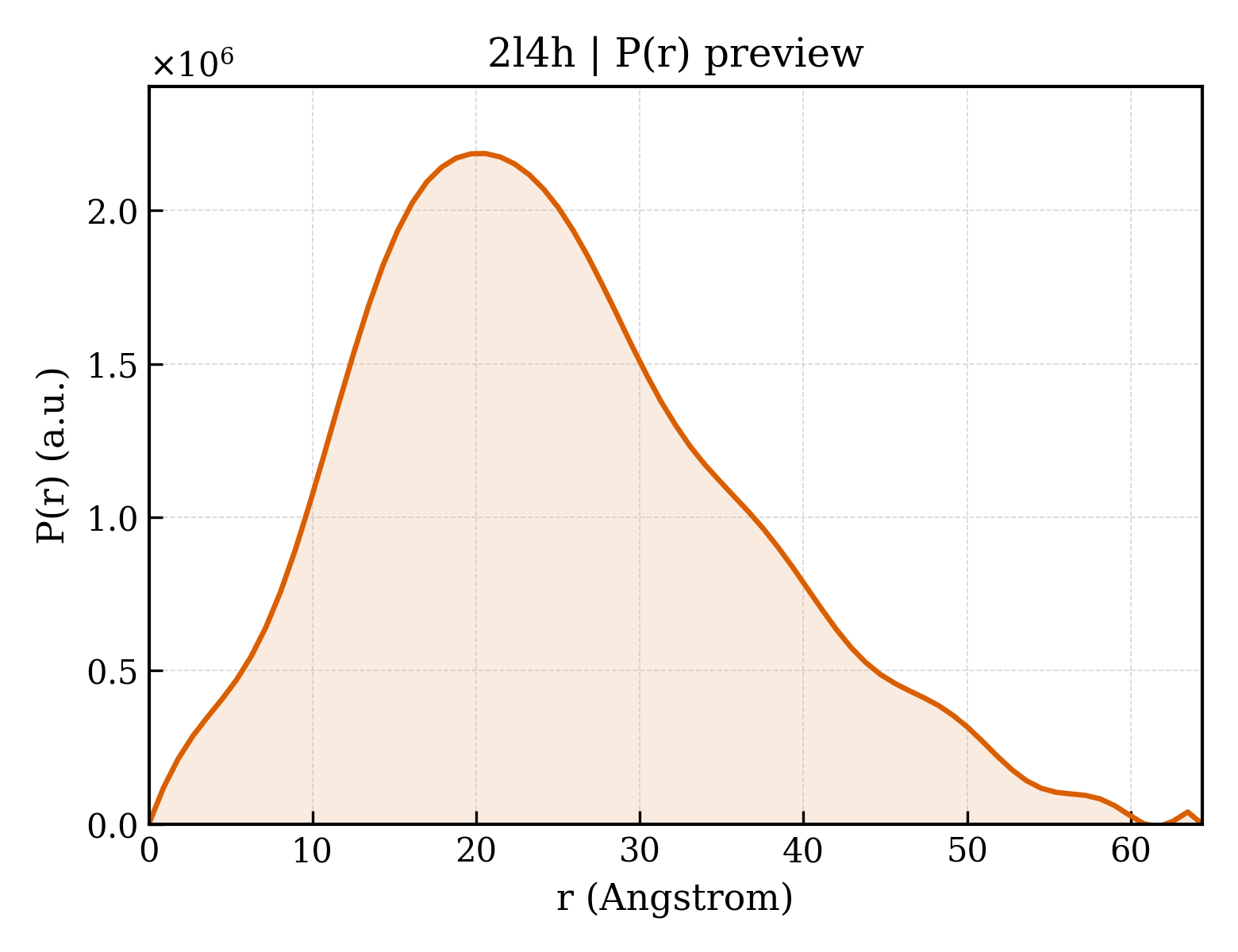

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	64.4 Å
Rg (real space) rg_real	19.22 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	7.5610e+08
I(0) uncertainty (real space) i0_real_error	9.4750e+06
Rg (reciprocal space) rg_reciprocal	19.20 Å
I(0) (reciprocal space) i0_reciprocal	756100000.0000
Solution quality estimate total_estimate	0.6182
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.6 Å
Skewness Skewness skewness	0.489
Kurtosis Kurtosis kurtosis	-0.142
Angular range angular_range	— – 0.4150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	739000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.740; Stabil: 0.999; Sysdev: 0.295; Positv: 1.000; Valcen: 0.927; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2l4ha_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (1 domains)

Domain ID domain_id	2l4hA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

Description description	Calcium and integrin-binding protein 1
Molecular weight formula_weight	24507.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	32373

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

fit	/app/data/saxs_computation/l4/2l4h/2l4h.fit
pddf	/app/data/pr_computation/l4/2l4h/2l4h.pr.out
profile	/app/data/saxs_computation/l4/2l4h/2l4h.dat
