SAXSdb — 2l4i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calcium and integrin-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–191	Not recorded	MG MAGNESIUM ION × 1	SOLUTION NMR NMR measurement conditions：pH 7.5；310 K；Ionic strength (raw mmCIF value) 200；Pressure ambient NMR sample composition：0.5 mM [U-13C; U-15N; U-2H] CIB1, 5 mM MAGNESIUM ION, 100 mM potassium chloride, 10 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM I/L/V methyl labeled [U, 2H] CIB1, 5 mM MAGNESIUM ION, 100 mM potassium chloride, 10 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2L4I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DGU HOMOLOGY-BASED MODEL OF CALCIUM-SATURATED CIB (CALCIUM-AND INTEGRIN-BINDING PROTEIN) Deposited 1999-11-25	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–191（183 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1DGV HOMOLOGY-BASED MODEL OF APO CIB (CALCIUM-AND INTEGRIN-BINDING PROTEIN) Deposited 1999-11-25	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–191（183 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1XO5 Crystal structure of CIB1, an EF-hand, integrin and kinase-binding protein Deposited 2004-10-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–190（183 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；20 mM Bis-Tris-propane (BTP), 300 mM calcium acetate, 18% PEG 3350, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.99 Å R-free 0.257
1XO5 Crystal structure of CIB1, an EF-hand, integrin and kinase-binding protein Deposited 2004-10-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 8–190（183 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；20 mM Bis-Tris-propane (BTP), 300 mM calcium acetate, 18% PEG 3350, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.99 Å R-free 0.257
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 9–191（183 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 9–191（183 aa）	Not recorded	CA CALCIUM ION × 3 GSH Glutathione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 9–191（183 aa） Chain B 9–191（183 aa）	Not recorded	CA CALCIUM ION × 12 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 9–191（183 aa） Chain B 9–191（183 aa）	Not recorded	CA CALCIUM ION × 6 GSH Glutathione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
1Y1A CRYSTAL STRUCTURE OF CALCIUM AND INTEGRIN BINDING PROTEIN Deposited 2004-11-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 9–191（183 aa）	Not recorded	CA CALCIUM ION × 6 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；20 MG/ML PROTEIN, 50MM HEPES, 3M FORMATE, 300MM NaCl, 1% DMSO, 0.25MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.251
2L4H The Solution Structure of Calcium Bound CIB1 Deposited 2010-10-06	Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 7.5；310 K；Ionic strength (raw mmCIF value) 200；Pressure ambient NMR sample composition 0.5 mM [U-13C; U-15N; U-2H] CIB1, 50 mM HEPES, 100 mM potassium chloride, 4 mM calcium cloride, 10 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM I/L/V methyl 13C and 1H, [U,2H] CIB1, 50 mM HEPES, 100 mM potassium chloride, 4 mM calcium chloride, 10 mM DTT, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LM5 Solution structure of Ca2+-CIB1 in complex with the cytoplasmic domain of the integrin aIIb subunit Deposited 2011-11-22	Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 7.5；310 K；Ionic strength (raw mmCIF value) 0.2；Pressure ambient NMR sample composition 0.5 mM [U-13C; U-15N; U-2H] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-13C; U-2H], I/L/V methyl [1H,13C] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-10% 13C] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-2H], I/L/V methyl [1H,13C] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-13C; U-15N; U-2H] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 14 mg/mL pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-13C; U-15N; U-2H] CIB1, 5 mM [U-2H] DTT, 2 mM CALCIUM ION, 100 mM sodium chloride, 50 mM HEPES, 0.6 mM aIIb peptide, 5 % C12E5/glycerol (0.96/1), 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6OCX Structure of human CIB1 in complex with peptide inhibitor UNC10245109 Deposited 2019-03-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M HEPES: NaOH, pH 7.5 20 % (w/v) PEG 8000	Resolution 1.90 Å R-free 0.246
6OCX Structure of human CIB1 in complex with peptide inhibitor UNC10245109 Deposited 2019-03-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M HEPES: NaOH, pH 7.5 20 % (w/v) PEG 8000	Resolution 1.90 Å R-free 0.246
6OCX Structure of human CIB1 in complex with peptide inhibitor UNC10245109 Deposited 2019-03-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M HEPES: NaOH, pH 7.5 20 % (w/v) PEG 8000	Resolution 1.90 Å R-free 0.246
6OCX Structure of human CIB1 in complex with peptide inhibitor UNC10245109 Deposited 2019-03-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–191（191 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M HEPES: NaOH, pH 7.5 20 % (w/v) PEG 8000	Resolution 1.90 Å R-free 0.246
6OD0 Structure of human CIB1 in complex with peptide inhibitor UNC10245092 Deposited 2019-03-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–191（191 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；294 K；137.5 mM calcium acetate, 16 % PEG 3350, 20 mM Bis-Tris propane (pH 6.8)	Resolution 2.15 Å R-free 0.229
6OD0 Structure of human CIB1 in complex with peptide inhibitor UNC10245092 Deposited 2019-03-25	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–191（191 aa）	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；294 K；137.5 mM calcium acetate, 16 % PEG 3350, 20 mM Bis-Tris propane (pH 6.8)	Resolution 2.15 Å R-free 0.229

8 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CIB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–214； UniProt 1–191

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l4i
Deposition date deposition_date	2010-10-06
Structure title title	The Solution Structure of Magnesium bound CIB1
Keywords keywords	calcium and integrin binding protein 1, magnesium, integrin, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.93 Å
Radius of gyration Rg (electron density) rg_electron	17.61 Å
Forward intensity I(0) i0	415070000.00
Molecular weight molecular_weight	172330.0 kDa
Excluded volume excluded_volume	215890 Å³
Envelope volume envelope_volume	30572 Å³
Hydration-shell volume shell_volume	15131 Å³
Envelope diameter envelope_diameter	64.6 Å
Shell Rg shell_rg	23.05 Å
Envelope Rg envelope_rg	18.24 Å
Shape Rg shape_rg	17.57 Å
Total Rg total_rg	17.88 Å
Total atoms total_atoms	24130
Residues n_residues	1500
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

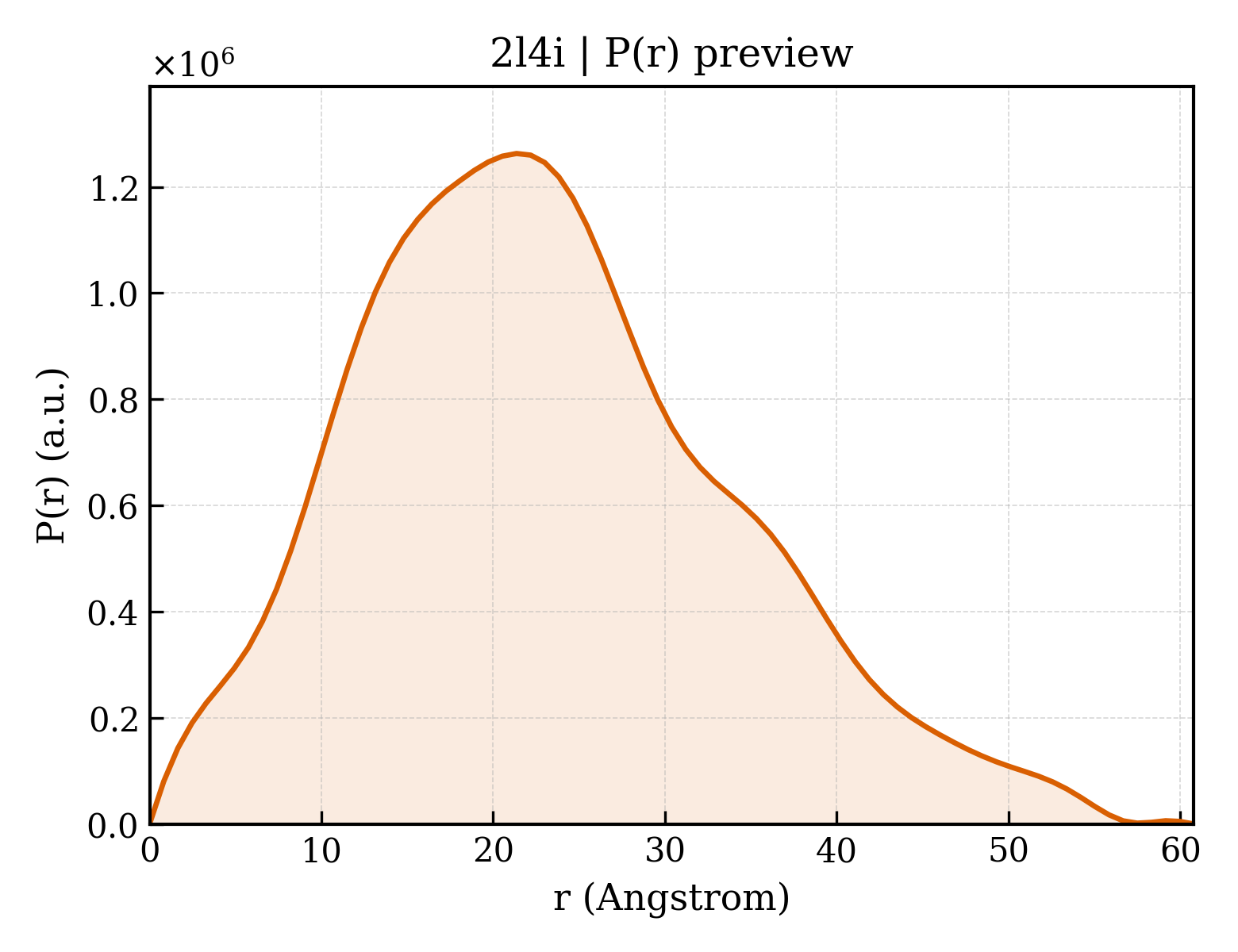

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	60.8 Å
Rg (real space) rg_real	18.02 Å
Rg uncertainty (real space) rg_real_error	0.50 Å
I(0) (real space) i0_real	4.1510e+08
I(0) uncertainty (real space) i0_real_error	5.7000e+06
Rg (reciprocal space) rg_reciprocal	18.01 Å
I(0) (reciprocal space) i0_reciprocal	415100000.0000
Solution quality estimate total_estimate	0.8616
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.4 Å
Skewness Skewness skewness	0.452
Kurtosis Kurtosis kurtosis	-0.131
Angular range angular_range	— – 0.4450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	315200.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.756; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.985

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2l4iA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

Description description	Calcium and integrin-binding protein 1
Molecular weight formula_weight	24507.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	24130

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

fit	/app/data/saxs_computation/l4/2l4i/2l4i.fit
pddf	/app/data/pr_computation/l4/2l4i/2l4i.pr.out
profile	/app/data/saxs_computation/l4/2l4i/2l4i.dat

The Solution Structure of Magnesium bound CIB1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calcium and integrin-binding protein 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 non-polymer

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
