SAXSdb — 2l5f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pre-mRNA-processing factor 40 homolog A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 133–220	Fragment：WW domains (UNP RESIDUES 133-220) Mutation：P67T	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) 0.11；Pressure ambient NMR sample composition：10 mM sodium phosphate-1, 100 mM sodium chloride-2, 5 mM DTT-3, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2L5F	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1YWI Structure of the FBP11WW1 domain complexed to the peptide APPTPPPLPP Deposited 2005-02-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 142–173（32 aa） Fragment：WW1 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 100mM NaCl；Pressure 1 NMR sample composition 1.8mM [U-15N,13C] FBP11WW1, 3.6mM APPTPPPLPP, 10mM phosphate buffer, 100mM Nacl, 0.1mM DTT, 0.1mM EDTA \| 90% H2O/10% D2O NMR sample composition 1.8mM [U-15N,13C] FBP11WW1, 3.6mM APPTPPPLPP, 10mM phosphate buffer, 100mM Nacl, 0.1mM DTT, 0.1mM EDTA \| 100% D2O NMR sample composition 1.8mM [U-15N] FBP11WW1, 3.6mM APPTPPPLPP, 10mM phosphate buffer, 100mM Nacl, 0.1mM DTT, 0.1mM EDTA \| 90% H2O/10% D2O NMR sample composition 1.8mM FBP11WW1, 3.6mM APPTPPPLPP, 10mM phosphate buffer, 100mM Nacl, 0.1mM DTT, 0.1mM EDTA \| 90% H2O/10% D2O	Resolution not provided
1YWJ Structure of the FBP11WW1 domain Deposited 2005-02-18	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 142–173（32 aa） Fragment：WW1 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 100mM NaCl；Pressure 1 NMR sample composition 1.8mM [U-15N,13C] FBP11WW1, 10mM phosphate buffer, 100mM Nacl, 0.1mM DTT, 0.1mM EDTA \| 90% H2O/10% D2O NMR sample composition 1.8mM [U-15N,13C] FBP11WW1, 10mM phosphate buffer, 100mM Nacl, 0.1mM DTT, 0.1mM EDTA \| 100% D2O NMR sample composition 1.8mM [U-15N] FBP11WW1, 10mM phosphate buffer, 100mM Nacl, 0.1mM DTT, 0.1mM EDTA \| 90% H2O/10% D2O NMR sample composition 1.8mM FBP11WW1, 10mM phosphate buffer, 100mM Nacl, 0.1mM DTT, 0.1mM EDTA \| 90% H2O/10% D2O	Resolution not provided
2CQN Solution structure of the FF domain of human Formin-binding protein 3 Deposited 2005-05-20	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 743–806（64 aa） Fragment：FF domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.9mM 13C/15N-PROTEIN; 20mM d-Tris-HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3 \| 90% H2O/10% D2O	Resolution not provided
2DYF Solution structure of the first WW domain of FBP11 / HYPA (FBP11 WW1) complexed with a PL (PPLP) motif peptide ligand Deposited 2006-09-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 146–173（28 aa） Fragment：THE FIRST WW DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；283 K；Ionic strength (raw mmCIF value) 0.3；Pressure 1 NMR sample composition 1.5MM FBP11 WW1 U-15N, 13C 5.3MM NATURAL ABUNDANCE PL MOTIF PEPTIDE; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 90% H2O, 10% D2O; 1.5MM FBP11 WW1 U- 15N, 13C; 5.3MM NATURAL ABUNDANCE PL MOTIF PEPTIDE; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 100% D2O; 1.6MM FBP11 WW1 NATURAL ABUNDANCE; 4.4MM PL MOTIF PEPTIDE U-15N, 13C; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 90% H2O, 10% D2O; 1.6MM FBP11 WW1 NATURAL ABUNDANCE; 4.4MM PL MOTIF PEPTIDE U-15N, 13C; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 100% D2O; 1.5MM FBP11 WW1 U-15N; 5.3MM NATURAL ABUNDANCE PL MOTIF PEPTIDE; 50MM PHOSPHATE BUFFER NA; 50MM NACL; 90% H2O, 10% D2O	Resolution not provided
2KZG A Transient and Low Populated Protein Folding Intermediate at Atomic Resolution Deposited 2010-06-17	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 381–450（70 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.7；303 K；Ionic strength (raw mmCIF value) 145；Pressure ambient NMR sample composition 1-2 mM [U-13C; U-15N; U-2H] FF-1, 100 mM sodium chloride-2, 50 mM sodium acetate-3, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1-2 mM [U-100% 13C; U-100% 15N; U-50% 2H] FF-4, 100 mM sodium chloride-5, 50 mM sodium acetate-6, 100% D2O \| 100% D2O NMR sample composition 1-2 mM [selective 13C; U-100% 15N] FF-7, 100 mM sodium chloride-8, 50 mM sodium acetate-9, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2L9V NMR structure of the FF domain L24A mutant's folding transition state Deposited 2011-02-24	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 381–450（70 aa） Fragment：FF 1 domain residues 390-438	Mutation：L24A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.7；303 K；Ionic strength (raw mmCIF value) 145；Pressure ambient NMR sample composition 1-2 mM [U-13C; U-15N; U-2H] protein, 100 mM sodium chloride, 50 mM sodium acetate, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1-2 mM [U-100% 13C; U-100% 15N; U-50% 2H] protein, 100 mM sodium chloride, 50 mM sodium acetate, 100% D2O \| 100% D2O	Resolution not provided
2LKS Ff11-60 Deposited 2011-10-19	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 391–439（49 aa） Fragment：FF 1 domain residues 391-439	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.8；298 K；Ionic strength (raw mmCIF value) 0.070；Pressure ambient NMR sample composition 20 mM sodium acetate, 50 mM sodium chloride, 0.05 % sodium azide, 1 mM [U-100% 13C; U-100% 15N] FF11, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 20 mM sodium acetate, 50 mM sodium chloride, 0.05 % sodium azide, 1 mM [U-100% 13C; U-100% 15N] FF11-60 A51L, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 20 mM 20mM sodium acetate, 50 mM 50 mM sodium chloride, 0.05 % 0.05% sodium azide, 1 mM [U-10% 13C; U-100% 15N] FF11, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
8PXW Structure of the WW domain tandem of PRPF40A Deposited 2023-07-24	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–236（96 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 133；Pressure 1 NMR sample composition 390 uM [U-100% 13C; U-100% 15N] PRPF40A, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 390 uM [U-100% 13C; U-100% 15N] PRPF40A, 100% D2O \| 100% D2O	Resolution not provided
8PXX Structure of the WW domain tandem of PRPF40A in complex with SF1 Deposited 2023-07-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 141–236（96 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；308 K；Ionic strength (raw mmCIF value) 133；Pressure 1 NMR sample composition 590 uM [U-100% 13C; U-100% 15N] PRPF40A, 590 uM SF1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 590 uM [U-100% 13C; U-100% 15N] PRPF40A, 590 uM SF1, 100% D2O \| 100% D2O NMR sample composition 900 uM [U-100% 13C; U-100% 15N] SF1, 900 uM PRPF40A, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 900 uM [U-100% 13C; U-100% 15N] SF1, 900 uM PRPF40A, 100% D2O \| 100% D2O NMR sample composition 150 uM [U-100% 15N] PRPF40A, 150 uM SF1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 150 uM [U-100% 15N] PRPF40A, 150 uM SF1, 10 mg/mL Pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PR40A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–90； UniProt 133–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l5f
Deposition date deposition_date	2010-11-01
Structure title title	Solution structure of the tandem WW domains from HYPA/FBP11
Keywords keywords	2WW, HYPA, FBP11, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.56 Å
Radius of gyration Rg (electron density) rg_electron	13.53 Å
Forward intensity I(0) i0	170610000.00
Molecular weight molecular_weight	105330.0 kDa
Excluded volume excluded_volume	129940 Å³
Envelope volume envelope_volume	25864 Å³
Hydration-shell volume shell_volume	14074 Å³
Envelope diameter envelope_diameter	54.0 Å
Shell Rg shell_rg	21.46 Å
Envelope Rg envelope_rg	16.19 Å
Shape Rg shape_rg	13.48 Å
Total Rg total_rg	13.96 Å
Total atoms total_atoms	14430
Residues n_residues	920
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

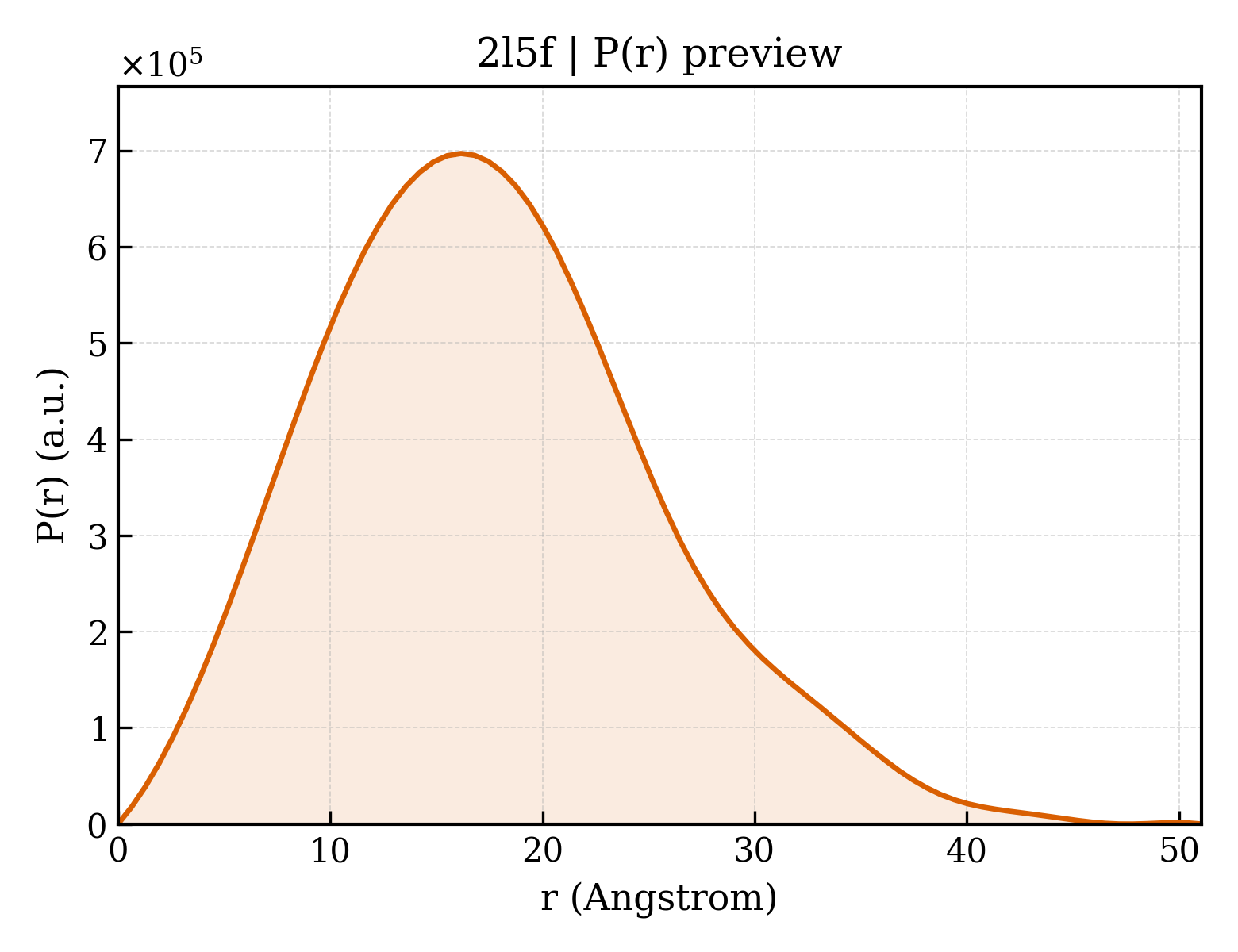

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	51.0 Å
Rg (real space) rg_real	13.59 Å
Rg uncertainty (real space) rg_real_error	0.45 Å
I(0) (real space) i0_real	1.7060e+08
I(0) uncertainty (real space) i0_real_error	1.9790e+06
Rg (reciprocal space) rg_reciprocal	13.59 Å
I(0) (reciprocal space) i0_reciprocal	170600000.0000
Solution quality estimate total_estimate	0.8130
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.2 Å
Skewness Skewness skewness	0.456
Kurtosis Kurtosis kurtosis	0.007
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	301900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.597; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.779; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2l5fa1
Class class	b — All beta proteins
Fold Fold fold	b.72 — WW domain-like
Superfamily Superfamily superfamily	b.72.1 — WW domain
Family Family family	b.72.1.0 — automated matches

Domain ID domain_id	d2l5fa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2l5fa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

▶

8. Citations (1)

▶

Description description	Pre-mRNA-processing factor 40 homolog A
Molecular weight formula_weight	10549.5 kDa
Mutation mutation	P67T
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14430

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/l5/2l5f/2l5f.fit
pddf	/app/data/pr_computation/l5/2l5f/2l5f.pr.out
profile	/app/data/saxs_computation/l5/2l5f/2l5f.dat
