SAXSdb — 2l65

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CalC

Micromonospora echinospora

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	2,4-dideoxy-4-(ethylamino)-3-O-methyl-alpha-L-threo-pentopyranose-(1-2)-4-amino-4,6-dideoxy-beta-D-glucopyranose × 1 2,6-dideoxy-4-thio-beta-D-allopyranose × 1 4-HYDROXY-5-IODO-2,3-DIMETHOXY-6-METHYLBENZOIC ACID × 1 3-O-methyl-alpha-L-rhamnopyranose × 1 [1,8-DIHYDROXY-11-OXO-13-(2-METHYLTRITHIO-ETHYLIDENE)-BICYCLO[7.3.1]TRIDECA-4,9-DIENE-2,6-DIYN-10-YL]-CARBAMIC ACID METHYL ESTER × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8KNF0_MICEC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–155； UniProt 27–181

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2l65
Deposition date deposition_date	2010-11-15
Structure title title	HADDOCK calculated model of the complex of the resistance protein CalC and Calicheamicin-Gamma
Keywords keywords	;Resistance Protein, Structural Genomics, PSI-1, Protein Structure Initiative, Center for Eukaryotic Structural Genomics, CESG, Unknown function ;; Structural genomics, Unknown function
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2l65__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

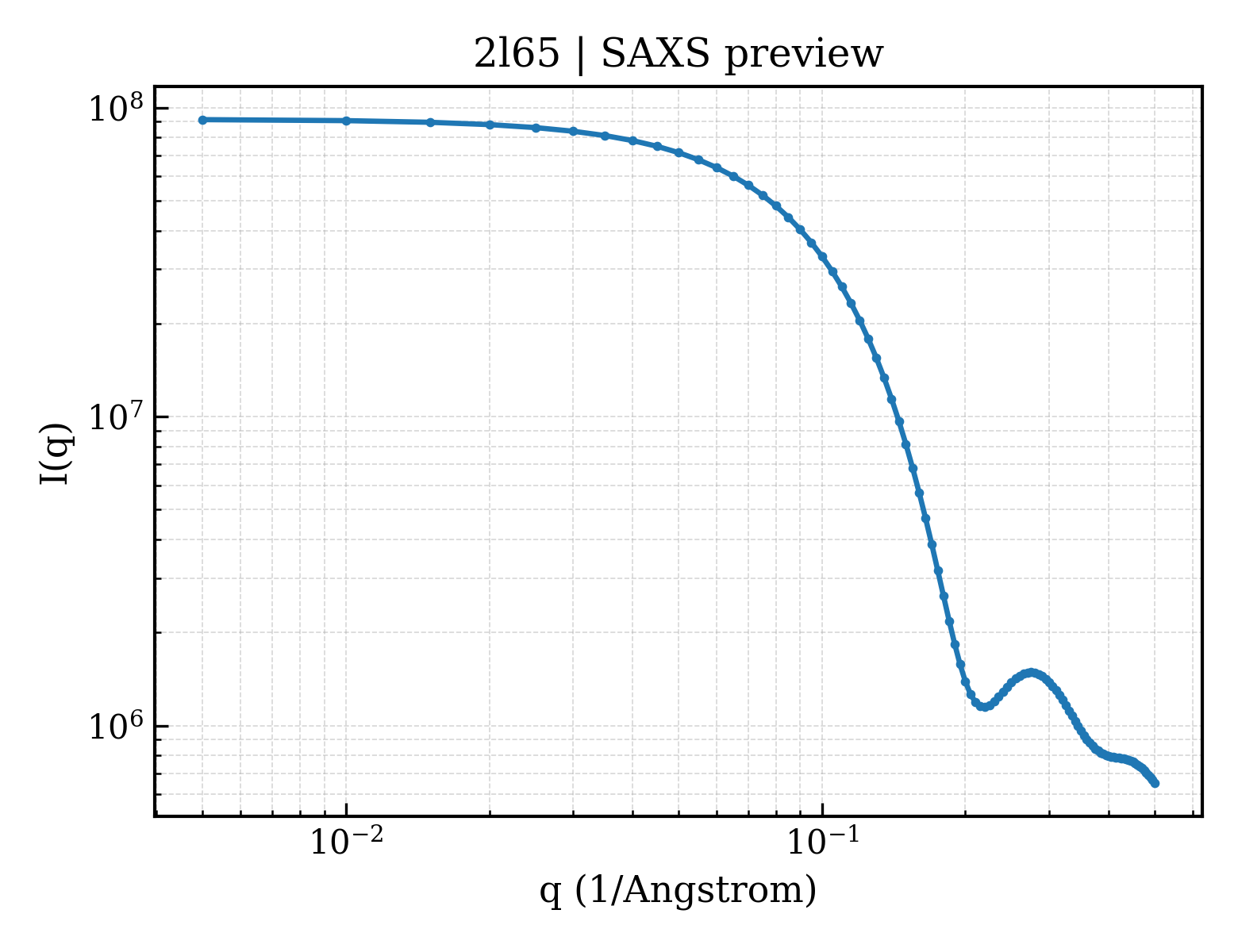

2l65__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2l65__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.95 Å
Rg (electron density)	16.70 Å
Total Rg	17.98 Å
Atom count	1658
Residues	155
Excluded volume	23893 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2l65__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`2l65__assembly_1__model_2`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`2l65__assembly_1__model_3`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`2l65__assembly_1__model_4`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	CalC
Molecular weight formula_weight	17915.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6632

NYDPFVRHSVTVKADRKTAFKTFLEGFPEWWPNNFRTTKVGAPLGVDKKGGRWYEIDEQGEEHTFGLIRKVDEPDTLVIGWRLNGFGRIDPDNSSEFTVTFVADGQKKTRVDVEHTHFDRMGTKHAKRVRNGMDKGWPTILQSFQDKIDEEGAKK

Source Source

Source organism organism	Micromonospora echinospora
NCBI taxonomy ID ncbi_taxonomy_id	1877
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	2,4-dideoxy-4-(ethylamino)-3-O-methyl-alpha-L-threo-pentopyranose-(1-2)-4-amino-4,6-dideoxy-beta-D-glucopyranose
Molecular weight formula_weight	320.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2,6-dideoxy-4-thio-beta-D-allopyranose
Molecular weight formula_weight	164.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	4-HYDROXY-5-IODO-2,3-DIMETHOXY-6-METHYLBENZOIC ACID
Molecular weight formula_weight	338.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	3-O-methyl-alpha-L-rhamnopyranose
Molecular weight formula_weight	178.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	[1,8-DIHYDROXY-11-OXO-13-(2-METHYLTRITHIO-ETHYLIDENE)-BICYCLO[7.3.1]TRIDECA-4,9-DIENE-2,6-DIYN-10-YL]-CARBAMIC ACID METHYL ESTER
Molecular weight formula_weight	407.5 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2l65a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.3 — Bet v1-like
Family Family family	d.129.3.5 — AHSA1 domain

CATH v4.4 (1 domains)

Domain ID domain_id	2l65A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	530 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 4
Homologous superfamily homologous superfamily	20 — START domain

▶

HADDOCK calculated model of the complex of the resistance protein CalC and Calicheamicin-Gamma
