1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase SMURF2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 297–333	Fragment：WW3 domain (UNP residues 297-333)	Smad7 derived peptide × 1 （O15105）	SOLUTION NMR NMR measurement conditions：pH 7.2；285 K；Pressure ambient NMR sample composition：1 mM SMURF2WW3, 2 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：1 mM [U-100% 13C; U-100% 15N] SMURF2WW3, 3 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2LTZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ZVD Regulation of Smurf2 Ubiquitin Ligase Activity by Anchoring the E2 to the HECT domain Deposited 2005-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 369–748（380 aa） Fragment：HECT Domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；Sodium Phosphate, Potassium Phosphate, and Sodium Acetate, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.248
2DJY Solution structure of Smurf2 WW3 domain-Smad7 PY peptide complex Deposited 2006-04-06	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 297–333（37 aa） Fragment：WW3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；298 K；Pressure 1	Resolution not provided
2JQZ Solution Structure of the C2 domain of human Smurf2 Deposited 2007-06-15	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 10–140（131 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；298 K；Ionic strength (raw mmCIF value) 0.2；Pressure ambient NMR sample composition 20 mM HEPES, 200 mM sodium chloride, 3 mM DTT, 0.03 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 20 mM hepes, 200 mM sodium chloride, 3 mM DTT, 0.03 % sodium azide, 100% D2O \| 100% D2O	Resolution not provided
2KXQ Solution Structure of Smurf2 WW2 and WW3 bound to Smad7 PY motif containing peptide Deposited 2010-05-11	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 250–333（84 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；298 K；Ionic strength (raw mmCIF value) 235；Pressure ambient NMR sample composition 1.2 mM [U-100% 13C; U-100% 15N] WW23, 1.2 mM [U-100% 13C; U-100% 15N] S7PY, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6FX4 Disulfide between E3 HECT ligase Smurf2 and Ubiquitin G76C Deposited 2018-03-08	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 631–745（115 aa）	Mutation：C646A, C706N, C743S	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1.36M tri-Sodium citrat pH6.5, 15% (v/v) Glycerol	Resolution 2.50 Å R-free 0.239
6FX4 Disulfide between E3 HECT ligase Smurf2 and Ubiquitin G76C Deposited 2018-03-08	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 631–745（115 aa）	Mutation：C646A, C706N, C743S	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1.36M tri-Sodium citrat pH6.5, 15% (v/v) Glycerol	Resolution 2.50 Å R-free 0.239
7M3Q Structure of the Smurf2 HECT Domain with a High Affinity Ubiquitin Variant (UbV) Deposited 2021-03-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 366–748（383 aa）	Not recorded	SO4 SULFATE ION × 2 NA SODIUM ION × 2 CL CHLORIDE ION × 6 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；1.5 M Ammonium Sulphate and 100 mM MES pH 6.0. Trypsin was added to the protein complex at a final concentration of 10 microgram per mL	Resolution 2.50 Å R-free 0.235
9FSH Crystal structure of the HECT domain of Smurf 2 in complex with inhibitor 8 Deposited 2024-06-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 251–748（498 aa）	Not recorded	TJQ ethyl 5-[1,3-benzodioxol-5-ylmethyl(ethyl)carbamoyl]-2,4-dimethyl-1~{H}-pyrrole-3-carboxylate × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.5 M NaH2PO4/K2HPO4 pH 6.8, 100 mM NaOAc	Resolution 2.08 Å R-free 0.259

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SMUF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–37； UniProt 297–333

Smad7 derived peptide

OrganismNot specified

UniProt O15105

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 203–217	Fragment：UNP residues 203-217	E3 ubiquitin-protein ligase SMURF2 × 1 （Q9HAU4）	SOLUTION NMR NMR measurement conditions：pH 7.2；285 K；Pressure ambient NMR sample composition：1 mM SMURF2WW3, 2 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：1 mM [U-100% 13C; U-100% 15N] SMURF2WW3, 3 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2LTZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2DJY Solution structure of Smurf2 WW3 domain-Smad7 PY peptide complex Deposited 2006-04-06	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 203–217（15 aa） Fragment：PY motif region	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；298 K；Pressure 1	Resolution not provided
2LTV YAP WW2 in complex with a Smad7 derived peptide Deposited 2012-06-04	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 206–217（12 aa） Fragment：UNP residues 206-217	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；285 K；Pressure ambient NMR sample composition 1 mM YAPWW2, 2 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] YAPWW2, 3 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LTW YAP WW1 in complex with a Smad7 derived peptide Deposited 2012-06-04	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 205–217（13 aa） Fragment：UNP residues 205-217	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；285 K；Pressure ambient NMR sample composition 1 mM YAPWW1, 2 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] YAPWW1, 3 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LTX Smurf1 WW2 domain in complex with a Smad7 derived peptide Deposited 2012-06-04	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 203–217（15 aa） Fragment：UNP residues 203-217	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；285 K；Pressure ambient NMR sample composition 1 mM SMURF1WW2, 2 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] SMURF1WW2, 3 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LTY NEDD4L WW2 domain in complex with a Smad7 derived peptide Deposited 2012-06-04	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 203–217（15 aa） Fragment：UNP residues 203-217	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；285 K；Pressure ambient NMR sample composition 1 mM NEDD4LWW2, 2 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] NEDD4LWW2, 3 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SMAD7_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–15； UniProt 203–217

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ltz
Deposition date deposition_date	2012-06-04
Structure title title	Smurf2 WW3 domain in complex with a Smad7 derived peptide
Keywords keywords	WW, SMURF2, SMAD7, PROTEIN BINDING-PEPTIDE complex; PROTEIN BINDING/PEPTIDE
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	10.53 Å
Radius of gyration Rg (electron density) rg_electron	10.42 Å
Forward intensity I(0) i0	219095000.00
Molecular weight molecular_weight	119530.0 kDa
Excluded volume excluded_volume	147080 Å³
Envelope volume envelope_volume	12220 Å³
Hydration-shell volume shell_volume	9020 Å³
Envelope diameter envelope_diameter	39.0 Å
Shell Rg shell_rg	17.15 Å
Envelope Rg envelope_rg	12.18 Å
Shape Rg shape_rg	10.35 Å
Total Rg total_rg	10.80 Å
Total atoms total_atoms	16400
Residues n_residues	1040
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

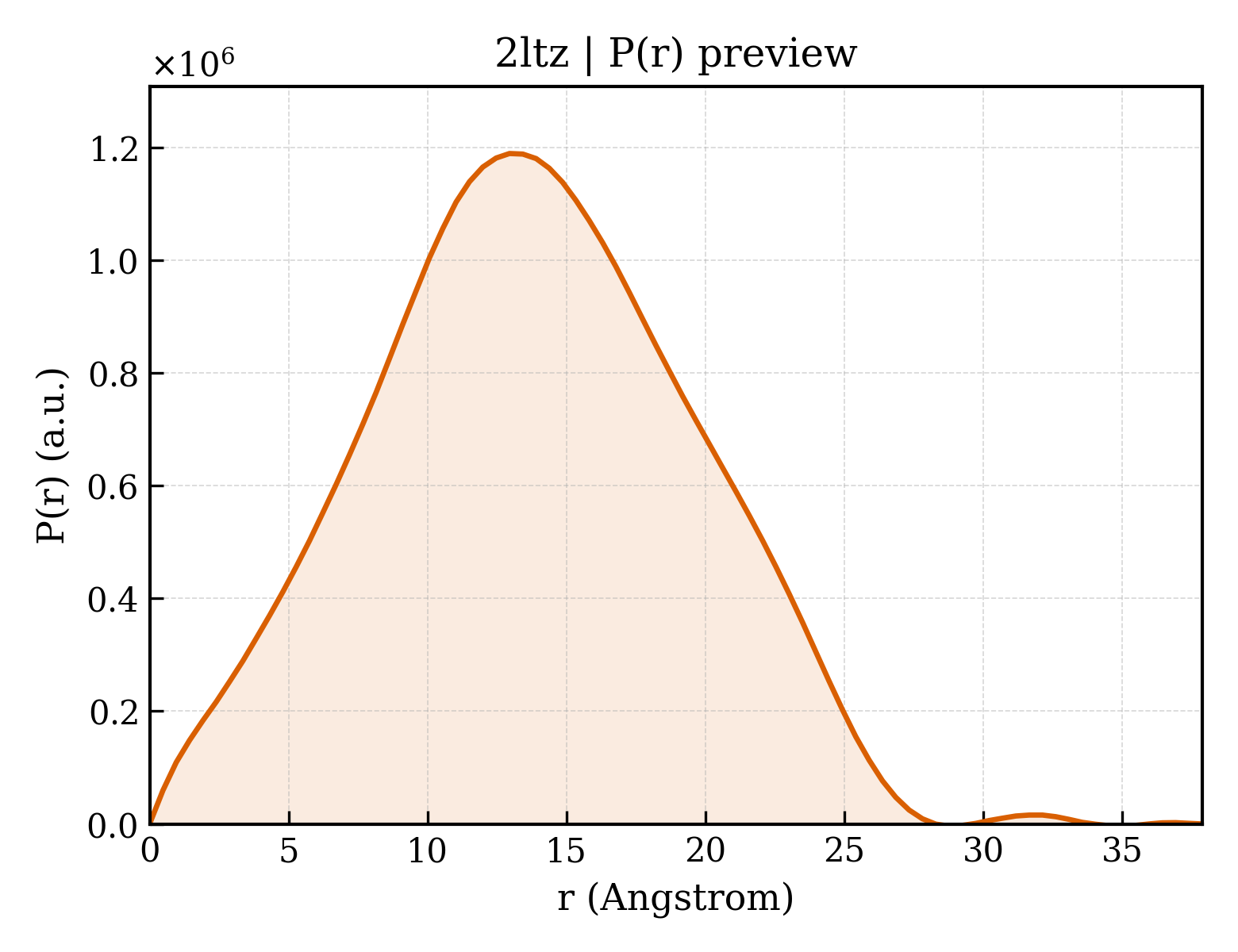

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	37.9 Å
Rg (real space) rg_real	10.47 Å
Rg uncertainty (real space) rg_real_error	0.51 Å
I(0) (real space) i0_real	2.1910e+08
I(0) uncertainty (real space) i0_real_error	2.6940e+06
Rg (reciprocal space) rg_reciprocal	10.47 Å
I(0) (reciprocal space) i0_reciprocal	219100000.0000
Solution quality estimate total_estimate	0.8439
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	12.9 Å
Skewness Skewness skewness	0.056
Kurtosis Kurtosis kurtosis	-0.436
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	52720.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.670; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.981

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Description description	E3 ubiquitin-protein ligase SMURF2
Molecular weight formula_weight	4204.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	16400

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	Smad7 derived peptide
Molecular weight formula_weight	1779.0 kDa
Source method src_method	syn
Copy count entity_count	1
