SAXSdb — 2mak

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Stromal interaction molecule 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 312–387 Chain C； UniProt 312–387	Fragment：UNP residues 312-387	Calcium release-activated calcium channel protein 1 × 2 （Q96D31）	SOLUTION NMR NMR measurement conditions：pH 5.5；308 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition：0.25 mM [U-100% 15N] protein_1, 3.0 mM protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.25 mM [U-99% 13C; U-99% 15N] protein_1, 3.0 mM protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.25 mM [U-99% 13C; U-99% 15N] protein_1, 3.0 mM protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 100% D2O \| 100% D2O NMR sample composition：2.5 mM protein_1, 0.25 mM [U-99% 15N] protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：2.5 mM protein_1, 0.25 mM [U-99% 13C; U-99% 15N] protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 100% D2O \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2MAK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2K60 NMR structure of calcium-loaded STIM1 EF-SAM Deposited 2008-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 58–201（144 aa） Fragment：UNP residues 58-201	Not recorded	CA CALCIUM ION × 1	SOLUTION NMR NMR measurement conditions pH 8；293 K；Ionic strength (raw mmCIF value) 105；Pressure 1 NMR measurement conditions 293 K；Ionic strength (raw mmCIF value) 105；Pressure 1 NMR sample composition 0.5-1.0 mM [U-100% 13C; U-100% 15N] stromal interaction molecule 1, 20 mM TRIS, 100 mM sodium chloride, 5 mM CALCIUM ION, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.5-1.0 mM [U-100% 13C; U-100% 15N] stromal interaction molecule 1, 20 mM [U-99% 2H] TRIS, 100 mM sodium chloride, 5 mM CALCIUM ION, 100% D2O \| 100% D2O	Resolution not provided
2MAJ Solution Structure of the STIM1 CC1-CC2 homodimer. Deposited 2013-07-12	Different oligomeric state Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 312–387（76 aa） Fragment：UNP residues 312-387 Chain C 312–387（76 aa） Fragment：UNP residues 312-387	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；308 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition 0.5 mM [U-99% 15N] protein, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N] protein, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N] protein, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N] protein, 0.5 mM protein, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 100% D2O \| 100% D2O	Resolution not provided
3TEQ Crystal structure of SOAR domain Deposited 2011-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 344–444（101 aa） Fragment：SOAR domain (UNP RESIDUES 344-444) Chain C 344–444（101 aa） Fragment：SOAR domain (UNP RESIDUES 344-444)	Mutation：L374M, V419A, C437T Mutation：L374M, V419A, C437T	PO4 PHOSPHATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.1M Bis-Tris pH 6.5, 10% PEG3350, 0.2M Ammonium dibasic phosphate, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.90 Å R-free 0.249
3TEQ Crystal structure of SOAR domain Deposited 2011-08-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 344–444（101 aa） Fragment：SOAR domain (UNP RESIDUES 344-444)	Mutation：L374M, V419A, C437T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.1M Bis-Tris pH 6.5, 10% PEG3350, 0.2M Ammonium dibasic phosphate, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.90 Å R-free 0.249
3TEQ Crystal structure of SOAR domain Deposited 2011-08-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain D 344–444（101 aa） Fragment：SOAR domain (UNP RESIDUES 344-444)	Mutation：L374M, V419A, C437T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.1M Bis-Tris pH 6.5, 10% PEG3350, 0.2M Ammonium dibasic phosphate, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.90 Å R-free 0.249
4O9B The Structure of CC1-IH in human STIM1. Deposited 2014-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340 Chain D 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340	Mutation：M244L, L321M Mutation：M244L, L321M	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；24% PEGMME 2000, 0.1M sodium acetate, 0.02M magnesium chloride hexahydrate, 0.02M nickel chloride hexahydrate, 0.02M cadmium chloride hexahydrate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.289
4O9B The Structure of CC1-IH in human STIM1. Deposited 2014-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340 Chain C 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340	Mutation：M244L, L321M Mutation：M244L, L321M	CD CADMIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；24% PEGMME 2000, 0.1M sodium acetate, 0.02M magnesium chloride hexahydrate, 0.02M nickel chloride hexahydrate, 0.02M cadmium chloride hexahydrate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.289
4O9B The Structure of CC1-IH in human STIM1. Deposited 2014-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340 Chain B 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340	Mutation：M244L, L321M Mutation：M244L, L321M	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；24% PEGMME 2000, 0.1M sodium acetate, 0.02M magnesium chloride hexahydrate, 0.02M nickel chloride hexahydrate, 0.02M cadmium chloride hexahydrate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.289
4O9B The Structure of CC1-IH in human STIM1. Deposited 2014-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340 Chain D 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340	Mutation：M244L, L321M Mutation：M244L, L321M	CD CADMIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；24% PEGMME 2000, 0.1M sodium acetate, 0.02M magnesium chloride hexahydrate, 0.02M nickel chloride hexahydrate, 0.02M cadmium chloride hexahydrate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.289
4O9B The Structure of CC1-IH in human STIM1. Deposited 2014-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340 Chain B 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340 Chain C 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340 Chain D 237–340（104 aa） Fragment：CC1-IH, UNP RESIDUES 237-340	Mutation：M244L, L321M Mutation：M244L, L321M Mutation：M244L, L321M Mutation：M244L, L321M	CD CADMIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；24% PEGMME 2000, 0.1M sodium acetate, 0.02M magnesium chloride hexahydrate, 0.02M nickel chloride hexahydrate, 0.02M cadmium chloride hexahydrate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.289
6YEL Stromal interaction molecule 1 coiled-coil 1 fragment Deposited 2020-03-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 234–343（110 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.25；310.15 K；Ionic strength (raw mmCIF value) 0.02；Pressure 1 NMR sample composition 0.3 mM [U-98% 13C; U-98% 15N] STIM1 CC1, 20 mM TRIS, 7 mM [U-13C] SDS, 90 % v/v H2O, 10 % v/v [U-99% 2H] H2O, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

5 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	STIM1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–82； UniProt 312–387 Author chain C； PDBConstruct 7–82； UniProt 312–387

Calcium release-activated calcium channel protein 1

Homo sapiens

UniProt Q96D31

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 272–292 Chain D； UniProt 272–292	Fragment：Orai1 C-terminal domain, UNP residues 272-292	Stromal interaction molecule 1 × 2 （Q13586）	SOLUTION NMR NMR measurement conditions：pH 5.5；308 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition：0.25 mM [U-100% 15N] protein_1, 3.0 mM protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.25 mM [U-99% 13C; U-99% 15N] protein_1, 3.0 mM protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.25 mM [U-99% 13C; U-99% 15N] protein_1, 3.0 mM protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 100% D2O \| 100% D2O NMR sample composition：2.5 mM protein_1, 0.25 mM [U-99% 15N] protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：2.5 mM protein_1, 0.25 mM [U-99% 13C; U-99% 15N] protein_2, 20 mM bis-TRIS, 0.175 v/v [U-99% 2H] TFE, 100% D2O \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2MAK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4EHQ Crystal Structure of Calmodulin Binding Domain of Orai1 in Complex with Ca2+/Calmodulin Displays a Unique Binding Mode Deposited 2012-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 69–88（20 aa）	Not recorded	CA CALCIUM ION × 4 GBL GAMMA-BUTYROLACTONE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M Bis-Tris pH 6.0, 40% PPG P400, 14% butyrolactone, 1% n-octyl-beta-D-glucopyranoside, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.216

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CRCM1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–23； UniProt 272–292 Author chain D； PDBConstruct 3–23； UniProt 272–292

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2mak
Deposition date deposition_date	2013-07-12
Structure title title	Solution structure of the STIM1 CC1-CC2 homodimer in complex with two Orai1 C-terminal domains.
Keywords keywords	STIM1, Orai1, coiled-coil, Orai1 C-terminal domain, TRANSPORT PROTEIN, SIGNALING PROTEIN-TRANSPORT PROTEIN complex; SIGNALING PROTEIN/TRANSPORT PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.47 Å
Radius of gyration Rg (electron density) rg_electron	20.39 Å
Forward intensity I(0) i0	3630160000.00
Molecular weight molecular_weight	493310.0 kDa
Excluded volume excluded_volume	610190 Å³
Envelope volume envelope_volume	62573 Å³
Hydration-shell volume shell_volume	22800 Å³
Envelope diameter envelope_diameter	79.6 Å
Shell Rg shell_rg	30.59 Å
Envelope Rg envelope_rg	24.46 Å
Shape Rg shape_rg	20.35 Å
Total Rg total_rg	20.66 Å
Total atoms total_atoms	69080
Residues n_residues	4200
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	71.5 Å
Rg (real space) rg_real	20.67 Å
Rg uncertainty (real space) rg_real_error	0.62 Å
I(0) (real space) i0_real	3.6300e+09
I(0) uncertainty (real space) i0_real_error	5.0730e+07
Rg (reciprocal space) rg_reciprocal	20.63 Å
I(0) (reciprocal space) i0_reciprocal	3630000000.0000
Solution quality estimate total_estimate	0.7422
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.4 Å
Skewness Skewness skewness	0.580
Kurtosis Kurtosis kurtosis	-0.234
Angular range angular_range	— – 0.3900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2334000.0000
Real-space data points n_real_points	71
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.642; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.719; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Stromal interaction molecule 1
Molecular weight formula_weight	9703.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	69080

GSHMASSRQKYAEEELEQVREALRKAEKELESHSSWYAPEALQKWLQLTHEVEVQYYNIKKQNAEKQLLVAKEGAEKIKKKR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Calcium release-activated calcium channel protein 1
Molecular weight formula_weight	2654.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GSELNELAEFARLQDQLDHRGDH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/ma/2mak/2mak.fit
pddf	/app/data/pr_computation/ma/2mak/2mak.pr.out
profile	/app/data/saxs_computation/ma/2mak/2mak.dat

Solution structure of the STIM1 CC1-CC2 homodimer in complex with two Orai1 C-terminal domains.

1. Protein Identity and Related Structures Protein Identity & Related Structures

Stromal interaction molecule 1

State in the Current Structure

Other States of the Same Protein in the Database

Calcium release-activated calcium channel protein 1

State in the Current Structure

Other States of the Same Protein in the Database

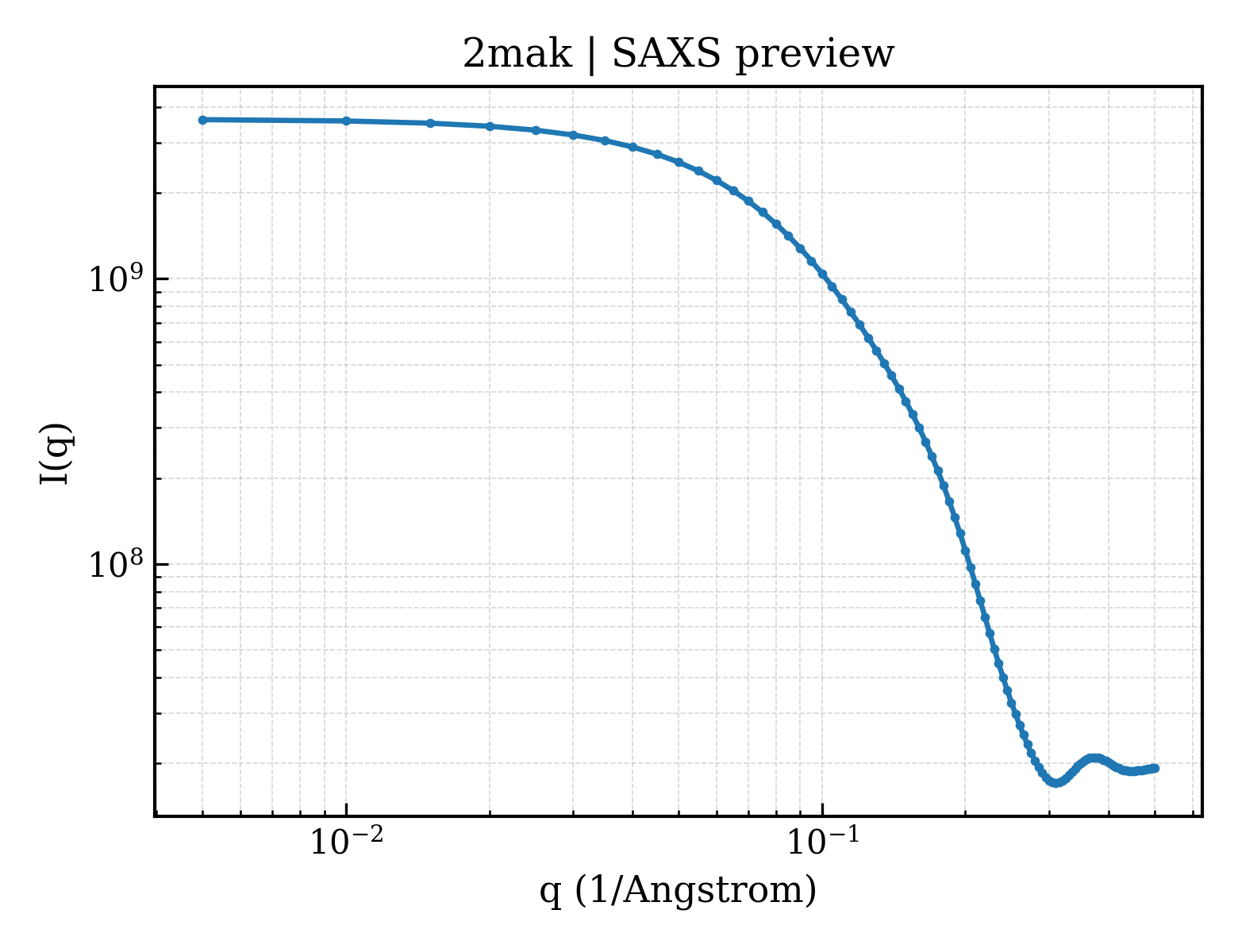

SAXS scattering curve SAXS Profile

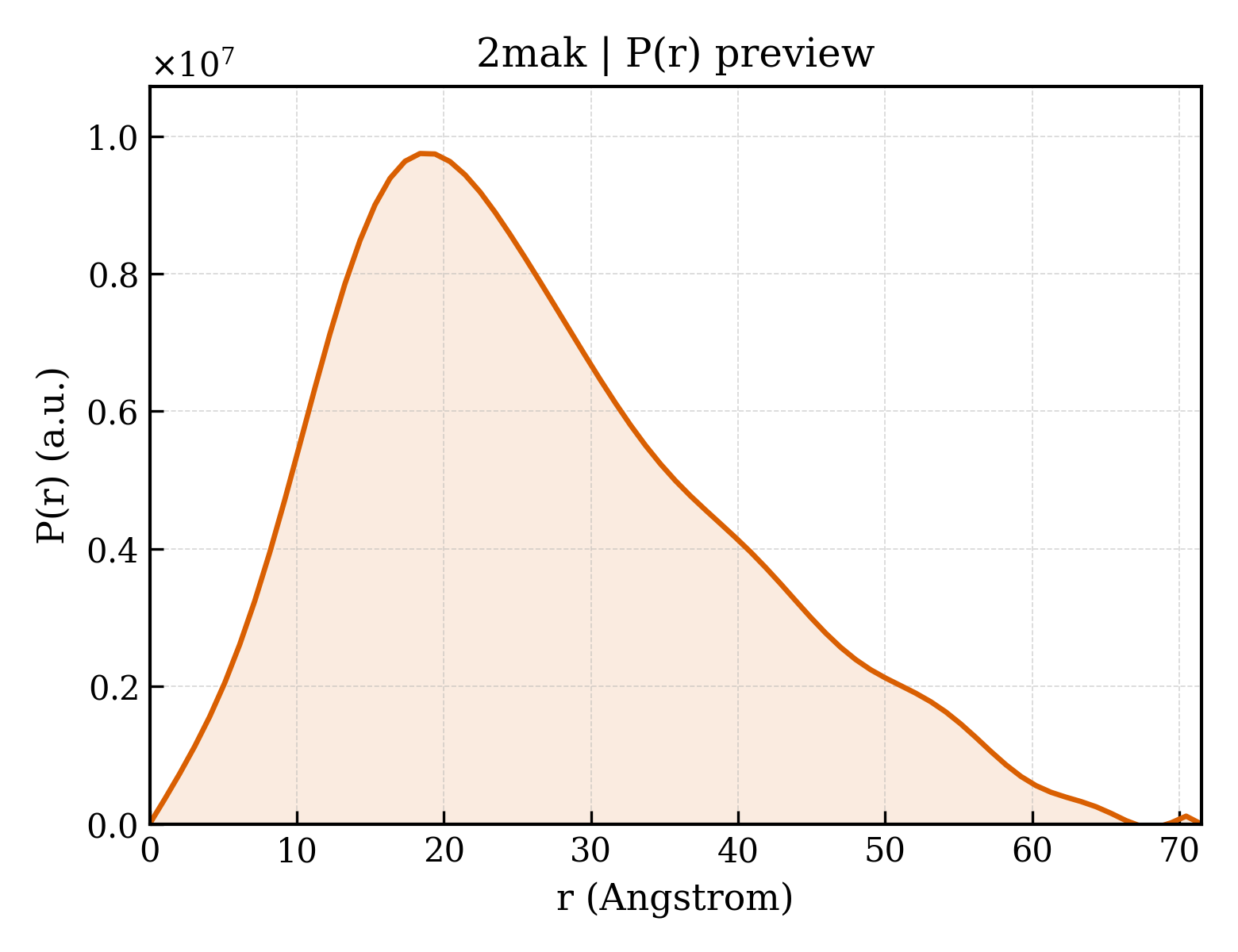

P(r) Distance Distribution P(r) Distribution
