2ode

Crystal structure of the heterodimeric complex of human RGS8 and activated Gi alpha 3

Method: X-RAY DIFFRACTION D_max: 97.8 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(k) subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 4–350	Not recorded	Regulator of G-protein signaling 8 × 1 （P57771） ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.20M NH4Cl, 20.0% PEG 6K, 10.0% EtGly, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.211
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 4–350	Not recorded	Regulator of G-protein signaling 8 × 1 （P57771） ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.20M NH4Cl, 20.0% PEG 6K, 10.0% EtGly, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ODE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2IHB Crystal structure of the heterodimeric complex of human RGS10 and activated Gi alpha 3 Deposited 2006-09-26	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 32–354（323 aa）	Not recorded	ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.2M (NH4)2SO4, 0.1M Bis-Tris, pH 5.5, 25% PEG3350 , VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.71 Å R-free 0.236
2V4Z The crystal structure of the human G-protein subunit alpha (GNAI3) in complex with an engineered regulator of G-protein signaling type 2 domain (RGS2) Deposited 2008-09-30	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4–350（347 aa） Fragment：SUBUNIT ALPHA, RESIDUES 4-350	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1 M HEPES PH 7.5, 2 M AMMONIUM SULPHATE	Resolution 2.80 Å R-free 0.254
4G5O Structure of LGN GL4/Galphai3(Q147L) complex Deposited 2012-07-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Mutation：Q147L	GDP GUANOSINE-5'-DIPHOSPHATE × 1 CIT CITRIC ACID × 2 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.244
4G5O Structure of LGN GL4/Galphai3(Q147L) complex Deposited 2012-07-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Mutation：Q147L	GDP GUANOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.244
4G5O Structure of LGN GL4/Galphai3(Q147L) complex Deposited 2012-07-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Mutation：Q147L	GDP GUANOSINE-5'-DIPHOSPHATE × 1 CIT CITRIC ACID × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.244
4G5O Structure of LGN GL4/Galphai3(Q147L) complex Deposited 2012-07-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Mutation：Q147L	GDP GUANOSINE-5'-DIPHOSPHATE × 1 CIT CITRIC ACID × 1 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.244
4G5R Structure of LGN GL4/Galphai3 complex Deposited 2012-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.48 Å R-free 0.253
4G5R Structure of LGN GL4/Galphai3 complex Deposited 2012-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 1 CIT CITRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.48 Å R-free 0.253
4G5R Structure of LGN GL4/Galphai3 complex Deposited 2012-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 1 CIT CITRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.48 Å R-free 0.253
4G5R Structure of LGN GL4/Galphai3 complex Deposited 2012-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.48 Å R-free 0.253
4G5S Structure of LGN GL3/Galphai3 complex Deposited 2012-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.62 Å R-free 0.253
4G5S Structure of LGN GL3/Galphai3 complex Deposited 2012-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.62 Å R-free 0.253
4G5S Structure of LGN GL3/Galphai3 complex Deposited 2012-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.62 Å R-free 0.253
4G5S Structure of LGN GL3/Galphai3 complex Deposited 2012-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 25–354（330 aa） Fragment：UNP RESIDUES 25-354	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；0.5M ammonium sulfate, 1.0M lithium sulfate monohydrate, 0.1M sodium citrate tribasic dihydrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.62 Å R-free 0.253
7E9H Cryo-EM structure of Gi-bound metabotropic glutamate receptor mGlu4 Deposited 2021-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–354（354 aa）	Mutation：S47N, F191D, G203A, E245A, A326S	SEP PHOSPHOSERINE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7KH0 Cryo-EM structure of the human arginine vasopressin AVP-vasopressin receptor V2R-Gs signaling complex Deposited 2020-10-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 2–18（17 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7RA3 cryo-EM of human Gastric inhibitory polypeptide receptor GIPR bound to GIP Deposited 2021-06-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–18（18 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
7RGP cryo-EM of human Glucagon-like peptide 1 receptor GLP-1R bound to tirzepatide Deposited 2021-07-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–18（18 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7T10 CryoEM structure of somatostatin receptor 2 in complex with somatostatin-14 and Gi3 Deposited 2021-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–354（354 aa）	Mutation：S47N, G203A, E245A, A326S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
7T11 CryoEM structure of somatostatin receptor 2 in complex with Octreotide and Gi3. Deposited 2021-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–354（354 aa）	Mutation：S47N, G203A, E245A, A326S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
7X6I Cryo-EM structure of the human TRPC5 ion channel in complex with G alpha i3 subunits, class1 Deposited 2022-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–119（119 aa） Chain E 120–354（235 aa） Chain F 1–119（119 aa） Chain F 120–354（235 aa） Chain G 1–119（119 aa） Chain G 120–354（235 aa） Chain H 1–119（119 aa） Chain H 120–354（235 aa）	Mutation：Q204L Mutation：Q204L Mutation：Q204L Mutation：Q204L Mutation：Q204L Mutation：Q204L Mutation：Q204L Mutation：Q204L	PTY PHOSPHATIDYLETHANOLAMINE × 4 Y01 CHOLESTEROL HEMISUCCINATE × 4 ZN ZINC ION × 4 CA CALCIUM ION × 4 YZY (2S)-2-(hexadecanoyloxy)-3-hydroxypropyl (9Z)-octadec-9-enoate × 4 GTP GUANOSINE-5'-TRIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.93 Å
8GVX Cryo-EM structure of the human TRPC5 ion channel in complex with G alpha i3 subunits, class2 Deposited 2022-09-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–354（354 aa） Chain F 1–354（354 aa） Chain G 1–354（354 aa） Chain H 1–354（354 aa）	Mutation：Q204L Mutation：Q204L Mutation：Q204L Mutation：Q204L	PTY PHOSPHATIDYLETHANOLAMINE × 4 Y01 CHOLESTEROL HEMISUCCINATE × 4 ZN ZINC ION × 4 CA CALCIUM ION × 4 YZY (2S)-2-(hexadecanoyloxy)-3-hydroxypropyl (9Z)-octadec-9-enoate × 4 GTP GUANOSINE-5'-TRIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.91 Å
8GY7 Cryo-EM structure of ACTH-bound melanocortin-2 receptor in complex with MRAP1 and Gs protein Deposited 2022-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–230（230 aa）	Not recorded	CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8JD6 Cryo-EM structure of Gi1-bound metabotropic glutamate receptor mGlu4 Deposited 2023-05-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–354（354 aa）	Not recorded	BK0 N-(3-chlorophenyl)pyridine-2-carboxamide × 1 SEP PHOSPHOSERINE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OY1 Structure of the human Guanine Nucleotide-Binding Protein G(K) Subunit Alpha Deposited 2023-05-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–350（320 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；0.1 M sodium MES at pH 6.5 containing 20% PEG 8000 and 0.2 M ammonium sulfate	Resolution 3.34 Å R-free 0.280
8SZH Cryo-EM structure of cinacalcet-bound human calcium-sensing receptor CaSR-Gi complex in lipid nanodiscs Deposited 2023-05-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–354（354 aa）	Not recorded	YP4 N-[(1R)-1-(naphthalen-1-yl)ethyl]-3-[3-(trifluoromethyl)phenyl]propan-1-amine × 2 PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 4 TRP TRYPTOPHAN × 2 PO4 PHOSPHATE ION × 2 SPM SPERMINE × 4 CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8SZI Cryo-EM structure of PAM-free human calcium-sensing receptor CaSR-Gi complex in lipid nanodiscs Deposited 2023-05-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–354（354 aa）	Mutation：S47N, G203A, E245A, A326S	PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 4 TRP TRYPTOPHAN × 3 PO4 PHOSPHATE ION × 2 CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8WGB mGlu2-4 heterodimer bound with Gi Deposited 2023-09-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: hexameric	Chain C 1–354（354 aa）	Not recorded	GLU GLUTAMIC ACID × 2 W9R (1R,2S)-2-[[3,5-bis(chloranyl)phenyl]carbamoyl]cyclohexane-1-carboxylic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8YK0 Cryo-EM structure of human GPR156-Gi3 complex Deposited 2024-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 6–354（349 aa）	Not recorded	MW9 (21R,24R,27S)-24,27,28-trihydroxy-18,24-dioxo-19,23,25-trioxa-24lambda~5~-phosphaoctacosan-21-yl (9Z)-octadec-9-enoate × 4 CLR CHOLESTEROL × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
9AVL Structure of human calcium-sensing receptor in complex with Gi3 protein in nanodiscs Deposited 2024-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–354（354 aa）	Mutation：S47N, G203A, E245A, A326S	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 TCR CYCLOMETHYLTRYPTOPHAN × 2 PO4 PHOSPHATE ION × 2 CA CALCIUM ION × 6 9IG 3-(2-chlorophenyl)-N-[(1R)-1-(3-methoxyphenyl)ethyl]propan-1-amine × 2 Y01 CHOLESTEROL HEMISUCCINATE × 1 A1AF7 (19R,22S,25R)-22,25,26-trihydroxy-16,22-dioxo-17,21,23-trioxa-22lambda~5~-phosphahexacosan-19-yl (9Z)-octadec-9-enoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；The sample was blotted for 6s before plunge-frozen.	Resolution 3.80 Å
9VJ6 Cryo-EM structure of 5-HT1AR-Gi3 in complex with F-15599 Deposited 2025-06-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–354（354 aa）	Not recorded	A1ESC (3-chloranyl-4-fluoranyl-phenyl)-[4-fluoranyl-4-[[(5-methylpyrimidin-2-yl)methylamino]methyl]piperidin-1-yl]methanone × 1 CLR CHOLESTEROL × 2 T7M (2R)-1-(heptadecanoyloxy)-3-{[(R)-hydroxy{[(1R,2R,3R,4R,5S,6R)-2,3,5,6-tetrahydroxy-4-(phosphonooxy)cyclohexyl]oxy}phosphoryl]oxy}propan-2-yl (5Z,8Z,11Z,14Z)-icosa-5,8,11,14-tetraenoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.62 Å
9VJF Cryo-EM structure of 5-HT1AR-Gi3 in complex with buspirone Deposited 2025-06-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–354（354 aa）	Not recorded	CLR CHOLESTEROL × 2 T7M (2R)-1-(heptadecanoyloxy)-3-{[(R)-hydroxy{[(1R,2R,3R,4R,5S,6R)-2,3,5,6-tetrahydroxy-4-(phosphonooxy)cyclohexyl]oxy}phosphoryl]oxy}propan-2-yl (5Z,8Z,11Z,14Z)-icosa-5,8,11,14-tetraenoate × 1 YLX Buspirone × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9WXM Cryo-EM structure of the full-length GPR15L bound GPR15-Gi complex Deposited 2025-09-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–354（354 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å

24 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GNAI3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–349； UniProt 4–350 Author chain C； PDBConstruct 3–349； UniProt 4–350

Regulator of G-protein signaling 8

Homo sapiens

UniProt P57771

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 42–180	Fragment：residues 42-180	Guanine nucleotide-binding protein G(k) subunit alpha × 1 （P08754） ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.20M NH4Cl, 20.0% PEG 6K, 10.0% EtGly, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.211
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 42–180	Fragment：residues 42-180	Guanine nucleotide-binding protein G(k) subunit alpha × 1 （P08754） ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.20M NH4Cl, 20.0% PEG 6K, 10.0% EtGly, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.211

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2ODE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2IHD Crystal structure of Human Regulator of G-protein signaling 8, RGS8 Deposited 2006-09-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 42–173（132 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.20M NaI; 20.0% PEG 3350; 10.0% Ethylene Glycol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.70 Å R-free 0.211
5DO9 Structure of regulator of G protein signaling 8 (RGS8) in complex with AlF4-activated Galpha-q Deposited 2015-09-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 60–191（132 aa） Fragment：RGS Domain	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277.15 K；Ammonium acetate, BisTris pH 5.5, PEG 8000	Resolution 2.60 Å R-free 0.226
5DO9 Structure of regulator of G protein signaling 8 (RGS8) in complex with AlF4-activated Galpha-q Deposited 2015-09-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 60–191（132 aa） Fragment：RGS Domain	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277.15 K；Ammonium acetate, BisTris pH 5.5, PEG 8000	Resolution 2.60 Å R-free 0.226
5DO9 Structure of regulator of G protein signaling 8 (RGS8) in complex with AlF4-activated Galpha-q Deposited 2015-09-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 60–191（132 aa） Fragment：RGS Domain	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277.15 K；Ammonium acetate, BisTris pH 5.5, PEG 8000	Resolution 2.60 Å R-free 0.226
5DO9 Structure of regulator of G protein signaling 8 (RGS8) in complex with AlF4-activated Galpha-q Deposited 2015-09-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 60–191（132 aa） Fragment：RGS Domain	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277.15 K；Ammonium acetate, BisTris pH 5.5, PEG 8000	Resolution 2.60 Å R-free 0.226
5DO9 Structure of regulator of G protein signaling 8 (RGS8) in complex with AlF4-activated Galpha-q Deposited 2015-09-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 60–191（132 aa） Fragment：RGS Domain	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277.15 K；Ammonium acetate, BisTris pH 5.5, PEG 8000	Resolution 2.60 Å R-free 0.226
5DO9 Structure of regulator of G protein signaling 8 (RGS8) in complex with AlF4-activated Galpha-q Deposited 2015-09-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 60–191（132 aa） Fragment：RGS Domain	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277.15 K；Ammonium acetate, BisTris pH 5.5, PEG 8000	Resolution 2.60 Å R-free 0.226

2 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RGS8_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–141； UniProt 42–180 Author chain D； PDBConstruct 3–141； UniProt 42–180

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

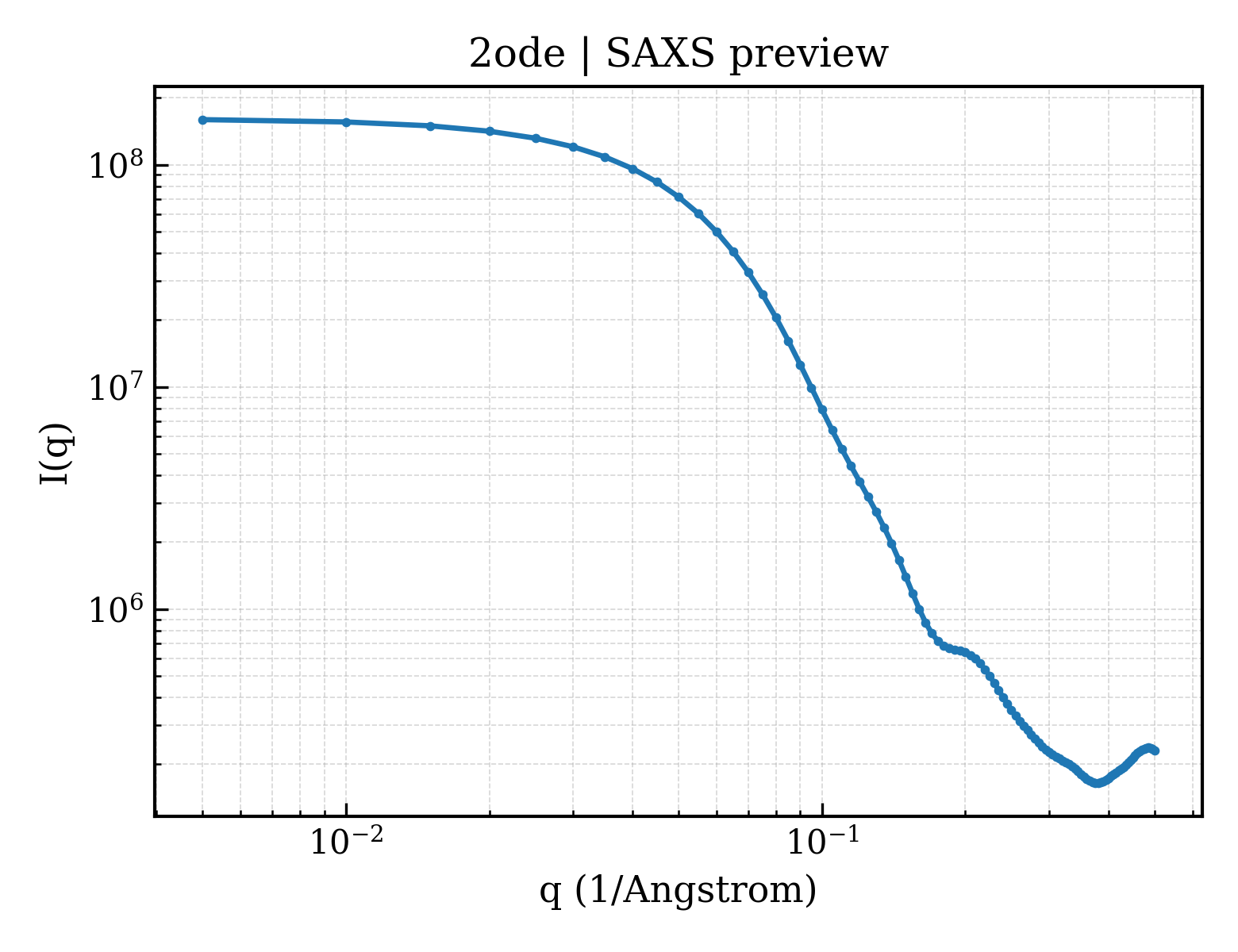

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ode
Deposition date deposition_date	2006-12-22
Structure title title	Crystal structure of the heterodimeric complex of human RGS8 and activated Gi alpha 3
Keywords keywords	;G protein signalling, RGS, heterotrimeric G protein, signalling complex, Structural Genomics, Structural Genomics Consortium, SGC, SIGNALING PROTEIN ;; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.05 Å
Radius of gyration Rg (electron density) rg_electron	30.37 Å
Forward intensity I(0) i0	160894000.00
Molecular weight molecular_weight	100240.0 kDa
Excluded volume excluded_volume	125020 Å³
Envelope volume envelope_volume	155920 Å³
Hydration-shell volume shell_volume	41831 Å³
Envelope diameter envelope_diameter	98.6 Å
Shell Rg shell_rg	38.33 Å
Envelope Rg envelope_rg	30.22 Å
Shape Rg shape_rg	30.39 Å
Total Rg total_rg	30.98 Å
Total atoms total_atoms	7048
Residues n_residues	880
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.8 Å
Rg (real space) rg_real	30.95 Å
Rg uncertainty (real space) rg_real_error	0.69 Å
I(0) (real space) i0_real	1.6090e+08
I(0) uncertainty (real space) i0_real_error	2.4250e+06
Rg (reciprocal space) rg_reciprocal	31.00 Å
I(0) (reciprocal space) i0_reciprocal	160900000.0000
Solution quality estimate total_estimate	0.9051
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	36.4 Å
Skewness Skewness skewness	0.238
Kurtosis Kurtosis kurtosis	-0.528
Angular range angular_range	— – 0.2550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	30090000.0000
Real-space data points n_real_points	52
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.935; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.957

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(k) subunit alpha
Molecular weight formula_weight	40162.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	7749

SMTLSAEDKAAVERSKMIDRNLREDGEKAAKEVKLLLLGAGESGKSTIVKQMKIIHEDGYSEDECKQYKVVVYSNTIQSIIAIIRAMGRLKIDFGEAARADDARQLFVLAGSAEEGVMTPELAGVIKRLWRDGGVQACFSRSREYQLNDSASYYLNDLDRISQSNYIPTQQDVLRTRVKTTGIVETHFTFKDLYFKMFDVGGQRSERKKWIHCFEGVTAIIFCVALSDYDLVLAEDEEMNRMHESMKLFDSICNNKWFTETSIILFLNKKDLFEEKIKRSPLTICYPEYTGSNTYEEAAAYIQCQFEDLNRRKDTKEIYTHFTCATDTKNVQFVFDAVTDVIIKNNLKES

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Regulator of G-protein signaling 8
Molecular weight formula_weight	16618.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

SMLKRLSTEEATRWADSFDVLLSHKYGVAAFRAFLKTEFSEENLEFWLACEEFKKTRSTAKLVSKAHRIFEEFVDVQAPREVNIDFQTREATRKNLQEPSLTCFDQAQGKVHSLMEKDSYPRFLRSKMYLDLLSQSQRRLS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	TETRAFLUOROALUMINATE ION
Molecular weight formula_weight	103.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	655

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2odeb_
Class class	a — All alpha proteins
Fold Fold fold	a.91 — Regulator of G-protein signaling, RGS
Superfamily Superfamily superfamily	a.91.1 — Regulator of G-protein signaling, RGS
Family Family family	a.91.1.1 — Regulator of G-protein signaling, RGS

Domain ID domain_id	d2oded_
Class class	a — All alpha proteins
Fold Fold fold	a.91 — Regulator of G-protein signaling, RGS
Superfamily Superfamily superfamily	a.91.1 — Regulator of G-protein signaling, RGS
Family Family family	a.91.1.1 — Regulator of G-protein signaling, RGS

CATH v4.4 (8 domains)

Domain ID domain_id	2odeA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2odeA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	400 — GI Alpha 1, domain 2-like
Homologous superfamily homologous superfamily	10 — GI Alpha 1, domain 2-like

Domain ID domain_id	2odeB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	196 — Regulator of G-protein Signalling 4; domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2odeB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	167 — Regulator of G-protein Signalling 4; domain 2
Homologous superfamily homologous superfamily	10 — Regulator of G-protein Signalling 4, domain 2

Domain ID domain_id	2odeC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2odeC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	400 — GI Alpha 1, domain 2-like
Homologous superfamily homologous superfamily	10 — GI Alpha 1, domain 2-like

Domain ID domain_id	2odeD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	196 — Regulator of G-protein Signalling 4; domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2odeD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	167 — Regulator of G-protein Signalling 4; domain 2
Homologous superfamily homologous superfamily	10 — Regulator of G-protein Signalling 4, domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	112.837 Å
Unit-cell length b length_b	130.216 Å
Unit-cell length c length_c	68.519 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	29.400 Å
R factor r_factor	0.1815
R_work r_work	0.1799
R_free r_free	0.2110

fit	/app/data/saxs_computation/od/2ode/2ode.fit
pddf	/app/data/pr_computation/od/2ode/2ode.pr.out
profile	/app/data/saxs_computation/od/2ode/2ode.dat

Crystal structure of the heterodimeric complex of human RGS8 and activated Gi alpha 3

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(k) subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Regulator of G-protein signaling 8

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
