SAXSdb — 2ovq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

S-phase kinase-associated protein 1A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	F-box/WD repeat protein 7 × 1 （Q969H0） cyclinE C-terminal degron × 1 SULFATE ION × 8 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 12	F-box/WD repeat protein 7 × 4 （Q969H0） cyclinE C-terminal degron × 4 SULFATE ION × 32 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SKP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–135； UniProt 1–163

F-box/WD repeat protein 7

Homo sapiens

UniProt Q969H0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	S-phase kinase-associated protein 1A × 1 （P63208） cyclinE C-terminal degron × 1 SULFATE ION × 8 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 12	S-phase kinase-associated protein 1A × 4 （P63208） cyclinE C-terminal degron × 4 SULFATE ION × 32 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FBXW7_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–445； UniProt 263–707

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ovq
Deposition date deposition_date	2007-02-14
Structure title title	Structure of the Skp1-Fbw7-CyclinEdegC complex
Keywords keywords	F-box; WD40 domains; double phosphorylation, TRANSCRIPTION-CELL CYCLE COMPLEX; TRANSCRIPTION/CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ovq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ovq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

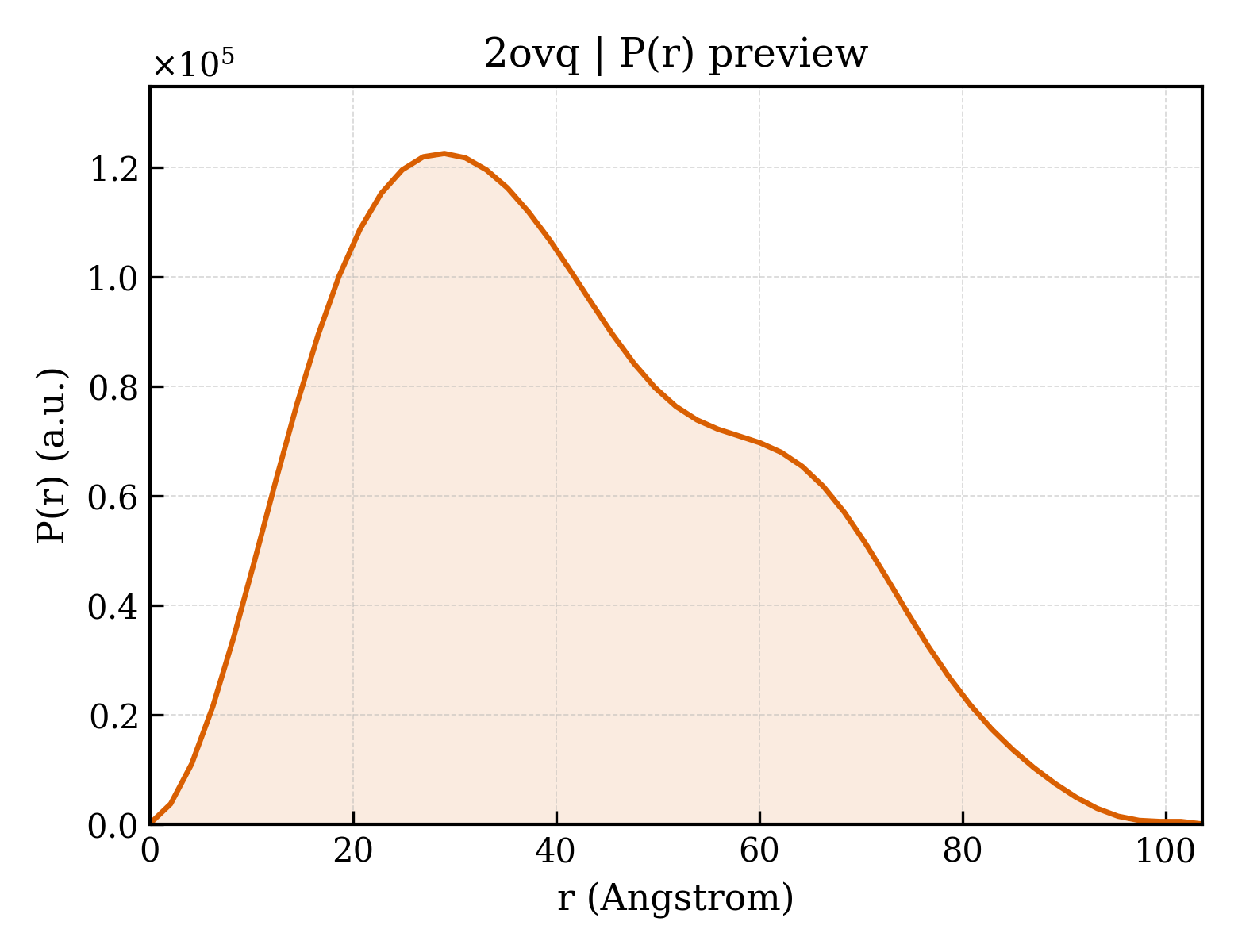

2ovq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.59 Å
Rg (electron density)	31.41 Å
Total Rg	31.98 Å
Atom count	4718
Residues	588
Excluded volume	83684 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ovq__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ovq__assembly_2__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	S-phase kinase-associated protein 1A
Molecular weight formula_weight	16853.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4896

MPSIKLQSSDGEIFEVDVEIAKQSVTIKTMLEDLGMDPVPLPNVNAAILKKVIQWCTHHKDDPGGSGTDDIPVWDQEFLKVDQGTLFELILAANYLDIKGLLDVTCKTVANMIKGKTPEEIRKTFNIKNDFTEEEEAQVRKENQWCEEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	F-box/WD repeat protein 7
Molecular weight formula_weight	50279.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

TQVKHMMQVIEPQFQRDFISLLPKELALYVLSFLEPKDLLQAAQTCRYWRILAEDNLLWREKCKEEGIDEPLHIKRRKVIKPGFIHSPWKSAYIRQHRIDTNWRRGELKSPKVLKGHDDHVITCLQFCGNRIVSGSDDNTLKVWSAVTGKCLRTLVGHTGGVWSSQMRDNIIISGSTDRTLKVWNAETGECIHTLYGHTSTVRCMHLHEKRVVSGSRDATLRVWDIETGQCLHVLMGHVAAVRCVQYDGRRVVSGAYDFMVKVWDPETETCLHTLQGHTNRVYSLQFDGIHVVSGSLDTSIRVWDVETGNCIHTLTGHQSLTSGMELKDNILVSGNADSTVKIWDIKTGQCLQTLQGPNKHQSAVTCLQFNKNFVITSSDDGTVKLWDLKTGEFIRNLVTLESGGSGGVVWRIRASNTKLVCAVGSRNGTEETKLLVLDFDVDMK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	cyclinE C-terminal degron
Molecular weight formula_weight	1326.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

LPSGLLTPPQSG

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	178

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2ovqa1
Class class	a — All alpha proteins
Fold Fold fold	a.157 — Skp1 dimerisation domain-like
Superfamily Superfamily superfamily	a.157.1 — Skp1 dimerisation domain-like
Family Family family	a.157.1.1 — Skp1 dimerisation domain-like

Domain ID domain_id	d2ovqa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.1 — BTB/POZ domain

Domain ID domain_id	d2ovqb1
Class class	a — All alpha proteins
Fold Fold fold	a.158 — F-box domain
Superfamily Superfamily superfamily	a.158.1 — F-box domain
Family Family family	a.158.1.1 — F-box domain

Domain ID domain_id	d2ovqb2
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.4 — WD40 repeat-like
Family Family family	b.69.4.1 — WD40-repeat

CATH v4.4 (3 domains)

Domain ID domain_id	2ovqA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	2ovqB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2ovqB02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

Unit-cell length a length_a	233.066 Å
Unit-cell length b length_b	233.066 Å
Unit-cell length c length_c	107.563 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	19.760 Å
R factor r_factor	0.2320
R_work r_work	0.2320
R_free r_free	0.2660
