SAXSdb — 2pjw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uncharacterized protein YHL002W

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 288–375	Non-standard monomer：Yes (specific site not provided by mmCIF)	Vacuolar protein sorting-associated protein 27 × 1 （P40343）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.85；288 K；1.1-1.4 M ammonium sulfate, 0.1 M Tris-HCl. Then micro-seeding into 1.25 M ammonium sulfate, 0.1 M Tris-HCl, pH 8.85, VAPOR DIFFUSION, SITTING DROP, temperature 288K	Resolution 3.01 Å R-free 0.285
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain H； UniProt 288–375	Non-standard monomer：Yes (specific site not provided by mmCIF)	Vacuolar protein sorting-associated protein 27 × 2 （P40343）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.85；288 K；1.1-1.4 M ammonium sulfate, 0.1 M Tris-HCl. Then micro-seeding into 1.25 M ammonium sulfate, 0.1 M Tris-HCl, pH 8.85, VAPOR DIFFUSION, SITTING DROP, temperature 288K	Resolution 3.01 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	YHA2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain H； PDBConstruct 1–88； UniProt 288–375

Vacuolar protein sorting-associated protein 27

Saccharomyces cerevisiae

UniProt P40343

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain V； UniProt 348–438	Non-standard monomer：Yes (specific site not provided by mmCIF)	Uncharacterized protein YHL002W × 1 （P38753）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.85；288 K；1.1-1.4 M ammonium sulfate, 0.1 M Tris-HCl. Then micro-seeding into 1.25 M ammonium sulfate, 0.1 M Tris-HCl, pH 8.85, VAPOR DIFFUSION, SITTING DROP, temperature 288K	Resolution 3.01 Å R-free 0.285
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain V； UniProt 348–438	Non-standard monomer：Yes (specific site not provided by mmCIF)	Uncharacterized protein YHL002W × 2 （P38753）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.85；288 K；1.1-1.4 M ammonium sulfate, 0.1 M Tris-HCl. Then micro-seeding into 1.25 M ammonium sulfate, 0.1 M Tris-HCl, pH 8.85, VAPOR DIFFUSION, SITTING DROP, temperature 288K	Resolution 3.01 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2PJW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1O06 Crystal structure of the Vps27p Ubiquitin Interacting Motif (UIM) Deposited 2003-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 301–320（20 aa） Fragment：Residues 301-320	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.08M sodium cacodylate, 0.16M zinc acetate, 10.4% PEG-8000, 20% glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.0K	Resolution 1.45 Å R-free 0.224
1O06 Crystal structure of the Vps27p Ubiquitin Interacting Motif (UIM) Deposited 2003-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 301–320（20 aa） Fragment：Residues 301-320	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.08M sodium cacodylate, 0.16M zinc acetate, 10.4% PEG-8000, 20% glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.0K	Resolution 1.45 Å R-free 0.224
1O06 Crystal structure of the Vps27p Ubiquitin Interacting Motif (UIM) Deposited 2003-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 301–320（20 aa） Fragment：Residues 301-320	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.08M sodium cacodylate, 0.16M zinc acetate, 10.4% PEG-8000, 20% glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.0K	Resolution 1.45 Å R-free 0.224
1Q0V Solution Structure of Tandem UIMs of Vps27 Deposited 2003-07-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 249–329（81 aa） Fragment：Tandem UIM	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate, pH 6.0, 0.2% NaN3；Pressure 1 NMR sample composition 1 mM Vps27 UIM U-15N \| 90% H2O/10% D2O NMR sample composition 1 mM Vps27 UIM U-15N,U-13C \| 100% D2O	Resolution not provided
1Q0W Solution structure of Vps27 amino-terminal UIM-ubiquitin complex Deposited 2003-07-17	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 256–279（24 aa） Fragment：Amino-terminal UIM, residues 256 to 278	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate, pH 6.0, 0.2% NaN3；Pressure 1 NMR sample composition 1 mM U-15N,13C Ubiquitin + 1 mM Vps27 amino-terminal UIM \| 90% H2O/10% D2O NMR sample composition 1 mM U-15N,13C Ubiquitin + 1 mM Vps27 amino-terminal UIM \| 100% D2O	Resolution not provided
1VFY PHOSPHATIDYLINOSITOL-3-PHOSPHATE BINDING FYVE DOMAIN OF VPS27P PROTEIN FROM SACCHAROMYCES CEREVISIAE Deposited 1999-04-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 163–230（68 aa） Fragment：163-229, FYVE DOMAIN	Mutation：6 RESIDUES (EFIVTD) INSERTED AT C-TERMINUS	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；0.2 M AMMONIUM ACETATE, 0.1 M SODIUM ACETATE PH 4.6, 15% PEG 4000, pH 5.6	Resolution 1.15 Å R-free 0.181
2KDI Solution structure of a Ubiquitin/UIM fusion protein Deposited 2009-01-09	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 258–277（20 aa） Fragment：UIM 1	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；300 K；Ionic strength (raw mmCIF value) 0.103；Pressure ambient NMR sample composition 1.24 mM [U-100% 13C; U-100% 15N] Ubiquitin/UIM fusion protein-1, 3 mM sodium azide-2, 20 mM sodium phosphate-3, 50 mM sodium chloride-4, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1.1 mM [U-100% 15N] Ubiquitin/UIM fusion protein-5, 3 mM sodium azide-6, 20 mM sodium phosphate-7, 50 mM sodium chloride-8, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.5 mM [U-100% 15N] Ubiquitin/UIM fusion protein-9, 3 mM sodium azide-10, 20 mM sodium phosphate-11, 50 mM sodium chloride-12, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
3R42 Crystal structure of the yeast vps23 UEV domain in complex with a vps27 PSDP peptide Deposited 2011-03-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 445–453（9 aa） Fragment：PSDP peptide (UNP residues 445-453)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；288 K；0.2 M sodium phosphate monobasic, 20% PEG3350, pH 7.3, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.87 Å R-free 0.203
3R42 Crystal structure of the yeast vps23 UEV domain in complex with a vps27 PSDP peptide Deposited 2011-03-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 445–453（9 aa） Fragment：PSDP peptide (UNP residues 445-453)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；288 K；0.2 M sodium phosphate monobasic, 20% PEG3350, pH 7.3, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.87 Å R-free 0.203
6NJG Ubiquitin Variant in Complex with Ubiquitin Interacting Motif Deposited 2019-01-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 256–278（23 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；2.1 M DL-Malic acid	Resolution 2.35 Å R-free 0.244

7 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VPS27_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain V； PDBConstruct 1–91； UniProt 348–438

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2pjw
Deposition date deposition_date	2007-04-16
Structure title title	The Vps27/Hse1 complex is a GAT domain-based scaffold for ubiquitin-dependent sorting
Keywords keywords	GAT domain, Core complex, Doamin Swap, ENDOCYTOSIS-EXOCYTOSIS COMPLEX; ENDOCYTOSIS/EXOCYTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.31 Å
Radius of gyration Rg (electron density) rg_electron	26.46 Å
Forward intensity I(0) i0	8442670.00
Molecular weight molecular_weight	20803.0 kDa
Excluded volume excluded_volume	25507 Å³
Envelope volume envelope_volume	32372 Å³
Hydration-shell volume shell_volume	12509 Å³
Envelope diameter envelope_diameter	98.4 Å
Shell Rg shell_rg	28.33 Å
Envelope Rg envelope_rg	27.21 Å
Shape Rg shape_rg	26.49 Å
Total Rg total_rg	26.60 Å
Total atoms total_atoms	1429
Residues n_residues	171
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

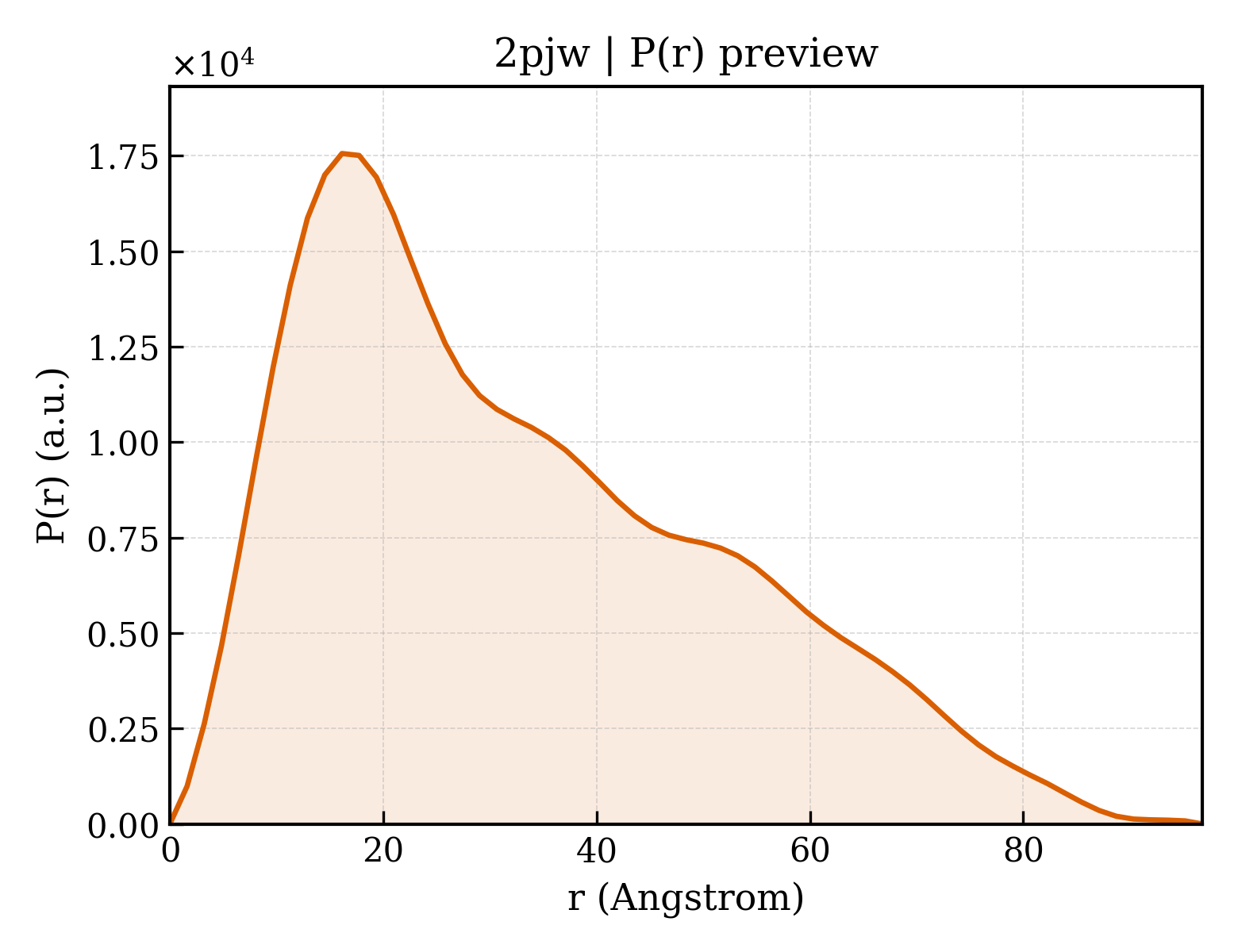

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.8 Å
Rg (real space) rg_real	26.93 Å
Rg uncertainty (real space) rg_real_error	1.33 Å
I(0) (real space) i0_real	8.4430e+06
I(0) uncertainty (real space) i0_real_error	1.5000e+05
Rg (reciprocal space) rg_reciprocal	26.74 Å
I(0) (reciprocal space) i0_reciprocal	8442000.0000
Solution quality estimate total_estimate	0.6545
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	16.1 Å
Skewness Skewness skewness	0.634
Kurtosis Kurtosis kurtosis	-0.463
Angular range angular_range	— – 0.3000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	868800.0000
Real-space data points n_real_points	61
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.171; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.018; Smooth: 0.976

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Uncharacterized protein YHL002W
Molecular weight formula_weight	10049.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	1458

KEAIVFSQKTTIDQLHNSLNAASKTGNSNEVLQDPHIGDMYGSVTPLRPQVTRMLGKYAKEKEDMLSLRQVLANAERSYNQLMDRAAN

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Vacuolar protein sorting-associated protein 27
Molecular weight formula_weight	10770.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	V

VDLSDEEKDSIYMFASLVEKMKSRPLNEILEDSKLQNLAQRVFASKARLNYALNDKAQKYNTLIEMNGKISEIMNIYDRLLEQQLQSINLS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	29

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2pjwH00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1940 —

Domain ID domain_id	2pjwV00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1940 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	62.400 Å
Unit-cell length b length_b	62.400 Å
Unit-cell length c length_c	94.560 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	3.010 Å
Low-resolution limit resolution_low	46.920 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2850

fit	/app/data/saxs_computation/pj/2pjw/2pjw.fit
pddf	/app/data/pr_computation/pj/2pjw/2pjw.pr.out
profile	/app/data/saxs_computation/pj/2pjw/2pjw.dat
