SAXSdb — 1o06

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vacuolar protein sorting-associated protein VPS27

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 3 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 6 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VPS27_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–20； UniProt 301–320

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o06
Deposition date deposition_date	2003-02-20
Structure title title	Crystal structure of the Vps27p Ubiquitin Interacting Motif (UIM)
Keywords keywords	alpha-helix, coiled-coil, tetramer, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o06__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

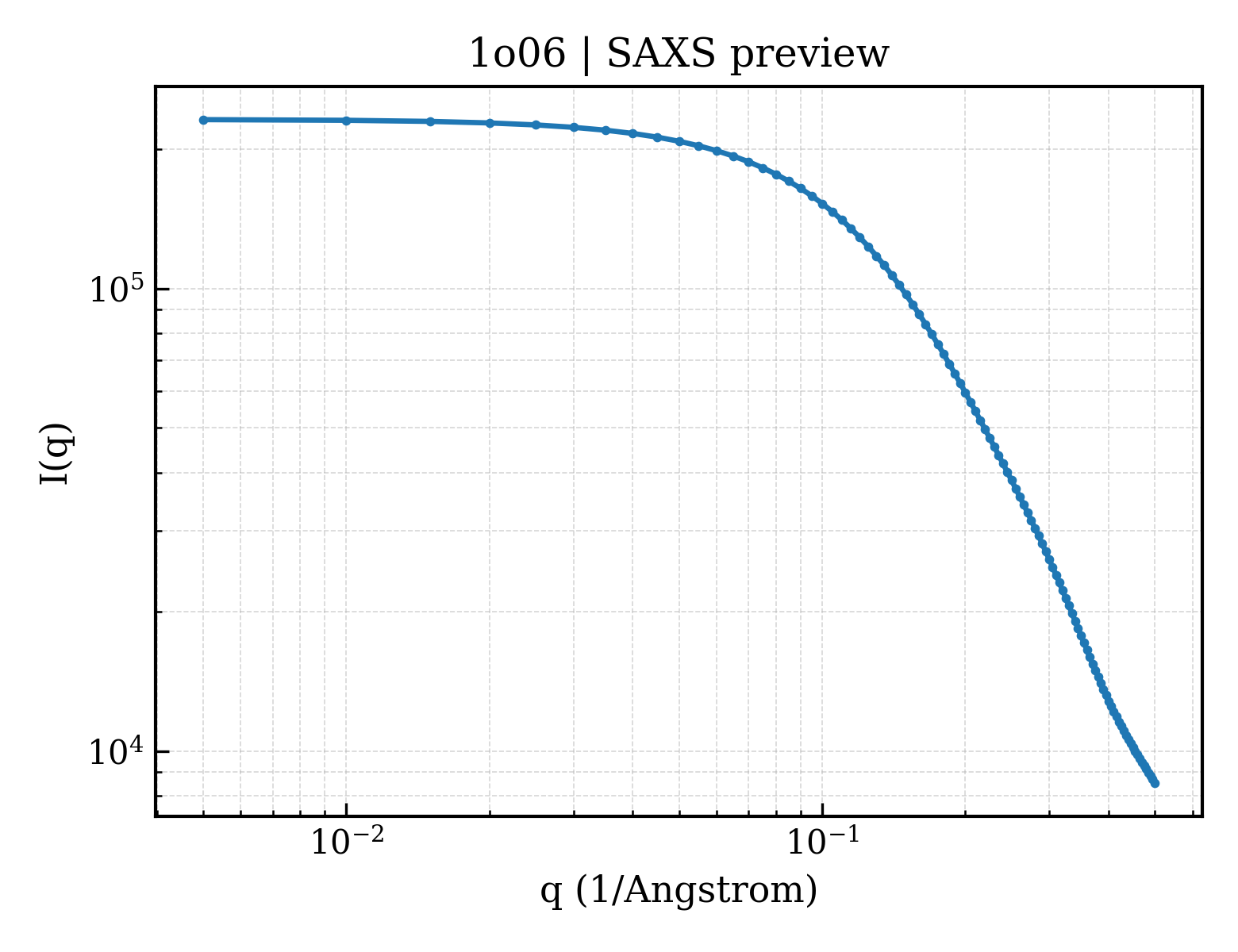

1o06__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

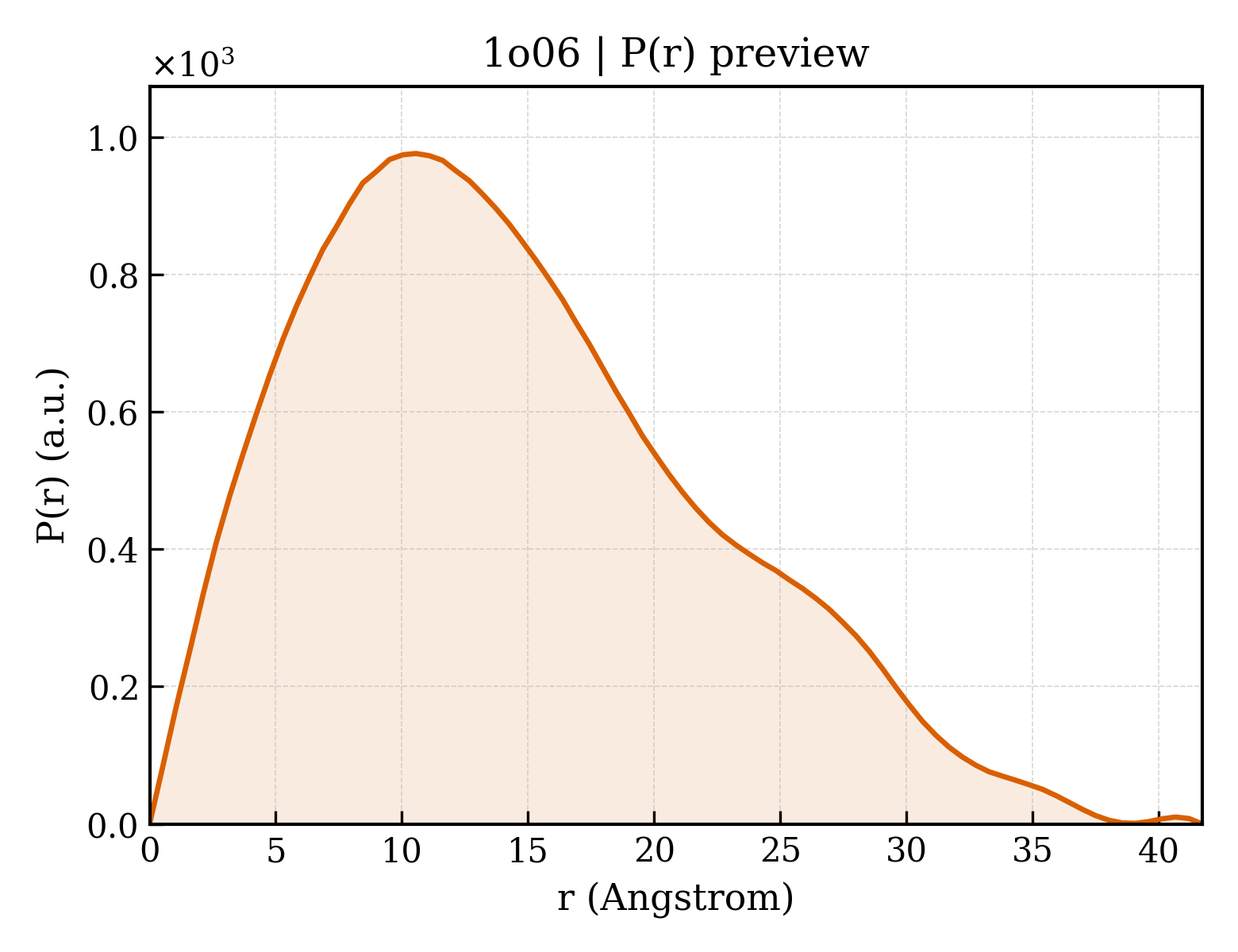

1o06__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	11.29 Å
Rg (electron density)	10.23 Å
Total Rg	11.67 Å
Atom count	160
Residues	20
Excluded volume	2797 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o06__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1o06__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1o06__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1o06a_
Class class	j — Peptides
Fold Fold fold	j.105 — Ubiquitin interacting motif (UIM)
Superfamily Superfamily superfamily	j.105.1 — Ubiquitin interacting motif (UIM)
Family Family family	j.105.1.1 — Ubiquitin interacting motif (UIM)

▶

Unit-cell length a length_a	34.967 Å
Unit-cell length b length_b	34.967 Å
Unit-cell length c length_c	64.243 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 62 2 2
Space-group number int_tables_number	180
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	30.290 Å
R factor r_factor	0.1888
R_work r_work	0.1853
R_free r_free	0.2239

Description description	Vacuolar protein sorting-associated protein VPS27
Molecular weight formula_weight	2245.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	205

Crystal structure of the Vps27p Ubiquitin Interacting Motif (UIM)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vacuolar protein sorting-associated protein VPS27

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1o06__assembly_1__model_1

1o06__assembly_1__model_1 | I(q)

1o06__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

7. Citations (1)

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	26
